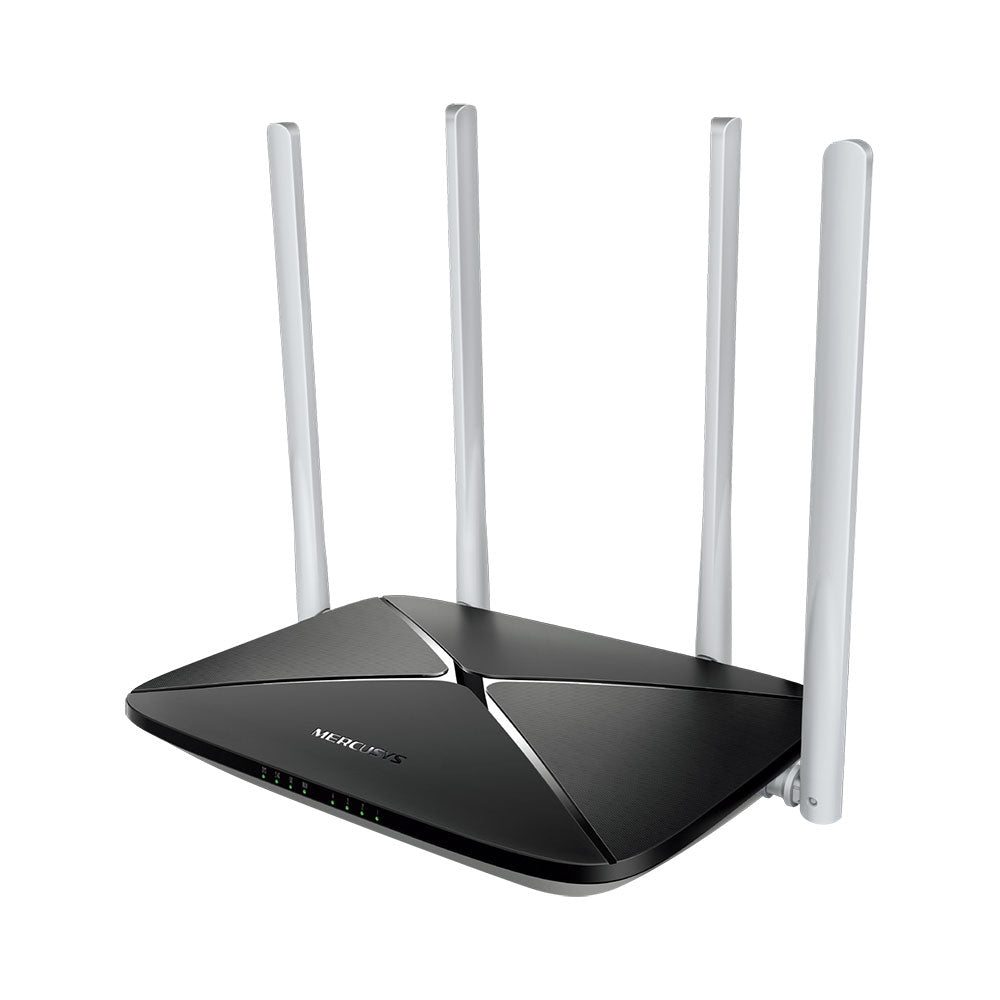

Mercusys AC12 AC1200 Dual Band Wireless Router
The AC12 creates a reliable, blazing-fast Wi-Fi network using the powerful 802.11ac Wi-Fi standard, 3x faster than wireless N speeds.
More and more devices use the ac standard, and the right router can being their Wi-Fi performance to full potential.
With its advanced wireless speed, the AC12 is the superior choice for faster, stronger Wi-Fi.
Features
- Supports 802.11ac standard - the next generation of Wi-Fi
- Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi
- 4 External Antennas Greatly Expand Wireless Coverage
- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
- Easy installation - intuitive webpage guides you through the setup process in minutes
Specifications
- Dimensions: (W X D X H): 222mm x 140mm x 32mm
- External Power Supply: 9VDC/0.85A
- Antenna Type: 4 x 5dBi omni directional antennas
- Signal Rate:
- 11ac: Up to 867Mbps (Dynamic)
- 11n: Up to 300Mbps (Dynamic)
- 11g: Up to 54Mbps (Dynamic)
- 11b: Up to 11Mbps (Dynamic)
- Button: Reset button
- Wireless Standards: IEEE 802.11ac、IEEE 802.11n、IEEE 802.11g、IEEE 802.11b、IEEE 802.3、IEEE 802.3u
- Frequency: 2.390 ~ 2.4835GHz 5.150 ~ 5.825GHz
- Reception Sensitivity: 11b CCK 1 -96, 11g OFDM 6 -93, 11n HT20 MCS7 -73, 11n HT40 MCS7 -70, 11a OFDM 6 -92, 11ac VHT20 MCS8 -68, 11ac VHT40 MCS9 -64, 11ac VHT80 MCS9 -60
- Interfaces: 4 10/100Mbps
- LAN ports: 1 10/100Mbps WAN port
- Certifications: CE, ROHS
- Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
- Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
- Operating humidity: 10% ~ 90%, non-condensing
- Storage humidity: 5% ~ 90%, non-condensing
- Transmission Power: <20dBm
- Wireless Security: WPA-PSK / WPA2-PSK
- Wireless Functions: WDS bridge
- WAN Type: Dynamic IP/Static IP/PPPoE
- Management: Access control, Local management, Remote management
- DHCPServer: Port Forwarding, Virtual server, UPnP, DMZ Dynamic DNSOray
- Firewall Security: IP and MAC address binding
- Protocols: IPv4
- Guest Network: 2.4GHz guest network
