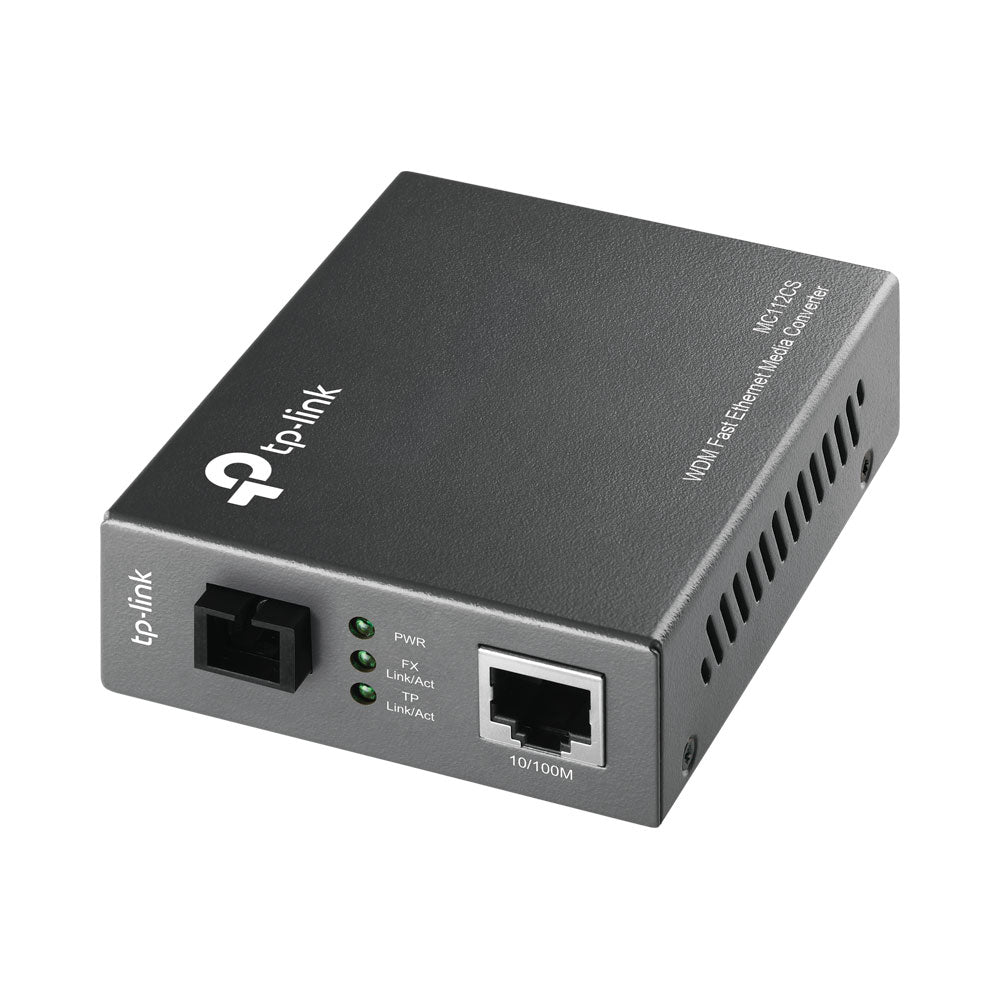

TP-Link Omada MC112CS 10/100Mbps WDM Media Converter
Long-Distance Fibre Connectivity with Efficient WDM Technology.
The TP-Link MC112CS WDM Media Converter provides reliable conversion between 10/100Mbps Ethernet and single-mode fibre using WDM (Wavelength Division Multiplexing) technology. By transmitting and receiving data over a single fibre strand, it simplifies fibre deployment while maintaining stable long-distance network performance.
Features
- Fast Ethernet Media Conversion - Converts 10/100Mbps Ethernet to single-mode fibre for extended network connectivity
- WDM Technology - Transmits and receives data over a single fibre strand to simplify fibre infrastructure
- Long-Range Fibre Transmission - Supports fibre distances up to 20km
- Auto-Negotiation Support - Automatically detects optimal speed and duplex settings
- Reliable Data Transmission - IEEE 802.3x flow control ensures stable and efficient network performance
- Plug-and-Play - Simple installation with no configuration required
Specifications
Standards And Protocols
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
Basic Function
- Auto-Negotiation of Half-Duplex / Full-Duplex Transfer Mode
- Full Duplex Flow Control (IEEE 802.3x)
- Half Duplex Flow Control (Back Pressure)
- WDM Transmission on a Single Fibre
- Extends Fibre Distance up to 20km
Ports
- 1× 100M SC/PC Port
- 1× 10/100M RJ45 Port (Auto MDI/MDIX)
Wave Length
Network Media 10Base-T
- UTP CAT3, 4, 5 Cable (Max. 100m)
- EIA/TIA-568 100Ω STP (Max. 100m)
Network Media 100Base-Tx
- UTP CAT5, 5e Cable (Max. 100m)
- EIA/TIA-568 100Ω STP (Max. 100m)
Network Media 100Base-Fx
Led Indicators
Dimensions (W × D × H)
Power Supply
Max. Power Consumption
Safety And Emission
