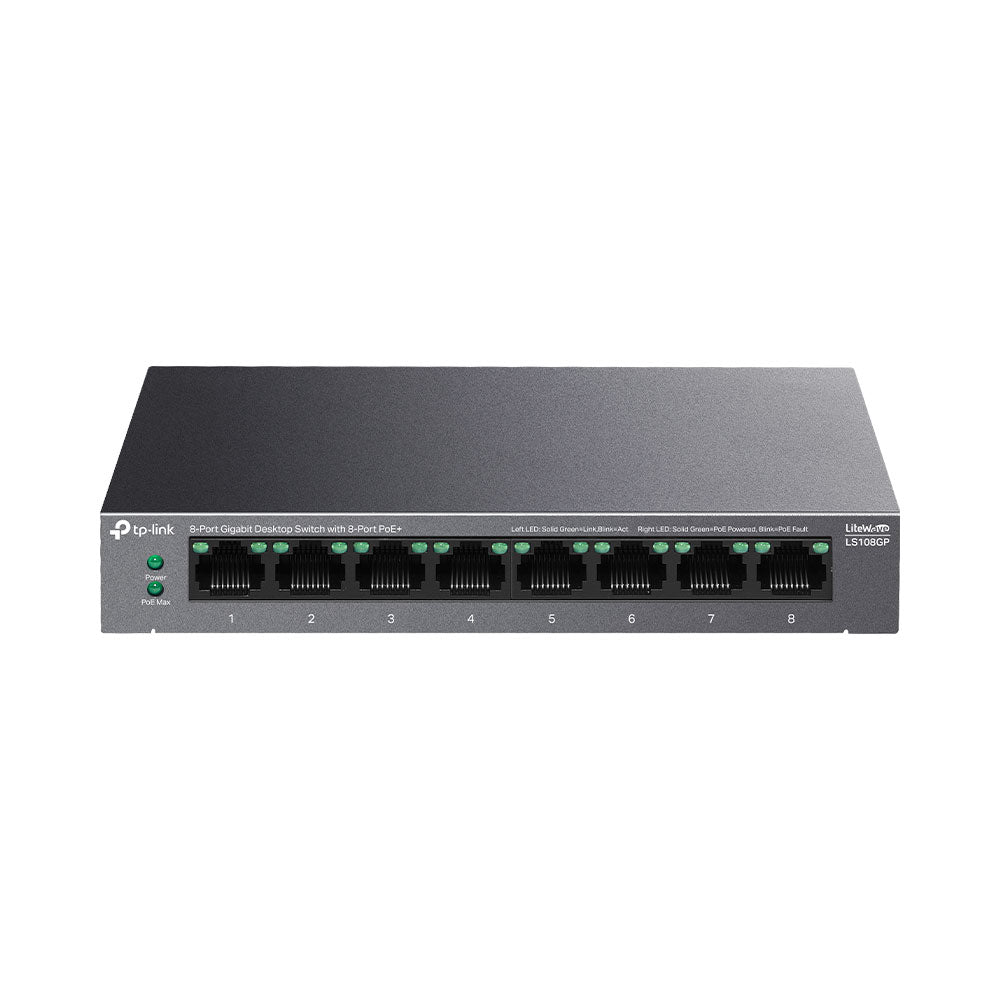

TP-Link LiteWave LS108GP 8-Port Gigabit Desktop Switch with 8-Port PoE+
Power over Ethernet, Flexible Network Deployment.
The TP-Link LiteWave LS108GP Gigabit Desktop Switch provides fast wired connectivity and integrated PoE+ power for up to eight devices. With 8? Gigabit Ethernet ports supporting PoE+, it delivers both data and power over a single cable - ideal for IP cameras, access points and VoIP phones. Designed for simple deployment, the LS108GP features plug-and-play installation, a durable metal housing and a fanless design for silent operation. With a generous PoE power budget and reliable Gigabit performance, it?s the perfect solution for expanding small business or home office networks.
Features
- Full Gigabit Ports - Eight Gigabit auto-negotiation ports provide up to 16Gbps switching capacity.
- 62W PoE Budget - Eight Gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points and IP phones via a single cable. Up to 30W PoE output is supported by each PoE port.
- Up to 250m PoE Transmission - With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery - Automatically reboots your dropped or unresponsive PoE-powered devices.
- Plug-and-Play - Simply plug and play for instant connectivity with no configuration required.
- Silent Operation - Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design - Durable metal casing and desktop/wall-mounting design makes it well-suited for different environments.
Specifications
Hardware Features
- Interface: 8× 10/100/1000Mbps Auto-Negotiation RJ45 Ports (Ports 1–8 support 802.3af/at PoE+)
- Auto MDI/MDIX: Supported
- Network Media:
- 10BASE-T: UTP CAT3, 4, 5 Cable (Max. 100m); EIA/TIA-568 100Ω STP (Max. 100m)
- 100BASE-TX: UTP CAT5, 5e Cable (Max. 100m); EIA/TIA-568 100Ω STP (Max. 100m)
- 1000BASE-T: UTP CAT5, 5e, 6 or Above Cable (Max. 100m); EIA/TIA-568 100Ω STP (Max. 100m)
- Fan Quantity: Fanless

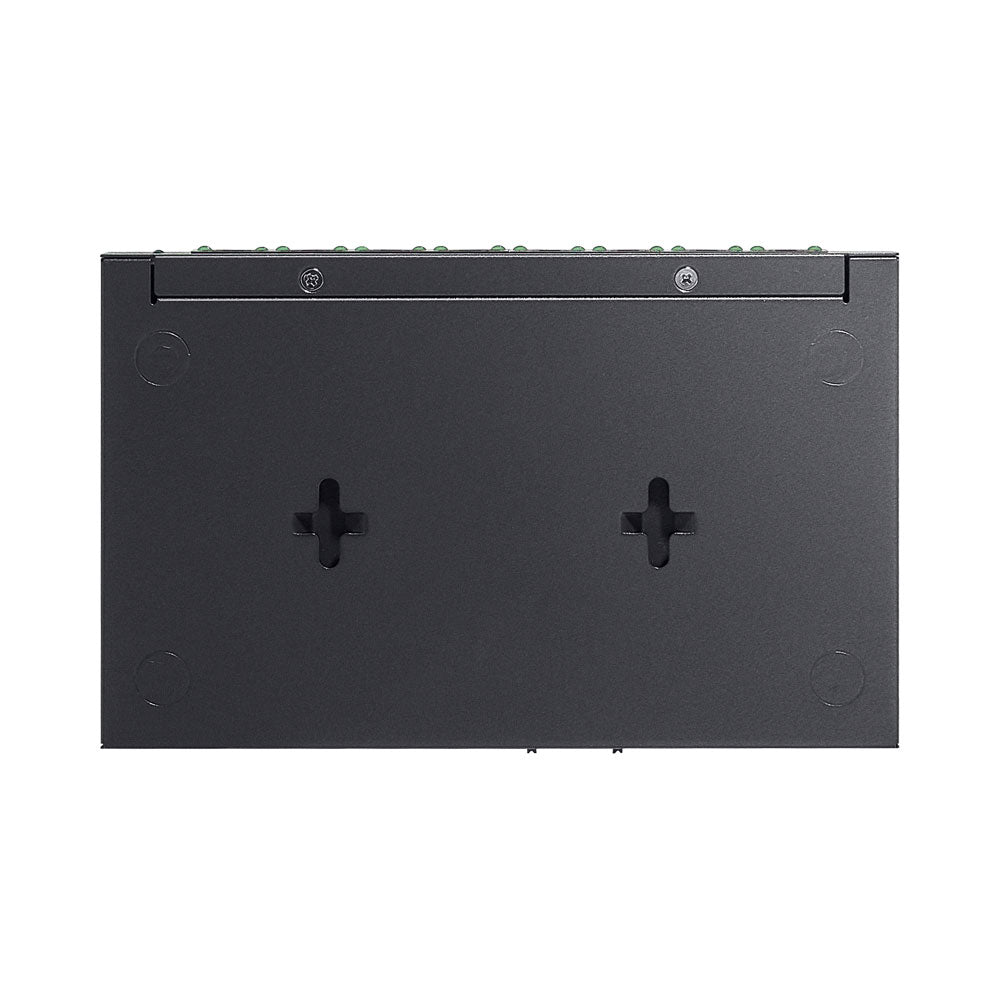

- Installation: Desktop / Wall Mounting
- Power Supply: External Power Adapter (Output 53.5VDC 1.31A)
Poe Features
- PoE Standard: IEEE 802.3af/at Compliant
- PoE Ports: Ports 1–8
- Maximum PoE Output per Port: 30W
- Total PoE Budget: 62W
Dimensions
- (W × D × H): 158 × 99 × 25mm
Max. Power Consumption
- 5.53W (220V 50Hz, no PD Connected)
- 71.61W (220V 50Hz, with 62W PD Connected)
Max. Heat Dissipation
- 18.81 BTU/h (220V 50Hz, no PD Connected)
- 243.47 BTU/h (220V 50Hz, with 62W PD Connected)
Performance
- Switching Capacity: 16Gbps
- Packet Forwarding Rate: 11.9Mpps
- MAC Address Table: 4K
- Jumbo Frame: 16KB
Advanced Features
- Extend Mode Button (Ports 1~2, up to 250m PoE Power Supply and Data Transmission)
- PoE Auto Recovery Button (Ports 1–8)
- MAC Address Auto-Learning and Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Green Ethernet Technology
Transfer Method
Certification
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
