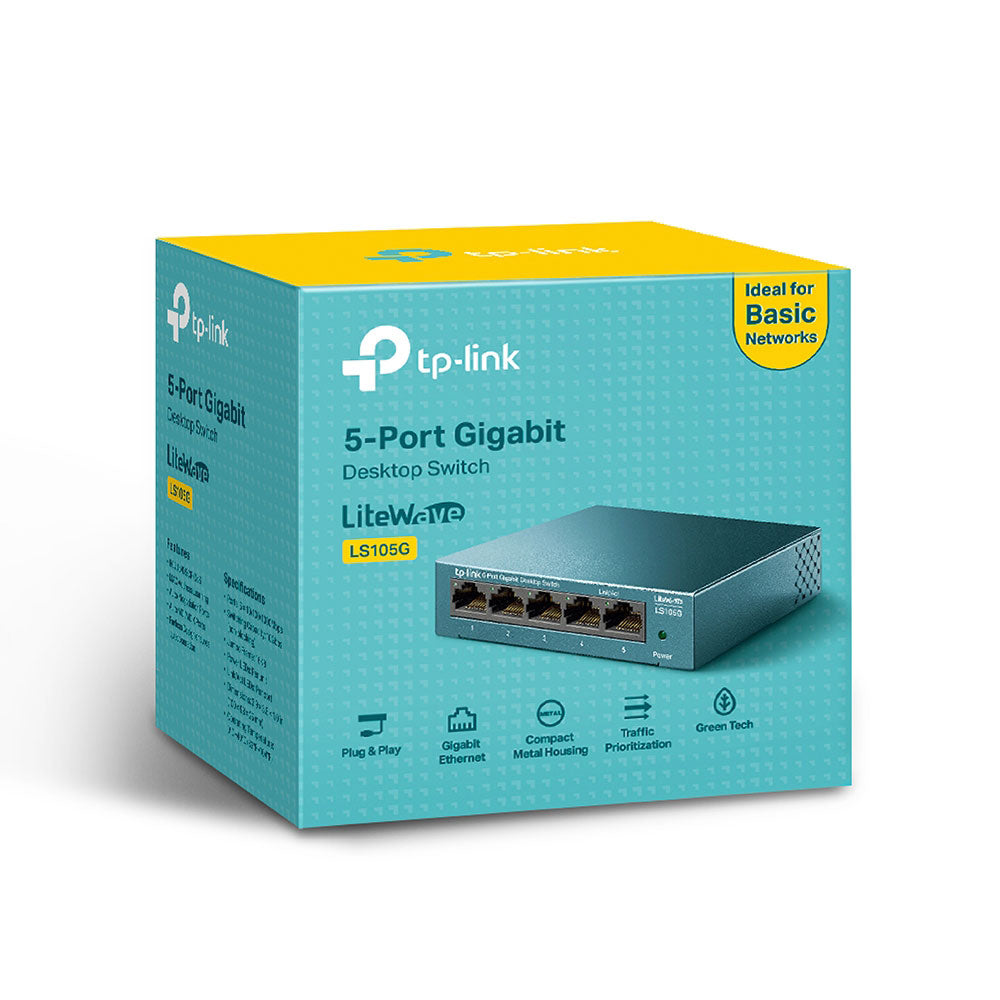

TP-Link LS105G 5-Port Gigabit Metal Desktop Switch
This device features a 10/100/1000 Mbps auto-negotiation RJ45 port with Auto-MDI/MDIX support, delivering reliable data transfer through IEEE 802.3X flow control. It incorporates Green Ethernet technology for power efficiency and supports 802.1p/DSCP QoS for optimized network performance. Built with a durable steel housing, it offers flexible desktop or wall-mount installation and a plug-and-play design that requires no configuration.
Features
- 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS function
- Plug and play, no configuration needed
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
- Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter (Output: 5VDC / 0.6A)
- LED Indicator: System Power, Link/Act indicators per port built into each RJ-45 port
- Dimensions ( W x D x H ): 99.8 x 98 x 25mm
- Max Power Consumption: 2.776W (220V/50Hz)
- Max Heat Dissipation: 9.466 BTU/h
Performance
- Packet Forwarding Rate: 7.4 Mpps
- MAC Address Table: 2K
- Packet Buffer Memory: 1 Mb
- Jumbo Frame: 16 KB
Software Features
- Advanced Features: Green Technology, 802.3X Flow Control, 802.1P/DSCP QoS
- Transfer Method: Store and Forward
Others
- Certification: CE, FCC, RoHS
