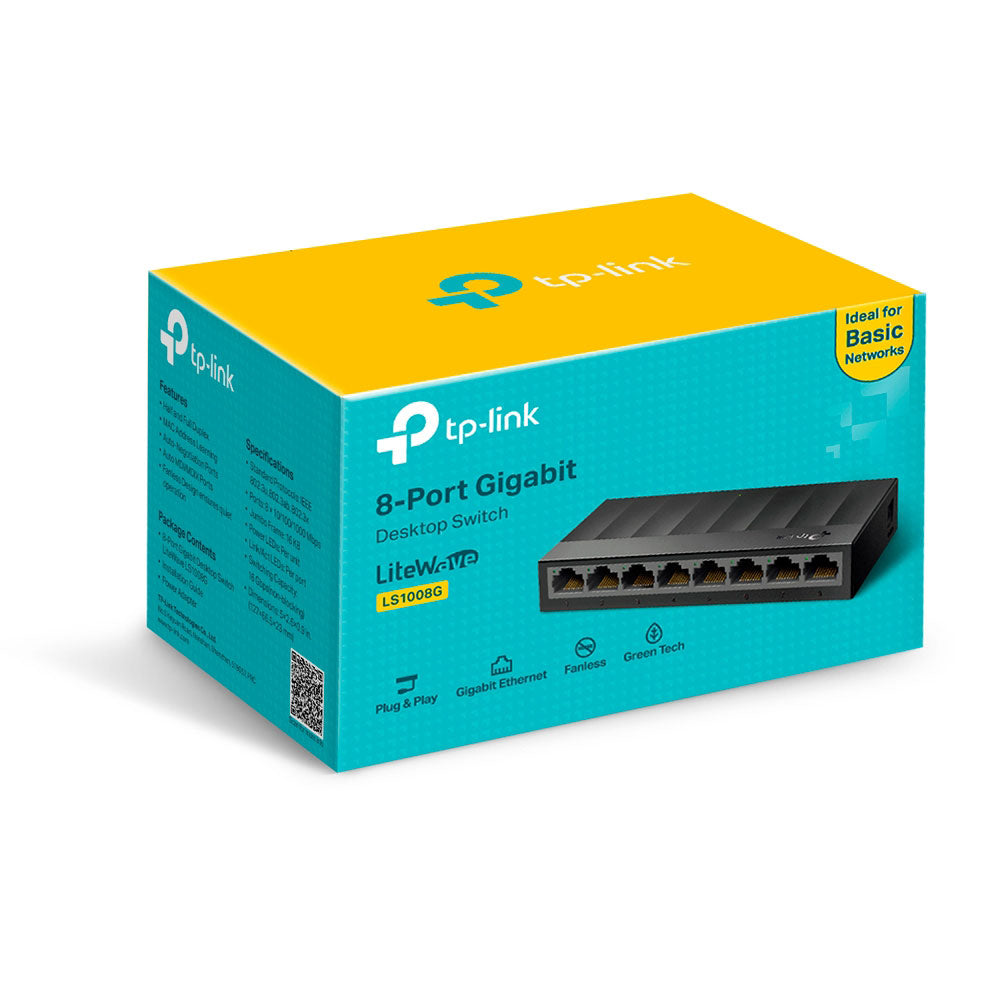

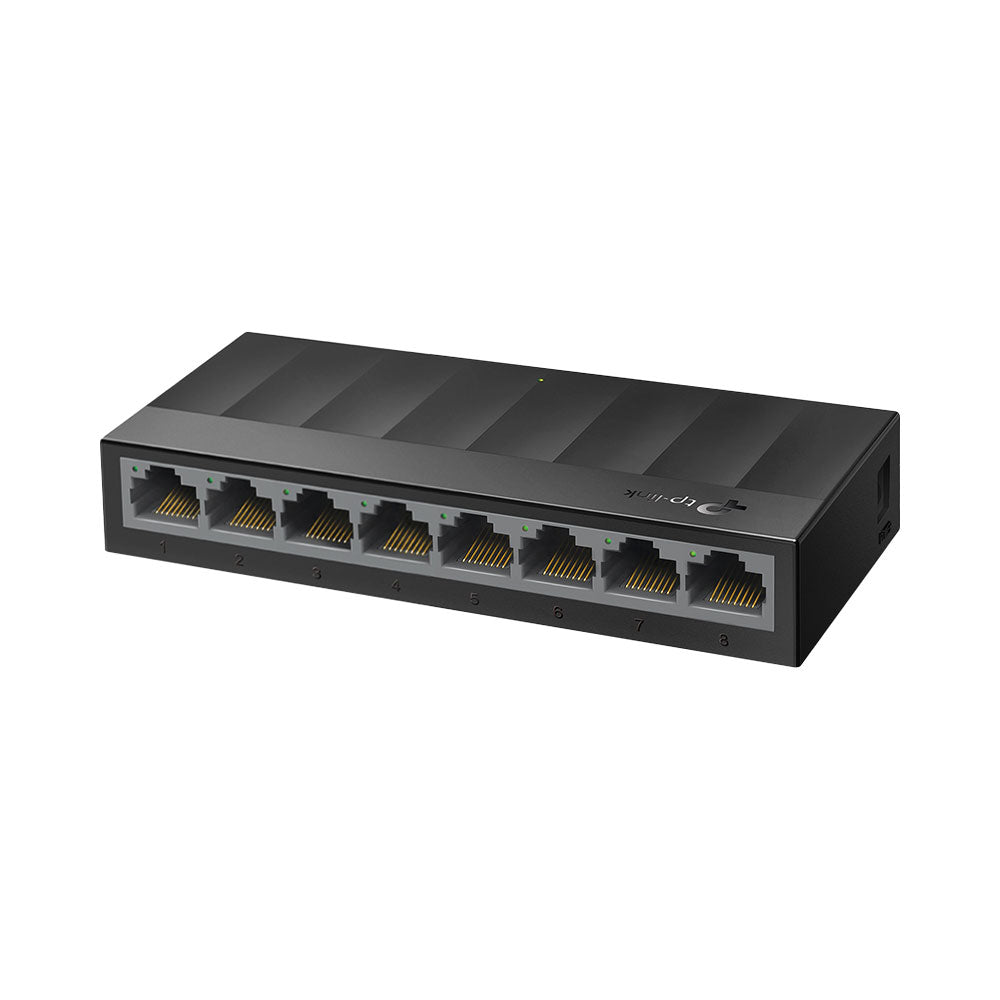

TP-Link LS1008G 8-Port Gigabit Desktop Switch
Simple, Reliable Networking for Home and Small Office Environments.
The TP-Link LS1008G 8-Port Desktop Switch provides an easy way to expand your wired network with stable Gigabit Ethernet connectivity. With eight 10/100/1000Mbps Auto-Negotiation ports, it instantly increases network capacity for computers, printers, IP cameras and other wired devices. Designed for effortless deployment, the LS1008G features plug-and-play installation, energy-efficient technology and a fanless compact design for silent operation. Its durable desktop form factor makes it perfect for homes, small offices and workstations needing reliable network expansion.
Features
- 8-Port Gigabit Ethernet Connectivity – 8× 10/100/1000Mbps Auto-Negotiation RJ45 ports with Auto-MDI/MDIX support
- Energy-Efficient Ethernet – Green Ethernet technology automatically reduces power consumption
- Reliable Data Transmission – IEEE 802.3X flow control ensures stable and smooth network performance
- Compact Desktop Design – Durable plastic housing designed for simple desktop placement
- Plug-and-Play – No configuration required, simply connect and start networking instantly
- Silent Operation – Fanless design ensures quiet and reliable operation for home or office use
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i / 802.3u / 802.3ab / 802.3x
- Interface: 8× 10/100/1000Mbps Auto-Negotiation RJ45 Ports (Auto-MDI/MDIX)
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter (Output: 9VDC 0.6A)
- Dimensions (W × D × H): 127 × 66.5 × 23mm
- Max. Power Consumption: 3.9W
- Max. Heat Dissipation: 13.299 BTU/h
Performance
- Switching Capacity: 16Gbps
- Packet Forwarding Rate: 11.9Mpps
- MAC Address Table: 4K
- Packet Buffer Memory: 1.5Mb
- Jumbo Frame: 16KB
Advanced Features
- Green Ethernet Technology
- IEEE 802.3X Flow Control
- Back Pressure
