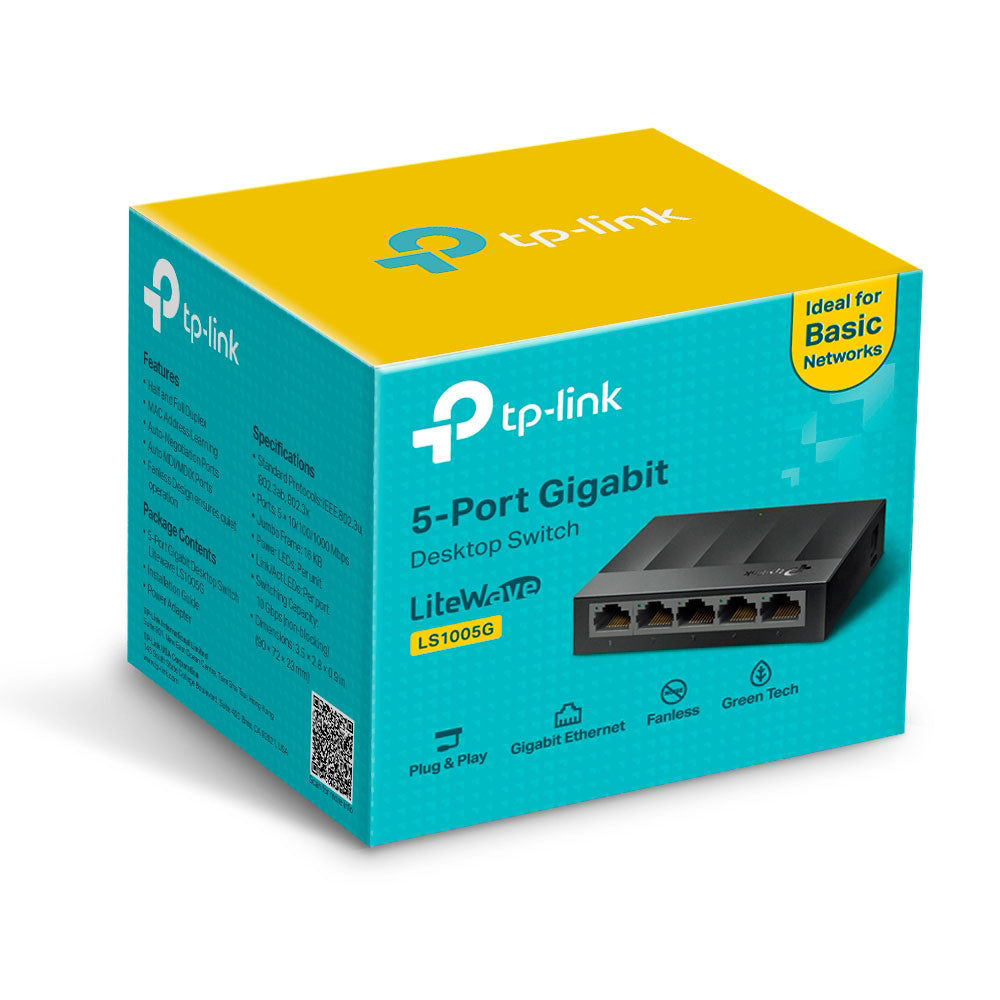

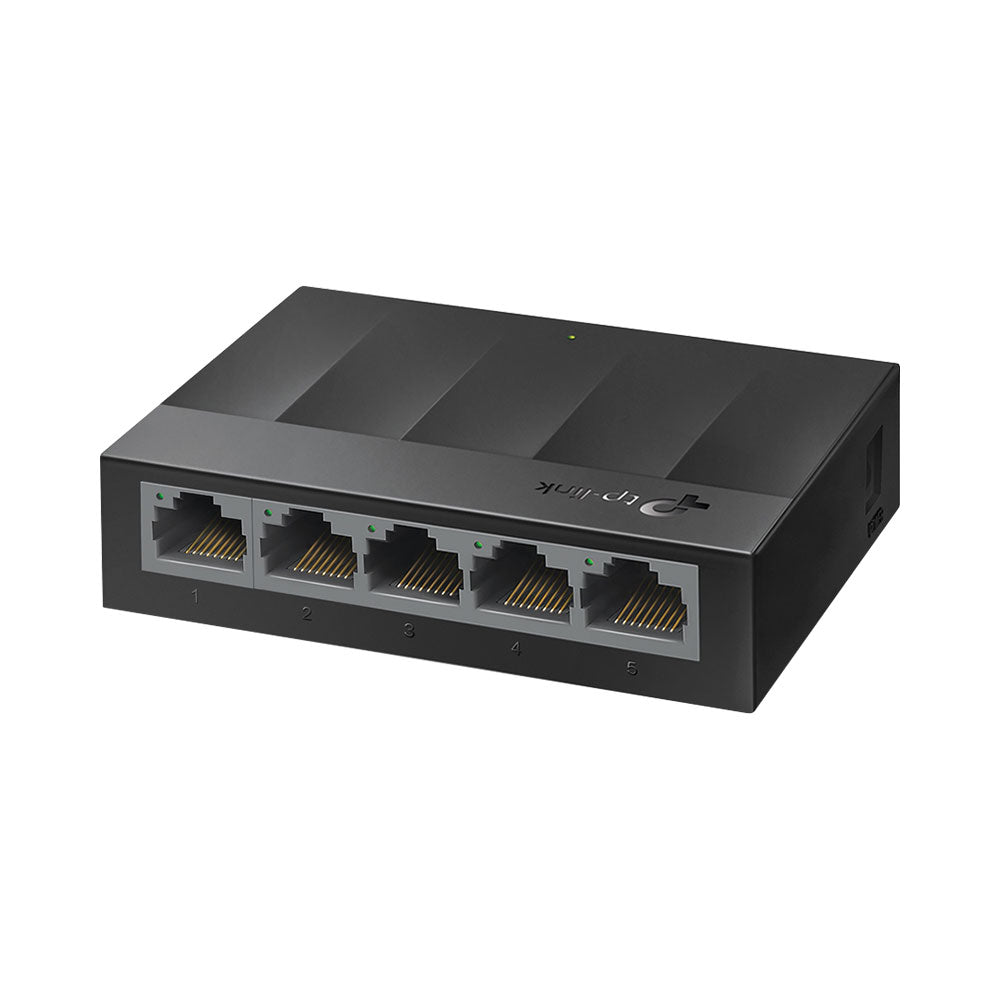

TP-Link LS1005G 5-Port Gigabit Desktop Switch
This 5-port Gigabit switch features 10/100/1000 Mbps auto-negotiation RJ45 ports with Auto-MDI/MDIX support for seamless connectivity. It incorporates Green Ethernet technology to reduce power consumption and uses IEEE 802.3X flow control to ensure reliable data transfer. The compact plastic casing supports both desktop and wall-mount installation, while its fanless design guarantees quiet operation. With a plug-and-play setup, no configuration is required for instant use.
Features
- 5× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing, desktop or wall-mounting design
- Plug and play, no configuration needed
- Fanless design ensures quiet operation
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
- Interface: 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter (Output: 5VDC/0.6A)
- Dimensions ( W x D x H ): 90 × 72 × 23 mm
- Max Power Consumption: 3.7W
- Max Heat Dissipation: 12.617 BTU/h
Performance
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.4 Mpps
- MAC Address Table: 2K
- Packet Buffer Memory: 1.5 Mb
- Jumbo Frame: 16 KB
Software Features
- Advanced FeaturesGreen Technology, 802.3X Flow Control, Back Pressure
- Transfer Method: Store and Forward
Others
- Certification: CE, FCC, RoHS
