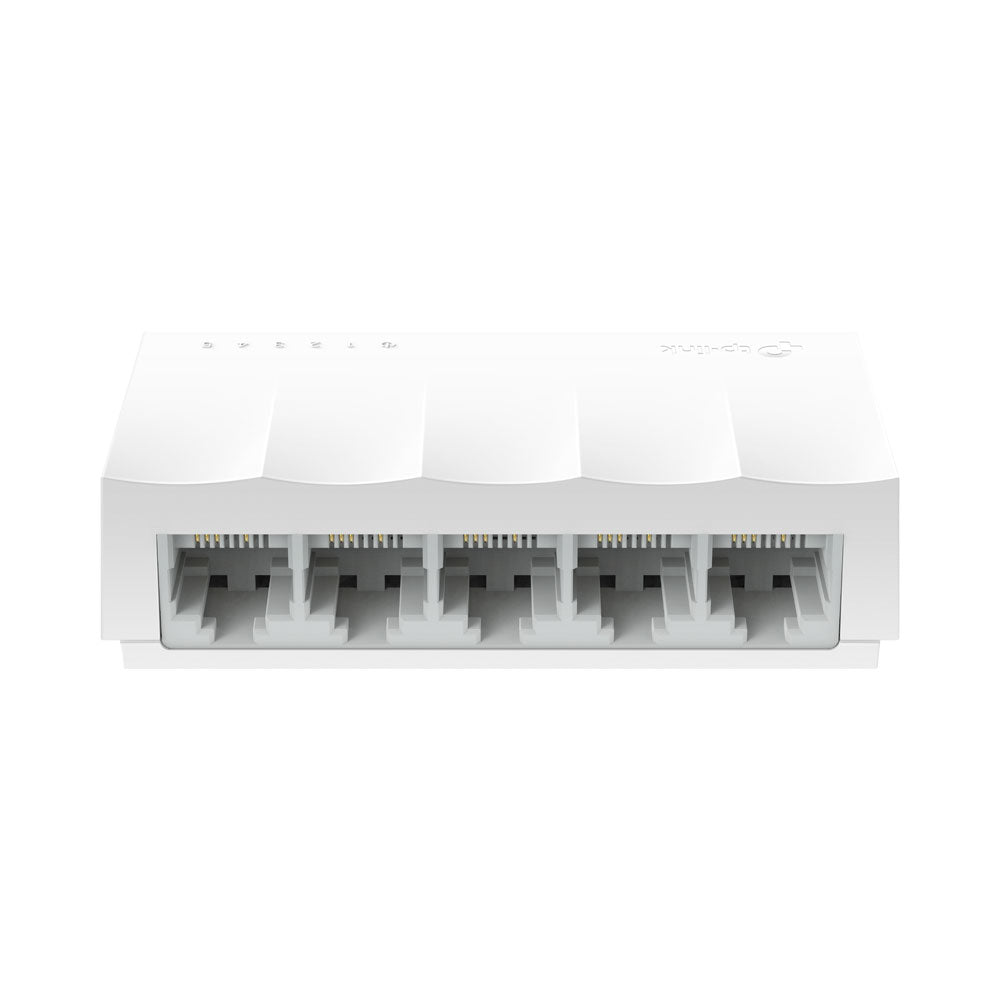

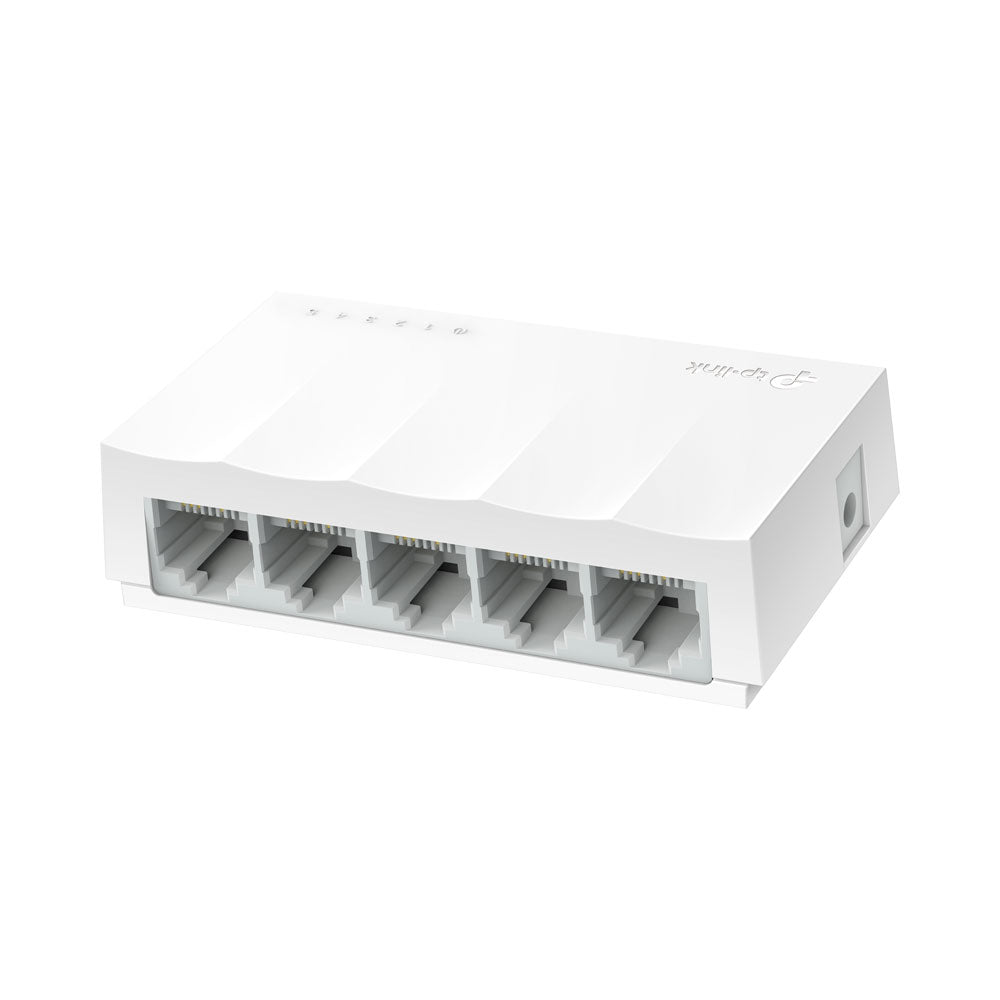

TP-Link LS1005 5-Port 10/100Mbps Unmanaged Desktop Switch
The TP-Link LS1005 is a compact, energy-efficient unmanaged switch designed for simple and reliable wired networking. Ideal for home offices, small businesses and everyday desktop setups, it delivers stable Fast Ethernet performance with true plug-and-play operation. With a silent fanless design and TP-Link Green Technology, the LS1005 reduces power consumption while maintaining dependable network connectivity for PCs, printers, IP cameras and other Ethernet devices.
Features
- 5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing and desktop design
- Plug and play, no configuration required
- Fanless design ensures quiet operation
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i, 802.3u, 802.3x
- Interface: 5× 10/100Mbps RJ45 Ports with Auto-Negotiation and Auto-MDI/MDIX
- Fan Quantity: Fanless Design
- Power Supply: External Power Adapter (Output 5VDC 0.6A)
- Dimensions (W × D × H): 83.6 × 45.7 × 22.8mm
- Max. Power Consumption: 1.65W
- Max. Heat Dissipation: 5.627Btu/hr
Software Features
- Green Technology: Energy-Efficient Ethernet Operation
- Flow Control: IEEE 802.3x Flow Control
- Transfer Method: Store and forward
- Back Pressure: Supported
Other
- Certifications: CE, FCC, RoHS
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% Non-Condensing
- Storage Humidity: 5~90% Non-Condensing
