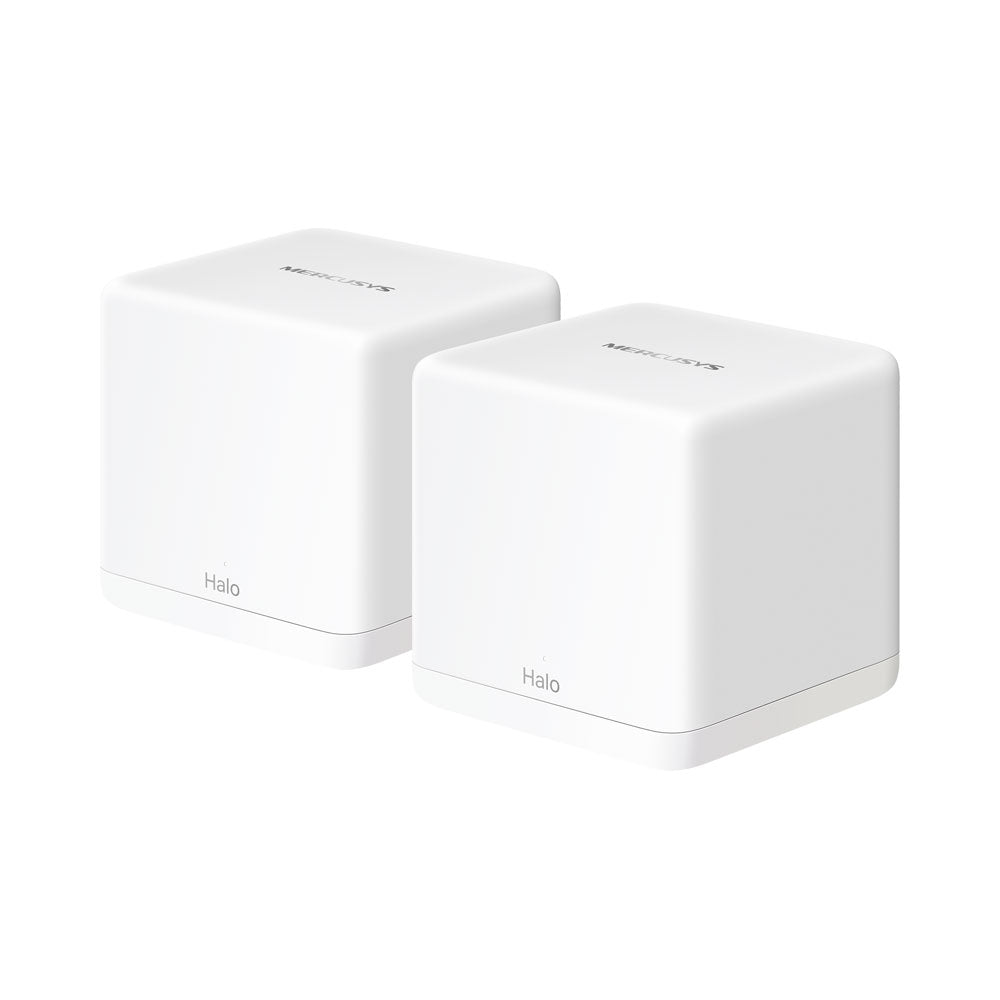

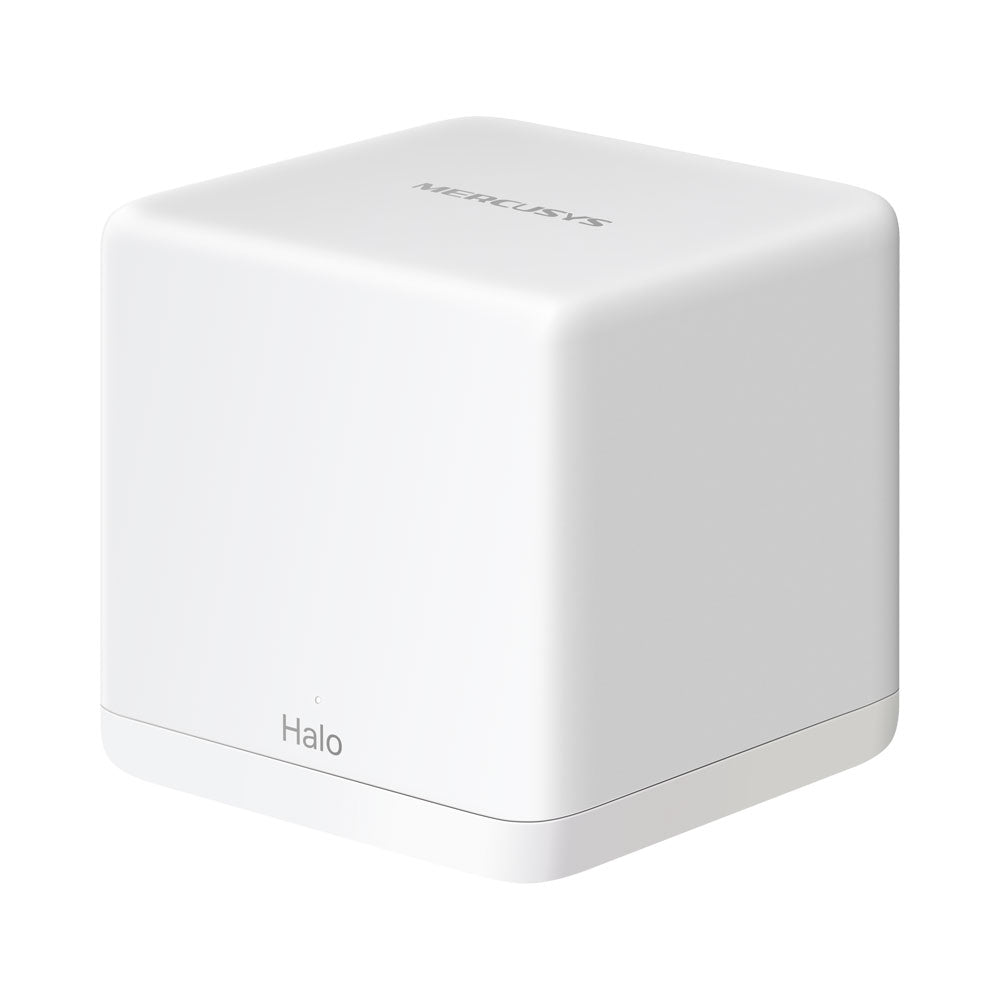

Mercusys Halo H60X AX1500 Wi-Fi 6 Whole-Home Mesh System (2-Pack)
Wi-Fi 6 Mesh Coverage for Faster, Smarter Home Networking.
The Mercusys Halo H60X delivers next-generation AX1500 Wi-Fi 6 performance with seamless whole-home mesh coverage. Designed to eliminate dead zones, Halo units work together to create a single unified network, allowing devices to automatically connect to the strongest signal. With improved capacity, lower latency and efficient Wi-Fi 6 technology, the Halo H60X ensures smooth streaming, gaming and smart home connectivity throughout your home.
Features
- AX1500 Dual-Band Wi-Fi 6 - 1,201Mbps (5.0GHz) plus 300Mbps (2.4GHz) for fast and stable wireless performance
- Whole-Home Mesh Coverage - Halo units work together to create one unified Wi-Fi network with seamless roaming
- Faster and More Efficient Wi-Fi 6 - OFDMA and MU-MIMO technologies improve network capacity and reduce latency
- Seamless Roaming - Automatically connects devices to the strongest signal while moving around your home
- Gigabit Wired Connections - Multiple Gigabit ports provide high-speed wired connectivity for smart TVs, consoles and PCs
- Easy Setup and Management - Configure and manage your network easily using the Mercusys App
- Guest Network Support - Provides secure internet access for visitors without sharing your main network
* Please note that the Halo H series and S series cannot work together
Specifications
Wireless Standards
- Wi-Fi 6
- IEEE 802.11ax/ac/n/a - 5.0GHz
- IEEE 802.11n/b/g - 2.4GHz
Signal Rate
- 1,201Mbps on 5.0GHz
- 300Mbps on 2.4GHz
Wi-Fi Range
- 2-Pack: up to 350m² Coverage
Reception Sensitivity
2.4GHz
- 11g 6Mbps: -96.5dBm
- 11g 54Mbps: -78dBm
5.0GHz
- 11a 6Mbps: -96dBm
- 11a 54Mbps: -78dBm
- 11ac VHT20 MCS8: -74.5dBm
- 11ac VHT40 MCS9: -70.5dBm
- 11ac VHT80 MCS9: -66.5dBm
- 11ax HE20 MCS11: -66dBm
- 11ax HE40 MCS11: -63dBm
- 11ax HE80 MCS11: -61dBm
Transmission Power
- 2.4GHz: <20dBm (EIRP)
- 5.0GHz: <23dBm (EIRP)
Wireless Security
Mesh Protocol
Operation Modes
- Router Mode
- Access Point Mode
Quality Of Service
Wan Type
- Dynamic IP
- Static IP
- PPPoE
- L2TP
- PPTP
Management
- Local Management
- Remote Management
- Multi-Managers
Dhcp
Firewall Security
Protocols
Guest Network
- 2.4GHz Guest Network
- 5.0GHz Guest Network
Dimensions (W × D × H)

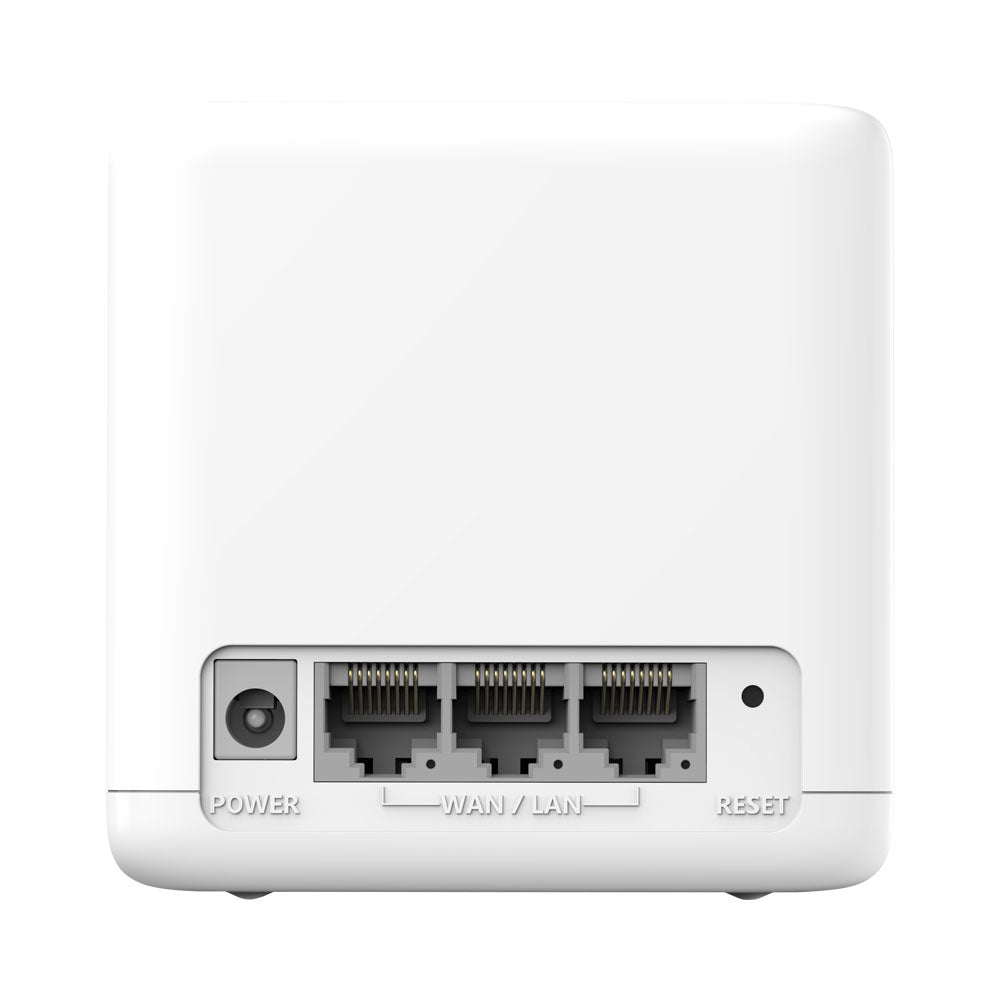

Interfaces
Button
Web Server
- Device Management via HTTP/HTTPS
- Port: 80/443, Protocol TCP
DHCP Server
- Automatic IP Address Assignment
- Port: 67, Protocol UDP
Dns
- Port: 53, Protocol TCP & UDP
App Management
- Manage and Configure via Mobile App
- Port: 20001, Protocol TCP
- Port: 20002, Protocol UDP
Environment
- Operating Temperature: 0~40°C
- Operating Humidity: 10~90% Non-Condensing
- Storage Humidity: 5~0% Non-Condensing
