TP-Link Omada ER605 Gigabit VPN Router
Secure, High-Performance Routing for Professional Networks.
The TP-Link ER605 delivers reliable Gigabit routing with advanced VPN capabilities for secure remote access and site-to-site connectivity. Designed for business networks, it supports multiple WAN ports for load balancing and enhanced reliability. Fully integrated with Omada SDN, the ER605 enables centralised cloud management, intelligent monitoring and seamless network deployment across multiple locations. Compact, powerful and easy to manage, the ER605 is an ideal gateway for small and medium business networks.
Features
- Integrated into Omada SDN - Zero-Touch Provisioning, Centralised Cloud Management, and Intelligent Monitoring
- Centralised Management - Cloud access and Omada app for convenience and easy management
- Five Gigabit Ports - High-speed wired connectivity
- Up to 3 WAN Ethernet Ports - 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilisation rate of multi-line broadband
- One USB WAN Port for Mobile Broadband - Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port
- Highly Secure VPN - Supports up to 20x LAN-to-LAN IPsec, 16x OpenVPN, 16x L2TP and 16x PPTP VPN connections
- Abundant Security Features - Advanced firewall policies, DoS defence, IP/MAC/URL filtering and more security functions protect your network and data
Specifications
Hardware Features

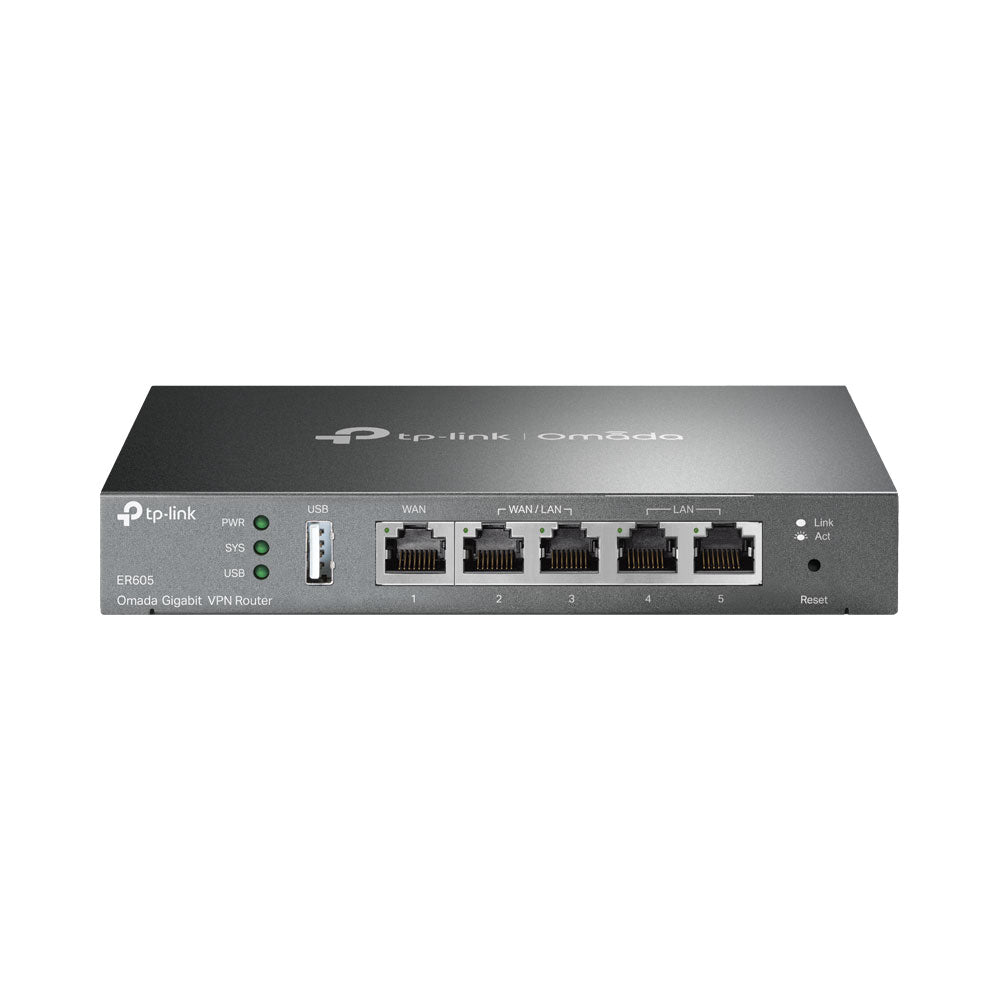

- Interface:
- 1× Gigabit WAN Port
- 1× Gigabit WAN/LAN Port
- 3× Gigabit LAN Ports
- Button: Reset

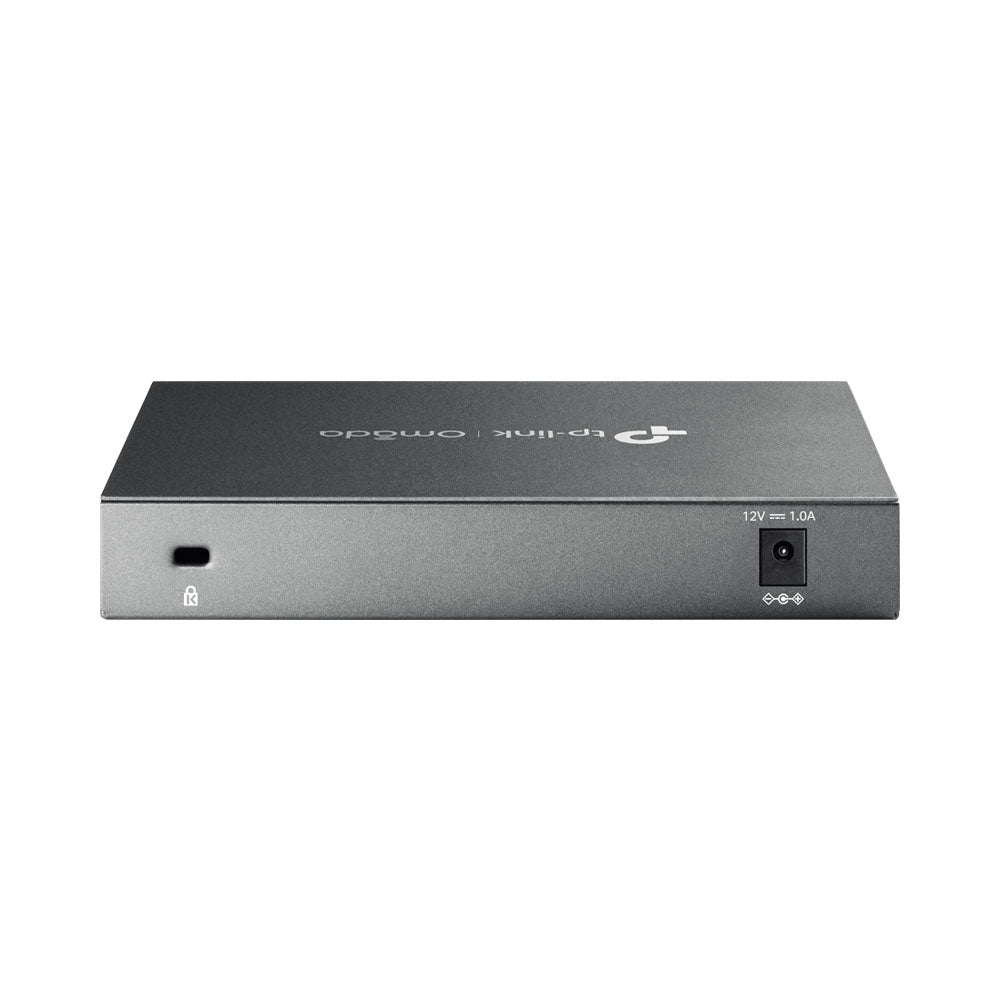

- Power Supply: 12V 1A DC Power Adapter
- Power Consumption: 7.66W
- Dimensions: 158 × 101 × 25mm
- Mounting: Desktop or Wall Mount
Performance
- Concurrent Sessions: up to 150,000
- NAT Throughput: up to 940Mbps
Wan Features
- Multi-WAN Load Balancing
- Link Backup
- Intelligent Load Balancing
- Online Detection
Vpn Features
- IPSec VPN: up to 20× IPSec Tunnels
- SSL VPN: up to 16× SSL VPN Connections
- L2TP VPN: up to 20× L2TP Tunnels
- PPTP VPN: up to 20× PPTP Tunnels
- IPsec VPN:
- Site-to-Site VPN
- Client-to-Site VPN
- IPSec/IKEv1/IKEv2
- DES, 3DES, AES128, AES192, AES256 Encryption
- MD5, SHA1 Authentication
Security
- SPI Firewall
- DoS Defence
- IP/MAC/URL Filtering
- ARP Inspection
- Attack Defence
- Access Control
Network Features
- Static Routing
- Policy Routing
- NAT
- Port Forwarding
- One-to-One NAT
- UPnP
- DHCP Server
- DHCP Reservation
Management
- Omada SDN Integration
- Omada App
- Cloud Access
- Centralised Management via OC200, OC300 or Omada Software Controller
- Web Management (HTTP/HTTPS)
- SNMP v1/v2c/v3
- Syslog Support
Certification
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
