TP-Link EAP783 BE19000 Tri-Band Wi-Fi 7 Ceiling Mount Access Point (DC Adapter Sold Separately)
Flagship Wi-Fi 7 performance for next-generation enterprise networks.
The TP-Link EAP783 delivers ultra-fast BE19000 tri-band Wi-Fi 7 designed for high-density business environments. With a 10GbE uplink, advanced Wi-Fi 7 technologies and seamless Omada SDN integration, it provides exceptional speed, capacity and ultra-low latency for demanding enterprise networks. Built for large offices, campuses and high-traffic environments, the EAP783 enables scalable, centrally managed wireless with powerful next-generation connectivity.
Features
- BE19000 Tri-Band Wi-Fi 7 - Up to 19Gbps combined wireless speeds across 2.4GHz, 5.0GHz and 6.0GHz bands
- Multi-Link Operation (MLO) - Simultaneously transmits across multiple bands for lower latency and higher reliability
- 10GbE Multi-Gigabit Uplink - High-capacity wired connection ensures maximum throughput for Wi-Fi 7 performance
- 320MHz Channels and 4K-QAM - Delivers dramatically increased bandwidth and ultra-high wireless efficiency
- High-Density Performance - Advanced OFDMA and MU-MIMO technologies support large numbers of connected devices

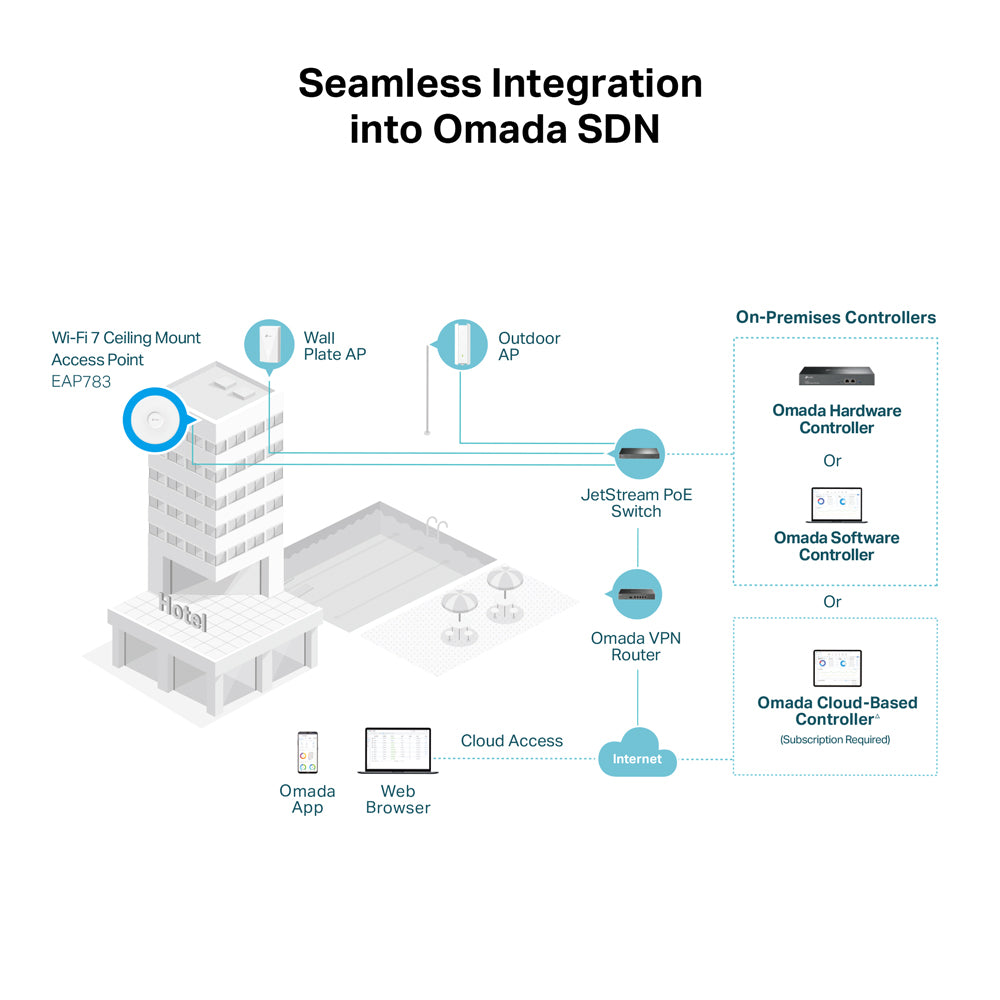

- Seamless Omada SDN Integration - Centralised cloud management, intelligent monitoring and zero-touch provisioning

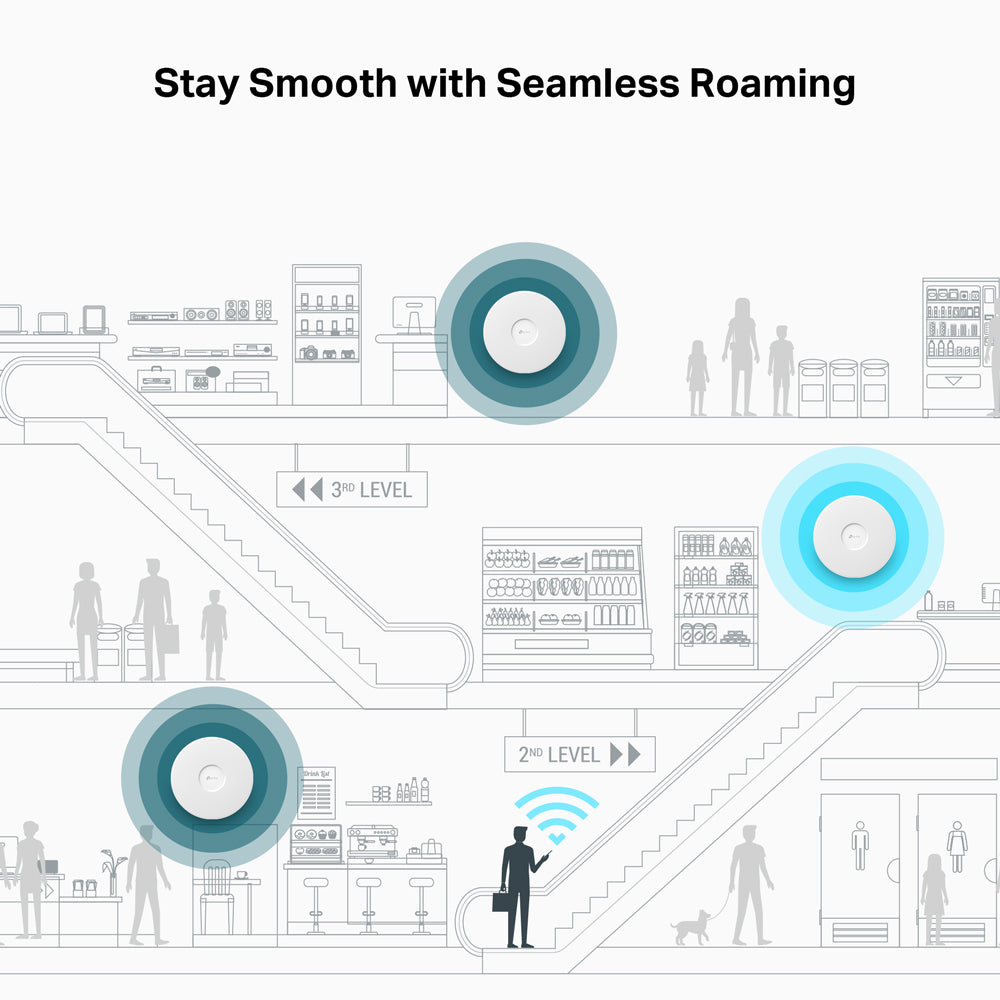

- Seamless Roaming - Maintains uninterrupted connectivity for video calls, streaming and real-time applications
- Flexible Enterprise Deployment - Ceiling-mount design with PoE++ support for clean and scalable installations
Specifications
Hardware Features

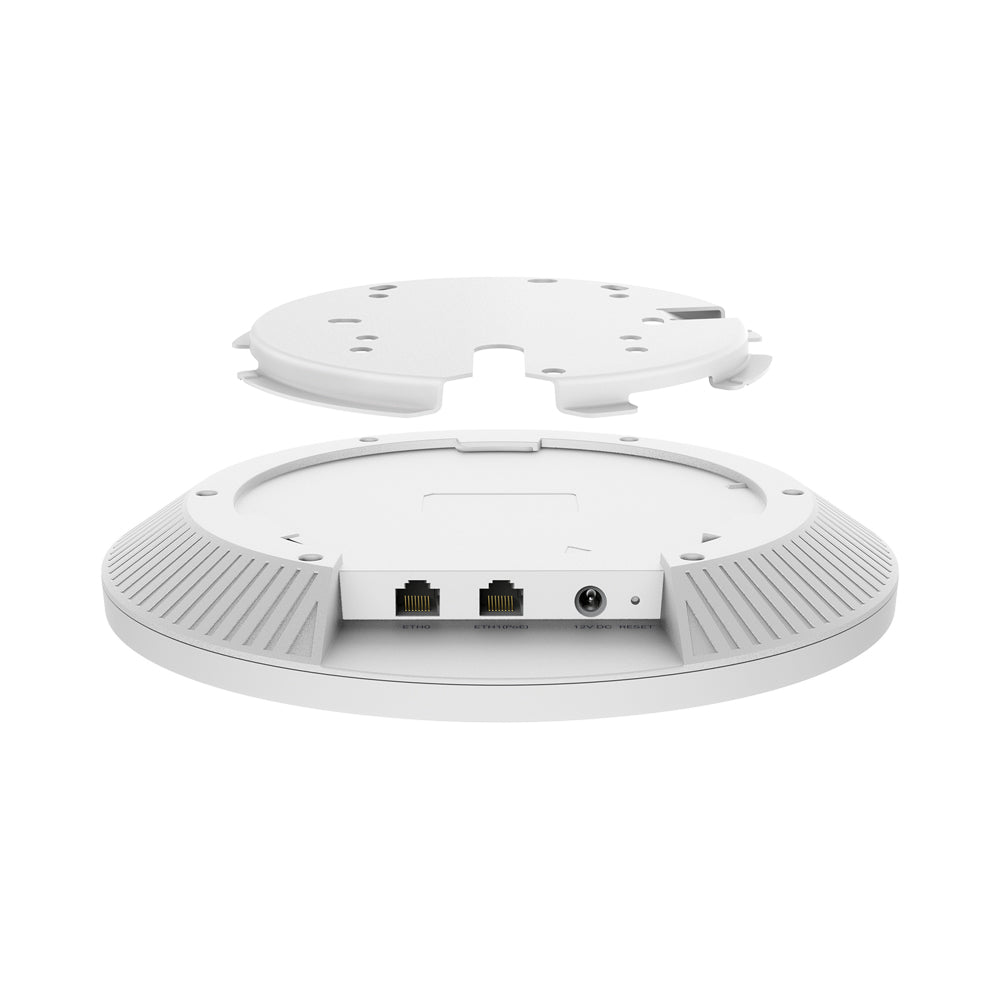

- Interface: 2× 10Gbps Ethernet Ports (1× PoE++ In, 1× Data Port)
- Button: Reset

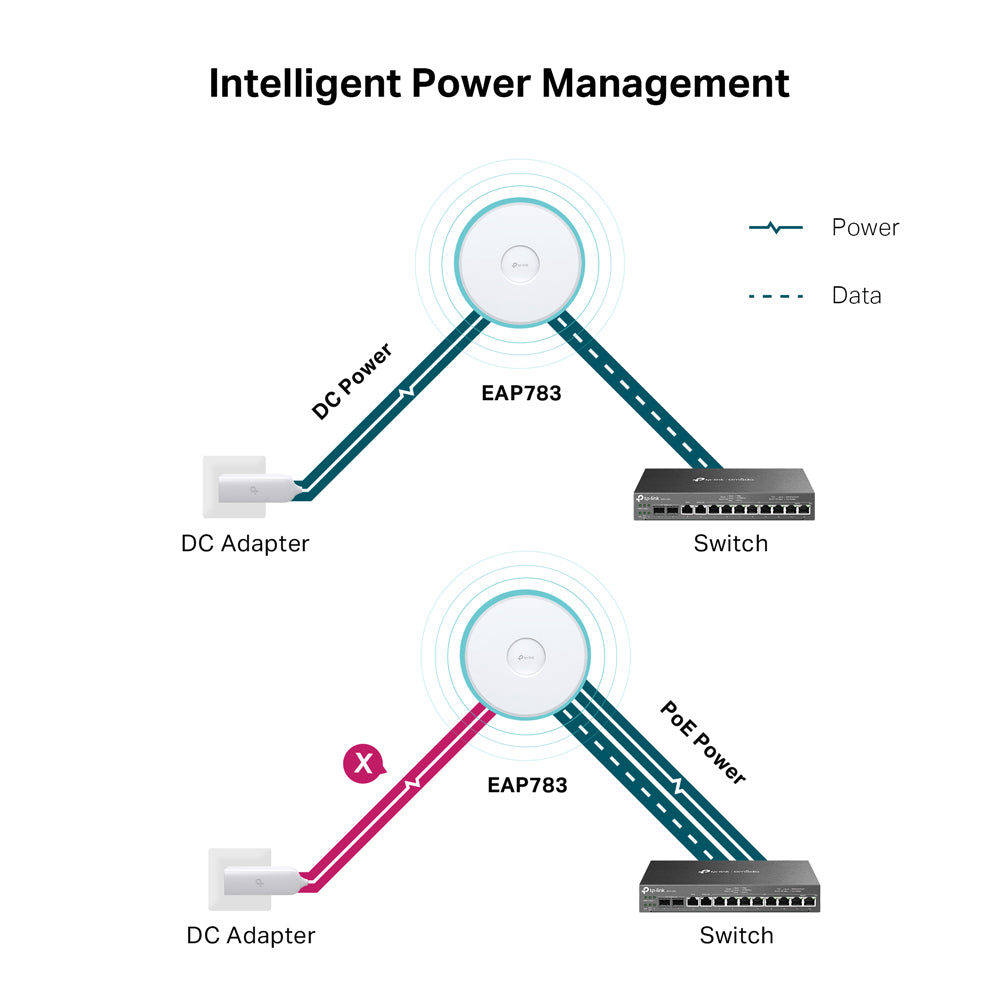

- Power Supply: 802.3bt PoE++
- Power Consumption: 31W
- Dimensions: 280 × 280 × 43.5mm
- Antennas: Internal Omni Antennas
- 2.4GHz: 4× 4dBi
- 5.0GHz: 4× 5dBi
- 6.0GHz: 4× 6dBi
- Mounting: Ceiling/Wall Mounting Kits Included
Wireless Features
- Wireless Standards: IEEE 802.11be/ax/ac/n/g/b/a
- Frequency: 2.4GHz, 5.0GHz and 6.0GHz
- Signal Rate:
- 6.0GHz: up to 1,1520Mbps
- 5.0GHz: up to 5,760Mbps
- 2.4GHz: up to 1,376Mbps
- Multi-Link Operation (MLO): Yes
- 4K-QAM: Yes
- 320MHz Channel Support: Yes
- OFDMA: Yes
- MU-MIMO: Yes
- Multi-RU: Yes
- Preamble Puncturing: Yes
- SSIDs: up to 16× SSIDs (8× per Band)
- Seamless Roaming: Yes
- Omada Mesh: Yes
- Band Steering: Yes
- Load Balance: Yes
- Airtime Fairness: Yes
- Beamforming: Yes
- QoS (WMM): Yes
- Rate Limit: Yes
- Reboot Schedule: Yes
- Wireless Schedule: Yes
- Wireless Statistics: Based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE: ≤20dBm (2.4GHz), ≤23dBm (5.0GHz), ≤23dBm (6.0GHz)
- FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz), ≤25dBm (6.0GHz)
Management
- Omada App: Yes
- Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
- Cloud Access: Yes
- Email Alerts: Yes
- LED On/Off Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1/v2c/v3
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-Site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
Certification
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
