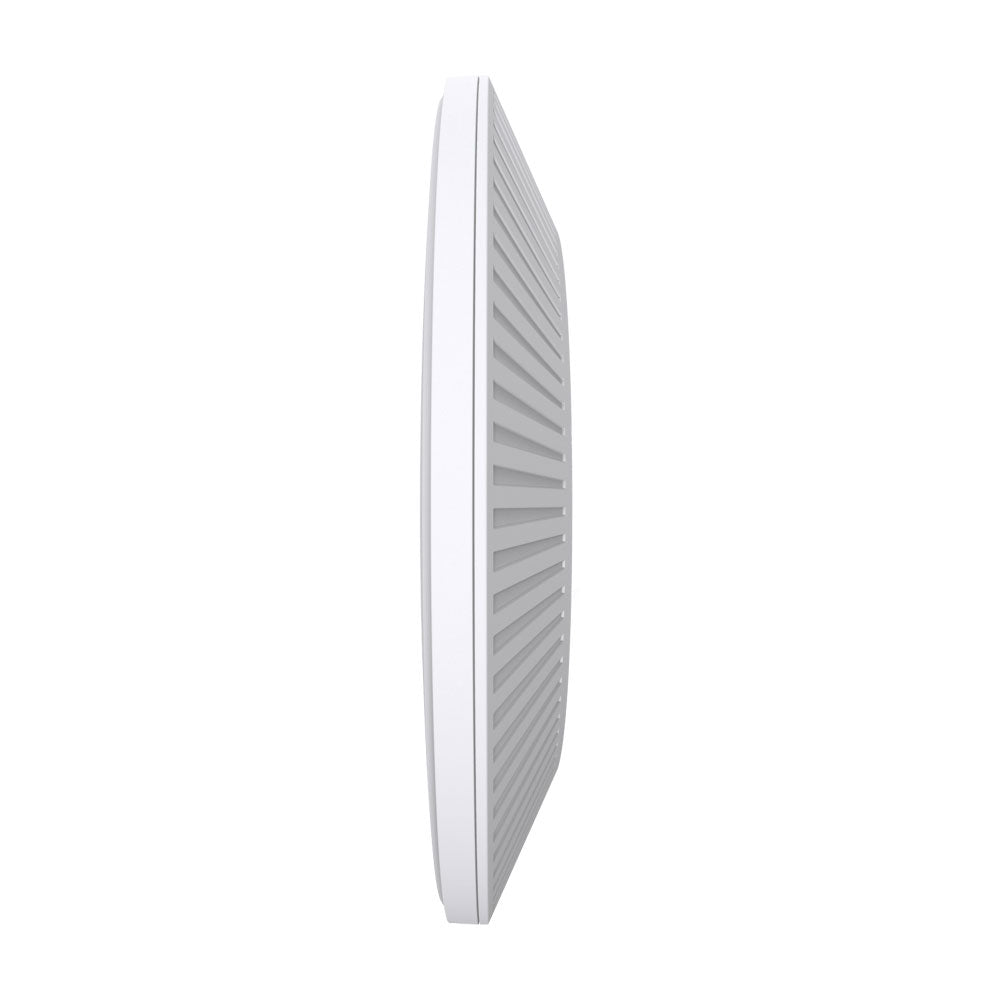

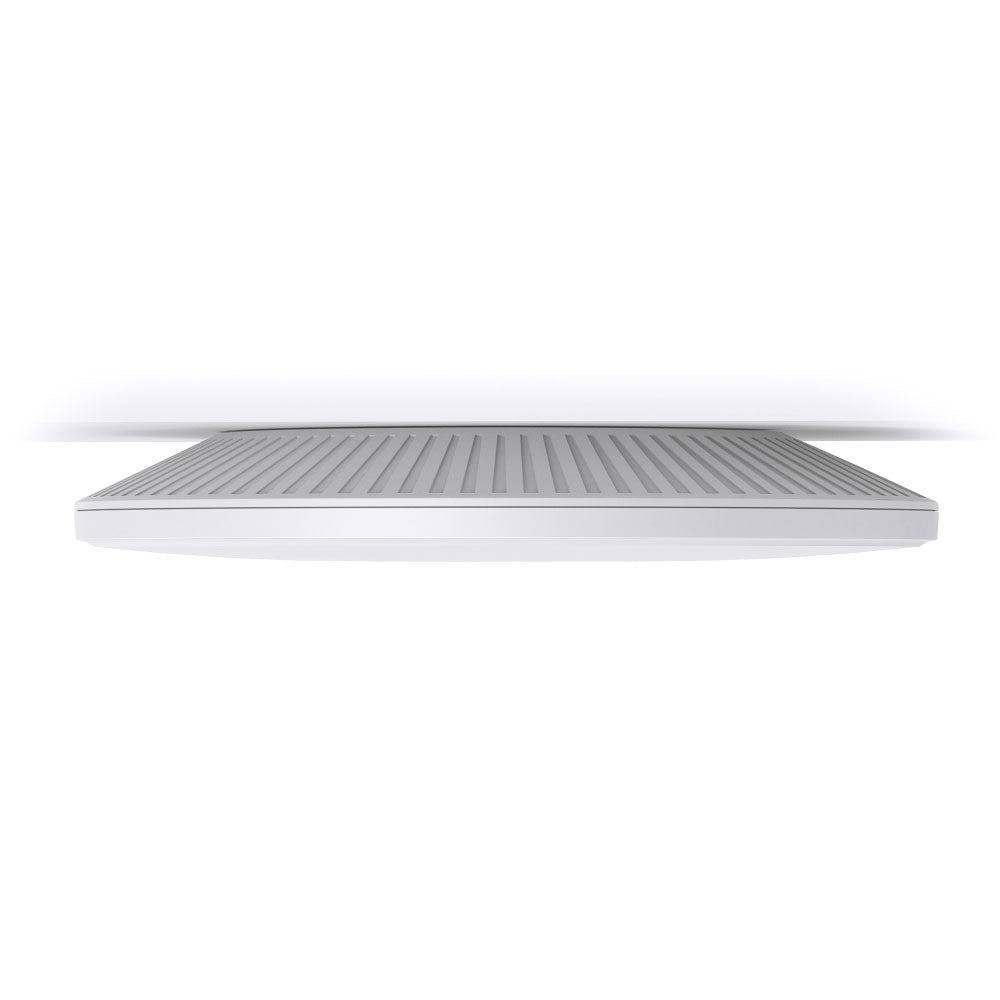

TP-Link EAP773 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point (DC Adapter Sold Separately)
Ultra-Thin Enterprise Wi-Fi 7 Access Point to Redefine Your Business Network.
The TP-Link EAP773 delivers ultra-fast BE9300 Tri-band Wi-Fi 7 performance designed for high-density business environments. With advanced Wi-Fi 7 technologies and a 10GbE uplink, it provides exceptional capacity, ultra-low latency and lightning-fast connectivity for demanding networks. Integrated with Omada SDN for seamless roaming, centralised cloud management and scalable deployment, the EAP773 brings powerful next-generation wireless to modern enterprise networks.
Features
- BE9300 Tri-Band Wi-Fi 7 - 5,760Mbps (6.0GHz) + 2,880Mbps (5.0GHz) + 574Mbps (2.4GHz)
- 1× 10G Port - Unlock the full potential of Wi-Fi 7
- Clear 6.0GHz Band - Brings cleaner and wider band resources to your Wi-Fi
- 320MHz Bandwidth - Up to 320MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds
- Low Latency and Interference - Multi-Link Operation and Multi-RUs ensure high network performance
- Advanced Functions - Supports centralised management, mesh and AI roaming
Specifications
Hardware Features
- Interface: 1× 10Gb Ethernet (RJ45) Port (Supports IEEE 802.3at/802.3bt PoE++)
- Button: Reset
- Power Supply: 802.3at/802.3bt PoE or 12V DC (Adapter Not Included)
- Power Consumption: 21.5W
- Dimensions: 220 × 220 × 32.5mm
- Antennas: Internal Omni Antennas
- 2.4GHz: 2× 4dBi
- 5.0GHz: 4× 5dBi
- 6.0GHz: 4× 6dBi

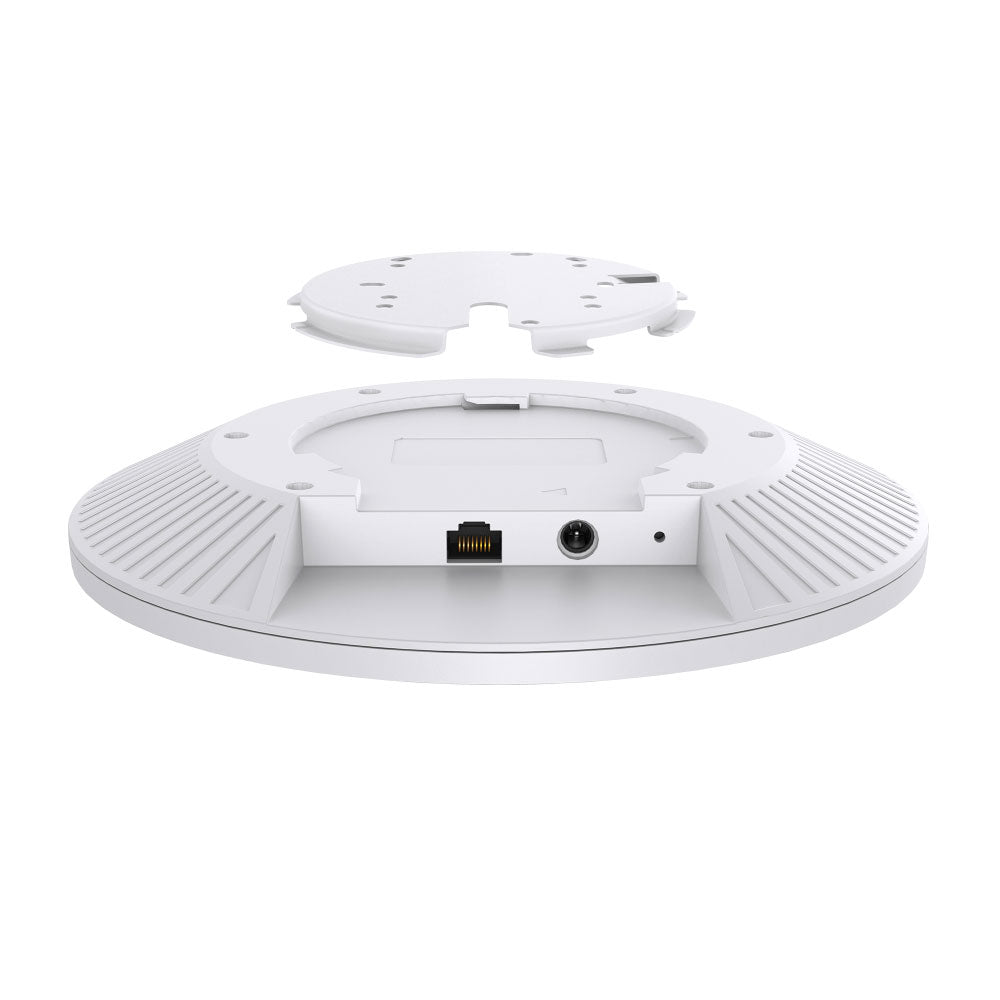

- Mounting: Ceiling/Wall Mounting Kits Included
Wireless Features
- Wireless Standards: IEEE 802.11be/ax/ac/n/g/b/a
- Frequency: 2.4GHz, 5.0GHz and 6.0GHz
- Signal Rate:
- 6.0GHz: up to 5,760Mbps
- 5.0GHz: up to 2,880Mbps
- 2.4GHz: up to 5,74Mbps
- Multi-Link Operation (MLO): Yes
- 4096-QAM: Yes
- OFDMA: Yes
- MU-MIMO: Yes
- 320MHz Channel Support: Yes
- SSIDs: up to 16× SSIDs (8× per Band)
- Seamless Roaming: Yes
- Omada Mesh: Yes
- Band Steering: Yes
- Load Balance: Yes
- Airtime Fairness: Yes
- Beamforming: Yes
- QoS (WMM): Yes
- Rate Limit: Yes
- Reboot Schedule and Wireless Schedule: Yes
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE: ≤20dBm (2.4GHz), ≤23dBm (5.0GHz), ≤23dBm (6.0GHz)
- FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz), ≤25dBm (6.0GHz)
Management
- Omada App: Yes
- Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
- Cloud Access: Yes
- Email Alerts: Yes
- SNMP: v1/v2c/v3
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: HTTP/HTTPS
- Multi-Site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes
Certification
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
