TP-Link Omada EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
Features
- BE9300 Tri-Band Wi-Fi 7 (5765Mbps on 6GHz + 2882Mbps on 5GHz + 688Mbps on 2.4GHz)
- A clear 6GHz band brings cleaner and wider band resources
- 1× 2.5G Port unlocks the full potential of Wi-Fi 7
- 320MHz bandwidth enables many more simultaneous transmissions
- Multi-Link Operation and Multi-RUs ensure the high performance of your network
- Advanced Functions: Centralized management, mesh, and AI roaming
Specifications
Hardware Features

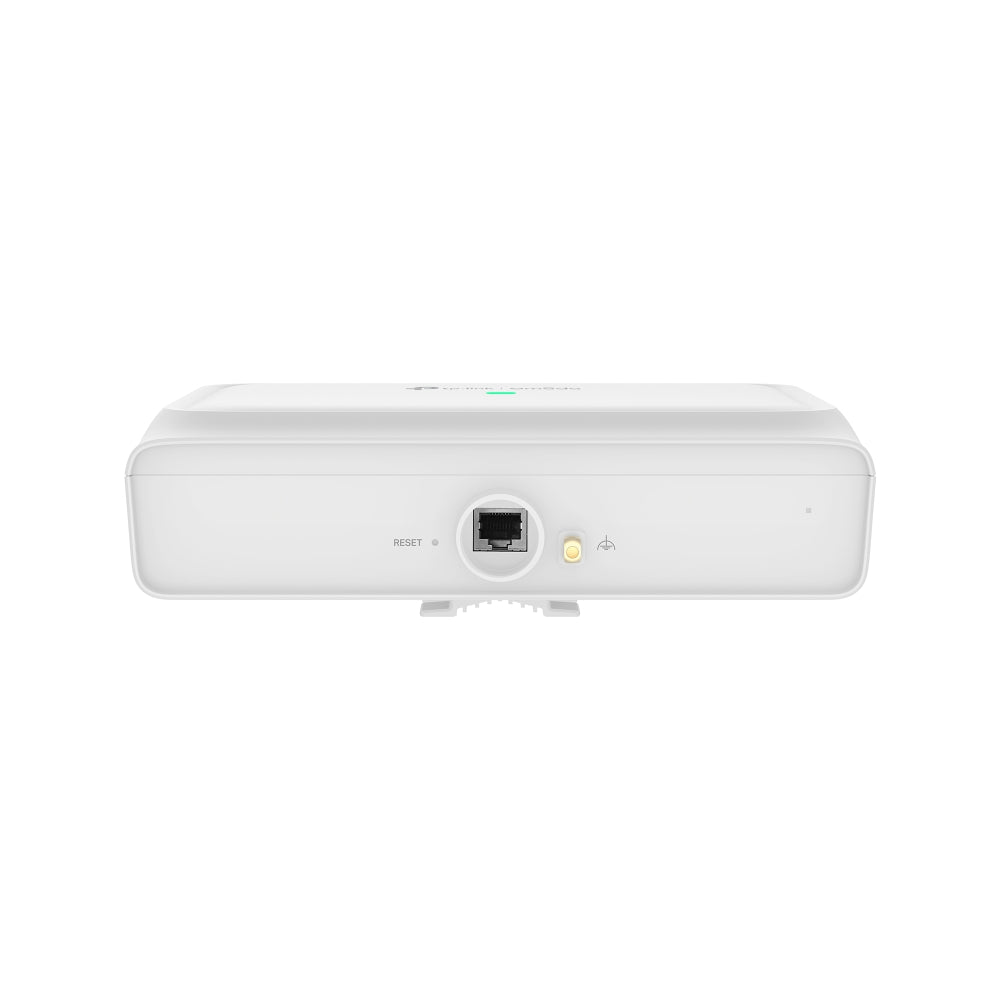

- Interface: 1× 2.5G Ethernet Port
- Button: Reset
- Power Supply: 802.3at PoE or 12V/2.5A DC
- Max. Power Consumption:
- 24.05 W (For PoE);
- 20.92 W (For DC)

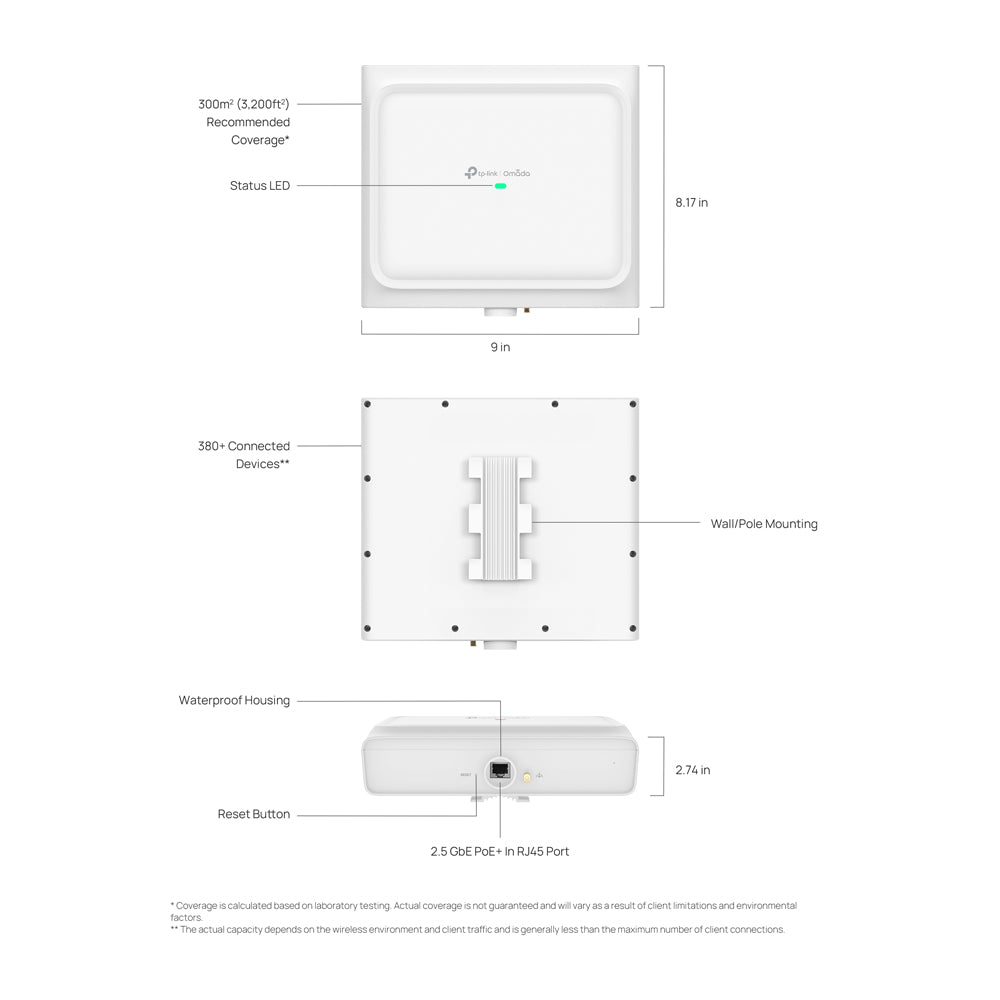

- Dimensions ( W x D x H ): 220 × 220 × 32.5mm
- Antenna:
- 2.4 GHz: 2× 4.0 dBi
- 5 GHz: 2× 5.0 dBi
- 6 GHz: 2× 5.0 dBi
- Bluetooth: 1 × 4.0 dBi, Bluetooth 5.2

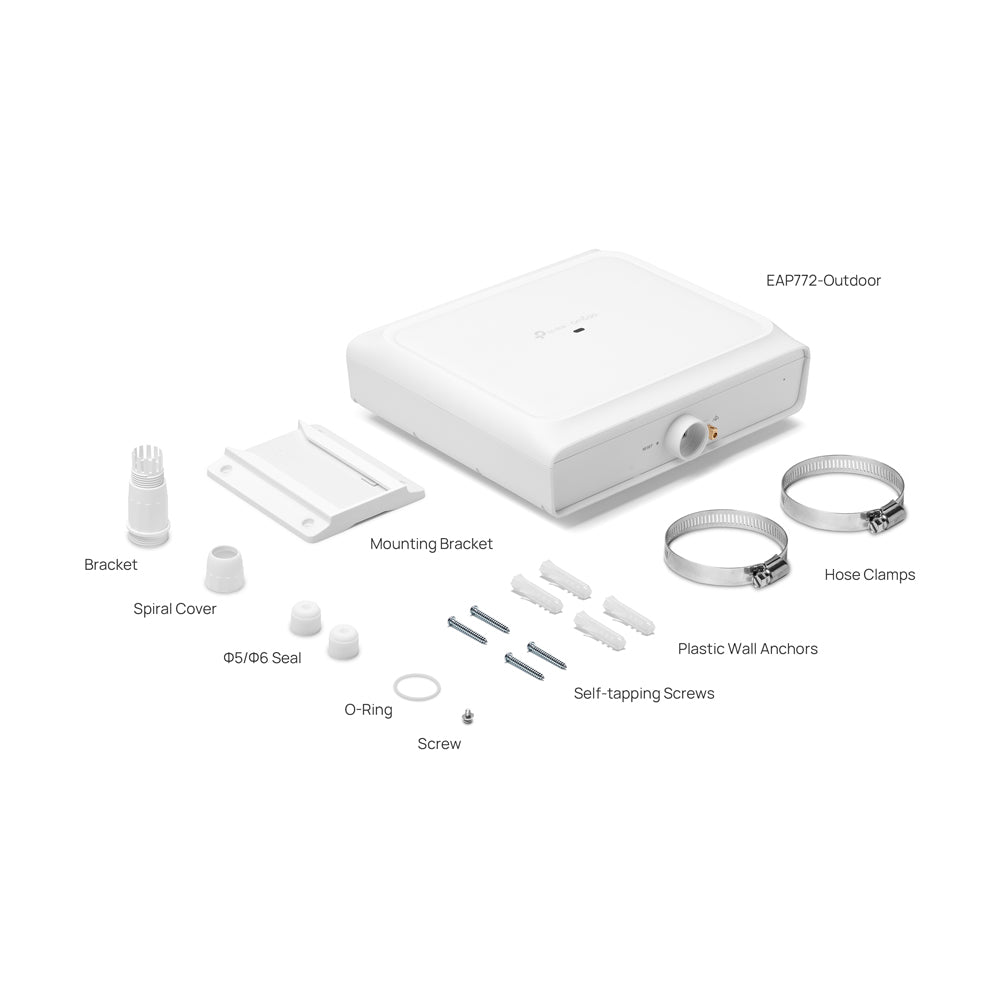

- Mounting: Ceiling / Wall Mounting (Kits Included)
Wireless Features
- Coverage: 140m²
- Concurrent Clients: 380
- Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
- Frequency: 6GHz, 5GHz, and 2.4GHz
- Signal Rate: 688Mbps (2.4GHz) + 2882Mbps (5GHz) + 5765Mbps (6GHz)
Wireless Functions
- MLO
- 4K-QAM
- Seamless Roaming (802.11k/v/r)
- MU-MIMO
- EHT320
- Mesh
- BSS Coloring
- OFDMA
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDS: 24 (8 on each band)
- Wireless Schedule
- Reboot Schedule
- QoS (WMM)
- Rate Limit
- Static IP/Dynamic IP
- RADIUS Accounting
- MAC Authentication
Wireless Security:
- Captive Portal Authentication
- Access Control
- Maximum number of MAC Filter: 4,000
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power:
- < 20 dBm (2.4 GHz, EIRP)
- < 23 dBm (5 GHz, band 1&band 2, EIRP)
- < 28 dBm (5 GHz, band 3, EIRP)
- < 23dBm (6 GHz, EIRP)
Management Features
- Omada App: Yes
- Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller or an Omada Cloud-Based Controller
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Yes
- Web-based Management: Yes
Others
- Certification: CE, FCC, RoHS, IC
- Environment:
- Operating Temperature: 0°C–40°C;
- Storage Temperature: -40°C–70°C;
- Operating Humidity: 10%–90% non-condensing;
- Storage Humidity: 5%–90% non-condensing;
Note: Power Adapter is NOT included
