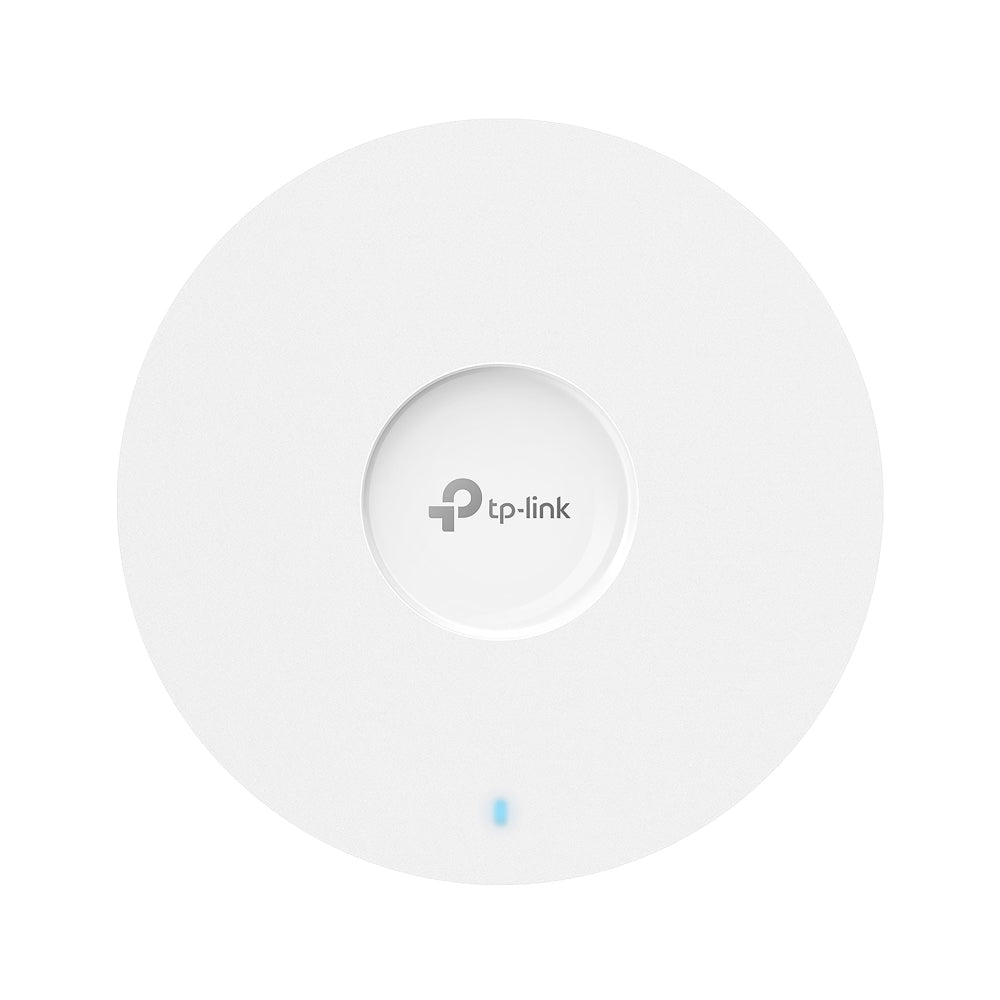

TP-Link Omada EAP683 UR Omada AX6000 Wi-Fi 6 AP Ultra
4 ﾗ 4 MIMO dual-band internal antennas with high transmission power offer robust and extensive wireless coverage.
Features
- Up to 5952Mbps Wi-Fi 6 Speeds: 1148Mbps on 2.4GHz + 4804Mbps on 5GHz
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power
- Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc
- Integrates with the Omada SDN platform for centralized management
- Advanced Features: Omada Mesh, Seamless Roaming, and more
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
Specifications
Hardware Features

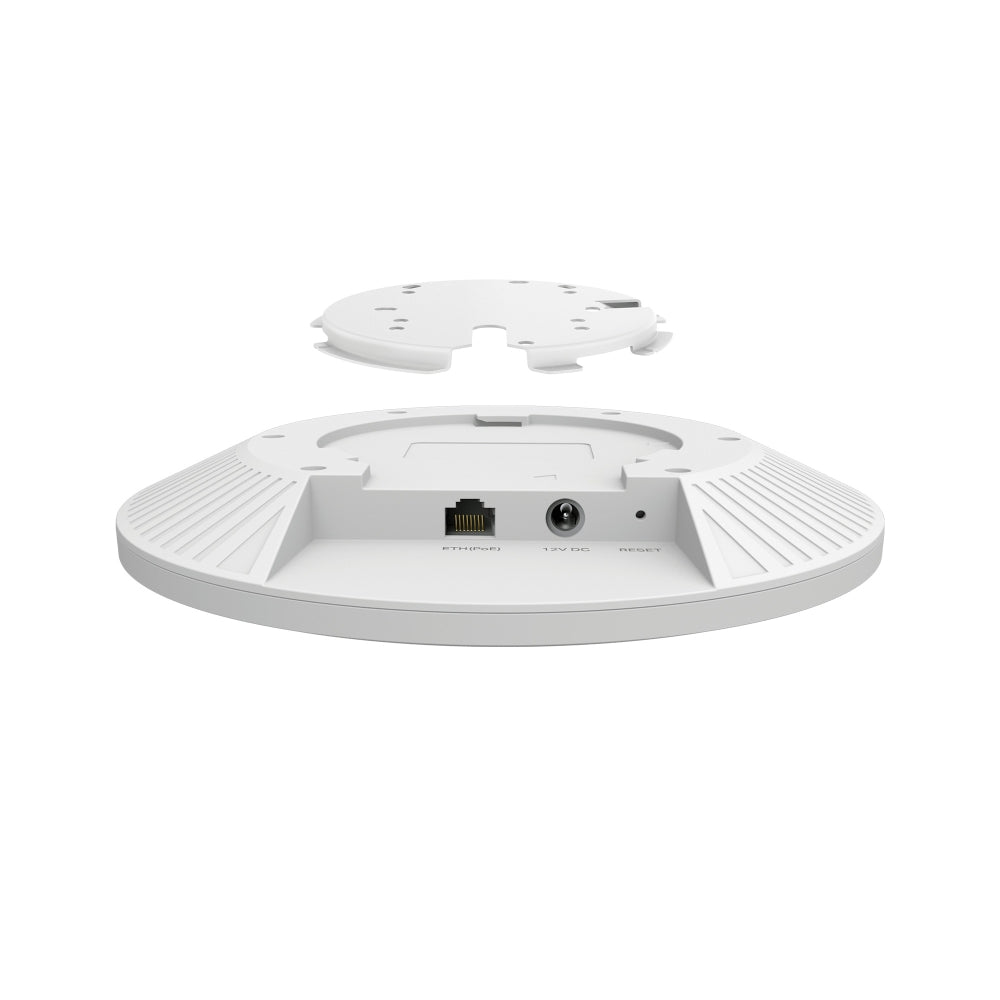

- Interface: 1× 2.5 Gigabit PoE+ Port
- Button: Reset
- Power Supply:
- 802.3at PoE
- 12 V / 2 A Dc
Note：Power adapter is not included
- Max. Power Consumption: 20.43W

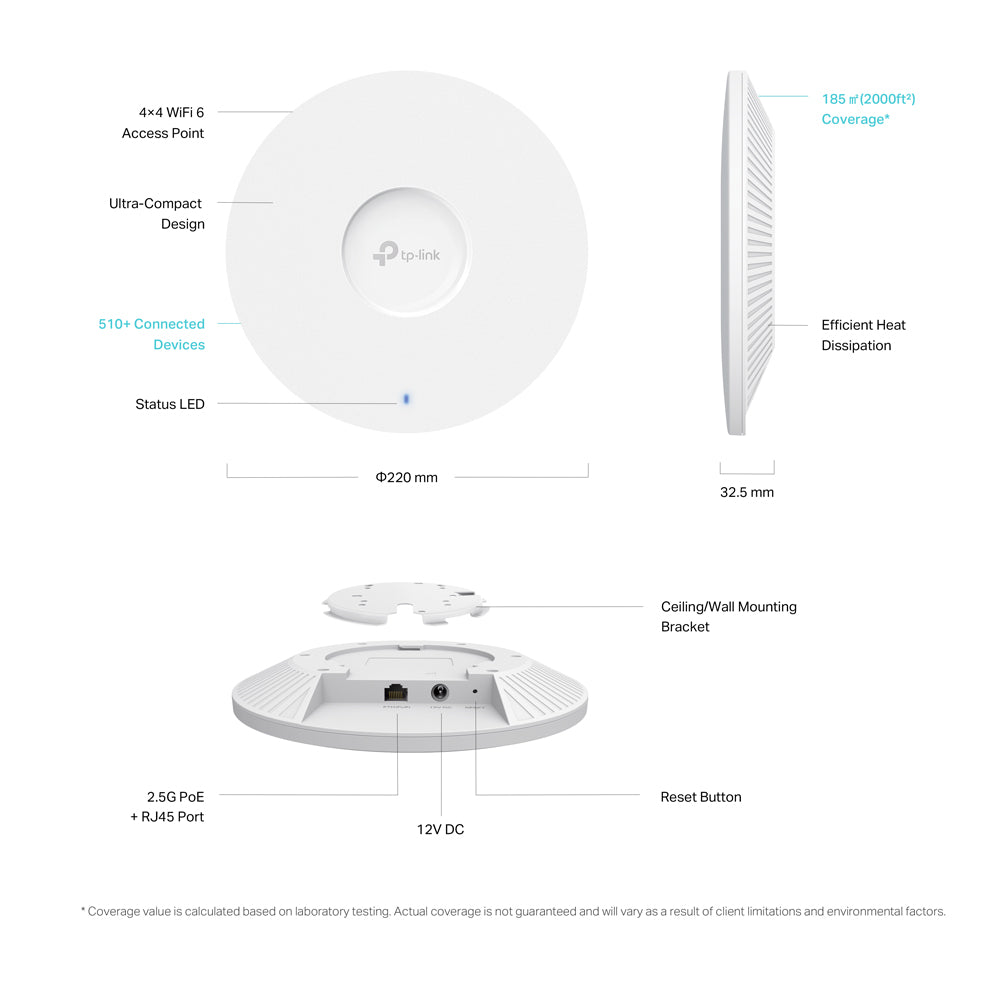

- Dimensions ( W x D x H ): 220 × 220 × 32.5mm
- Antenna: Internal Omni:
- 2.4GHz: 4× 4dBi
- 5GHz: 4× 5dBi
- Bluetooth: Yes

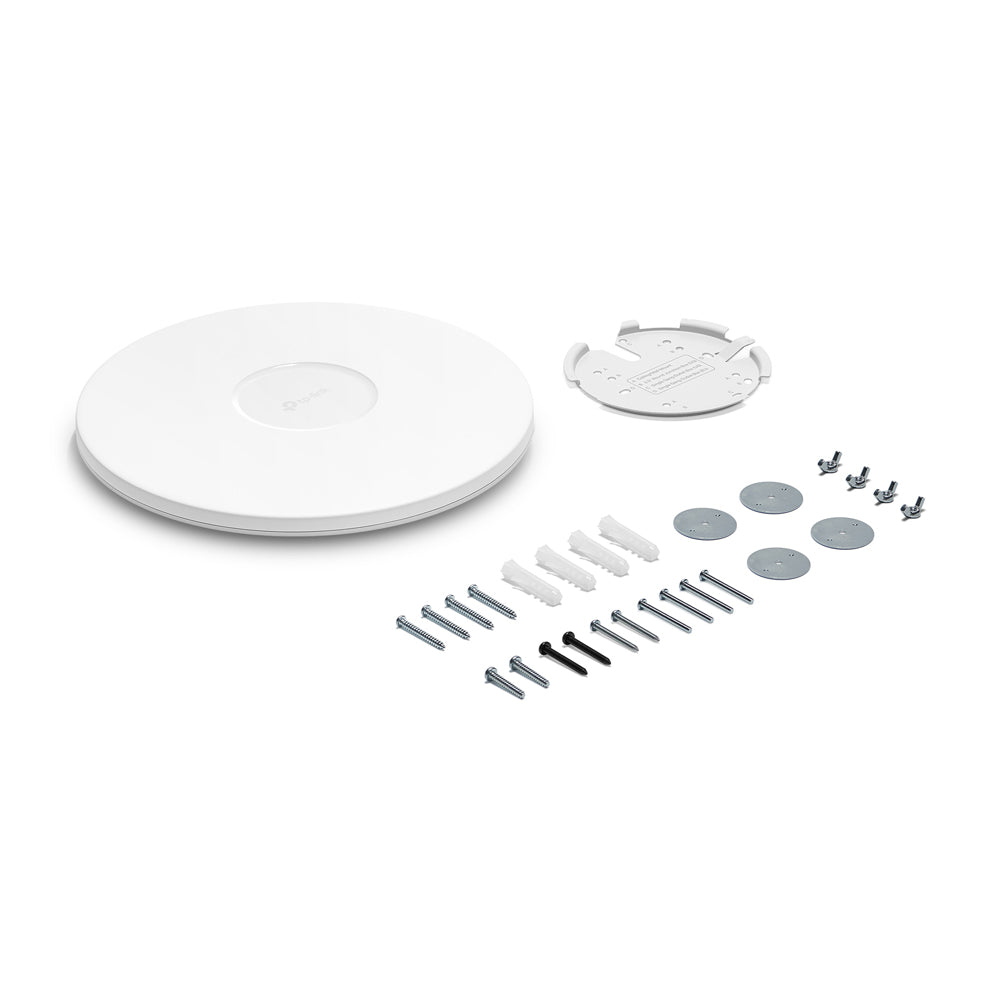

- Mounting: Ceiling / Wall Mounting (Kits included)
Wireless Features
- Coverage: 185m²
- Concurrent Clients: 510+
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz and 5GHz
- Signal Rate:
- 5GHz: Up to 4804Mbps
- 2.4GHz: Up to 1148Mbps
Wireless Functions
- 1024-QAM
- 4× Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS (WMM)
- MU-MIMO
- HE160 (160MHz Bandwidth)
- Seamless Roaming
- Omada Mesh
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power:
- CE: <20 dBm(2.4 GHz, EIRP)
- <23 dBm(5 GHz, band1 & band2, EIRP)
- <28 dBm(5 GHz, band3, EIRP)
- FCC: <26 dBm (2.4 GHz)
- <26 dBm (5 GHz)
Management Features
- Omada App: Yes
- CentraliSed Management:
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
- Cloud Access: Yes
Require the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller
Others
- Certification: CE,FCC,RoHS
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment:
- Operating Temperature: 0–40 °C
- Storage Temperature: -40–70 °C
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
