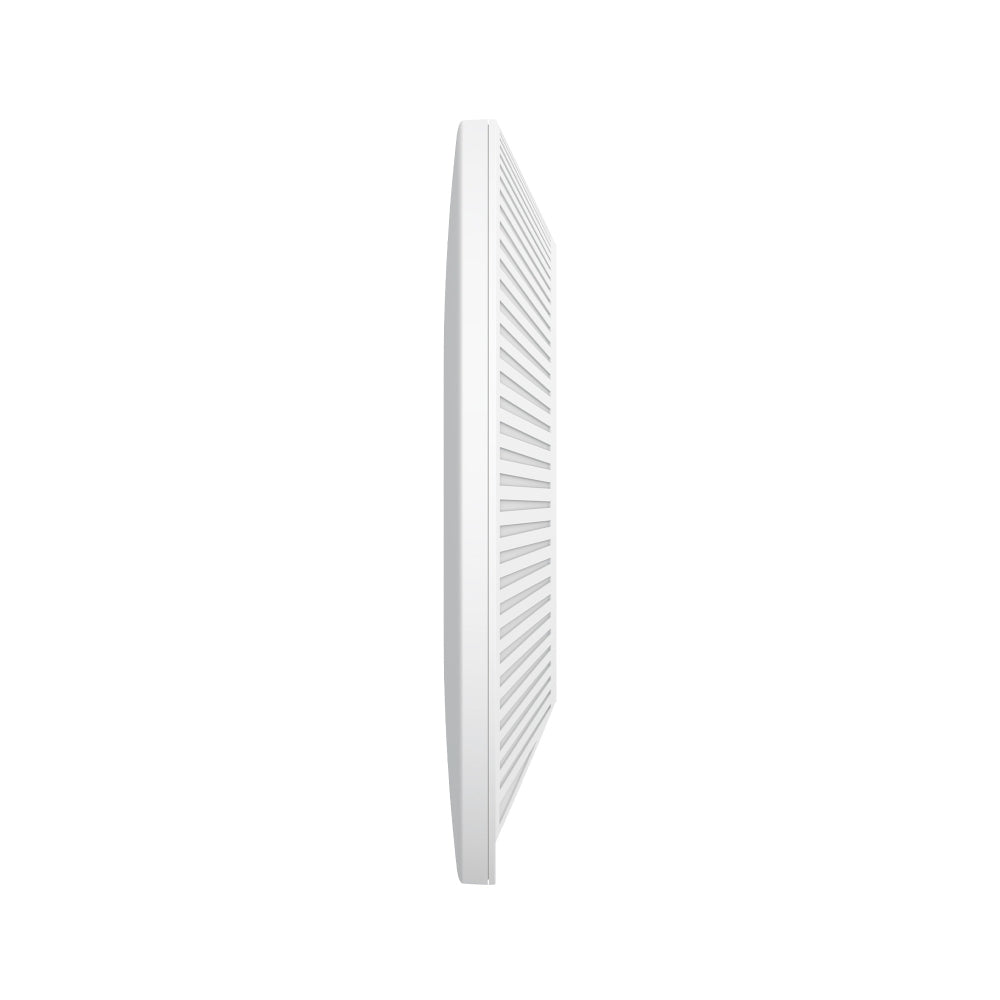

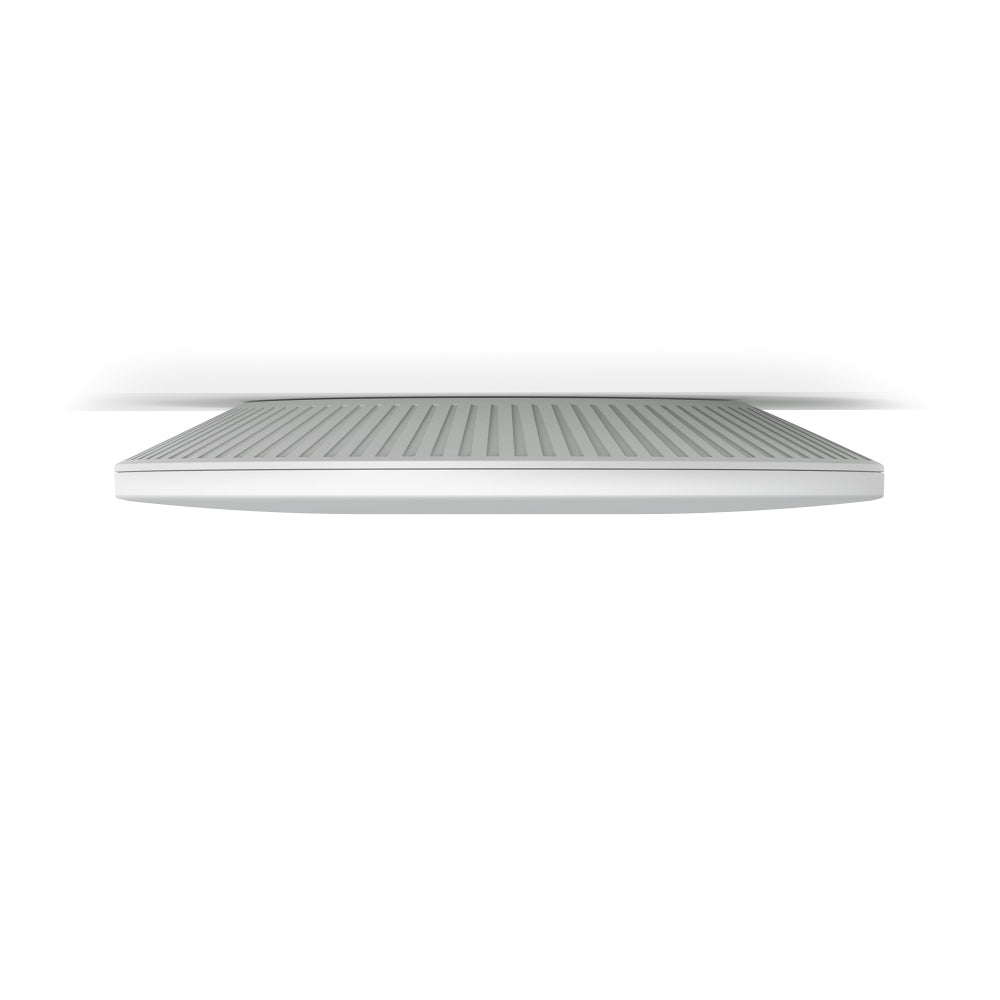

TP-Link EAP673 AX5400 Wi-Fi 6 Ceiling Mount Access Point (DC Adapter Sold Separately)
High-End Business Wi-Fi 6 to Power Up Your Business.
The TP-Link EAP673 delivers ultra-fast AX5400 dual-band Wi-Fi 6 performance with powerful capacity for high-density environments. With a 2.5GbE uplink, advanced Wi-Fi 6 technologies and seamless Omada SDN integration, it provides fast, reliable connectivity with centralised cloud management and flexible PoE+ deployment for modern business networks.
Features
- Blazing-Fast Wi-Fi 6 Speeds - 574Mbps on 2.4GHz plus 4,804Mbps on 5.0GHz
- Integrated into Omada SDN - Supporting centralised cloud management, ZTP and more
- 160MHz Channel - Double the data at peak transmission times on a single stream
- Advanced Features - Supports seamless roaming, Omada Mesh and more
- Supports both 802.3at PoE+ and DC (Adapter Not Included) Power Supply - For flexible installations
Specifications
Hardware Features

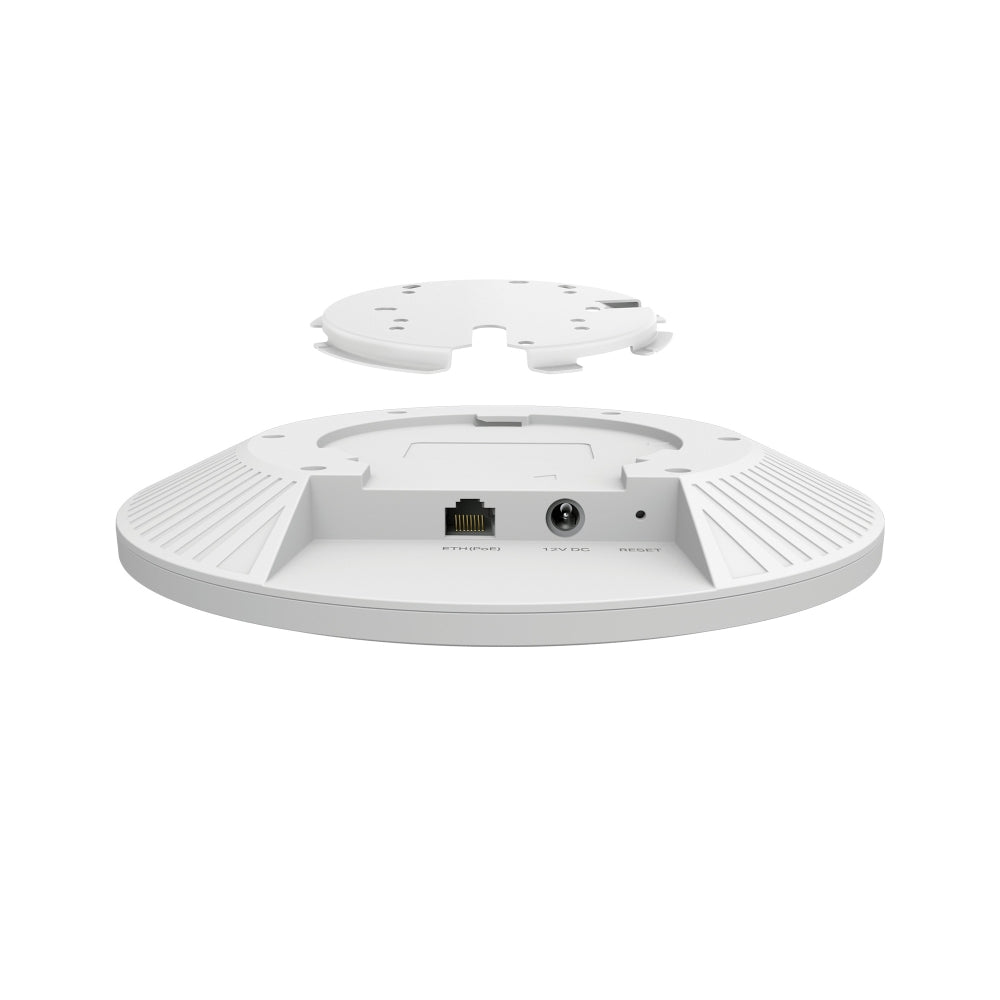

- Interface: 1× 2.5Gb Ethernet (RJ45) Port (Supports IEEE 802.3at PoE+)
- Button: Reset
- Power Supply: 802.3at PoE+ or 12V DC (Adapter Not Included)
- Power Consumption: 14.7W
- Dimensions: 220 × 220 × 32.5mm
- Antennas: Internal Omni Antennas
- 2.4GHz: 2× 3dBi
- 5.0GHz: 4× 4dBi
- Mounting: Ceiling/Wall Mounting Kits Included
Wireless Features
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz and 5.0GHz
- Signal Rate:
- 5.0GHz: up to 4804Mbps
- 2.4GHz: up to 574Mbps
- 1024-QAM: Yes
- OFDMA: Yes
- MU-MIMO: Yes
- 160MHz Channel Support: Yes
- SSIDs: up to 16× SSIDs (8× per Band)
- Seamless Roaming: Yes
- Omada Mesh: Yes
- Band Steering: Yes
- Load Balance: Yes
- Airtime Fairness: Yes
- Beamforming: Yes
- QoS (WMM): Yes
- Rate Limit: Yes
- Reboot Schedule and Wireless Schedule: Yes
- Wireless Statistics: Based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP)
- FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz)
Management
- Omada App: Yes
- Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller)
- Email Alerts: Yes
- LED On/Off Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-Site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
Certification
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
