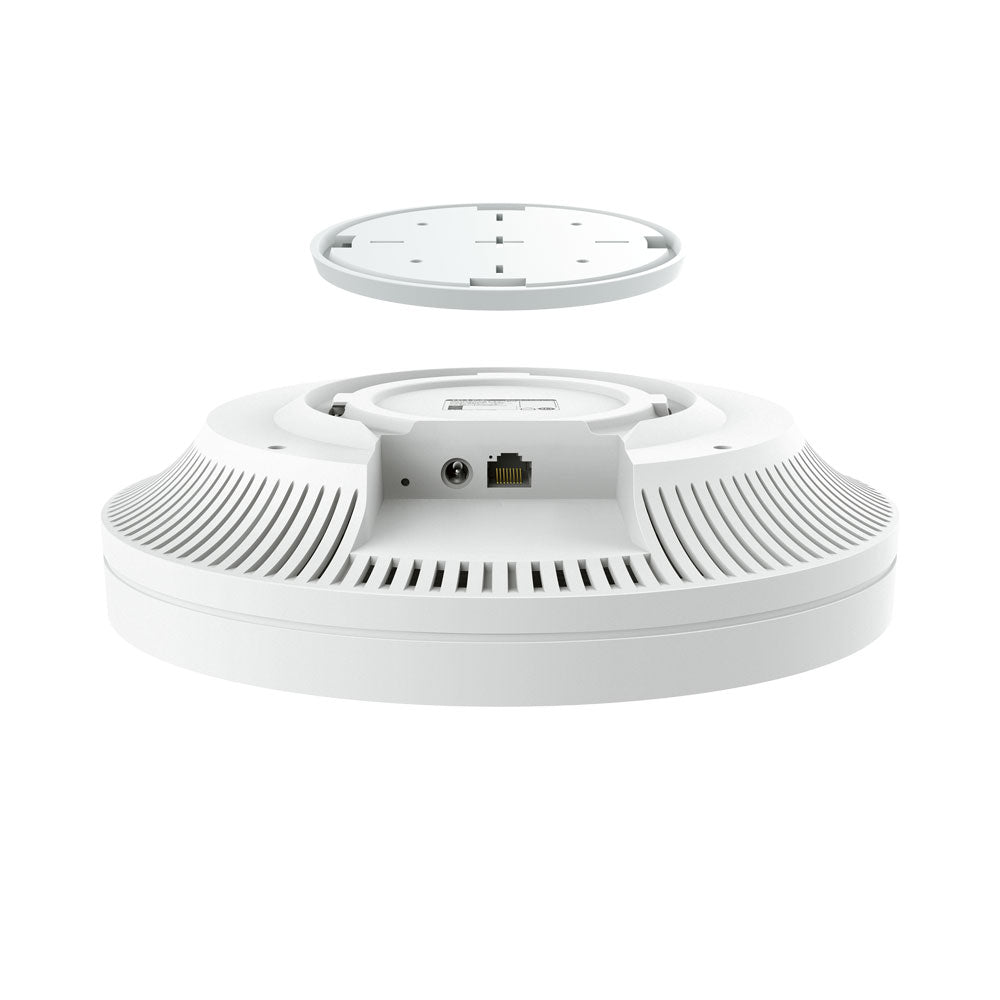

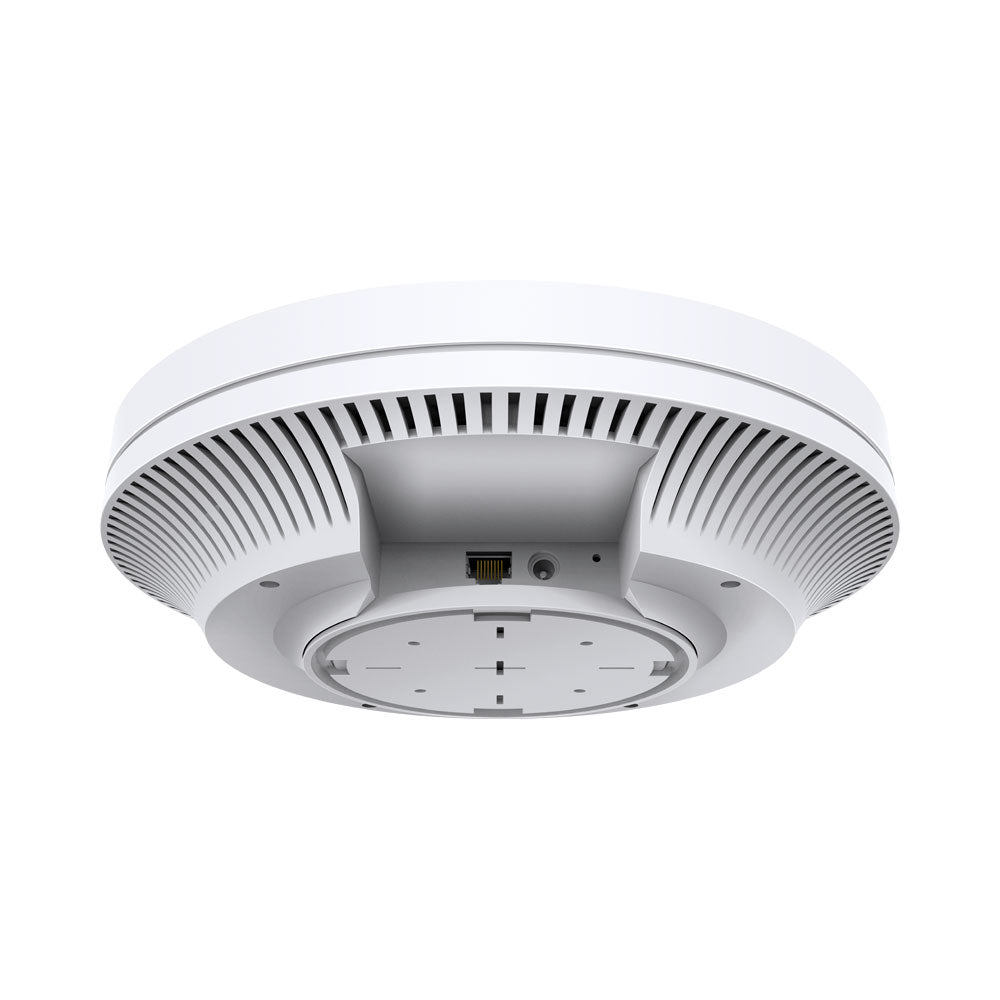

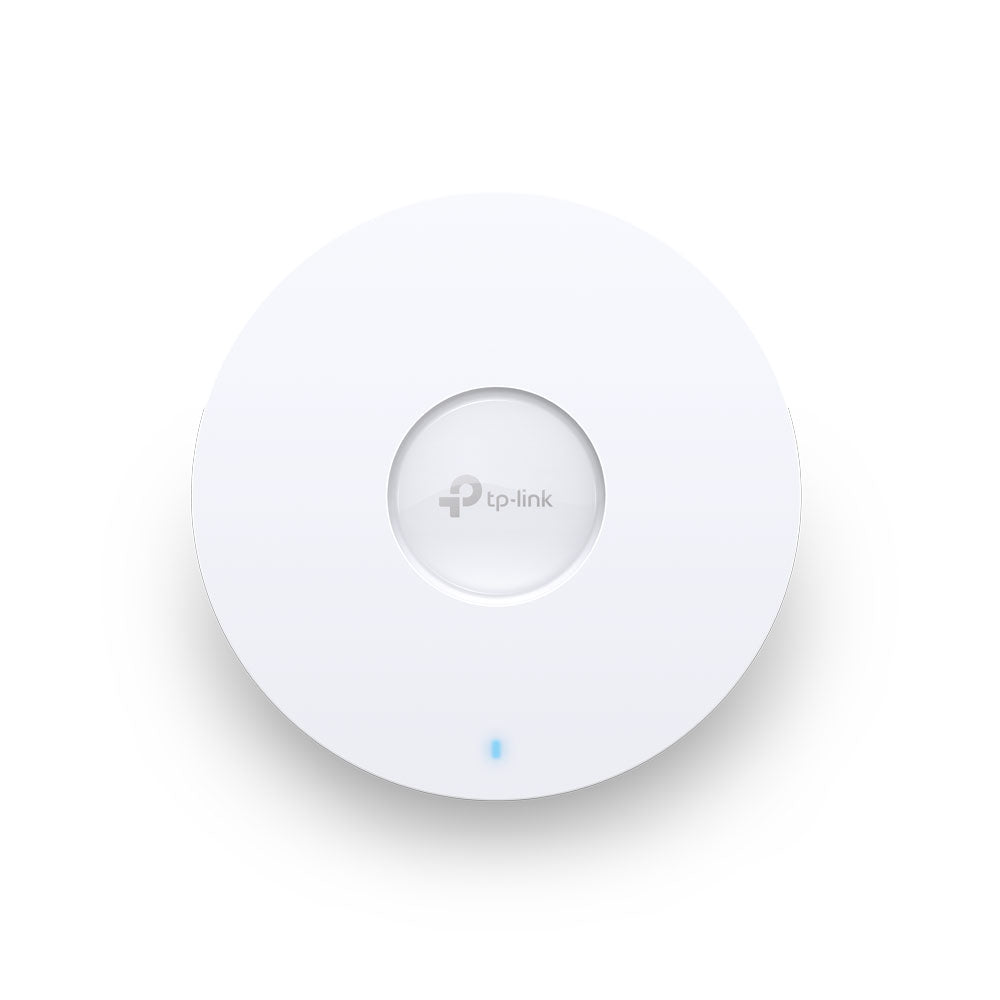

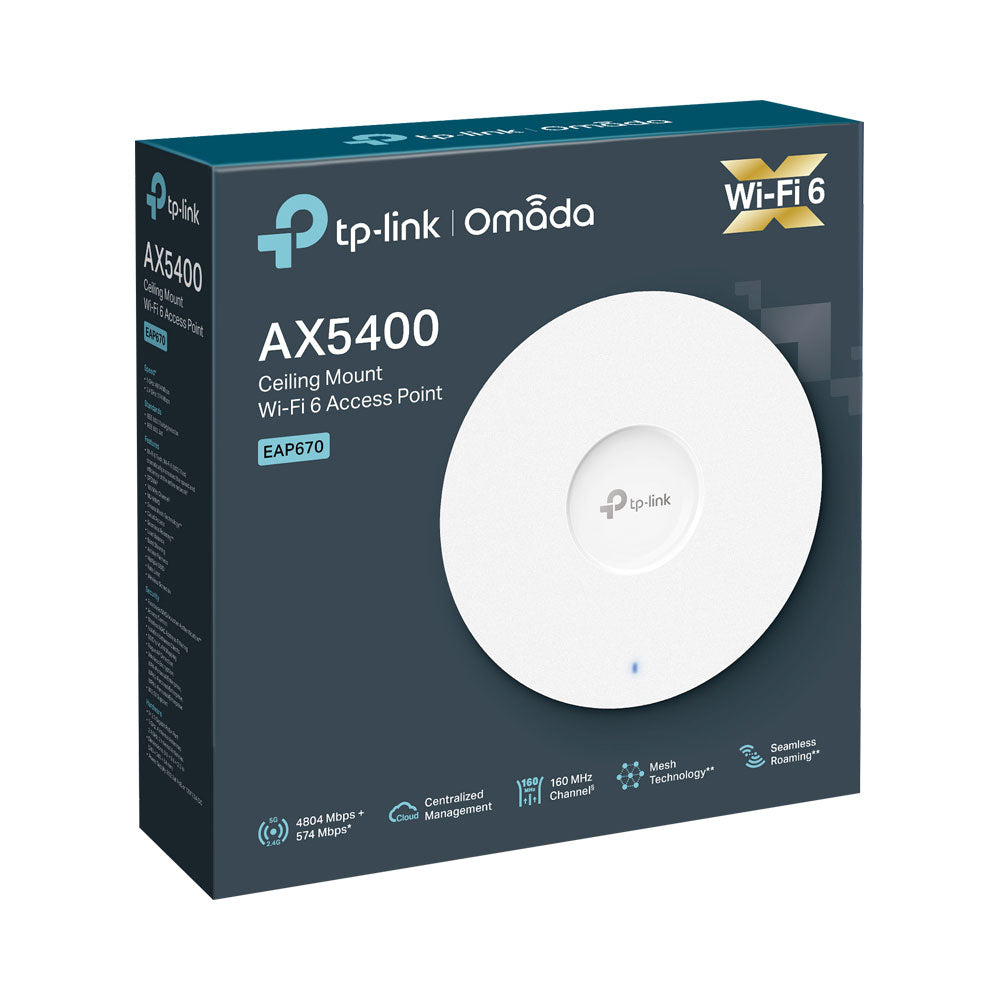

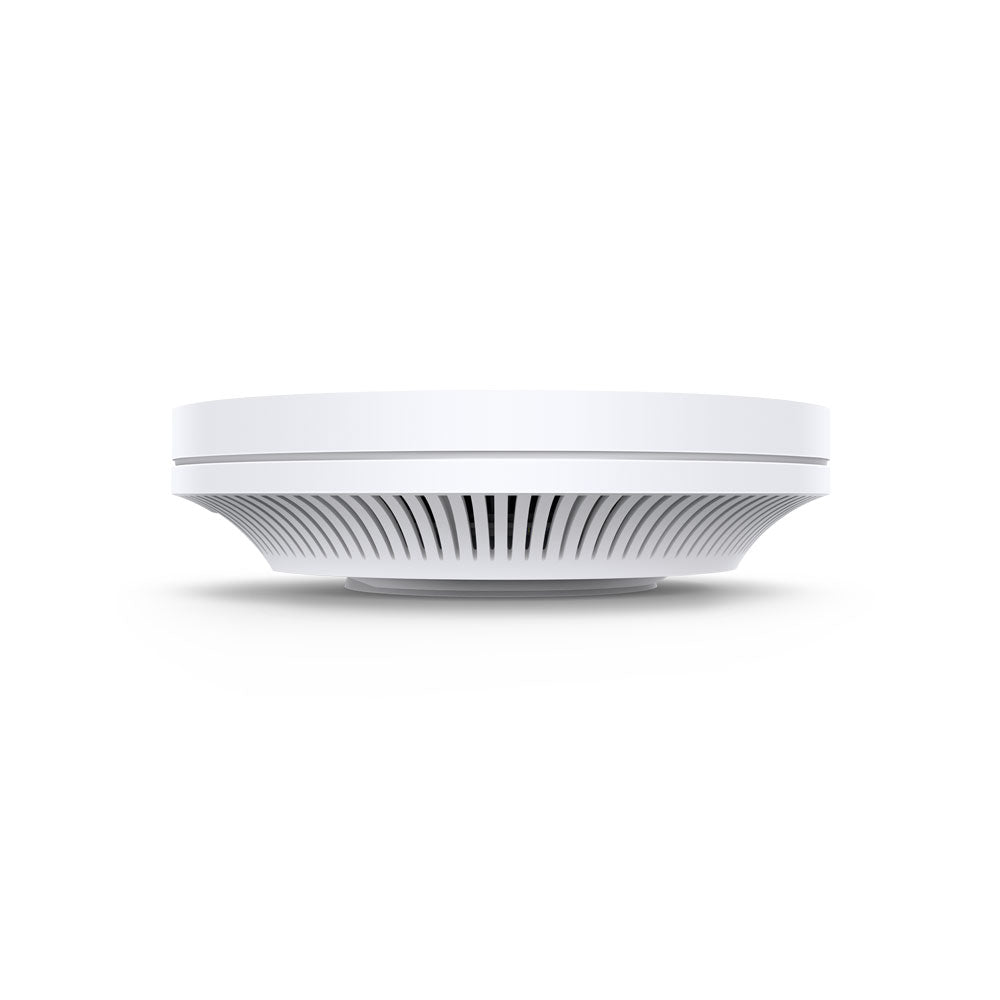

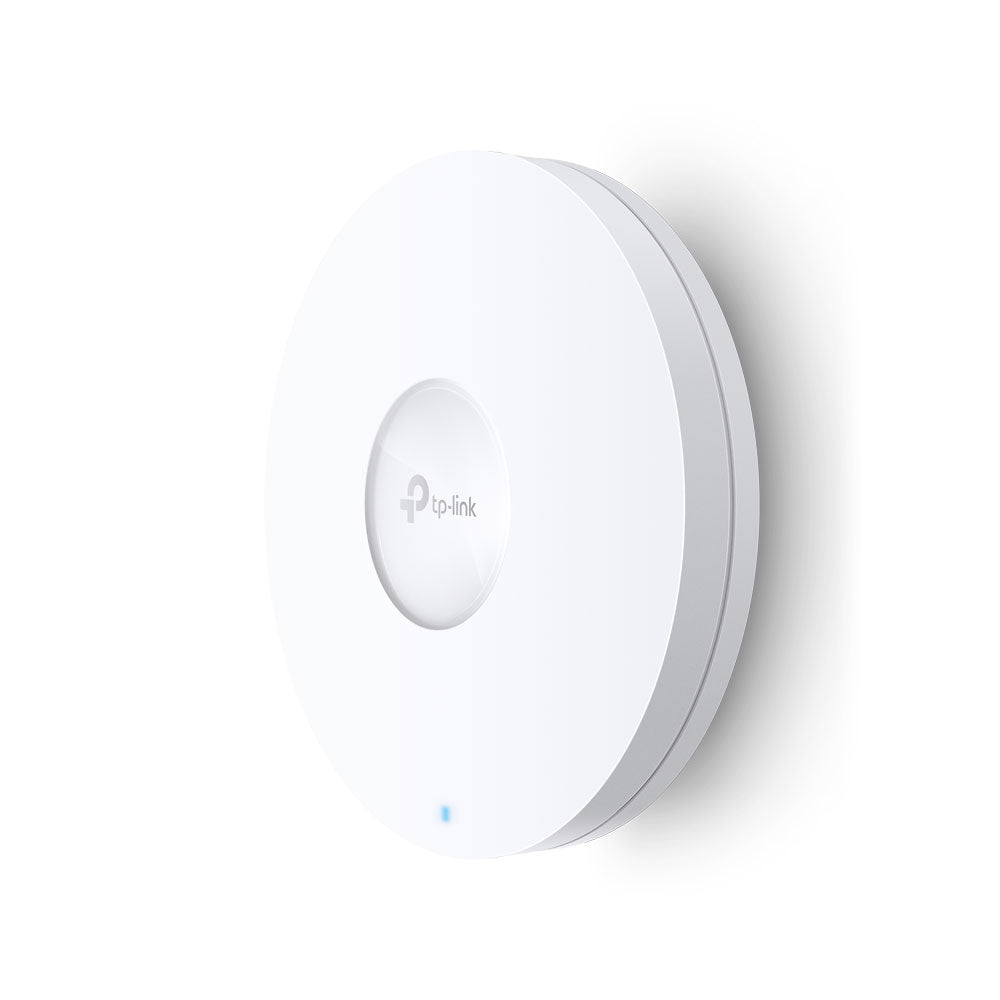

TP-Link EAP670 AX5400 Wi-Fi 6 Dual Band 2.5Gbps Ceiling Mount Access Point
The TP-Link Omada EAP670 is a high-performance AX5400 ceiling mount Wi-Fi 6 access point designed for high-density business environments. With ultra-fast dual-band speeds, advanced Wi-Fi 6 technologies, and seamless Omada SDN integration, it delivers reliable and scalable wireless networking for offices, hospitality, education, and enterprise deployments.
Features
- Blazing-Fast Wi-Fi 6 Speeds: Simultaneous 574Mbps on 2.4GHz and 4804Mbps on 5GHz totals 5378Mbps Wi-Fi speeds
- High-Efficiency Wi-Fi 6: More connected devices can enjoy faster speeds
- Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
- 160MHz Channel: Double the data at peak transmission times on a single stream with HE160
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations
Specifications
Hardware Features
- Interface: 1x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
- Button: Reset
- Power Supply: 802.3at PoE, 12 V / 1.5 A DC (Power Adapter included)
- Power Consumption: EU: 18.1 W
- Dimensions ( W x D x H ): 243 x 243 x 64mm
- Antenna Type: Internal Omni, 2.4GHz: 2x 4dBi, 5GHz: 4x 5dBi
Wireless Features
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz and 5GHz
- Signal Rate: 5GHz: Up to 4804Mbps, 2.4GHz: Up to 574Mbp
- Wireless Functions: 1024-QAM, 4x Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), MU-MIMO, HE160 (160 MHz Bandwidth), Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule,Wireless Schedule, Wireless Statistics based on SSID/AP/Client
- Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power: CE: <20 dBm (2.4GHz, EIRP), <23 dBm (5GHz, band1 & band2, EIRP), <30 dBm (5GHz, band3, EIRP), FCC: <25 dBm (2.4GHz), <28 dBm (5GHz)
Management
- Omada App: Yes
- Centralised Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
- Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller
Others
- Certification: CE, FCC, RoHS
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment: Operating Temperature: 0–40°C
- Storage Temperature: -40–70°C
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
