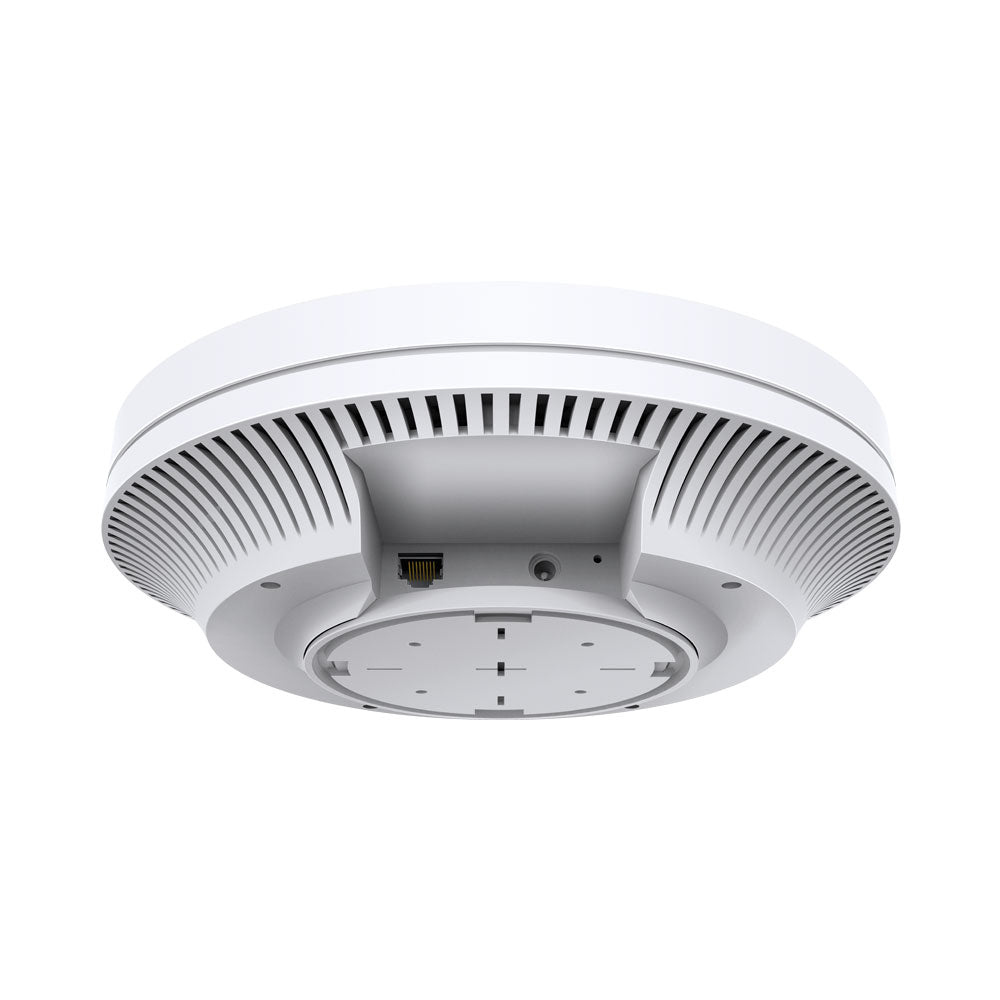

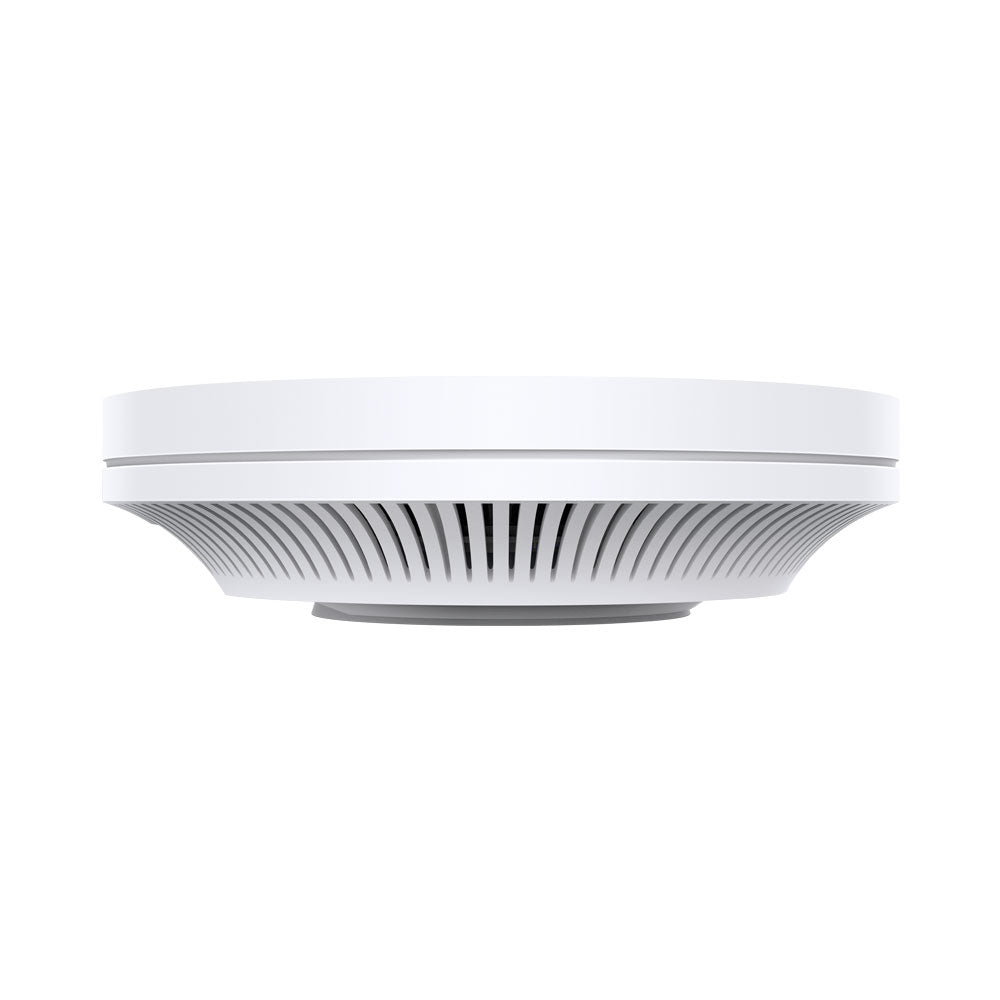

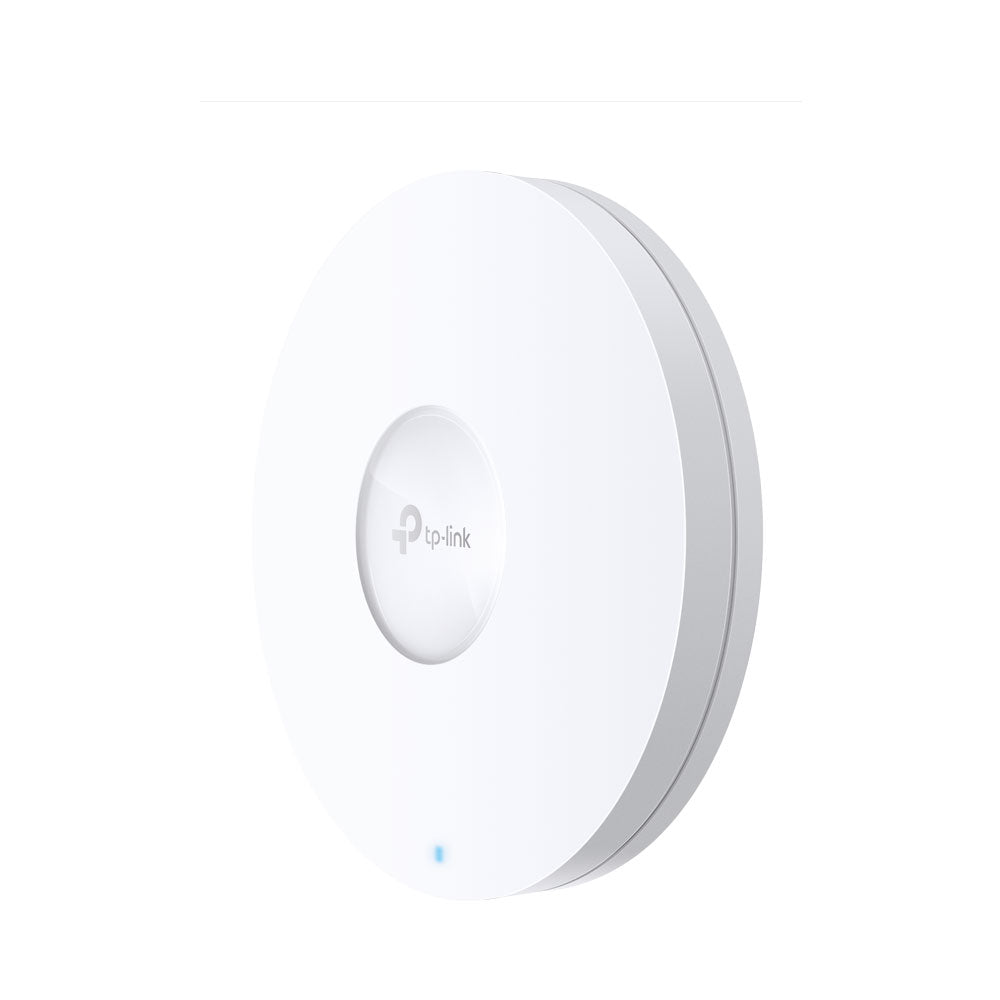

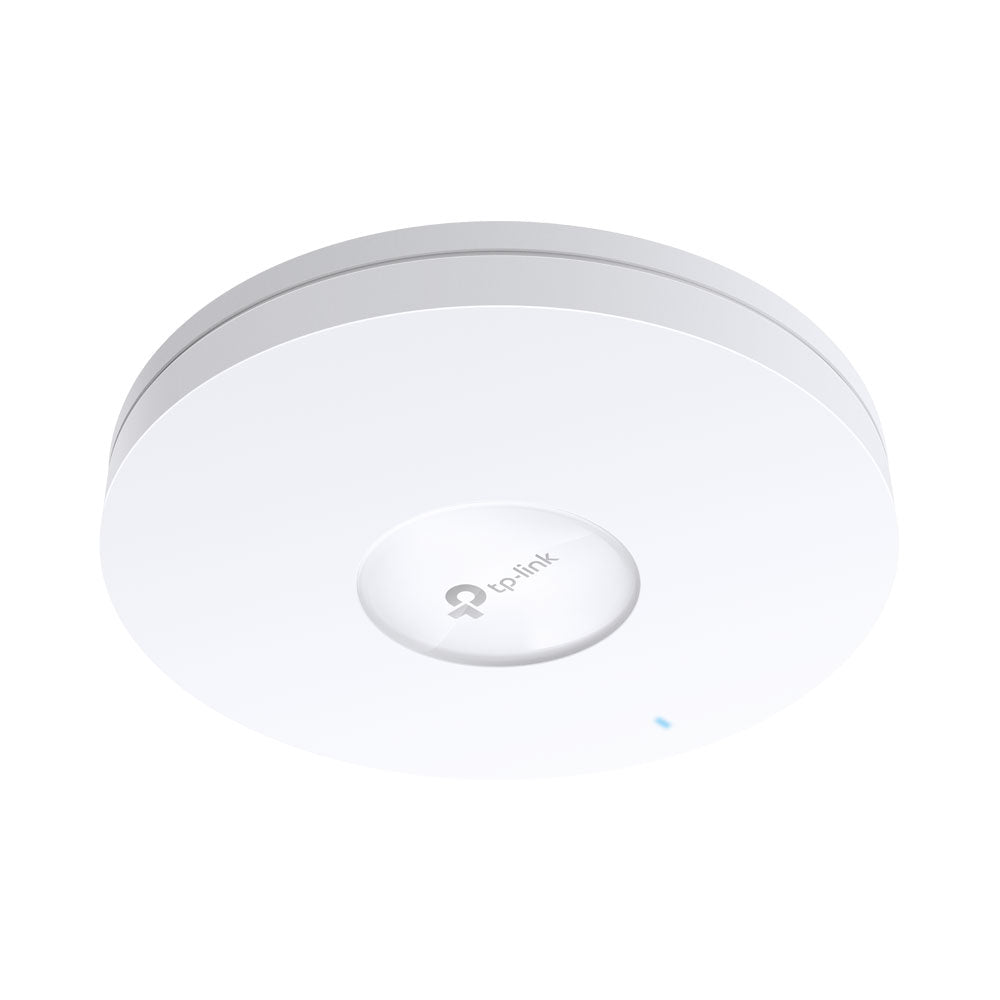

TP-Link EAP660 HD AX3600 Wi-Fi 6 Dual-Band Multi-Gigabit Ceiling Mount Access Point
Ultra-High Performing AX3600 Enterprise Wireless for High-Density Environments.
The TP-Link EAP653 delivers powerful AX3000 dual-band Wi-Fi 6 performance in a compact ceiling-mount form factor, ideal for offices, hospitality environments and high-density business networks. With advanced Wi-Fi 6 technologies such as OFDMA, MU-MIMO and 1024-QAM, it efficiently handles more connected devices while maintaining fast and reliable wireless performance.
Integrated with Omada SDN for seamless roaming, centralised cloud management and intelligent monitoring, the EAP653 provides scalable enterprise networking with simple deployment via PoE+.
Features
- Ultra-Fast Wi-Fi 6 Speeds - Simultaneous 1,148Mbps on 2.4GHz and 2,402Mbps on 5.0GHz totals 3,550Mbps Wi-Fi speeds
- High-Density Connectivity - 4× increased capacity to connect more devices simultaneously
- Integrated into Omada SDN - Zero-Touch Provisioning (ZTP), Centralised Cloud Management and Intelligent Monitoring
- Centralised Management - Cloud access and Omada App for ultra convenience and easy management
- 2.5G Port - A 2.5Gbps Ethernet port boosts total internet throughput
- Seamless Roaming - Even video streams and voice calls are unaffected as users move between locations
- PoE+ Support - Supports Power over Ethernet (802.3at) for convenient deployment and installation
- Secure Guest Network - Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
Specifications
Hardware Features
- Interface: 1× Gigabit Ethernet (RJ45) Port (Supports IEEE 802.3at PoE+)
- Button: Reset
- Power Supply: 802.3at PoE+ or 12V DC (DC Adapter Sold Separately)
- Power Consumption: 12.3W
- Dimensions: 160 × 160 × 33.6mm
- Antennas: Internal Omni Antennas
- 2.4GHz: 2× 4dBi
- 5.0GHz: 2× 5dBi
- Mounting: Ceiling/Wall Mounting Kits Included
Wireless Features
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz and 5.0GHz
- Signal Rate:
- 5.0GHz: up to 2402Mbps
- 2.4GHz: up to 574Mbps
- 1024-QAM: Yes
- OFDMA: Yes
- MU-MIMO: Yes
- HE160: Yes
- SSIDs: up to 16× SSIDs (8× per Band)
- Seamless Roaming: Yes
- Omada Mesh: Yes
- Band Steering: Yes
- Load Balance: Yes
- Airtime Fairness: Yes
- Beamforming: Yes
- QoS (WMM): Yes
- Rate Limit: Yes
- Reboot Schedule and Wireless Schedule: Yes
- Wireless Statistics: Based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP)
- FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz)
Management
- Omada App: Yes
- Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller)
- Email Alerts: Yes
- LED On/Off Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-Site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
Certification
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
