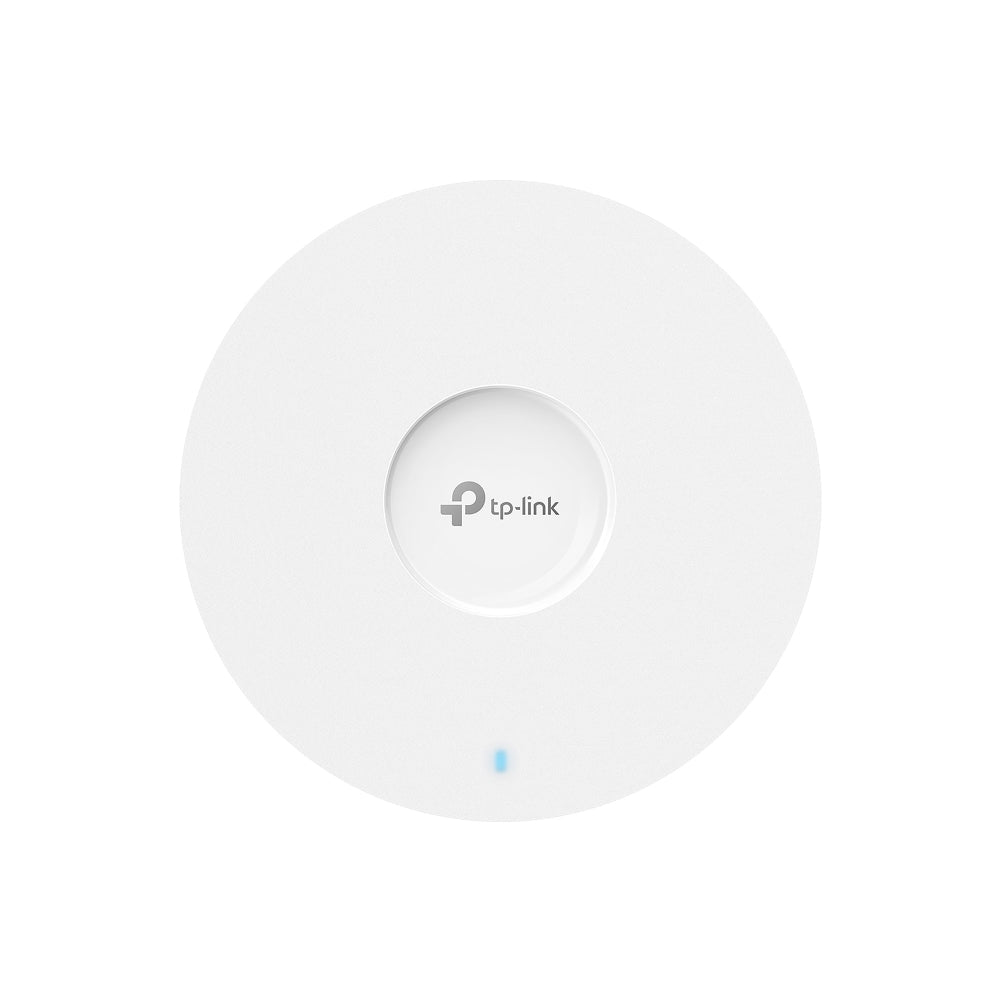

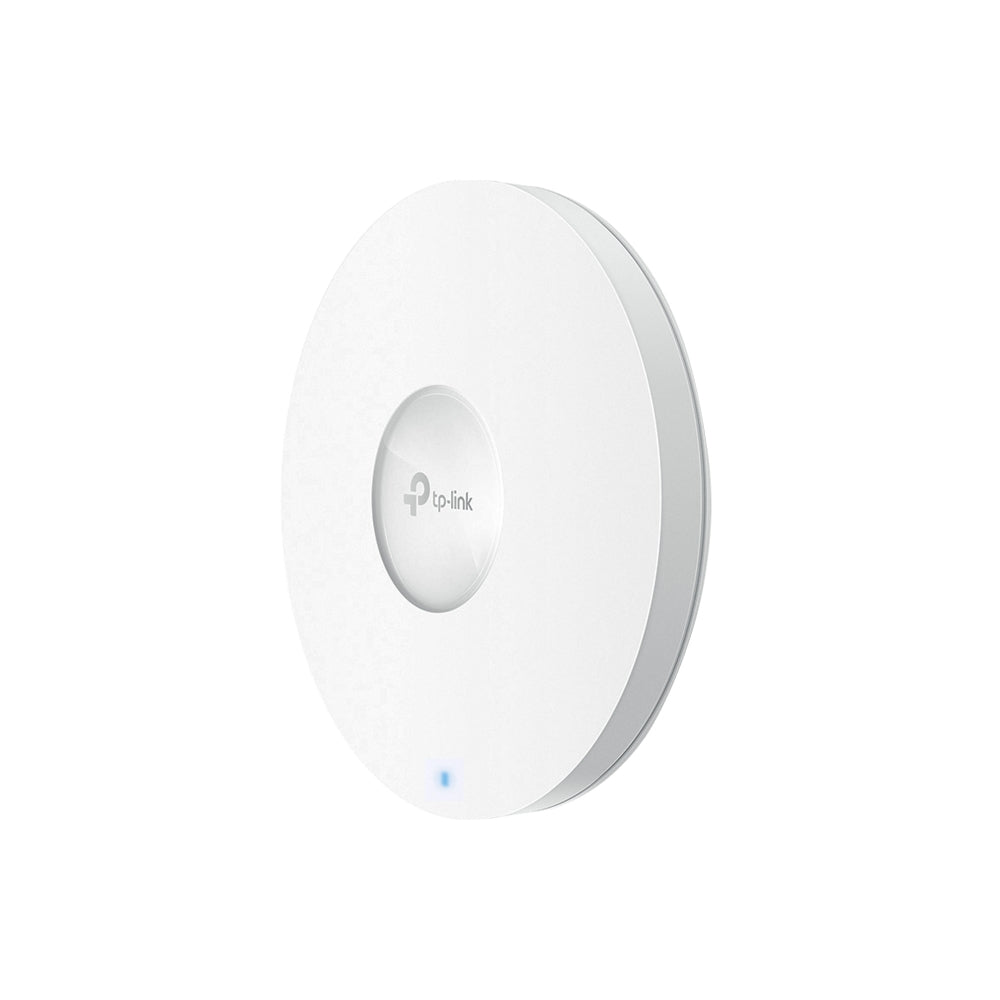

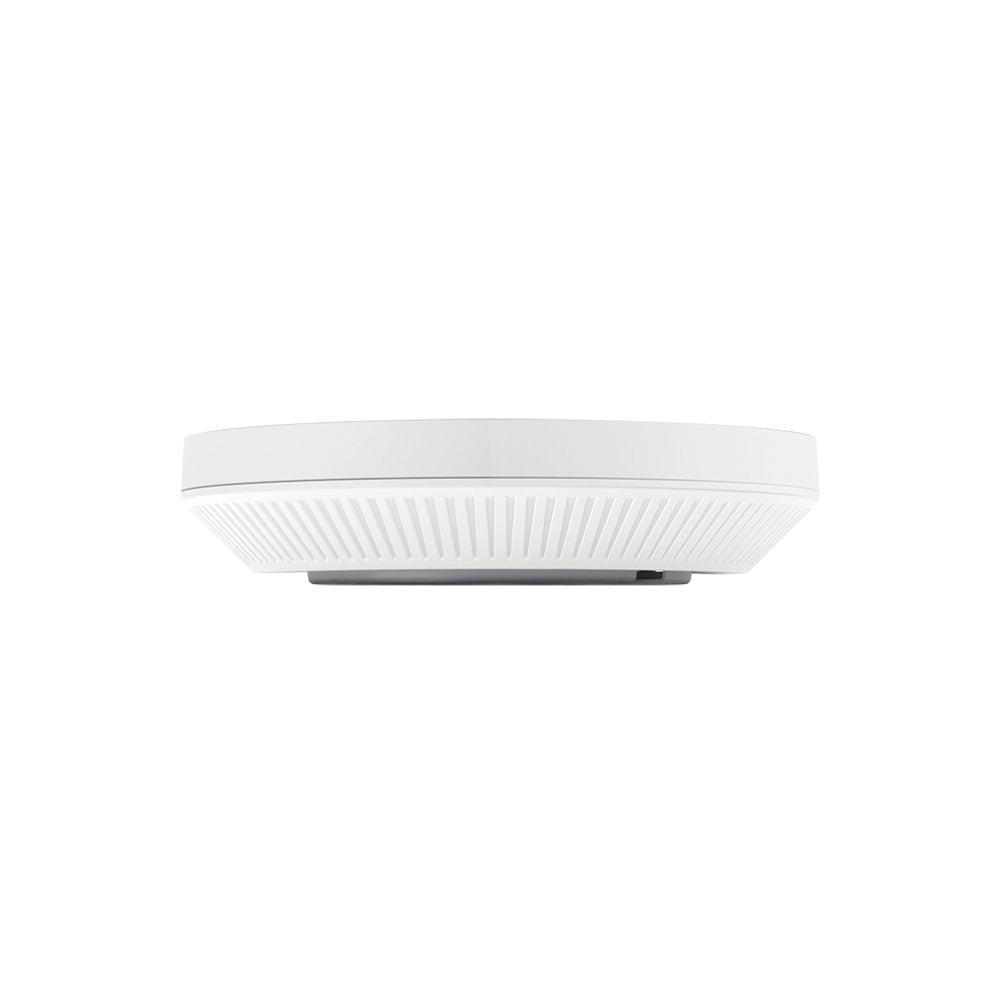

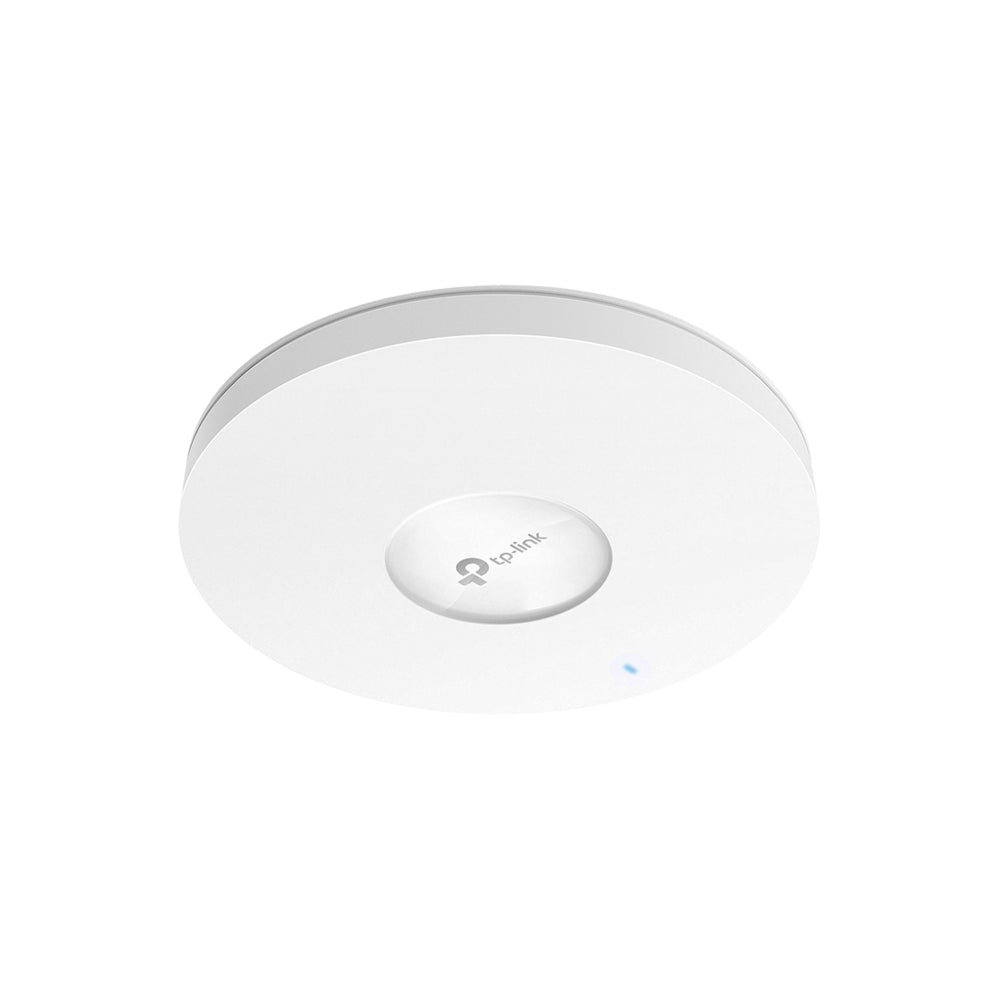

TP-Link Omada EAP653 UR AX3000 Ceiling Mount Wi-Fi 6 Access Point
More antennas with high transmission power offer robust and extensive wireless coverage. Always have full coverage for your office.
Features
- Ultra-fast Wi-Fi 6 speeds: 2402Mbps on 5GHz t+ 574Mbps on 2.4GHz
- Ultra-range wireless coverage by more antennas with higher transmit power
- Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc
- Advanced Features: Omada Mesh, Seamless Roaming, etc
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
- Ultra-Slim Design: Φ6.3in × 1.3in elegant design brings more agility
- Integrates with the Omada SDN platform for centralized management
Specifications
Hardware Features
- Interface: 1× Gigabit PoE+ Port
- Button: Reset
- Power Supply:
- 802.3at PoE
- 12V DC / 1.5 A (Power Adapter IS NOT included)
- 48V Passive PoE
- Max. Power Consumption: 14.2W
- Dimensions ( W x D x H ): 160 × 160 × 33.6mm
- Antenna: Internal Omni
- 2.4GHz: 2× 5dBi
- 5GHz: 3× 5dBi

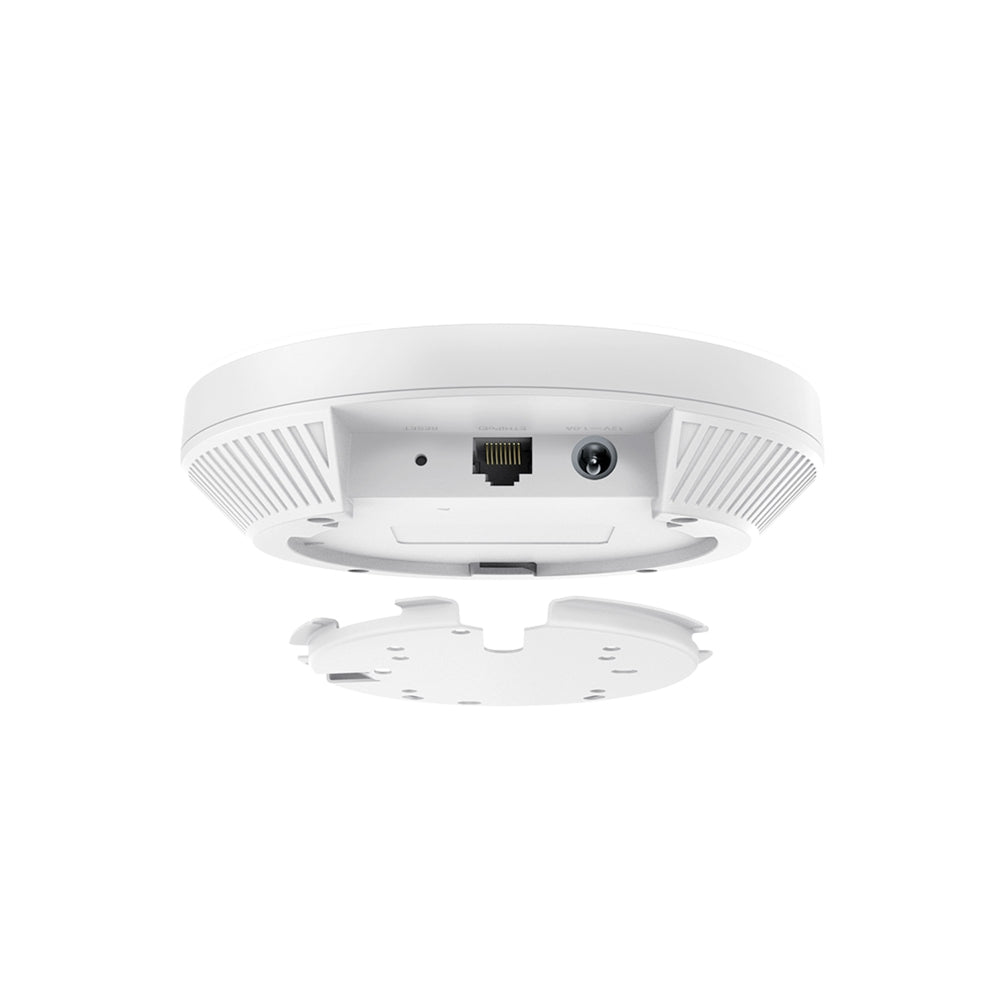

- Mounting:
- Ceiling /Wall Mounting (Kits included)
- Junction Box Mounting
Wireless Features
- Coverage: 185m²
- Concurrent Clients: 250+
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz and 5GHz
- Signal Rate:
- 5GHz: Up to 2402Mbps
- 2.4GHz: Up to 574Mbps
Wireless Functions
- 1024-QAM
- 4× Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)
- HE160 (160 MHz Bandwidth)
- Seamless Roaming(802.11k/v/r)§
- Omada Mesh
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE:
- <20 dBm(2.4 GHz, EIRP)
- <23 dBm(5 GHz, Band1 & Band2, EIRP)
- <29 dBm(5 GHz, Band3, EIRP)
- FCC:
- <26 dBm (2.4 GHz)
- <27 dBm (5 GHz)
Management Features
- Omada App: Yes
- CentraliSed Management:
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
- Cloud Access: Yes
Requiring the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes
Requiring the use of Omada Cloud-Based Controller
Others
- Certification: CE, FCC, RoHS
- System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
- Environment:
- Operating Temperature: 0–40 °C (32–104 ℉)
- Storage Temperature: -40–70 °C (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
Note: DC adapter is not included in the package, and is sold separately.
