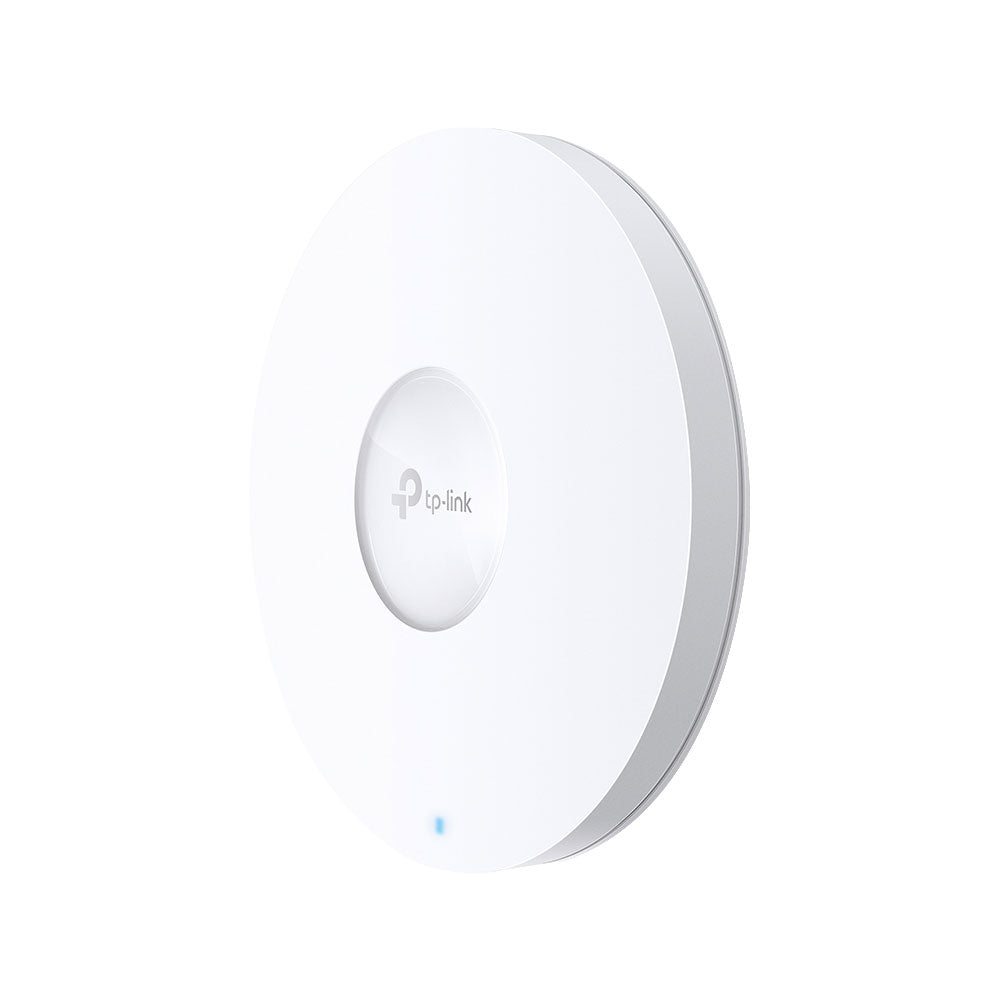

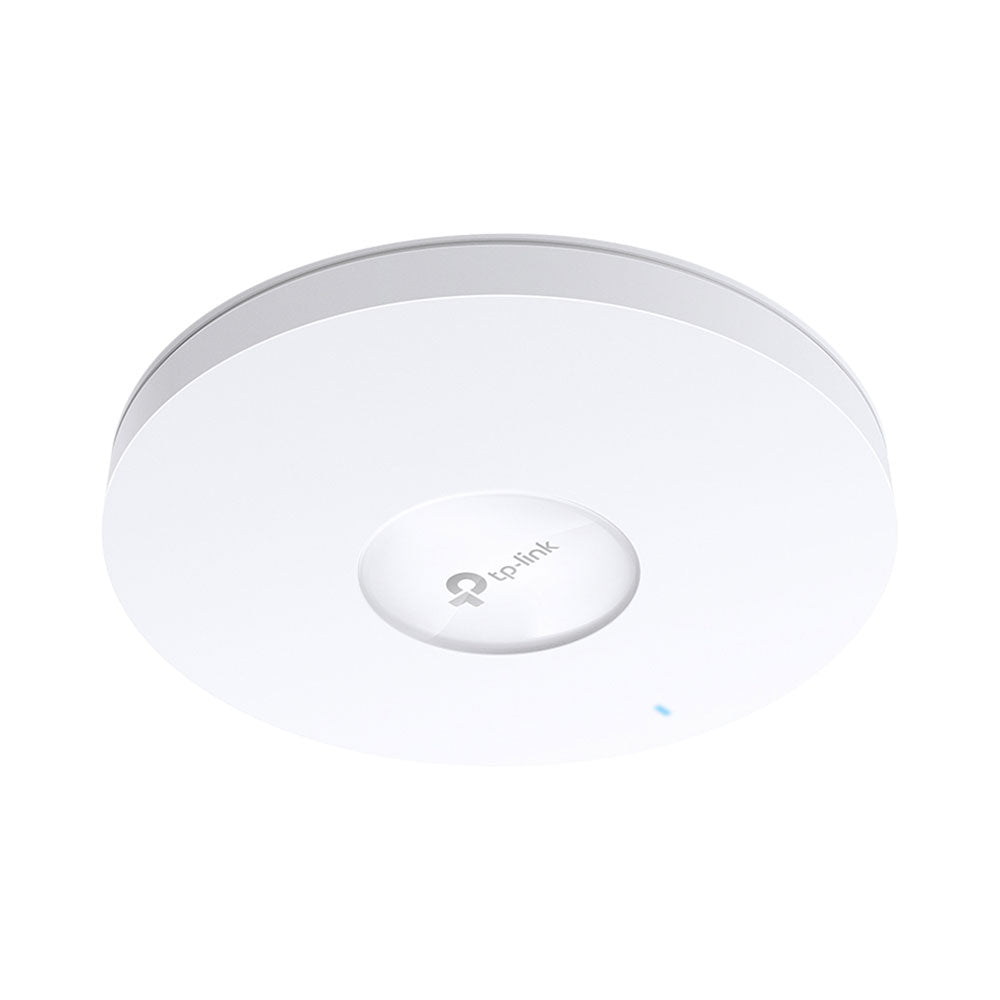

TP-Link EAP653 AX3000 Wi-Fi 6 Dual-Band Gigabit Ceiling Mount Access Point (DC Adapter Sold Separately)
Ultra-Fast Wi-Fi 6 with a Sleek, Ultra-Slim Design.
The TP-Link EAP653 delivers powerful AX3000 dual-band Wi-Fi 6 performance in a compact ceiling-mount form factor, ideal for offices, hospitality environments and high-density business networks. With advanced Wi-Fi 6 technologies such as OFDMA, MU-MIMO and 1024-QAM, it efficiently handles more connected devices while maintaining fast and reliable wireless performance.
Integrated with Omada SDN for seamless roaming, centralised cloud management and intelligent monitoring, the EAP653 provides scalable enterprise networking with simple deployment via PoE+.
Features
- Ultra-Fast Wi-Fi 6 Speeds - Simultaneous 574Mbps on 2.4GHz and 2,402Mbps on 5.0GHz totals 2,976Mbps Wi-Fi speeds
- High-Efficiency Wi-Fi 6 - More connected devices can enjoy faster speeds
- Centralised Cloud Management - Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada App
- 160MHz Channel - Double the data at peak transmission times on a single stream with HE160
- Seamless Roaming - Video streams and voice calls are unaffected as users move between locations
- Omada Mesh - Enables wireless connectivity between access points for extended range and flexible deployment
- PoE+ Powered - Supports both 802.3at PoE+ and DC power supply (DC adapter sold separately) for flexible installations

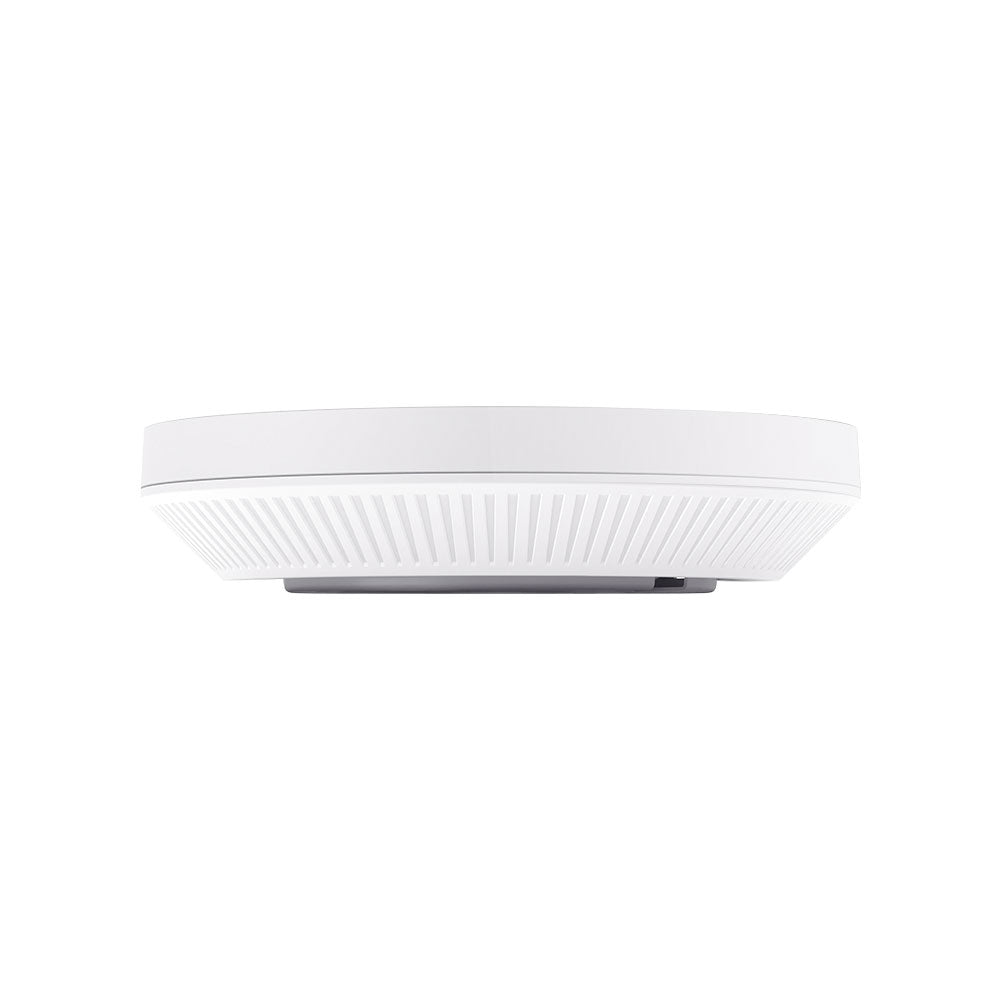

- Ultra-Slim Design - ø160mm × 33.6mm elegant design brings more agility
Specifications
Hardware Features

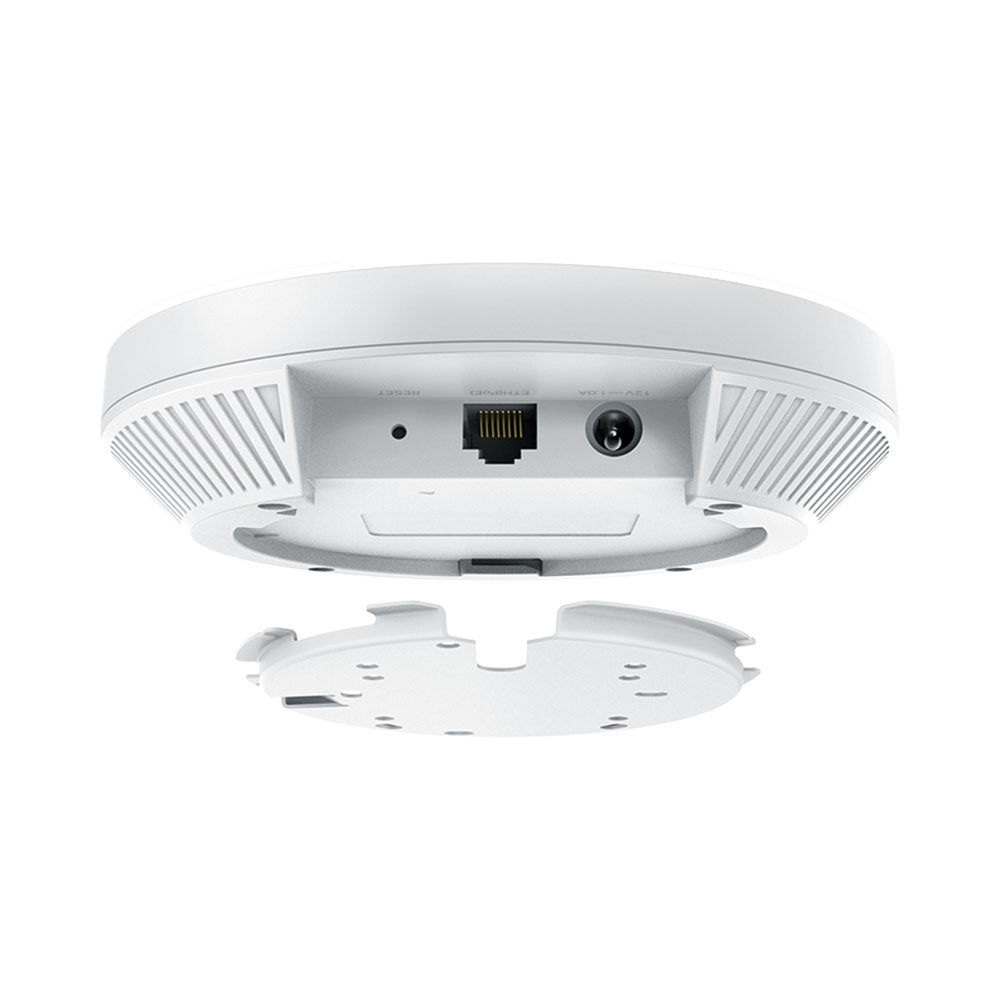

- Interface: 1× Gigabit Ethernet (RJ45) Port (Supports IEEE 802.3at PoE+)
- Button: Reset
- Power Supply: 802.3at PoE+ or 12V DC (DC Adapter Sold Separately)
- Power Consumption: 12.3W
- Dimensions: 160 × 160 × 33.6mm
- Antennas: Internal Omni Antennas
- 2.4GHz: 2× 4dBi
- 5.0GHz: 2× 5dBi

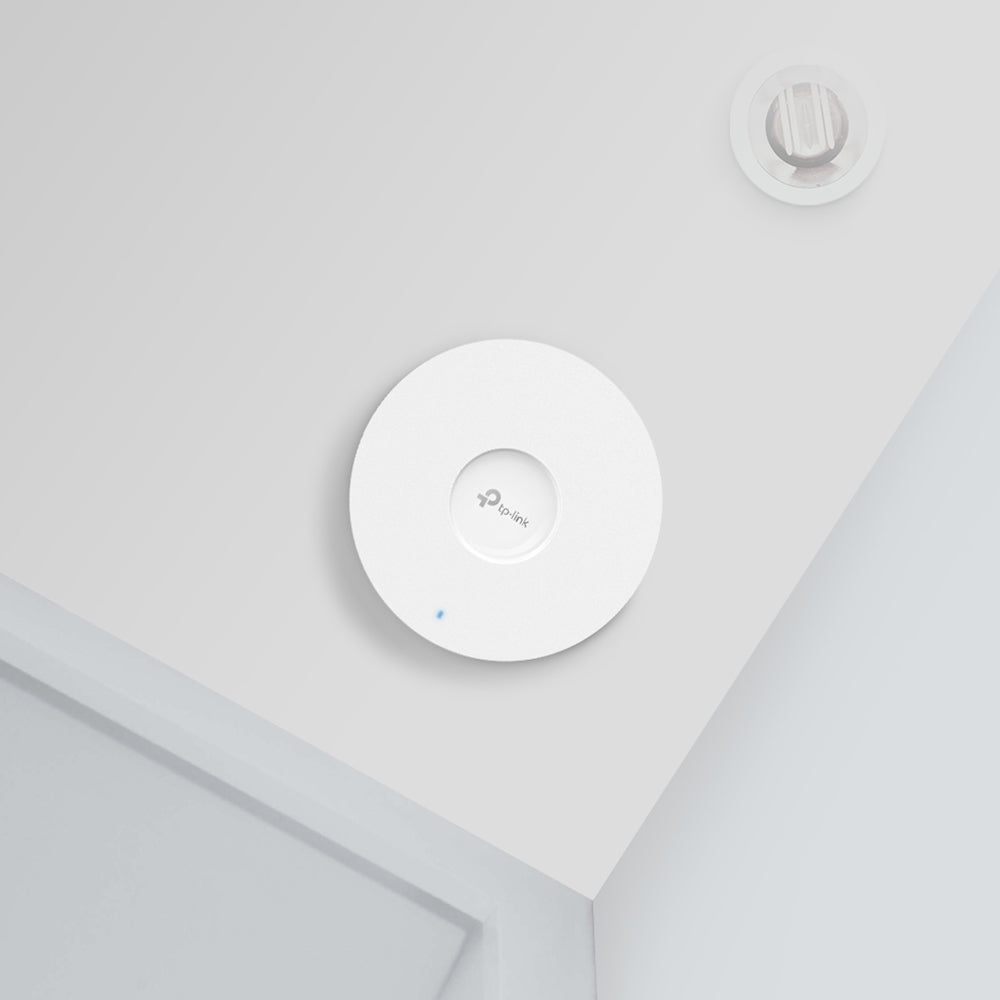

- Mounting: Ceiling/Wall Mounting Kits Included
Wireless Features
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz and 5.0GHz
- Signal Rate:
- 5.0GHz: up to 2402Mbps
- 2.4GHz: up to 574Mbps
- 1024-QAM: Yes
- OFDMA: Yes
- MU-MIMO: Yes
- HE160: Yes
- SSIDs: up to 16× SSIDs (8× per Band)
- Seamless Roaming: Yes
- Omada Mesh: Yes
- Band Steering: Yes
- Load Balance: Yes
- Airtime Fairness: Yes
- Beamforming: Yes
- QoS (WMM): Yes
- Rate Limit: Yes
- Reboot Schedule and Wireless Schedule: Yes
- Wireless Statistics: Based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP)
- FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz)
Management
- Omada App: Yes
- Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller)
- Email Alerts: Yes
- LED On/Off Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-Site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
Certification
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
