TP-Link EAP650-Wall AX3000 Wi-Fi 6 Wall Plate Access Point
Powerful In-Room Wi-Fi 6 with Wired Flexibility.
The TP-Link EAP650-Wall delivers ultra-fast AX3000 dual-band Wi-Fi 6 in a compact wall-plate design, perfect for hotels, offices and student residences. With multiple Gigabit ports and PoE support, it provides both high-speed wireless and reliable wired connectivity from a single installation point. Integrated with Omada SDN for centralised cloud management, seamless roaming and enterprise-grade security, the EAP650-Wall makes it easy to deploy scalable, high-performance networks across multiple rooms and locations.
Features
- Blazing-Fast AX3000 Wi-Fi 6 Speeds - Simultaneous 574Mbps on 2.4GHz and 2,402Mbps on 5.0GHz totals 2,976Mbps Wi-Fi speeds
- Higher Network Efficiency - Deliver data to more devices at the same time with less lag
- Complete In-Room Wi-Fi Coverage - Guaranteed strong signals and corner-to-corner Wi-Fi coverage
- Gigabit Port - Connect wired devices with one downlink gigabit port
- Centralised Cloud Management - Integrates into Omada SDN for cloud access and remote management
- Secure Guest Network - Implement multiple authentication options (SMS/Voucher) packed with high-quality wireless security technologies

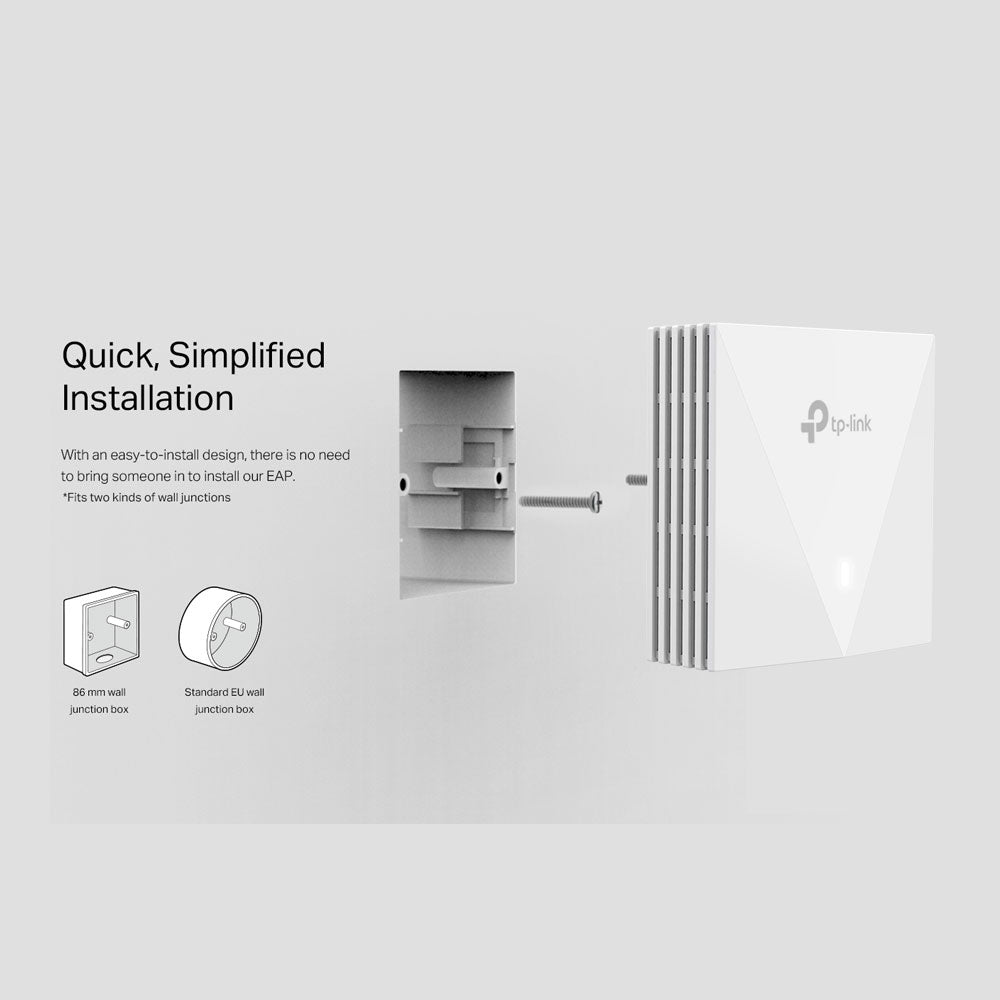

- Easy Installation and PoE Support - Easy-to-install design, compatible with 86mm and EU standard junction box and 802.3af/at PoE support
Specifications
Hardware Features
- Interface:
- 1× Gigabit Uplink Port
- 3× 10/100/1000Mbps Downlink Ports (1× PoE Out Supported)
- Physical Security Lock: Yes
- Button: Reset
- Power Supply: 802.3af/802.3at PoE
- Power Consumption: 12.5W (Without PoE Out)
- Dimensions: 143 × 86 × 20mm
- Antennas: Internal Dual-Band Antennas
- 2.4GHz: 2× 4dBi
- 5.0GHz: 2× 5dBi
- Mounting: Wall-Plate Mounting
Wireless Features
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz and 5.0GHz
- Signal Rate:
- 5.0GHz: up to 2402Mbps
- 2.4GHz: up to 574Mbps
- 1024-QAM: Yes
- OFDMA: Yes
- MU-MIMO: Yes
- HE160: Yes
- SSIDs: up to 16× SSIDs (8× per Band)
- Seamless Roaming: Yes
- Omada Mesh: Yes
- Band Steering: Yes
- Load Balance: Yes
- Airtime Fairness: Yes
- Beamforming: Yes
- QoS (WMM): Yes
- Rate Limit: Yes
- Reboot Schedule and Wireless Schedule: Yes
- Wireless Statistics: Based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Local LAN Port-Based VLAN
- Rogue AP Detection
- 802.1X Support
- Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP)
- FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz)
Management
- Omada App: Yes
- Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller)
- Email Alerts: Yes
- LED On/Off Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-Site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
Certification
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
