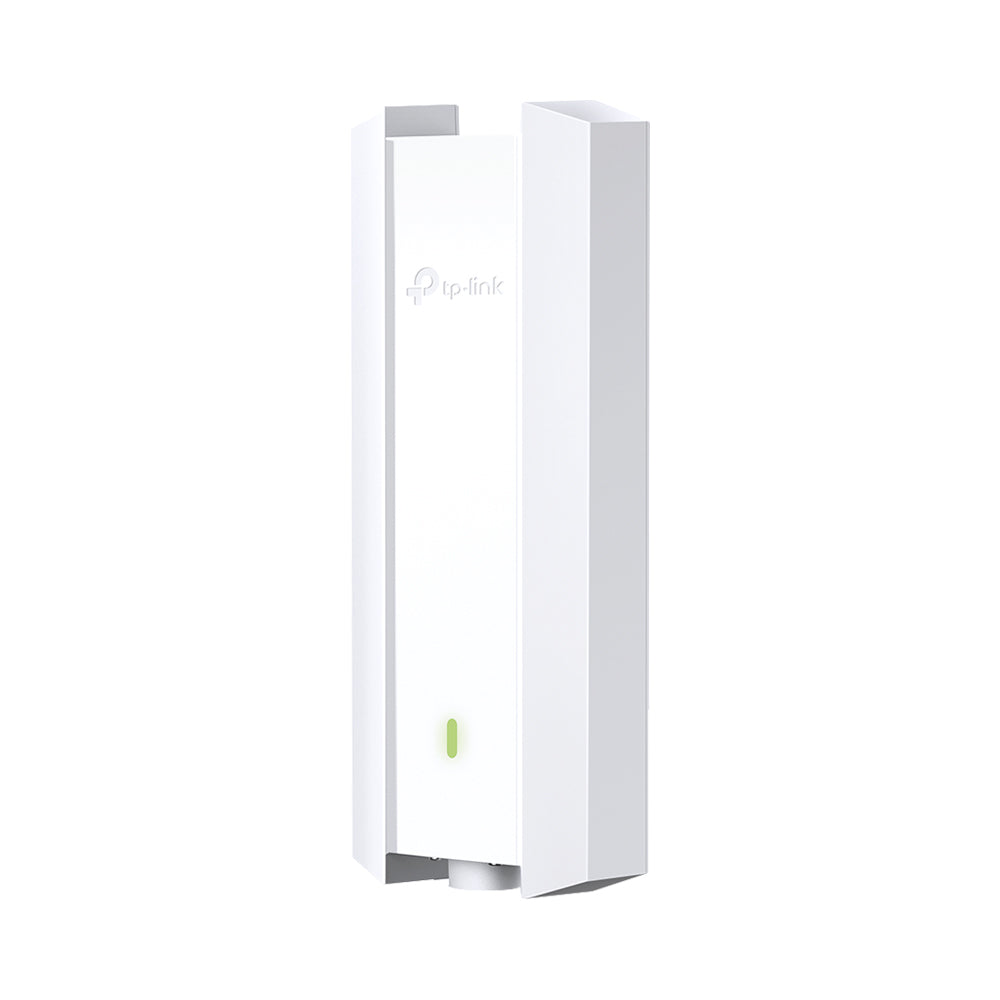

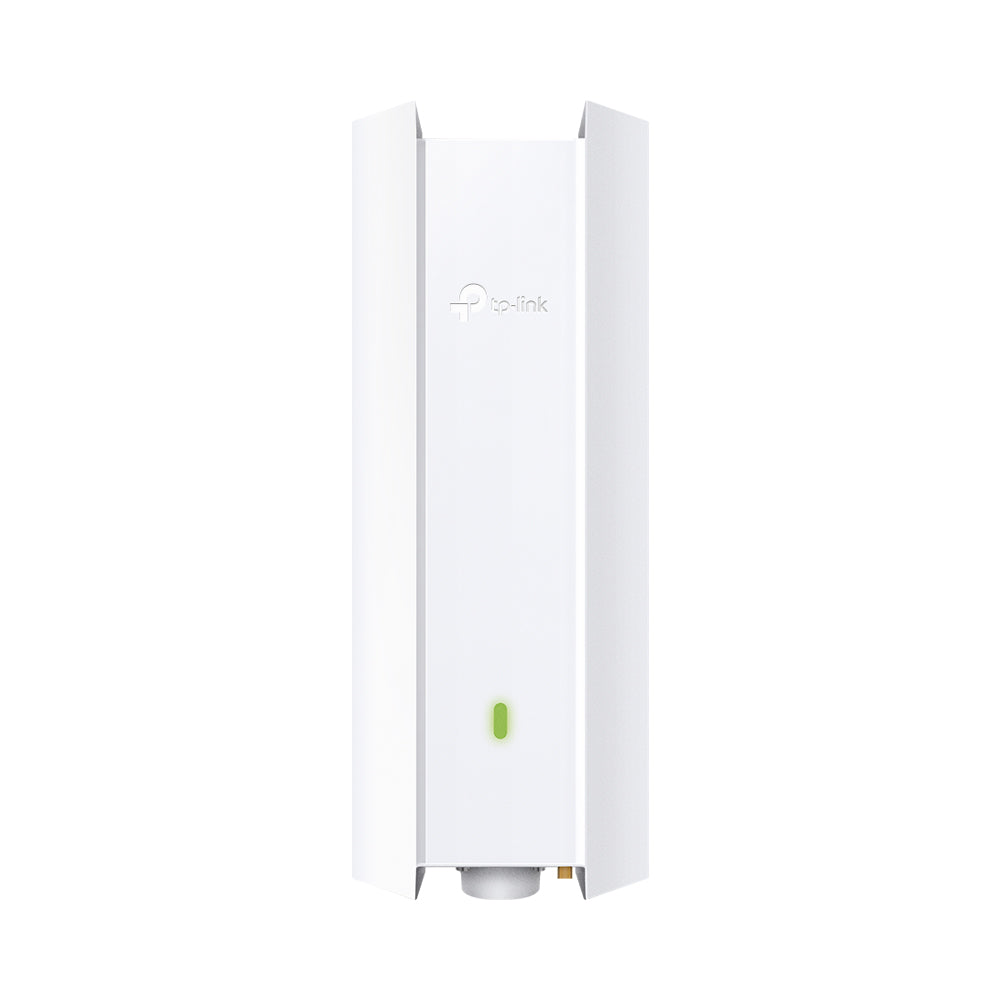

TP-Link EAP650-Outdoor AX3000 Wi-Fi 6 Indoor/Outdoor Access Point
Powerful Wi-Fi 6 Coverage. Indoors or Outdoors.
The TP-Link EAP650-Outdoor delivers AX3000 dual-band Wi-Fi 6 performance with fast, reliable connectivity for campuses, hospitality venues and large outdoor spaces. With its IP67 weatherproof enclosure, PoE+ support and Omada SDN integration for centralised cloud management, it provides scalable, enterprise-grade wireless coverage wherever your network needs to reach.
Features
- Ultra-Fast Wi-Fi 6 Speeds - Simultaneous 574Mbps on 2.4GHz and 2,402Mbps on 5.0GHz totals 2,976Mbps Wi-Fi speeds
- High-Efficiency Wi-Fi 6 - More connected devices can enjoy faster speeds
- Centralised Cloud Management - Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada App
- 160 MHz Channel - Double the data at peak transmission times on a single stream with HE160
- Seamless Roaming - Video streams and voice calls are unaffected as users move between locations
- Omada Mesh - Enables wireless connectivity between access points for extended range and flexible deployment
- PoE+ Powered - Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations
- Ultra-Slim Design - ø160 mm x 33.6 mm elegant design brings more agility
Specifications
Hardware Features

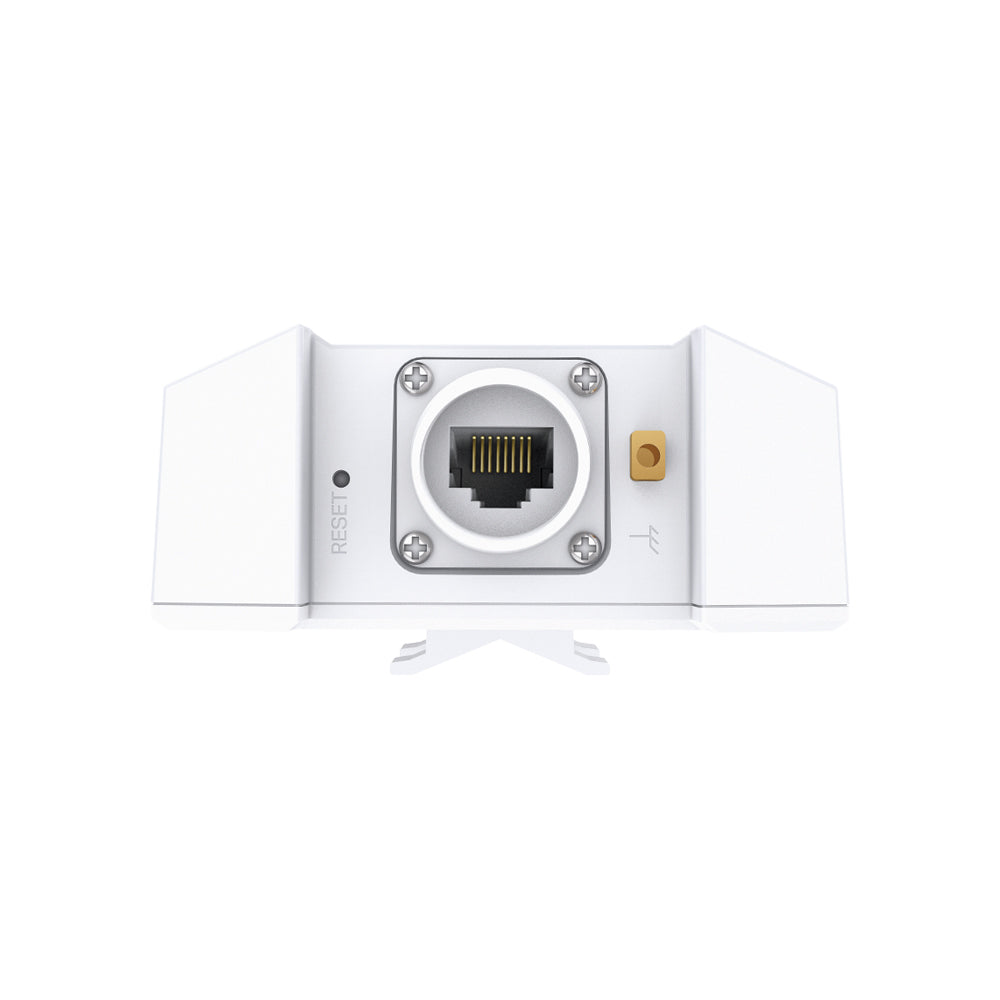

- Interface: 1× Gigabit Ethernet (RJ45) Port (Supports IEEE 802.3at PoE+)
- Button: Reset
- Power Supply: 802.3at PoE+
- Power Consumption: 12.5W
- Dimensions: 280.4 × 106.5 × 56.8mm
- Antennas: Internal Omni Antennas
- 2.4GHz: 2× 4dBi
- 5.0GHz: 2× 5dBi
- Weatherproof Enclosure: IP67

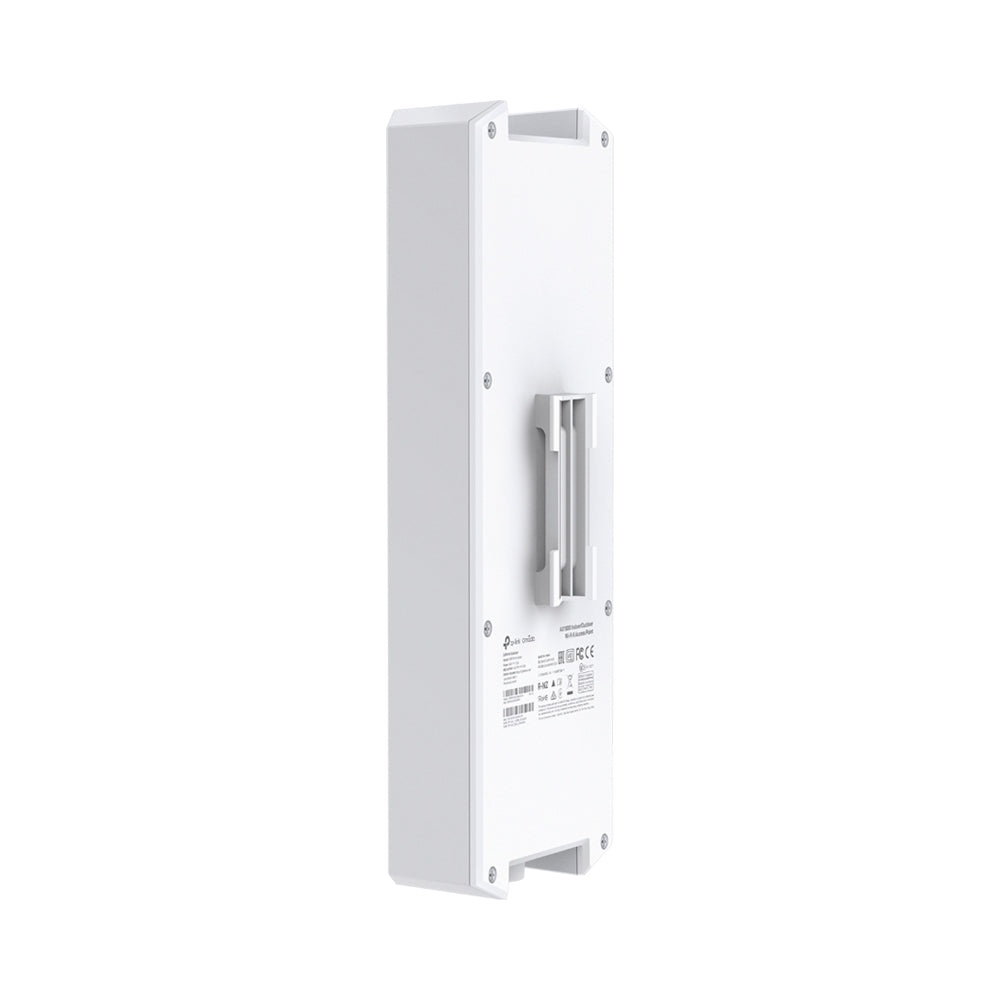

- Mounting: Pole/Wall Mounting (Kits Included)
Wireless Features
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz and 5.0GHz
- Signal Rate:
- 5.0GHz: up to 2402Mbps
- 2.4GHz: up to 574Mbps
- 1024-QAM: Yes
- OFDMA: Yes
- MU-MIMO: Yes
- HE160: Yes
- SSIDs: up to 16× SSIDs (8× per Band)
- Enable/Disable Wireless Radio: Yes
- Automatic Channel Assignment: Yes
- Transmit Power Control (Adjust Transmit Power on dBm): Yes
- QoS (WMM): Yes
- Seamless Roaming: Yes
- Omada Mesh: Yes
- Band Steering: Yes
- Load Balance: Yes
- Airtime Fairness: Yes
- Beamforming: Yes
- Rate Limit: Yes
- Reboot Schedule: Yes
- Wireless Schedule: Yes
- Wireless Statistics: Based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP)
- FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz)
Management
- Omada App: Yes
- Centralised Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller)
- Email Alerts: Yes
- LED On/Off Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-Site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
Certification
Environment
- Operating Temperature: -30~70°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
