TP-Link Omada EAP650 D30-Outdoor Directional AX3000 Indoor/Outdoor Wi-Fi 6 Access Point
Reliable Outdoor Wi-Fi. Built for Performance.
The TP-Link Omada EAP650 D30-Outdoor delivers powerful AX3000 Wi-Fi 6 performance designed for demanding outdoor environments. With dual-band speeds up to 3,000Mbps, it ensures fast, stable connectivity for high-density deployments. Its IP68 weatherproof enclosure protects against harsh conditions, making it ideal for outdoor installations. Advanced Omada Mesh and seamless roaming provide consistent coverage across large areas. Integrated high-gain antennas and long-range coverage ensure strong signal performance. Centralised cloud management via the Omada SDN platform allows easy monitoring and control anytime, anywhere.
Features
- AX3000 Wi-Fi 6 Performance - up to 2,402Mbps (5.0GHz) + 574Mbps (2.4GHz) for high-speed outdoor connectivity
- Directional Ultra-Range Coverage - 30° high-gain directional antennas for focused, extended signal reach
- IP68 Weatherproof Design - Fully sealed enclosure for reliable operation in harsh outdoor environments
- 802.3at PoE+ Support - Simplified deployment with power and data over a single Ethernet cable
- 802.11k/v/r Seamless Roaming - Smooth handover for uninterrupted connectivity (ideal for AGVs and mobile devices)
- Omada Mesh Technology - Flexible wireless expansion for scalable outdoor networks
- Centralised Cloud Management - Full control via Omada SDN platform (cloud or controller-based)
- Advanced Security - WPA3 encryption with multi-SSID network segmentation

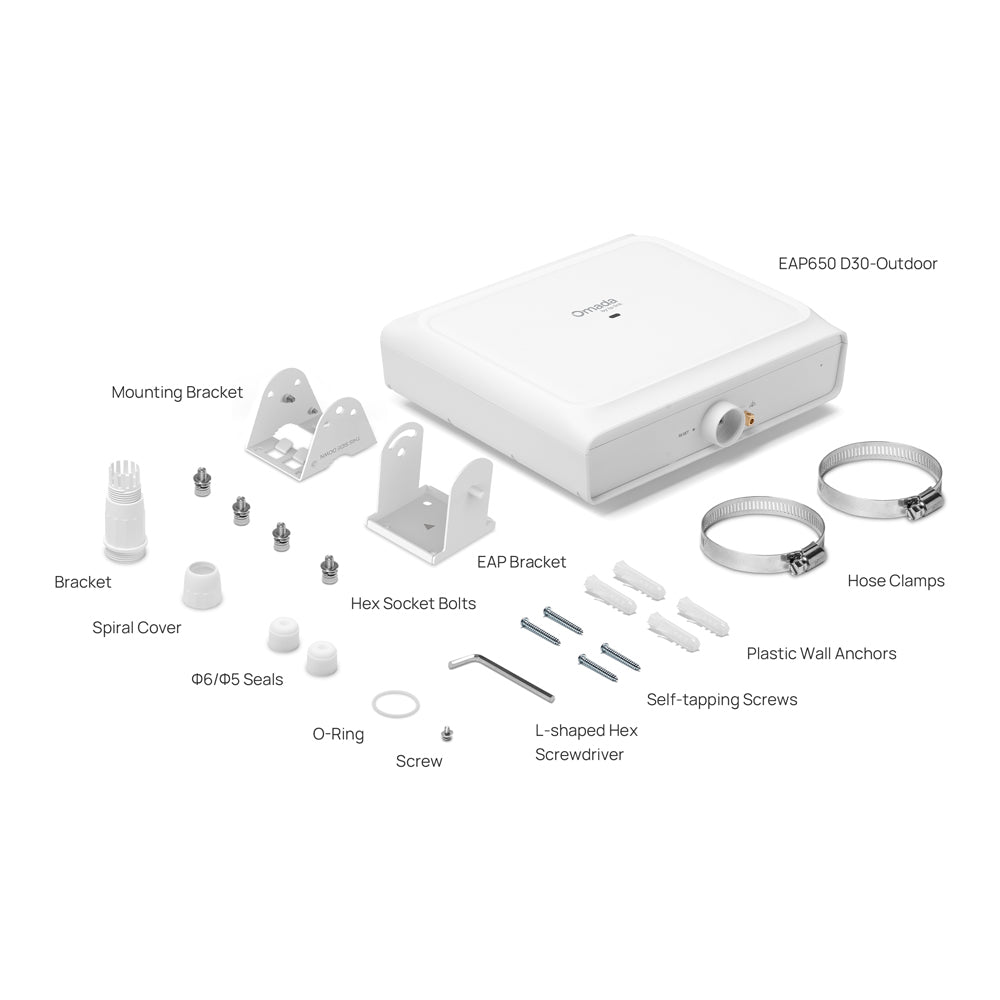

- Flexible Installation - Pole and wall mounting options for versatile deployment
Specifications
- Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
- Frequency: 2.4GHz, 5.0GHz
- Signal Rate: Up to 574Mbps (2.4GHz) + 2,402Mbps (5.0GHz)
- Concurrent Clients: Up to 250+
- Antenna: Built-In Directional High-Gain Antennas
- Built-In Directional Antennas: 2.4GHz: 2× 12dBi; 5.0GHz: 2× 15dBi
- Beamwidth: 30° Horizontal; 30° Vertical
- Coverage: Directional Ultra-Range Coverage
- Wireless Features: DL/UL OFDMA, MU-MIMO, Beamforming, Band Steering, Airtime Fairness
- Mesh Technology: Omada Mesh
- Roaming: 802.11k/v/r Seamless Roaming
- Wireless Security: WPA/WPA2/WPA3-Personal/Enterprise, Captive Portal, MAC Filtering

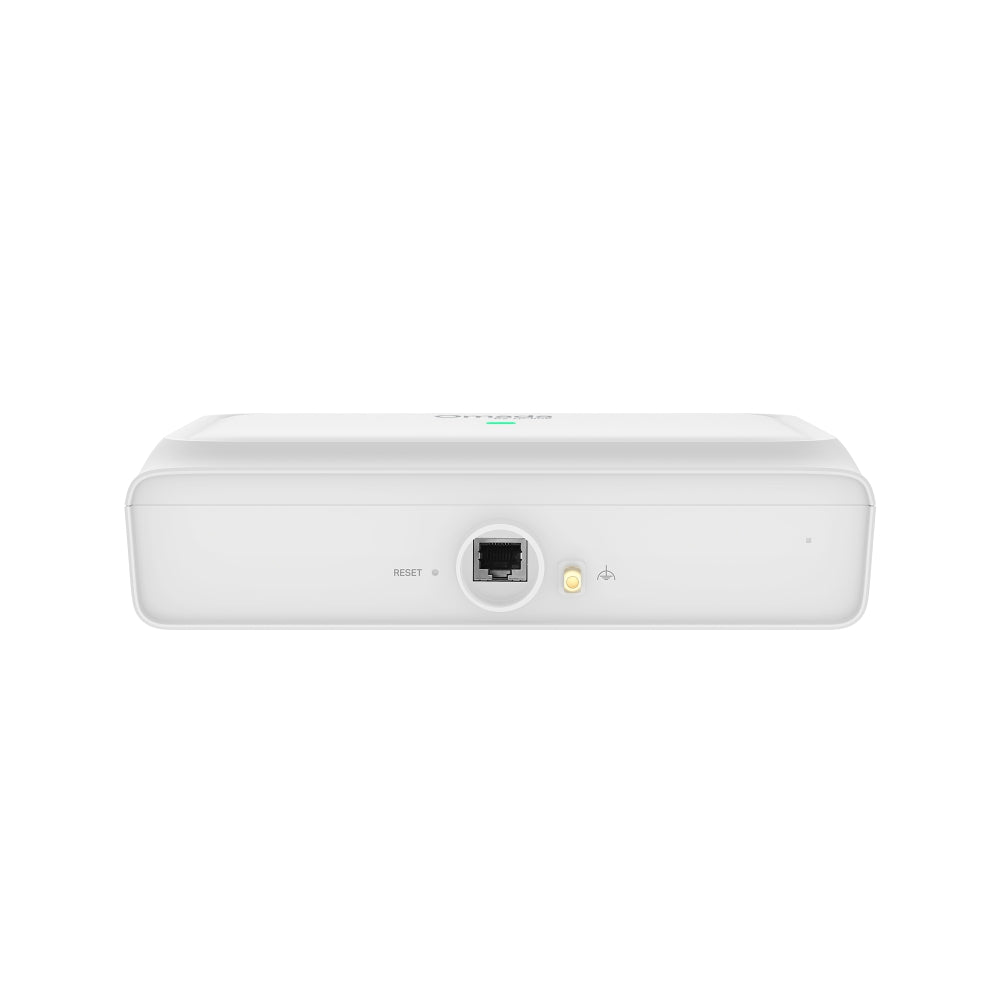

- Interface: 1× Gigabit Ethernet Port
- PoE: 802.3at PoE+ or 48V Passive PoE
- Max. Power Consumption: 12.5W (802.3at PoE or Passive PoE)
- Weatherproof Rating: IP68
- Mounting: Wall/Pole/Ceiling Mount
- Bluetooth: Yes
- Management: Omada Cloud, Hardware/Software Controller, App, Web UI
- Features: VLAN, QoS, Guest Network, RADIUS, Remote Management

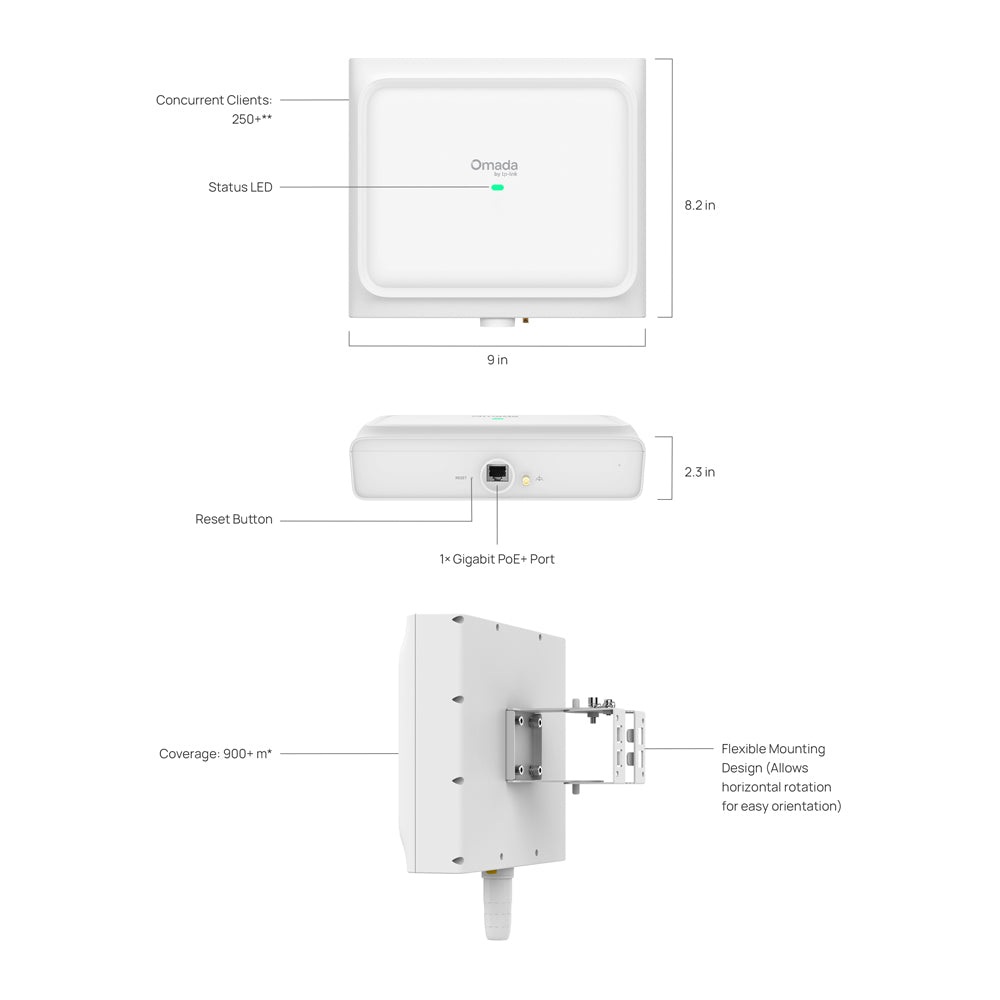

- Dimensions (W × D × H): 207.5 × 58 × 230mm
- Operating Temperature: -30~70°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH, Non-Condensing
- Storage Humidity: 5~90% RH, Non-Condensing
