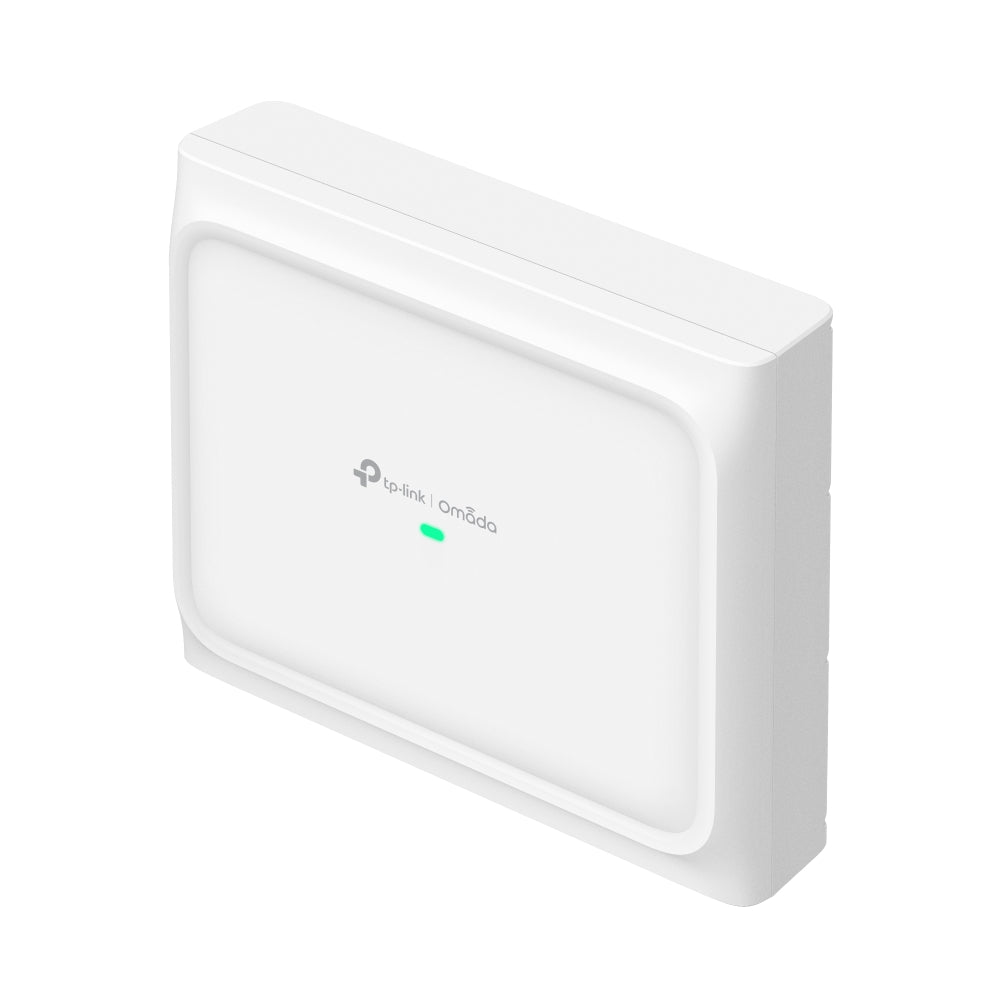

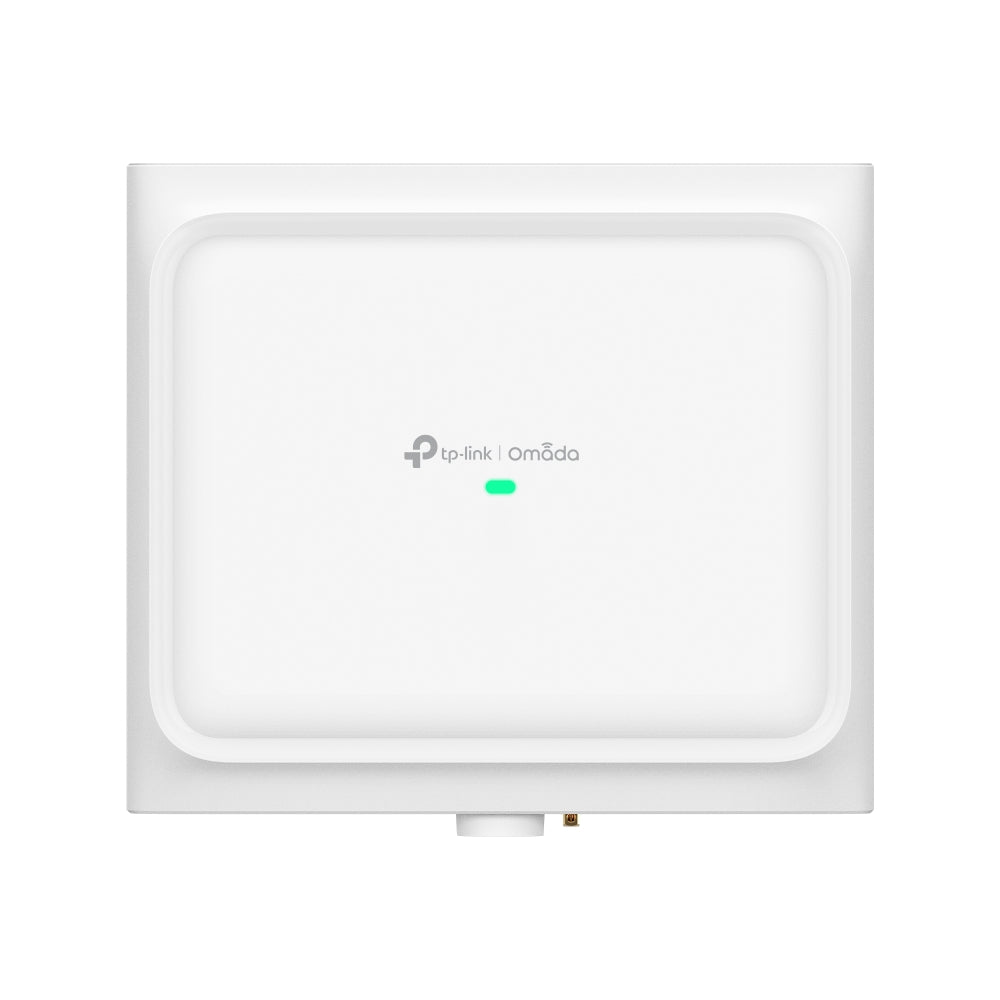

TP-Link Omada EAP650 D120-Outdoor AX3000 Indoor/Outdoor Wi-Fi 6 Access Point
The EAP650 D120-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.
Equipped with 4ﾗ built-in dual-band directional antennas with high gain to ensure the optimal Wi-Fi experience ideal for precise and extended coverage.
Features
- Superior Wi-Fi 6 Speeds – 2,402Mbps on 5.0GHz and 574Mbps on 2.4GHz
- Directional Ultra-Range Coverage – Equipped with built-in high-gain directional antennas to deliver precise and extended coverage
- Ideal for Warehouses and Outdoor Scenes – Features an IP68 waterproof enclosure with -30°C to +70°C operating range
- 802.11k/v/r Seamless Roaming – Ensures uninterrupted connectivity for AGVs and handheld scanners
- Flexible Deployment – Supports 802.3at PoE and Omada Mesh technology
- Centralised Cloud Management – Control everything from a single interface anywhere via the Omada App or Web UI
Specifications
Hardware

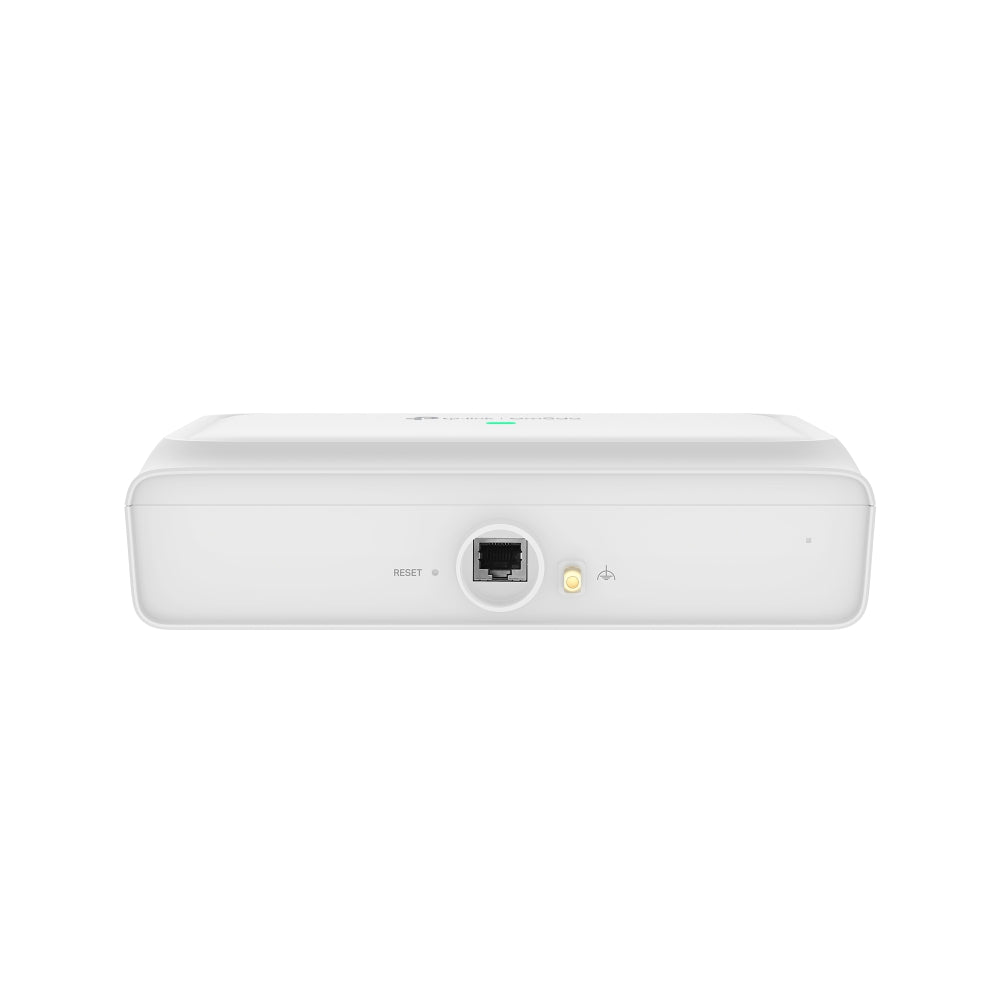

- Interface: 1× Gigabit Ethernet port supporting 802.3at PoE or 48V Passive PoE
- Power Consumption: 12.5W maximum

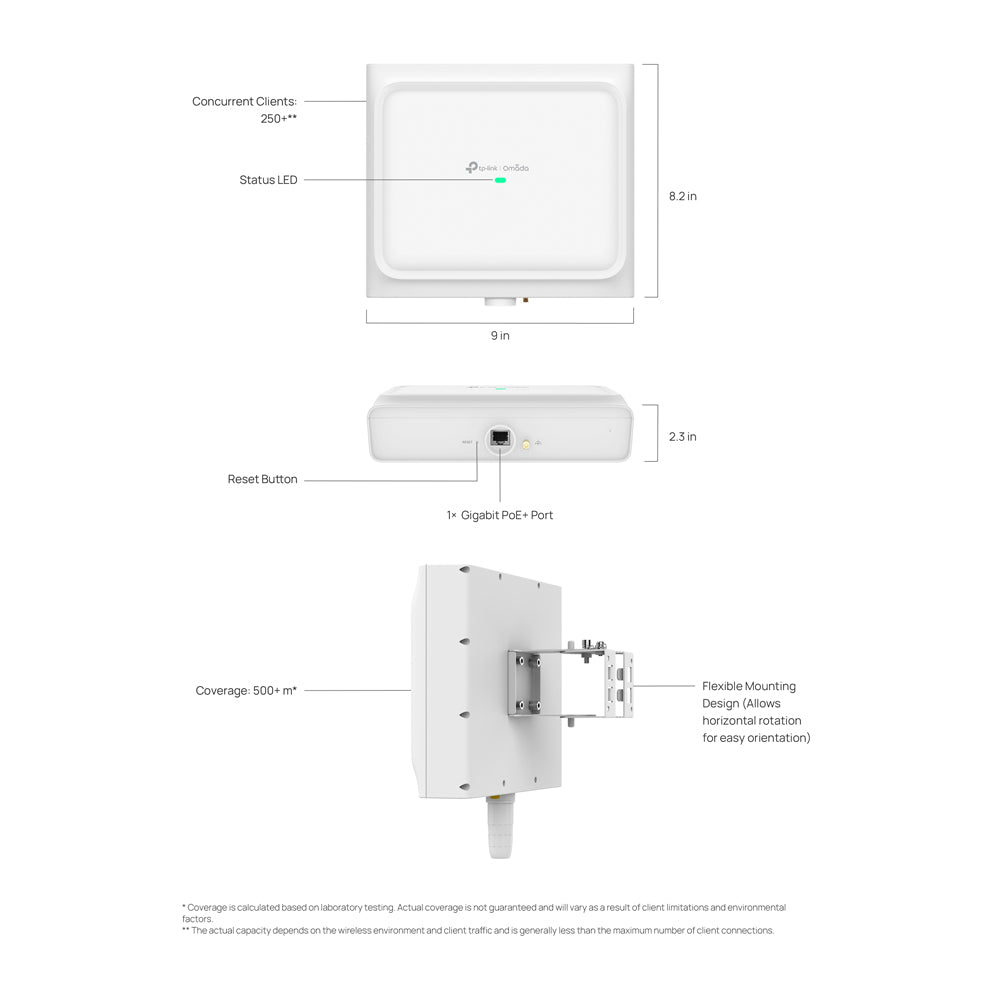

- Dimensions: 230×207.5×69.7mm
- Bluetooth: Yes
- Weatherproof Rating: IP68 outdoor enclosure

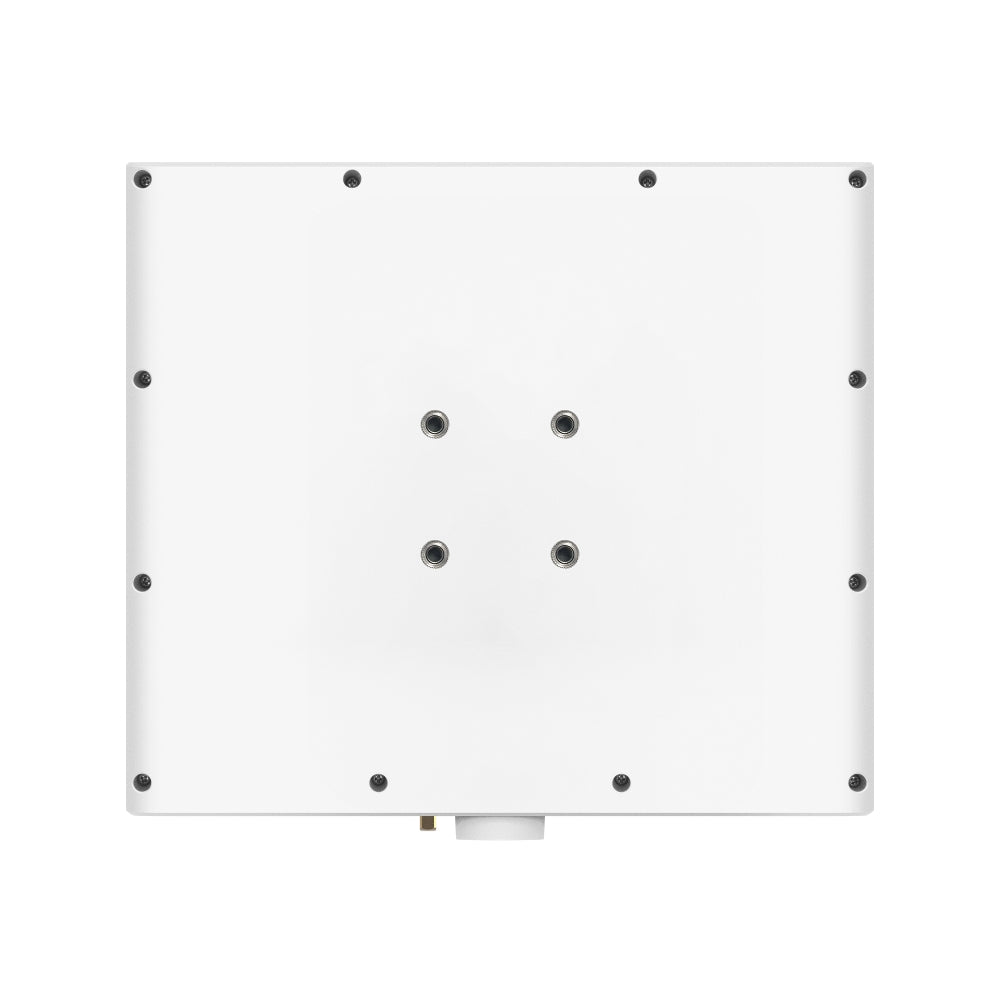

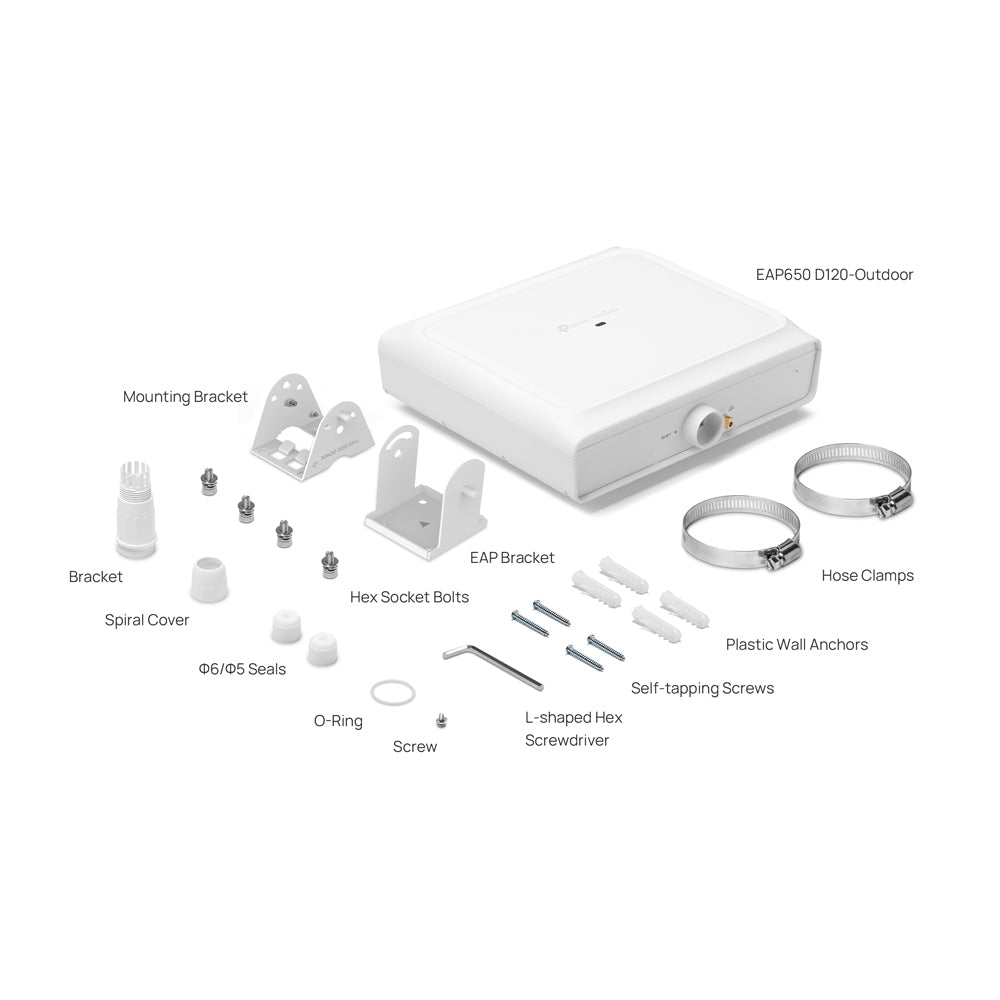

- Mounting Options: Optional APM-110 and APM-100 brackets with adjustable positioning
Antenna
- Built-In Directional Antennas
- 2.4GHz: 2×8dBi
- 5GHz: 2×10dBi
- Beamwidth: 120° horizontal 30° vertical
Wireless Performance
- AX3000 Wi-Fi 6: 574Mbps on 2.4GHz and 2402Mbps on 5GHz
- Standards: IEEE 802.11a/b/g/n/ac/ax
- Coverage: Up to 200m+ on 2.4GHz and 500m+ on 5GHz
- Concurrent Clients: 250+ devices
- Modulation: 1024-QAM
- OFDMA: DL/UL support
- MU-MIMO: 2×2 on 2.4GHz and 5GHz
Wireless Features
- Multiple SSIDs up to 16 per band
- Omada Mesh and Seamless Roaming (802.11k/v/r)
- Band Steering Load Balance and Airtime Fairness
- Beamforming and QoS (WMM)
- Automatic Channel Assignment and Transmit Power Control
- Reboot Schedule and Wireless Scheduling
Security
- WPA Personal and Enterprise
- WPA2 Personal and Enterprise
- WPA3 Personal and Enterprise
- 802.1X Support
- Captive Portal Authentication
- Access Control and MAC Filtering
- Wireless Isolation and SSID to VLAN Mapping
- Rogue AP Detection
Management
- Omada App Support
- Centralised Management via Omada Hardware Software or Cloud-Based Controller
- Cloud Access Enabled
- SNMP v1 v2c v3
- SSH and Web-Based Management
- Multi-Site Management
- Zero-Touch Provisioning
- Email Alerts and Syslog Support
Environment
- Operating Temperature: -30°C to 70°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 10 to 90% RH non-condensing
- Storage Humidity: 5 to 90% RH non-condensing
Certifications
