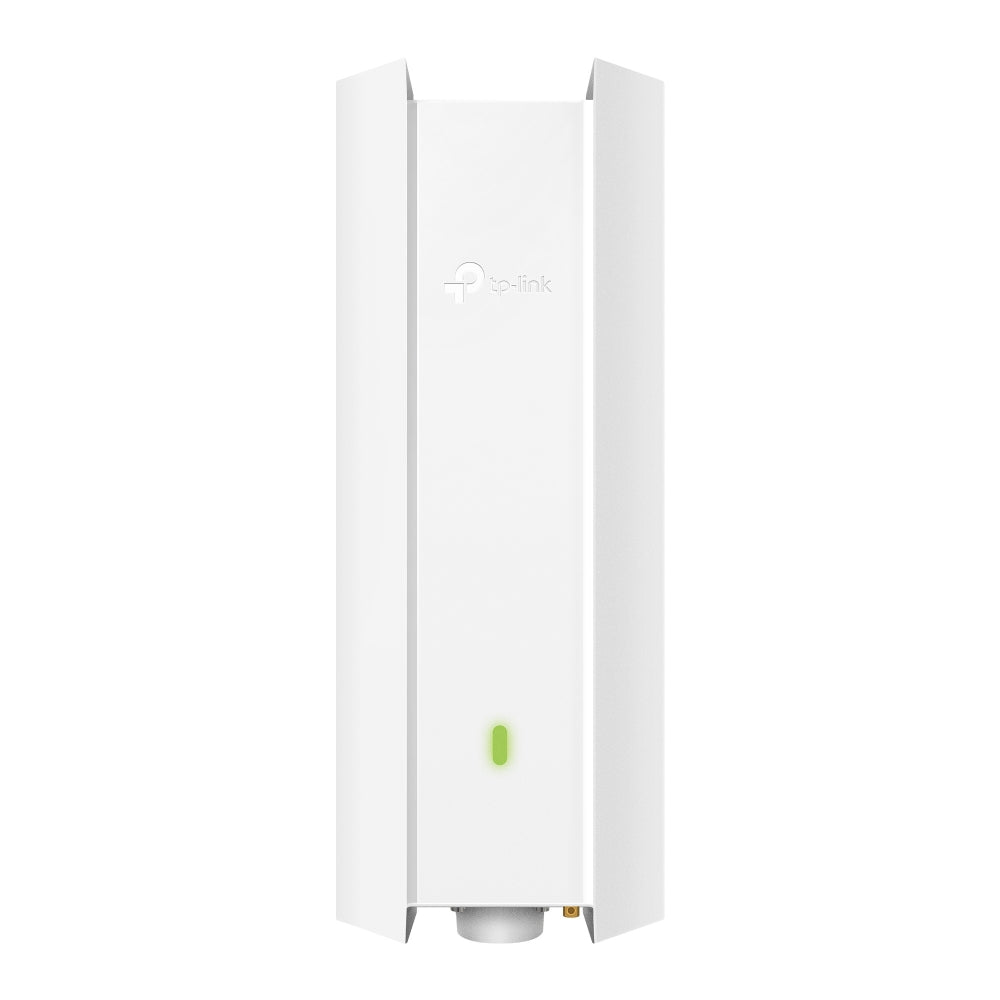

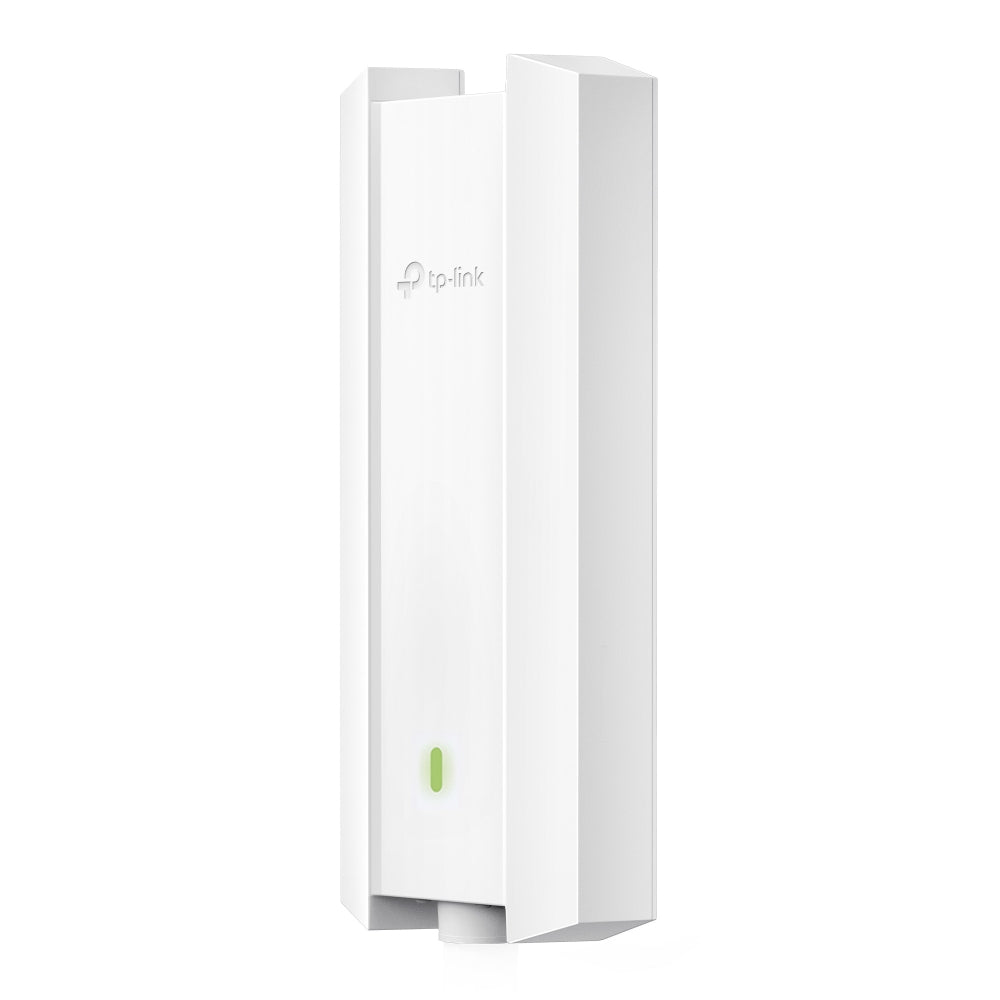

TP-Link EAP623 Omada AX1800 In/Out Wi-Fi 6 Access Point
Professional antennas with high-power amplifiers utilize Wi-Fi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest Wi-Fi 6 technology, the AP delivers speeds of up to 1.8 Gbps.
Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD?s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.
Features
- Up to 1.8Gbps Wi-Fi 6 Speeds: 574Mbps on 2.4GHz + 1201Mbps on 5GHz.
- Supports Wi-Fi 6 technologies, such as 1024-QAM and OFDMA, etc.
- High-density connectivity up to 1,000+ clients.
- Long-range coverage with the high-power amplifier and smart antennas.
- IP67 weatherproof enclosure for various outdoor environments.
- Advanced Functions: Centralised management, Omada mesh, and seamless roaming.
- PoE+ Powered: Supports 802.3at PoE (adapter not included).
Specifications
Hardware Features

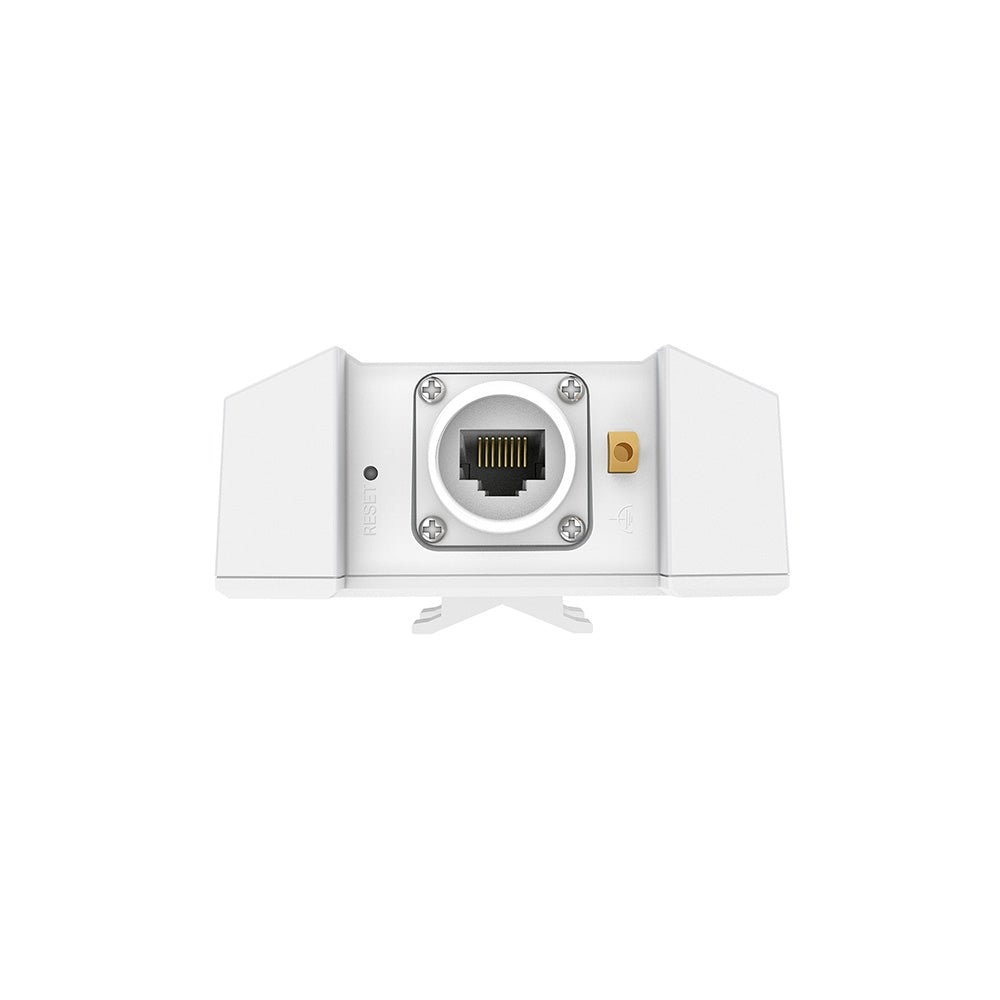

- Interface: 1x Gigabit Ethernet Port
- Button: Reset
- Power Supply: 802.3at PoE, 48V Passive PoE
Note: PoE adapter is not included.

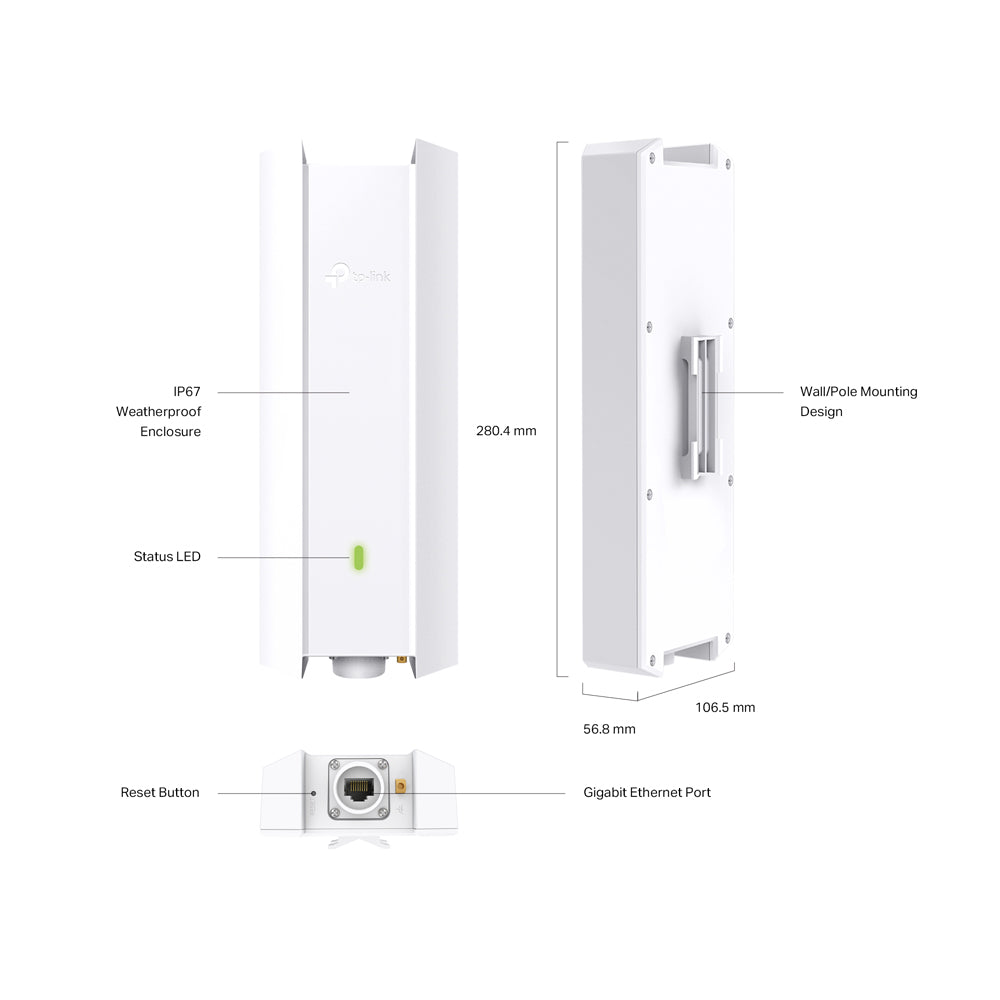

- Dimensions ( W x D x H ): 106.5 × 57 × 281mm
- Antenna: 2× Internal Dual-Band Omni Antennas
- 2.4GHz: 4.0 dBi
- 5GHz: 5.0 dBi
- Weatherproof Enclosure: IP67

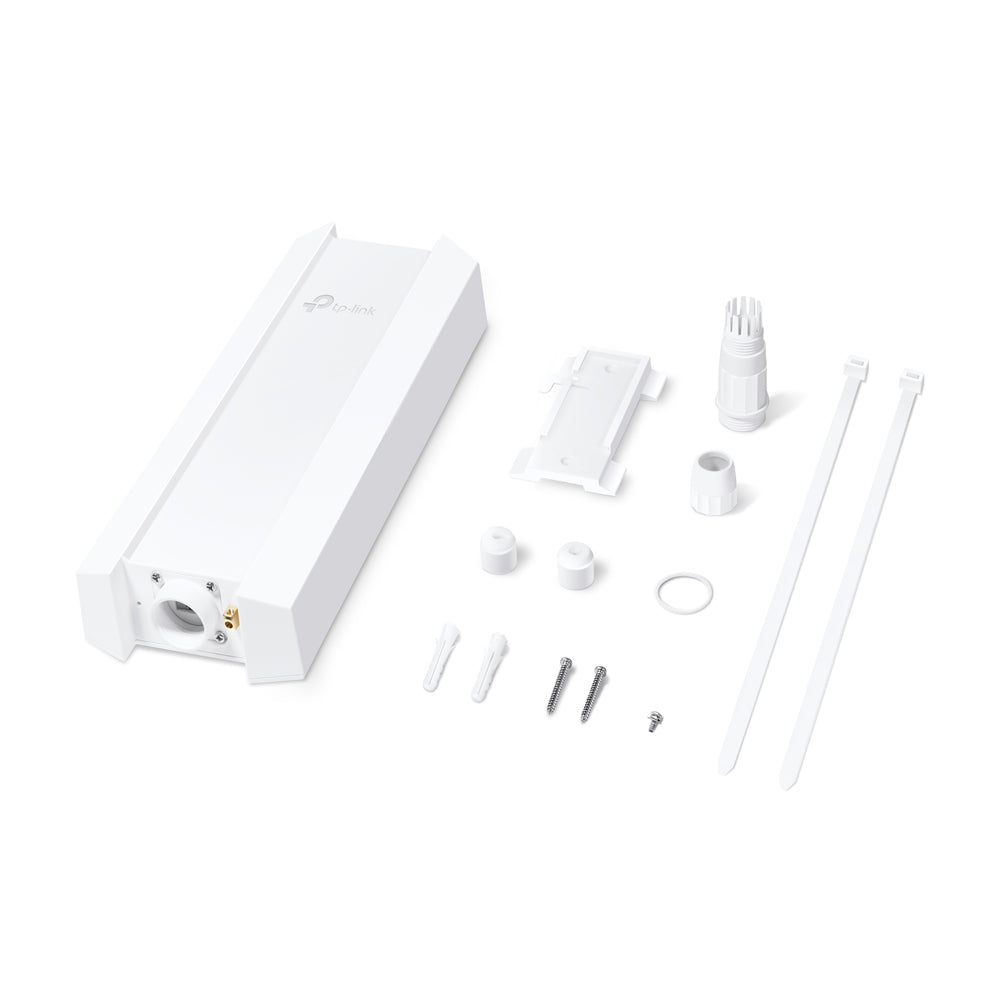

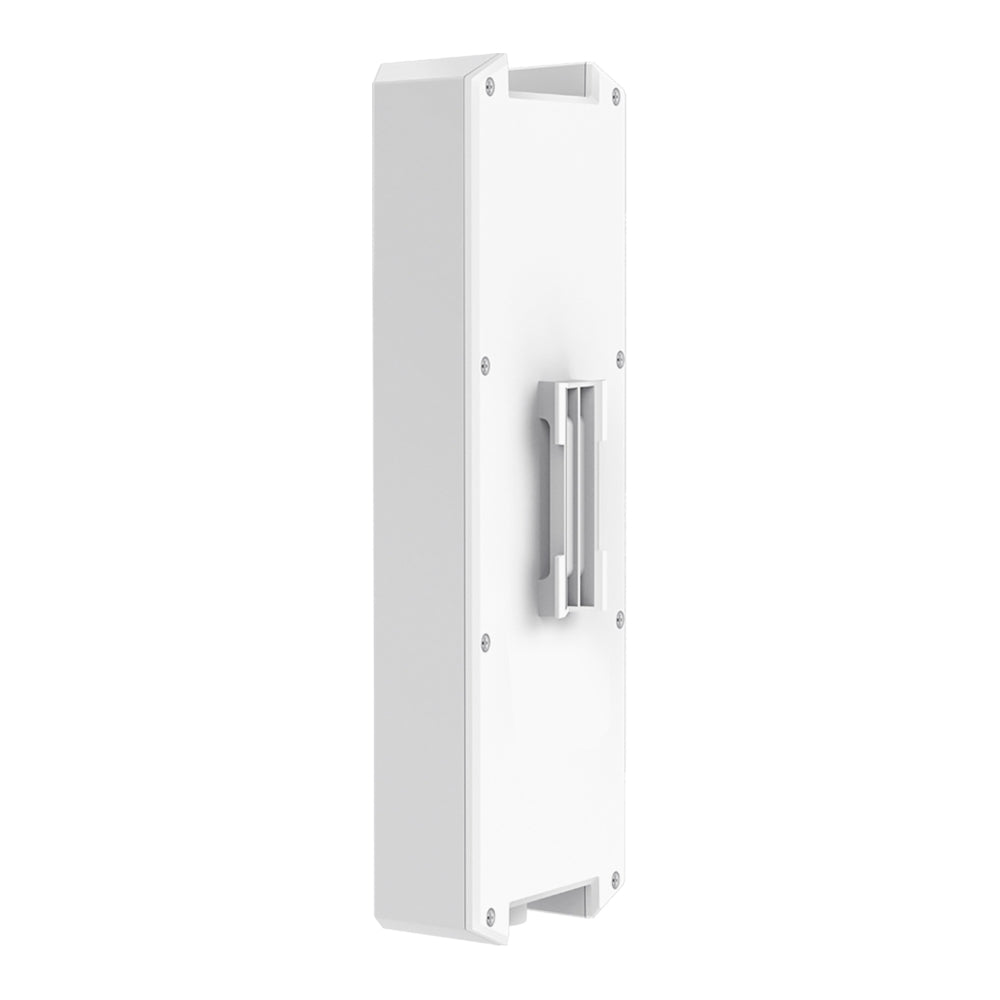

- Mounting: Pole/Wall Mounting (Kits included)
Wireless Features
- Concurrent Clients: 1,020+
- Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
- Frequency: 5GHz, and 2.4GHz
- Signal Rate: 5GHz Up to 1201Mbps, 2.4GHz: Up to 574Mbps
Wireless Functions
- Mesh
- Seamless Roaming (802.11k/v/r)
- Automatic Channel Assignment
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDs: 16 (8 for each band)
- Wireless Statistics
- Wireless Schedule
- Reboot Schedule
- RADIUS Accounting
- MAC Authentication
- Static IP/Dynamic IP
Wireless Security
- VLAN
- Access Control
- Rogue AP Detection
- Captive Portal Authentication
- Maximum number of MAC Filter: 4,000
- Wireless Isolation between Clients
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- 802.1X Support
Transmission Power
- CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
- FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
Management Features
- Omada App: Yes
- Restore & Backup: Yes
- Firmware update via Web: Yes
- NTP: Yes
Centralised Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
- Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- SSH: Yes
- Web-based Management: Yes
Others
- Certification: CE, FCC, RoHS
Environment
- Operating Temperature: -30 °C–70 °C
- Storage Temperature: -40 °C–70 °C
- Operating Humidity: 10%–90% non-condensing;
- Storage Humidity: 5%–90% non-condensing
