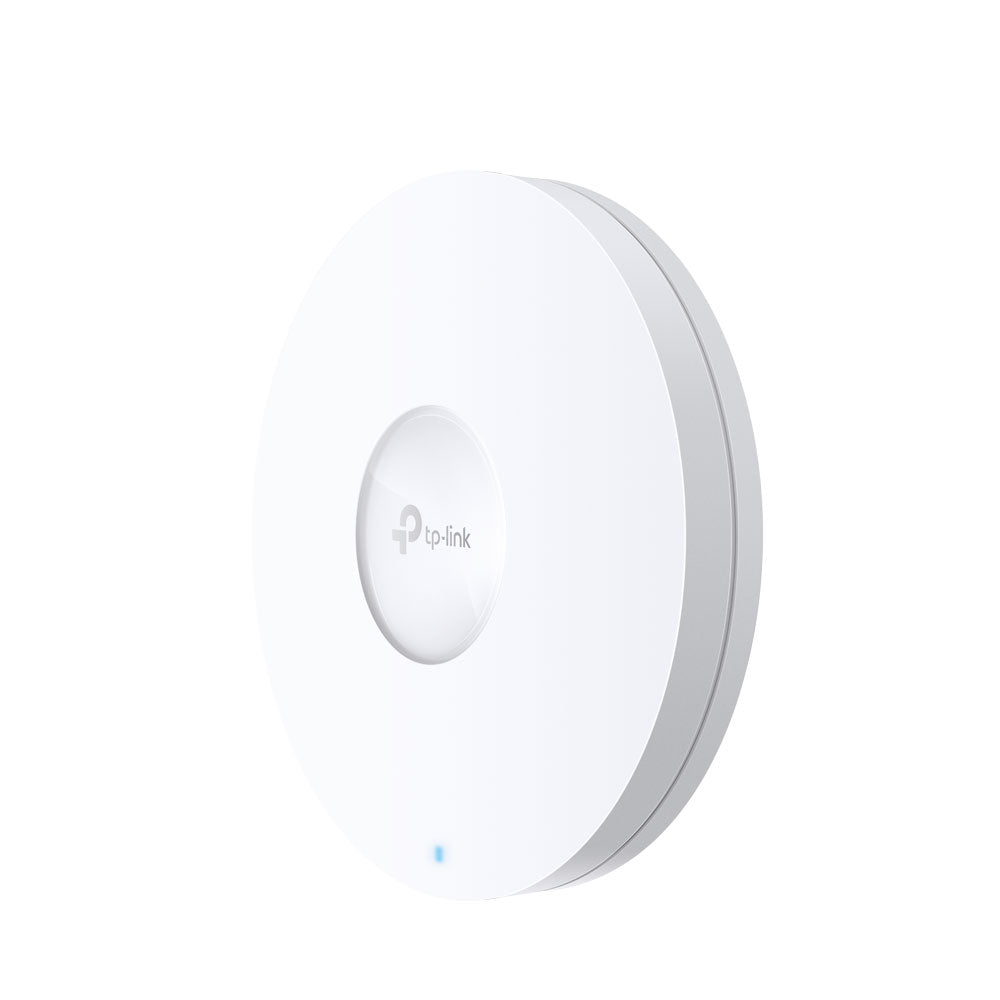

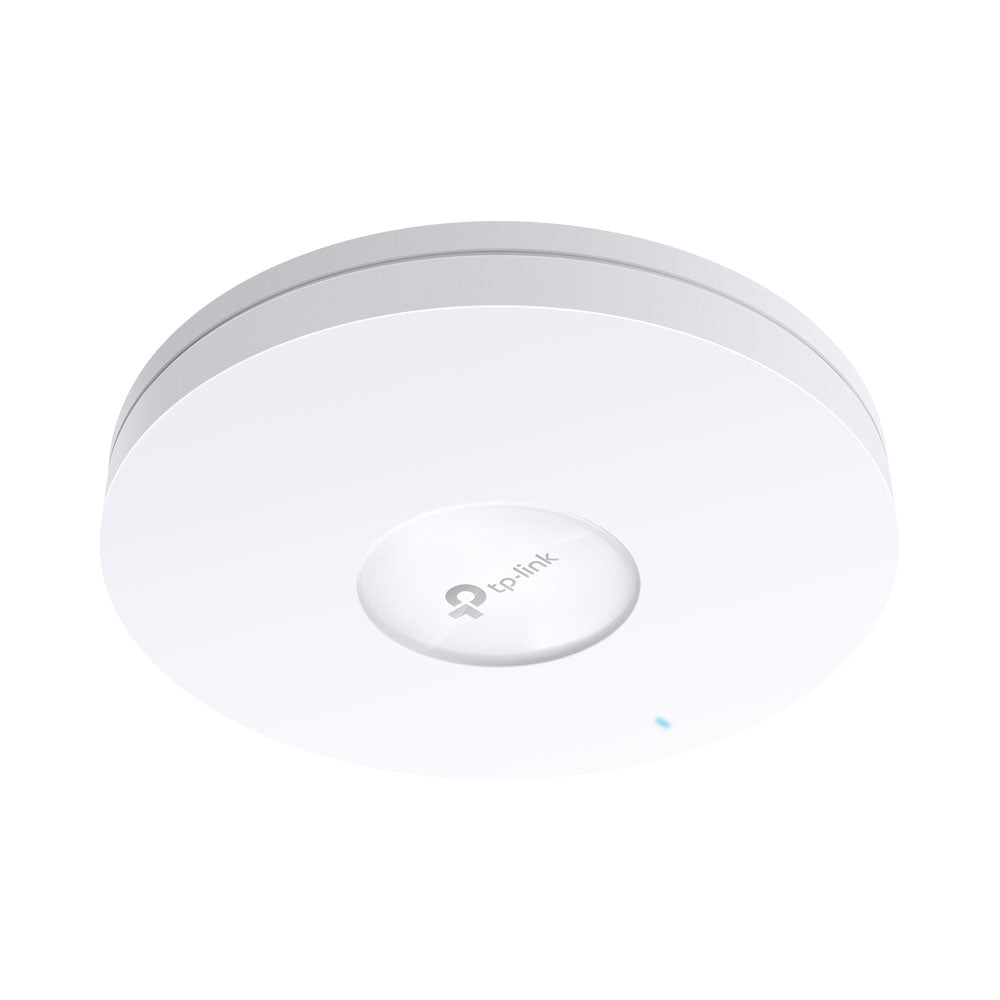

TP-Link EAP620 HD AX1800 Wi-Fi Dual-Band Ceiling Mount Access Point
High-Performing AX1800 Wireless for High-Density Environments
The TP-Link EAP620 HD delivers powerful AX1800 Wi-Fi 6 performance designed for environments with a high concentration of connected devices such as offices, campuses, hospitality venues and conference areas. With advanced Wi-Fi 6 technologies including OFDMA, MU-MIMO and Band Steering, the EAP620 HD ensures efficient traffic management, reduced congestion and consistently fast wireless connections across the network. Fully integrated with Omada SDN, it enables seamless roaming, centralised cloud management and intelligent monitoring through the Omada App or web interface, making it easy to deploy and manage large-scale business networks.
Features
- Ultra-Fast Wi-Fi 6 Speeds - Simultaneous 574Mbps on 2.4GHz and 1,201Mbps on 5.0GHz totals 1,775Mbps Wi-Fi speeds
- High-Density Connectivity - 4× increased capacity to connect more devices simultaneously
- Integrated into Omada SDN - Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring
- Centralised Management - Cloud access and Omada App for ultra convenience and easy management
- Seamless Roaming - Even video streams and voice calls are unaffected as users move between locations
- PoE+ Support - Supports Power over Ethernet (802.3at) for convenient deployment and installation
- Secure Guest Network - Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
Specifications
Hardware Features

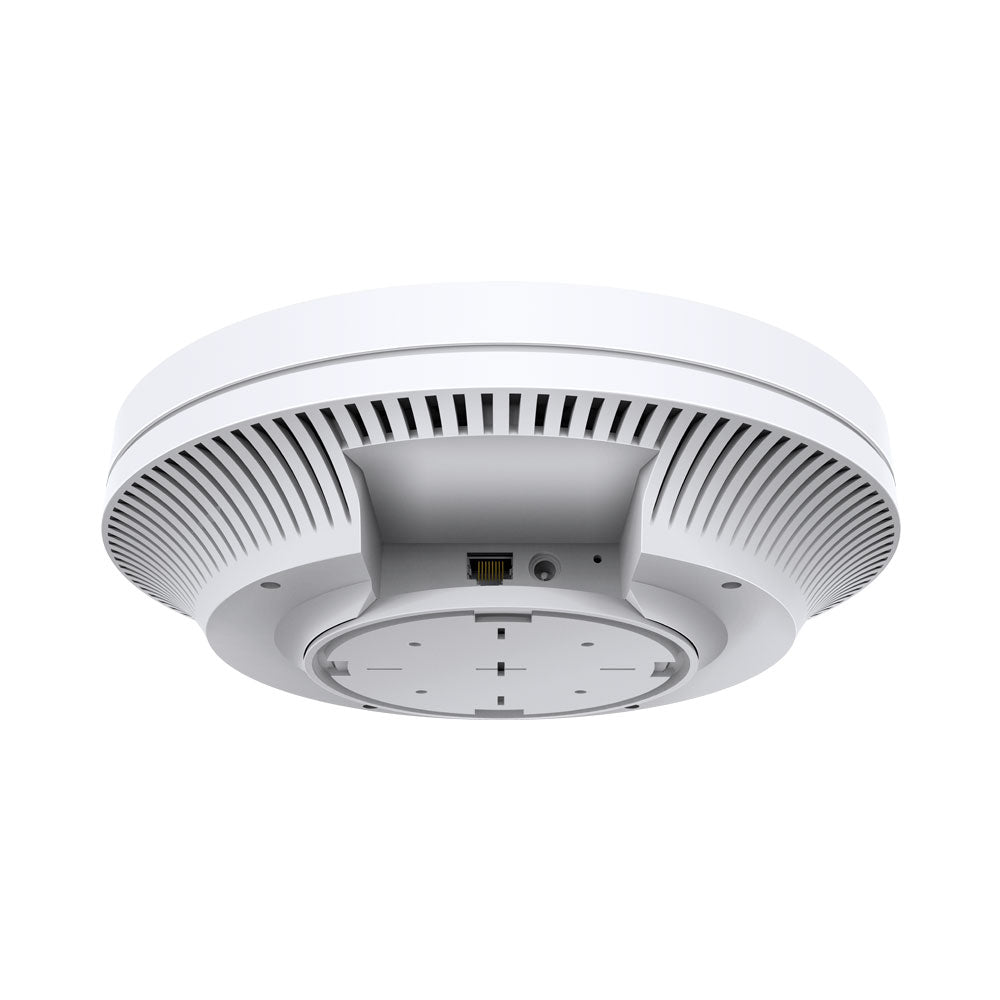

- Interface: 1× Gigabit Ethernet (RJ45) Port (Supports IEEE 802.3at PoE)
- Button: Reset
- Power Supply: 802.3at PoE or 12V DC
- Power Consumption: 12W
- Dimensions: 243 × 243 × 64mm
- Antennas: Internal Omni Antennas
- 2.4GHz: 2× 4dBi
- 5.0GHz: 2× 5dBi

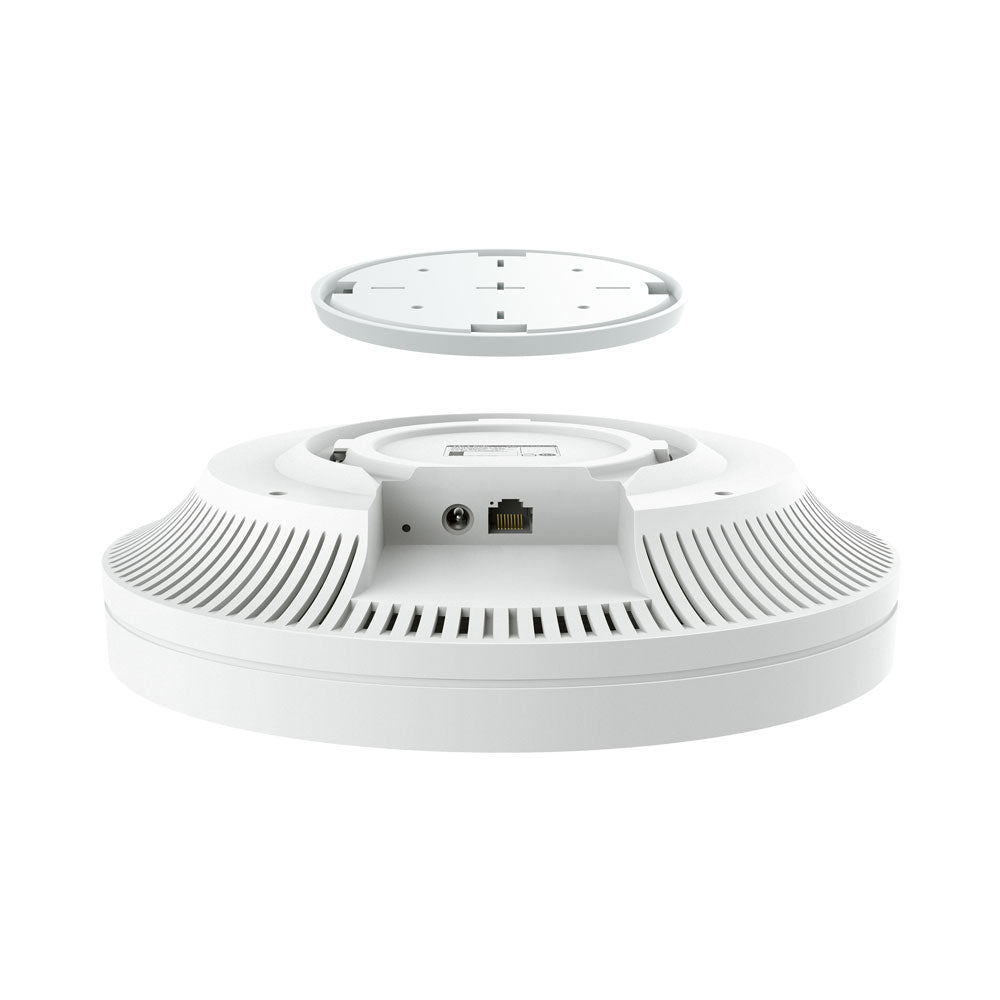

- Mounting: Ceiling/Wall Mounting (Kits Included)
Wireless Features
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz and 5.0GHz
- Signal Rate:
- 5.0GHz: up to 1201Mbps
- 2.4GHz: up to 574Mbps
- 1024-QAM: Yes
- OFDMA: Yes
- 4× Longer OFDM Symbol: Yes
- SSIDs: up to 16× SSIDs (8× per Band)
- Enable/Disable Wireless Radio: Yes
- Automatic Channel Assignment: Yes
- Transmit Power Control (Adjust Transmit Power on dBm): Yes
- QoS (WMM): Yes
- MU-MIMO: Yes
- Seamless Roaming: Yes
- Band Steering: Yes
- Load Balance: Yes
- Airtime Fairness: Yes
- Beamforming: Yes
- Rate Limit: Yes
- Reboot Schedule: Yes
- Wireless Schedule: Yes
- Wireless Statistics: Based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- Encryption: WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP)
- FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz)
Management
- Omada App: Yes
- Centralised Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller)
- Email Alerts: Yes
- LED On/Off Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-Site Management: Yes
- Management VLAN: Yes
Certification
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
