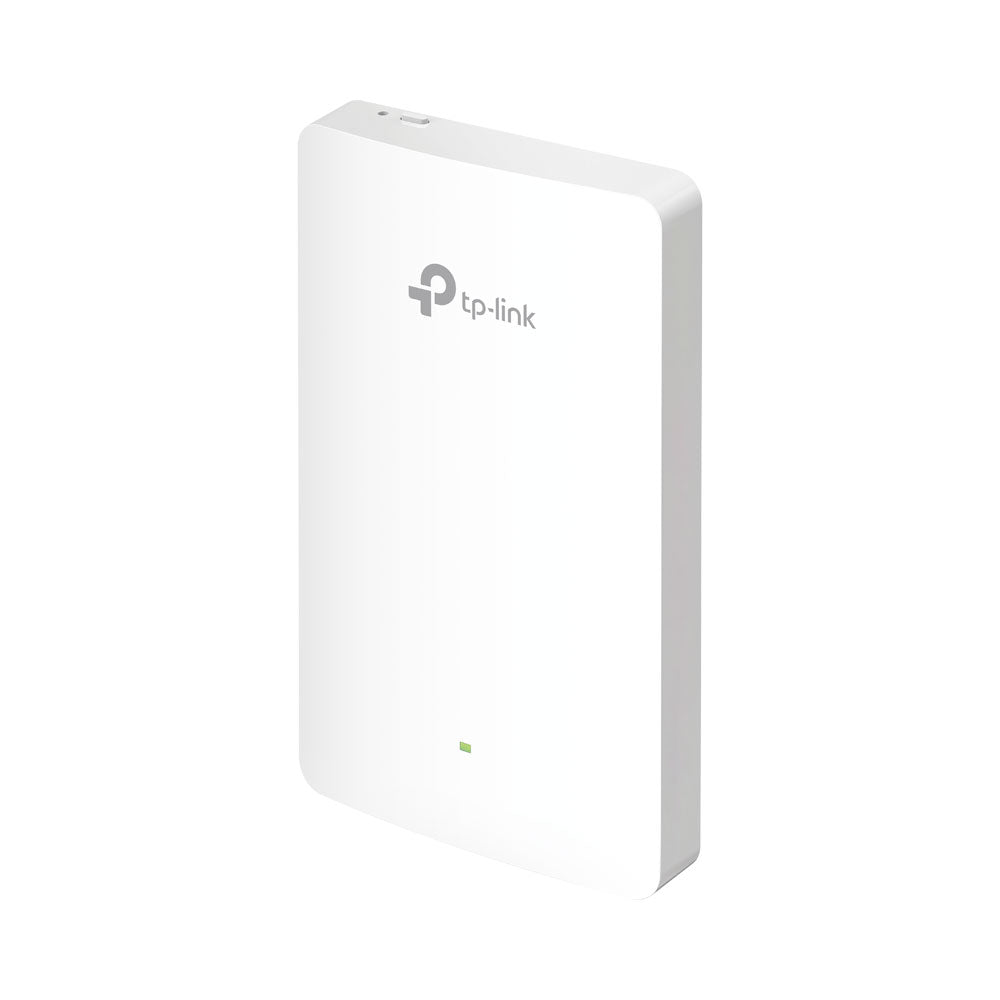

TP-Link EAP615-Wall AX1800 Wi-Fi 6 Wall Plate Access Point
Wi-Fi 6 Performance. Built For Every Room.

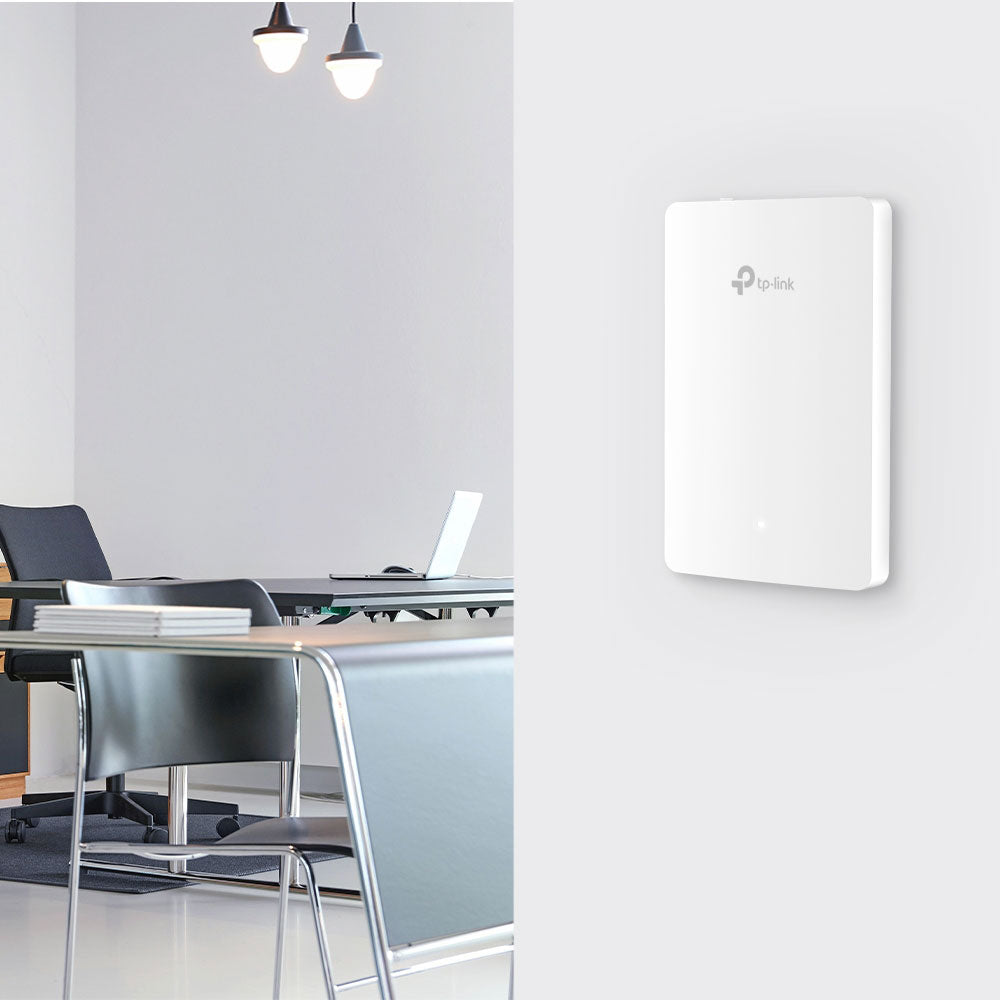

The TP-Link EAP615-Wall delivers AX1800 dual-band Wi-Fi 6 in a compact wall-plate design, perfect for hotels, offices and student residences. With integrated Gigabit ports and PoE support, it provides both high-speed wireless and reliable wired connectivity from a single installation point. Fully integrated with Omada SDN for centralised cloud management, seamless roaming and enterprise-grade security, the EAP615-Wall is a smart, scalable in-room networking solution.
Features
- Superior Wi-Fi 6 Speeds - Simultaneous 574Mbps on 2.4GHz and 1,201Mbps on 5.0GHz totals 1,775Mbps Wi-Fi speeds
- High-Performance Connectivity - Guarantee higher network efficiency and lower latency

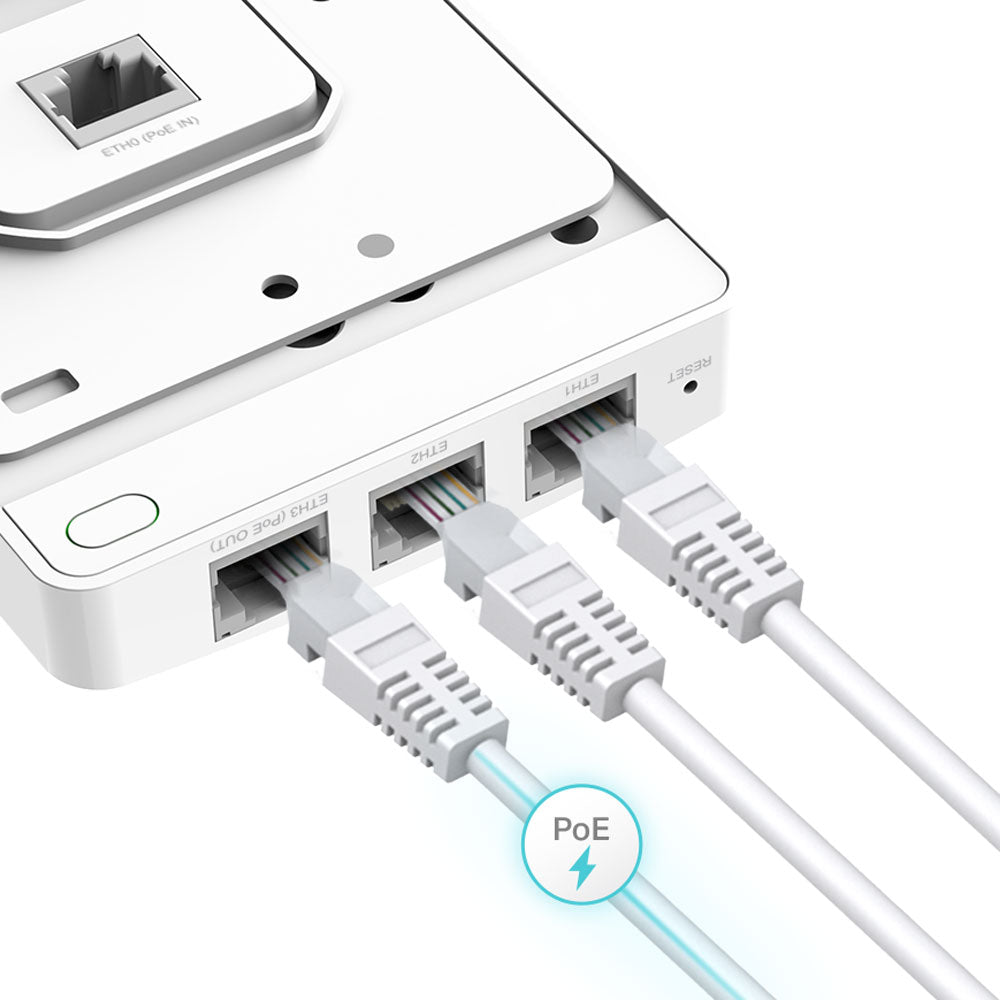

- Four Gigabit Ports - 4 Gigabit Ethernet ports (1× uplink + 3× downlink) with one downlink port supporting PoE pass-through to provide power for wired devices
- Centralised Management - Integrates into Omada SDN for cloud access and remote management
- Secure Guest Network - Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies
- Easy Installation and PoE Support - Easy to install design, compatible with 86mm and EU or US standard junction boxes with 802.3af/at PoE support
Specifications
Hardware Features
- Interface:
- 1× Uplink: 10/100/1000Mbps Ethernet Port
- 3× Downlink: 10/100/1000Mbps Ethernet Ports (One Port Supports PoE Out)
- Physical Security Lock: Yes
- Button: Reset
- Power Supply: 802.3af/802.3at PoE
- Power Consumption: 12.5W (Without PoE Out)
- Dimensions: 143 × 86 × 20mm
- Antennas: 2× Dual-Band Internal Antennas
- 2.4GHz: 2× 4dBi
- 5.0GHz: 2× 5dBi
- Mounting: Wall Plate Mounting
Wireless Features
- Wireless Client Capacity: 100+
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz and 5.0GHz
- Signal Rate:
- 5.0GHz: up to 1201Mbps
- 2.4GHz: up to 574Mbps
- SSIDs: up to 16× SSIDs (8× per Band)
- OFDMA: Yes
- MU-MIMO: Yes
- Seamless Roaming: Yes
- Band Steering: Yes
- Beamforming: Yes
- Airtime Fairness: Yes
- QoS (WMM): Yes
- Load Balance: Yes
- Rate Limit: Yes
- Wireless Schedule and Reboot Schedule: Yes
- Wireless Statistics: Based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Local LAN Port-Based VLAN
- Rogue AP Detection
- 802.1X Support
- Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP)
- FCC: ≤21dBm (2.4GHz), ≤21dBm (5.0GHz)
Management
- Omada App: Yes
- Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller)
- Email Alerts: Yes
- LED On/Off Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-Site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
Certification
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
