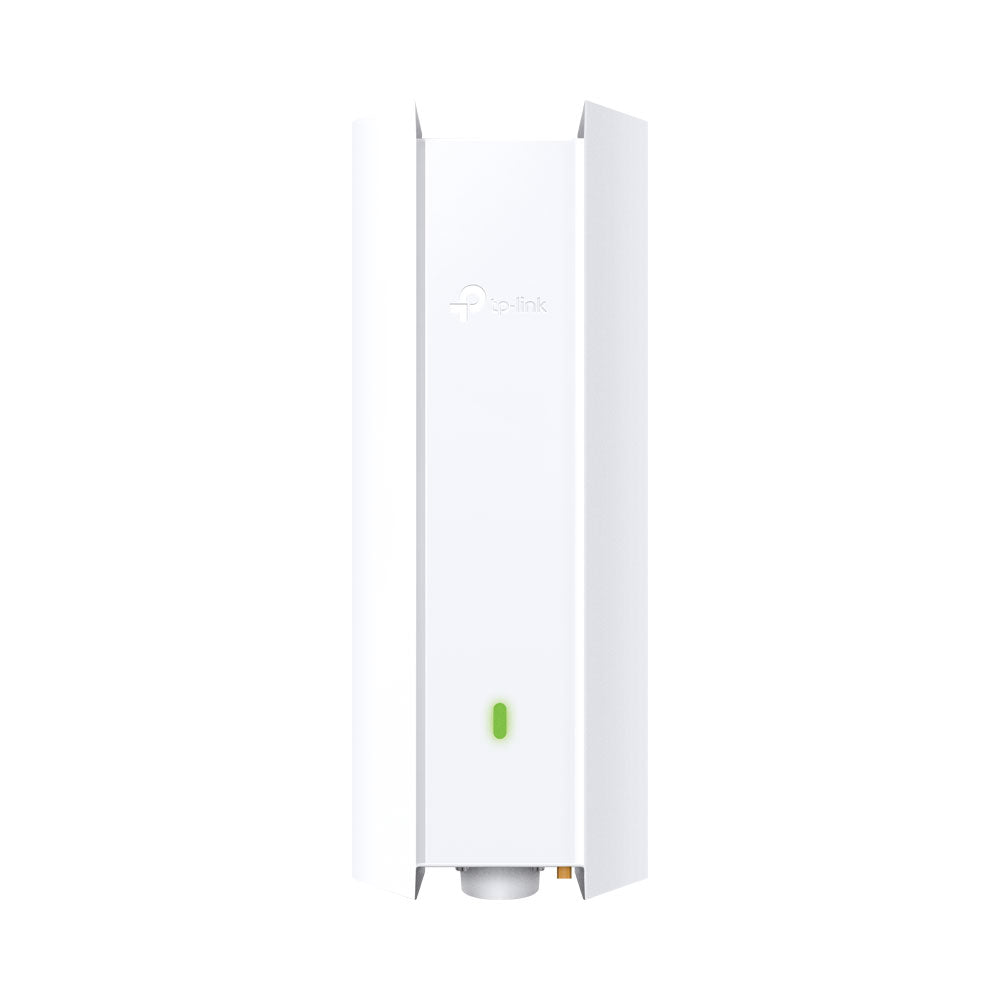

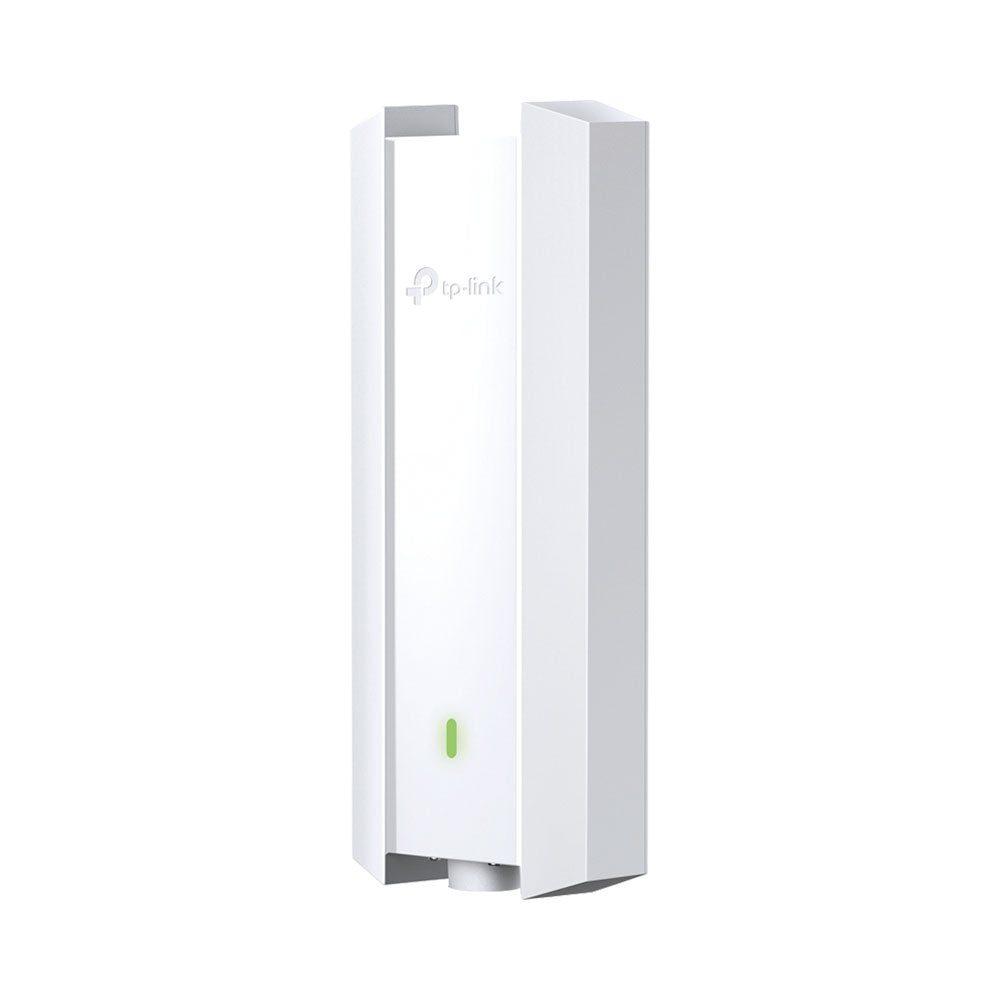

TP-Link EAP610-Outdoor Wi-Fi 6 AX1800 Dual-Band MU-MIMO Gigabit PoE Outdoor Access Point
Experience superior Wi-Fi 6 performance with dual-band speeds of up to 1.8 Gbps, delivering faster, more efficient connectivity across multiple devices with reduced lag through OFDMA and MU-MIMO technology. Designed for wide coverage, it features a high-power amplifier and professional-grade antennas housed in an IP67 weatherproof enclosure for reliable outdoor performance. Omada Mesh technology allows flexible, wireless interconnection between access points to extend network range, while fast roaming ensures seamless streaming and uninterrupted connectivity as users move throughout the property. Fully integrated with the Omada SDN platform, it offers centralised cloud management for easy remote access and complete network control.
Features
- Superior Wi-Fi 6 Speeds: Delivers dual-band speeds of up to 1.8Gbps powered by the latest Wi-Fi 6 technology
- Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
- Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
- Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment
- Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management
Hardware Features

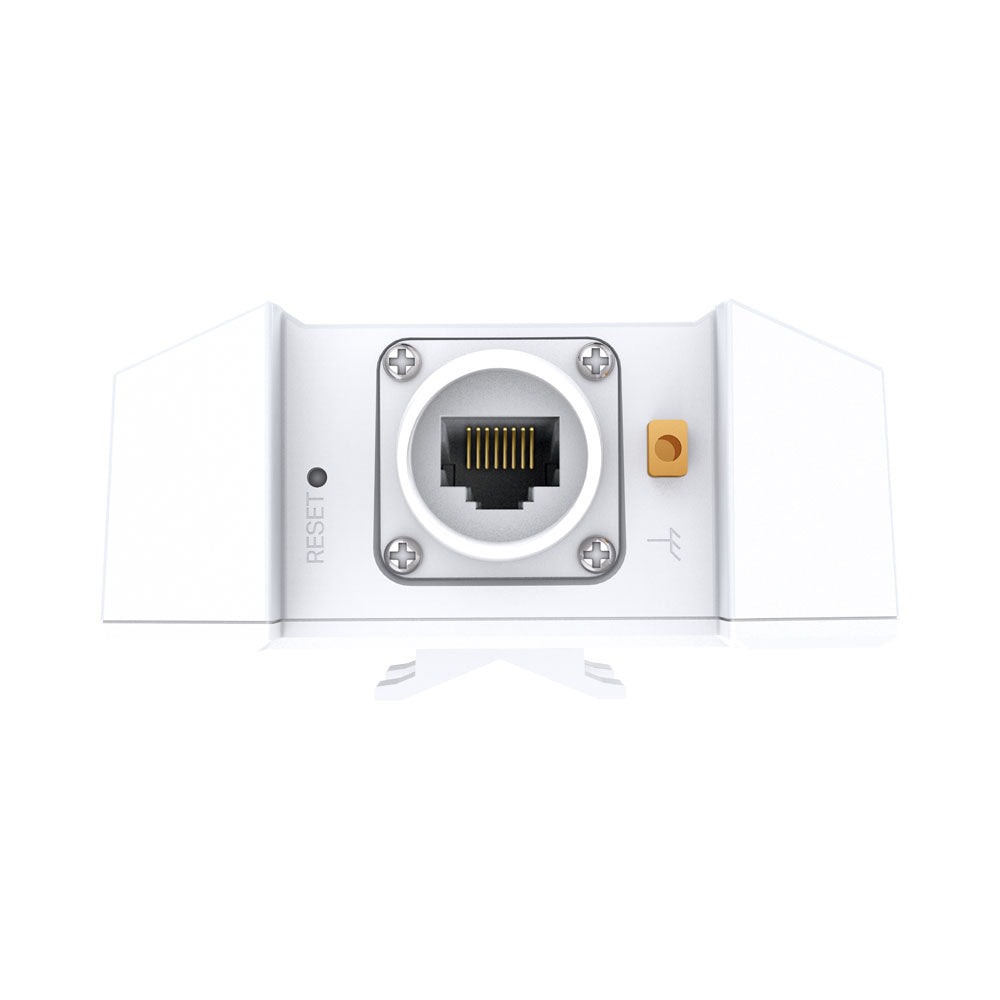

- Interface: 1x Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
- Button: Reset
- Power Supply: 802.3at PoE, 48V/0.5A Passive PoE (PoE Adapter Included)
- Power Consumption: EU: 12.5W (802.3at PoE or Passive PoE)
- Dimensions ( W x D x H ): 280.4 x 106.5 x 56.8mm (Without antenna & mounting kit)
- Antenna: 2.4GHz: 2x 4 dBi, 5.0GHz: 2x 5 dBi
- Weatherproof Enclosure: IP67

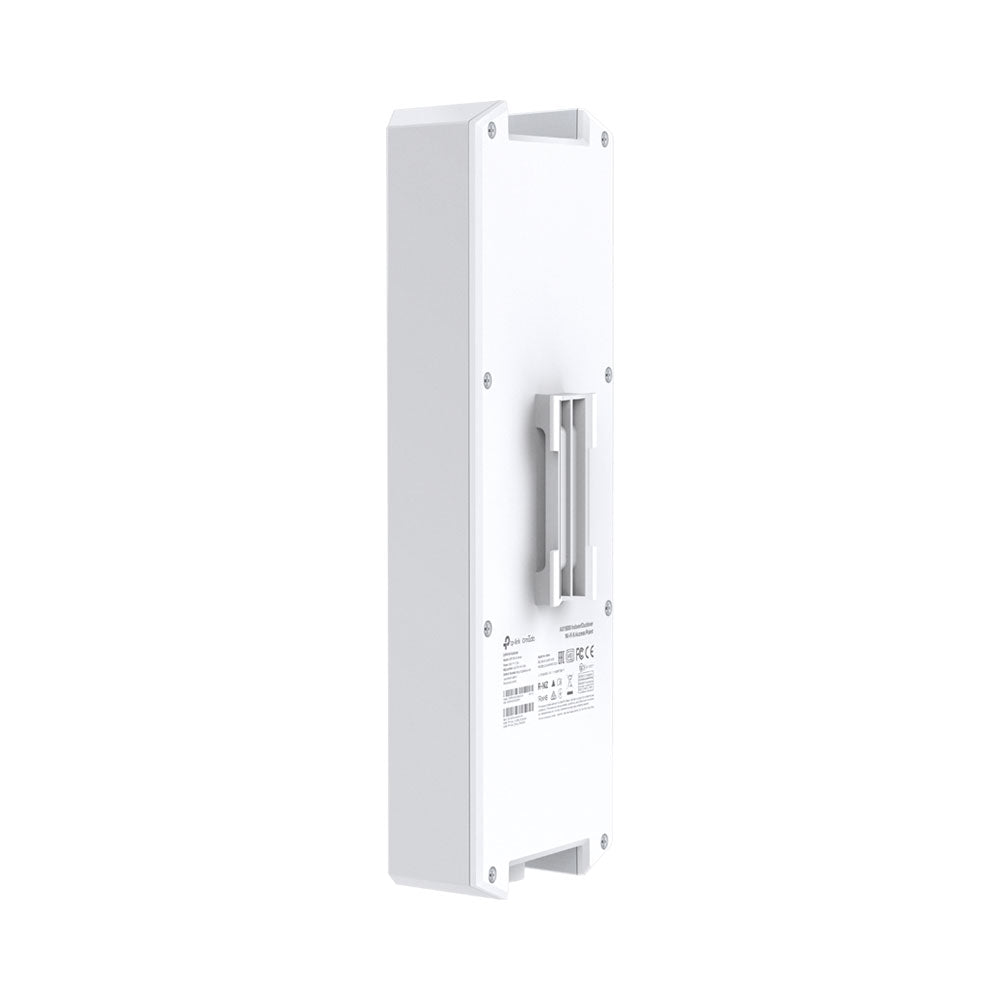

- Mounting: Pole/Wall Mounting (Kits included)
Wireless Features
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz, 5.0GHz
- Signal Rate: 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80), 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80), 802.11n: 6.5 Mbps to 300Mbps (MCS0-MCS15, VHT 20/40), 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps, 802.11b: 1, 2, 5.5, 11Mbps, 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
- Transmit Power: CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP), FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
- Wireless Functions: 1024-QAM, 4x Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), MU-MIMO, Omada Mesh, Seamless Roaming, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
- Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Management
- Omada App: Yes
- Centralised Management: Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0), Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
- Cloud Access: Yes, through Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0), OC300, OC200, Omada Software Controller
- Email Alerts: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging Local/Remote Syslog: Yes
- SSH: Yes
- Web-based Management: Yes
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)
Others
- Certification: CE, FCC, RoHS
