TP-Link EAP610 AX1800 Wireless Dual-Band Ceiling Mount Access Point
Next-Gen Wi-Fi 6. Smarter Business Networking.
The TP-Link EAP610 delivers AX1800 dual-band Wi-Fi 6 performance with enhanced capacity, lower latency and improved efficiency for high-density environments. With Omada SDN integration, seamless roaming and centralised cloud management, it?s built for scalable enterprise networks across offices, schools and retail spaces. Powered by 802.3at PoE+ for flexible ceiling deployment, the EAP610 ensures reliable, high-speed wireless where it matters most.
Features
- Ultra-Fast Wi-Fi 6 Speeds - 574Mbps (2.4GHz) plus 1,201Mbps (5.0GHz) delivering AX1800 performance up to 1,775Mbps
- High-Efficiency Wi-Fi 6 - Improved capacity and performance for more connected devices simultaneously
- Centralised Cloud Management - Full network control locally or via cloud through Web UI or Omada App
- Seamless Roaming - Uninterrupted video streaming and voice calls while moving between access points
- Omada Mesh Technology - Wireless uplink between access points for extended coverage and flexible deployment
- PoE+ Powered - Supports 802.3at PoE+ and DC power supply for versatile installation options
- Secure Guest Network - Multiple authentication options including SMS, Facebook Wi-Fi and Voucher with advanced wireless security
Specifications
Hardware Features
- Interface: 1× Gigabit Ethernet (RJ45) Port (Supports IEEE 802.3at PoE)
- Button: Reset
- Power Supply: 802.3at PoE or 12V 1A DC (Power Adapter Included)
- Power Consumption: 12.8W (PoE), 10.8W (DC)
- Dimensions: 243 × 243 × 64mm
- Antennas: Internal Omni Antennas
- 2.4GHz: 2× 4dBi
- 5.0GHz: 2× 5dBi

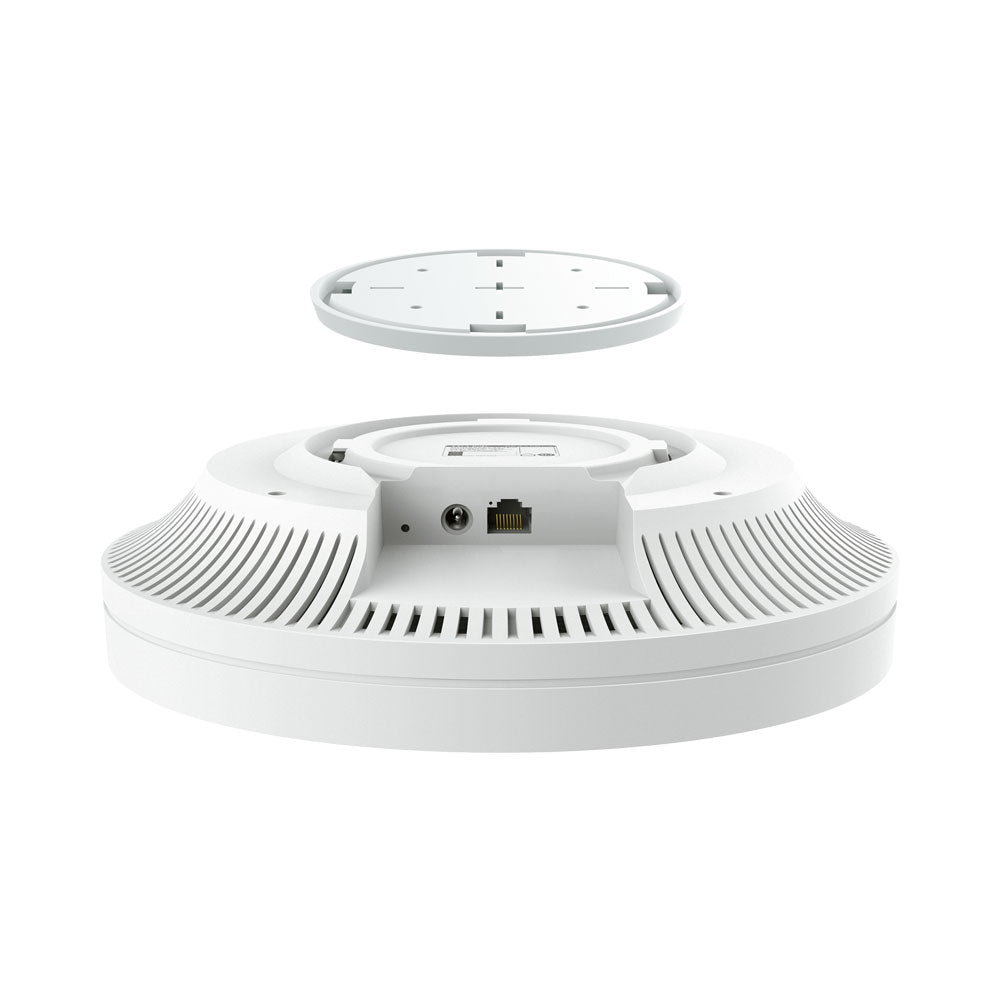

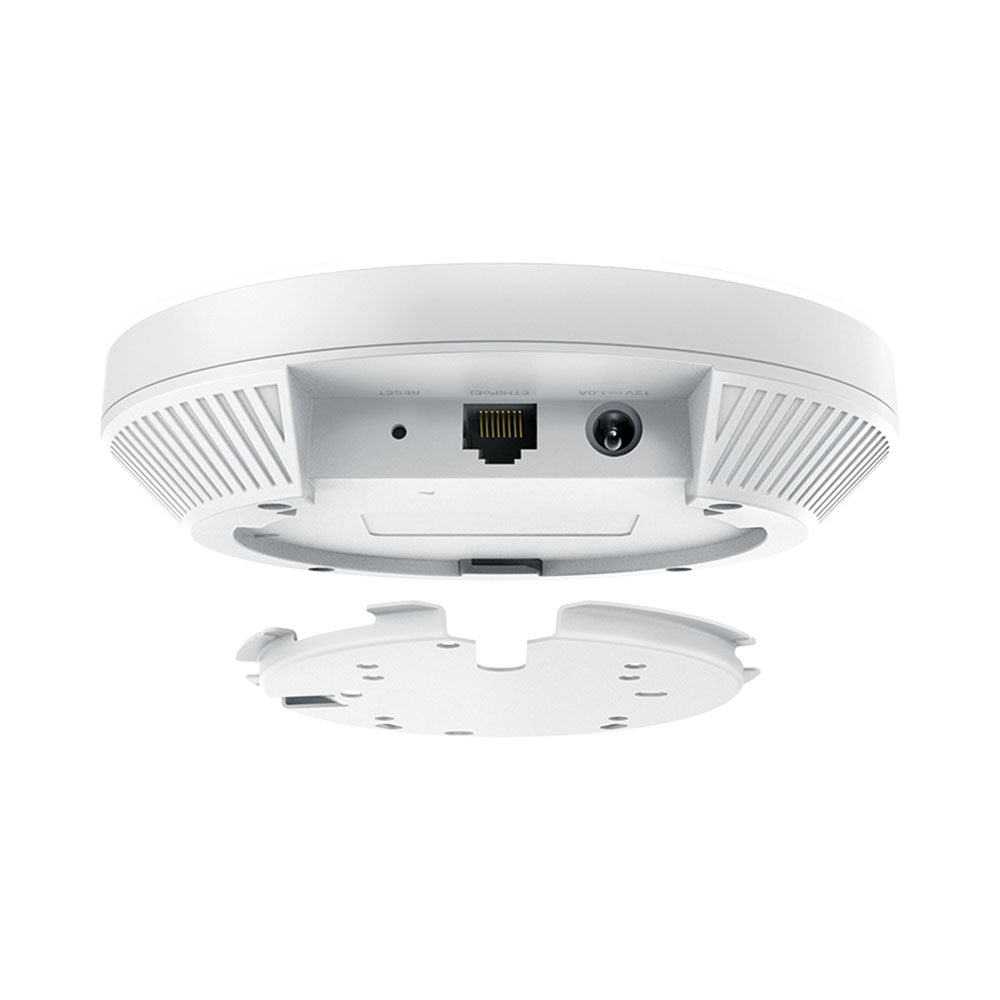

- Mounting: Ceiling/Wall Mounting Kits Included
Wireless Features
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz and 5.0GHz
- Signal Rate:
- 5.0GHz: up to 1,201Mbps
- 2.4GHz: up to 574Mbps
- 1024-QAM: Yes
- OFDMA: Yes
- 4× Longer OFDM Symbol: Yes
- SSIDs: up to 16× SSIDs (8× per Band)
- MU-MIMO: Yes
- Seamless Roaming: Yes
- Omada Mesh: Yes
- Band Steering: Yes
- Load Balance: Yes
- Airtime Fairness: Yes
- Beamforming: Yes
- QoS (WMM): Yes
- Rate Limit: Yes
- Reboot Schedule and Wireless Schedule: Yes
- Wireless Statistics: Based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP)
- FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz)
Management
- Omada App: Yes
- Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
- Cloud Access: Yes (via OC300, OC200, Omada Software Controller or Omada Cloud-Based Controller)
- Email Alerts: Yes
- LED On/Off Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-Site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes (Supported by Omada Cloud-Based Controller; Not Supported by EAP610 V3)
