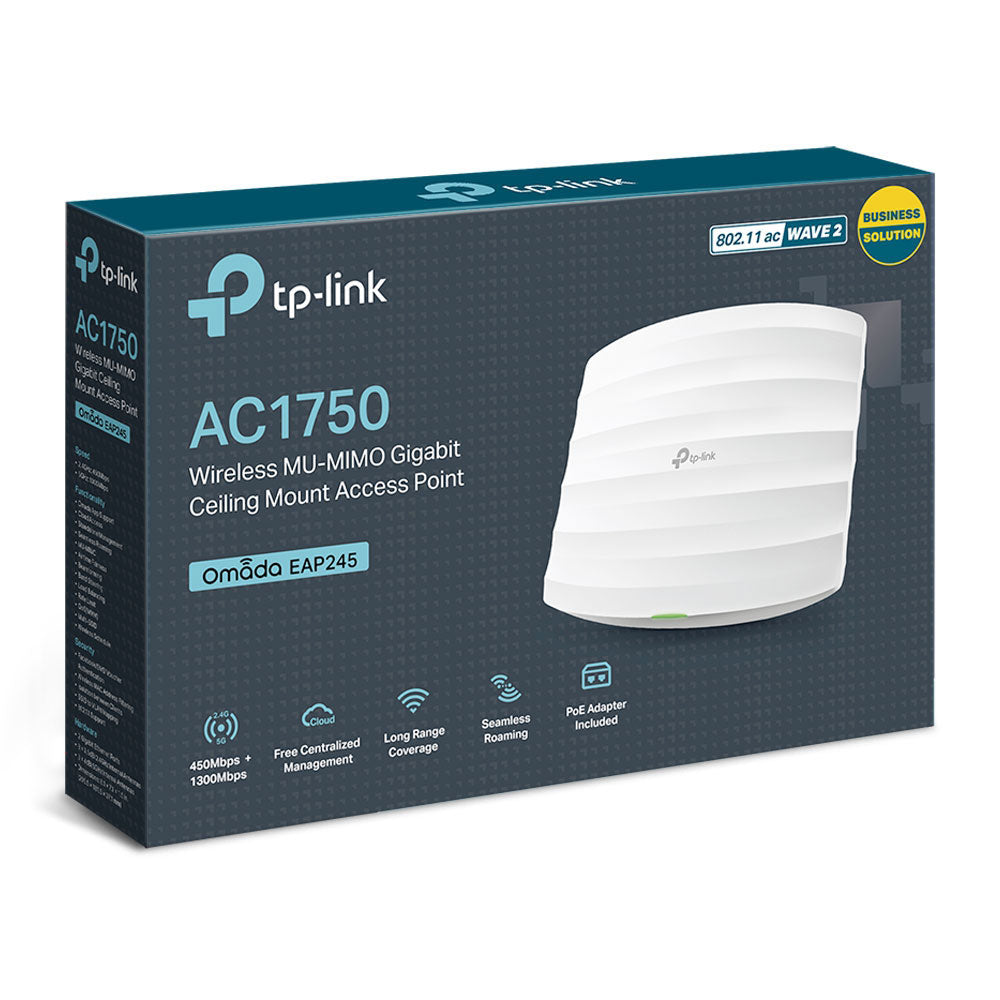

TP-Link EAP245 AC1750 Dual Band Wireless MU-MIMO Gigabit Ceiling Mount Access Point
This dual-band access point delivers combined Wi-Fi speeds of up to 1750 Mbps, with 450 Mbps on the 2.4 GHz band and 1300 Mbps on the 5 GHz band for high-performance connectivity. It supports seamless roaming to keep video calls and streams uninterrupted as users move between locations. With free cloud-based centralized management and the Omada app, network setup and control are effortless from anywhere. Power over Ethernet (802.3at/802.3af) enables flexible and cost-effective installation, while the secure guest network offers multiple authentication options including SMS, Facebook Wi-Fi, and voucher login. Advanced wireless security and management VLAN support provide enhanced protection and control. Band steering intelligently directs devices to the faster 5 GHz band, and load balancing ensures smooth, stable connections even in high-density environments.
Features
- Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
- Free cloud centralised management and Omada app for ultra convenience and easy management
- Support Power over Ethernet(802.3at/802.3af) for convenient and affordable installation
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- Load balance ensures large numbers of users have smooth network experiences in high density business networks
- Supports management VLAN for an enhanced network management
Hardware Features

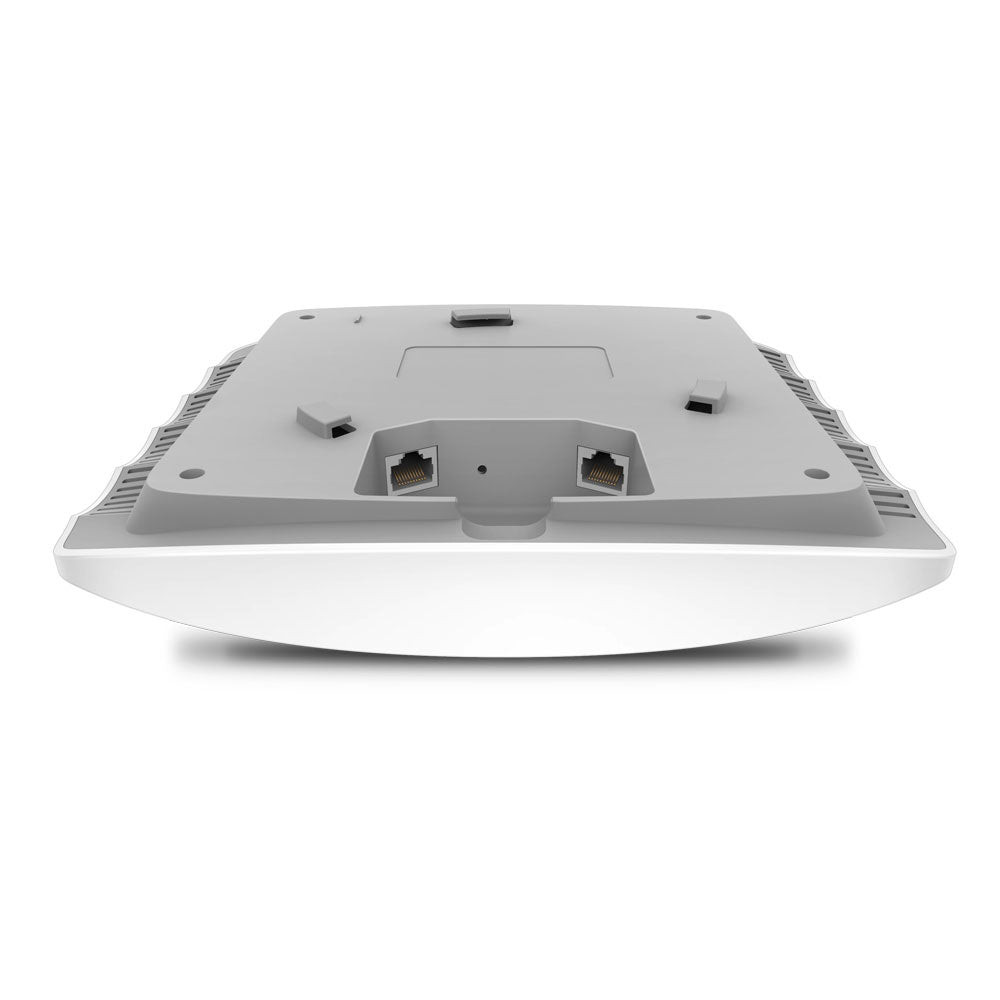

- Interface: 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af PoE and Passive PoE)
- Physical Security Lock: Yes
- Button: Reset
- Power Supply: 802.3af/A PoE, 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
- Power Consumption: 12.3 W
- Dimensions ( W x D x H ): 205.5 × 181.5 × 37.1mm
- Antenna Type: Internal Omni, 2.4GHz: 3* 3.5dBi, 5GHz: 3*4dBi
- Mounting: Ceiling /Wall Mounting (Kits included)
Wireless Features
- Wireless Standards: IEEE 802.11ac/n/g/b/a
- Frequency: 2.4GHz and 5GHz
- Signal Rate: 5GHz: Up to 1300Mbps, 2.4GHz:Up to 450Mbps
- Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM), MU-MIMO, Seamless Roaming Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
- Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping
- Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
- Transmission Power: CE: ≤20dBm(2.4GHz), ≤23dBm(5GHz), FCC: ≤24dBm(2.4GHz), ≤24dBm(5GHz)
Management
- Omada App: Yes
- Centralised Management: Omada Software Controller, OC200
- Cloud Access: Yes (Through Omada Software Controller or OC200)
- Email Alerts: Yes
- LED ON/OFF ControlYes
- Management MAC Access Control: Yes
- SNMP: Yes
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
Others
- Certification: CE, FCC, RoHS
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
