TP-Link Omada EAP230-Wall AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Unprecedented 11mm Thin Design. In-Room Wi-Fi. Enterprise Control.
The TP-Link EAP230-Wall delivers AC1200 dual-band Wi-Fi with MU-MIMO technology in a compact wall-plate design. Perfect for hotels, offices and student residences, it provides dedicated, high-speed connectivity to every room without visible clutter.
Integrated with Omada SDN for centralised cloud management, seamless roaming and effortless scalability, it?s a smart, professional solution for structured in-room networking.
Features
- 802.11ac Wave 2 Technology - Enables multiple users to access the internet simultaneously with improved efficiency
- Designed For Multi-Room Environments - Ideal for hotels, offices and dormitories with individually separated rooms

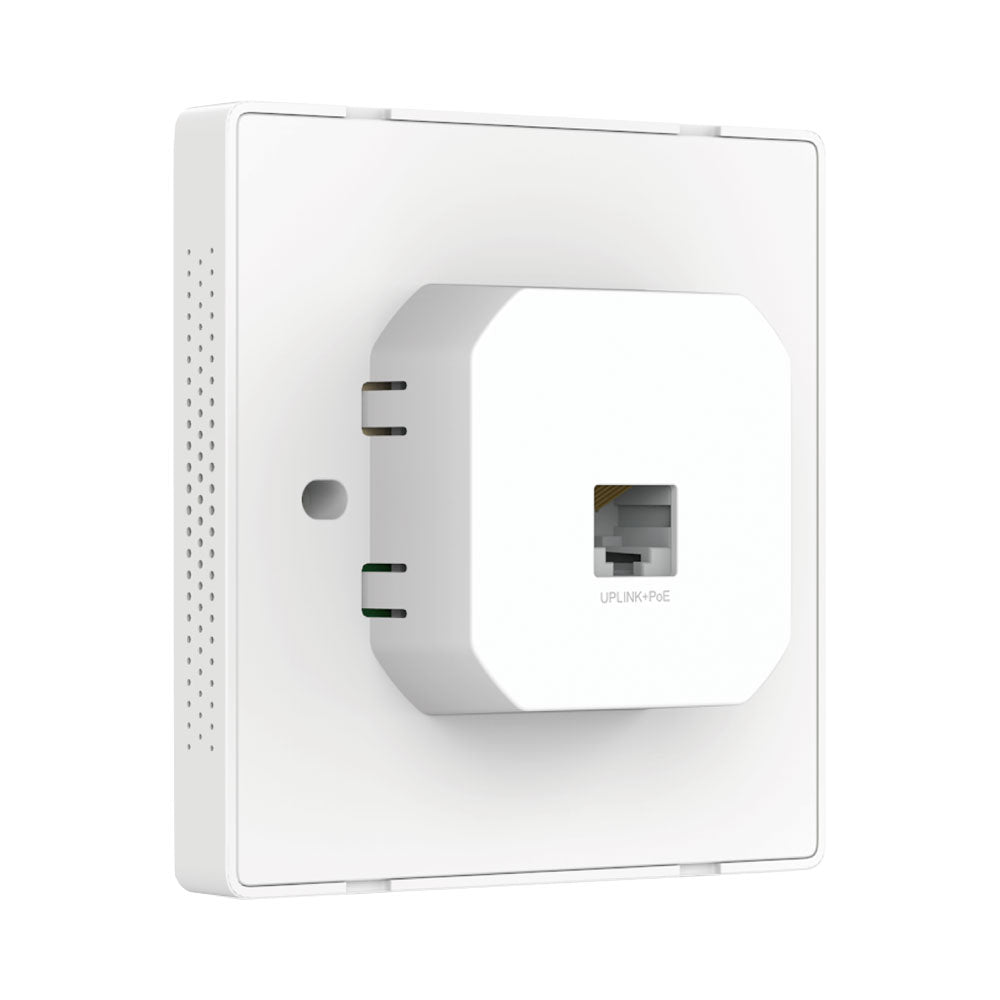

- Discreet Wall-Plate Design - Matches the size and shape of a light switch or power outlet for seamless integration
- Centralised Cloud Management - Access and manage your network anytime, anywhere
- Omada App Control - Simple and convenient network management from your mobile device
Specifications
Hardware Features

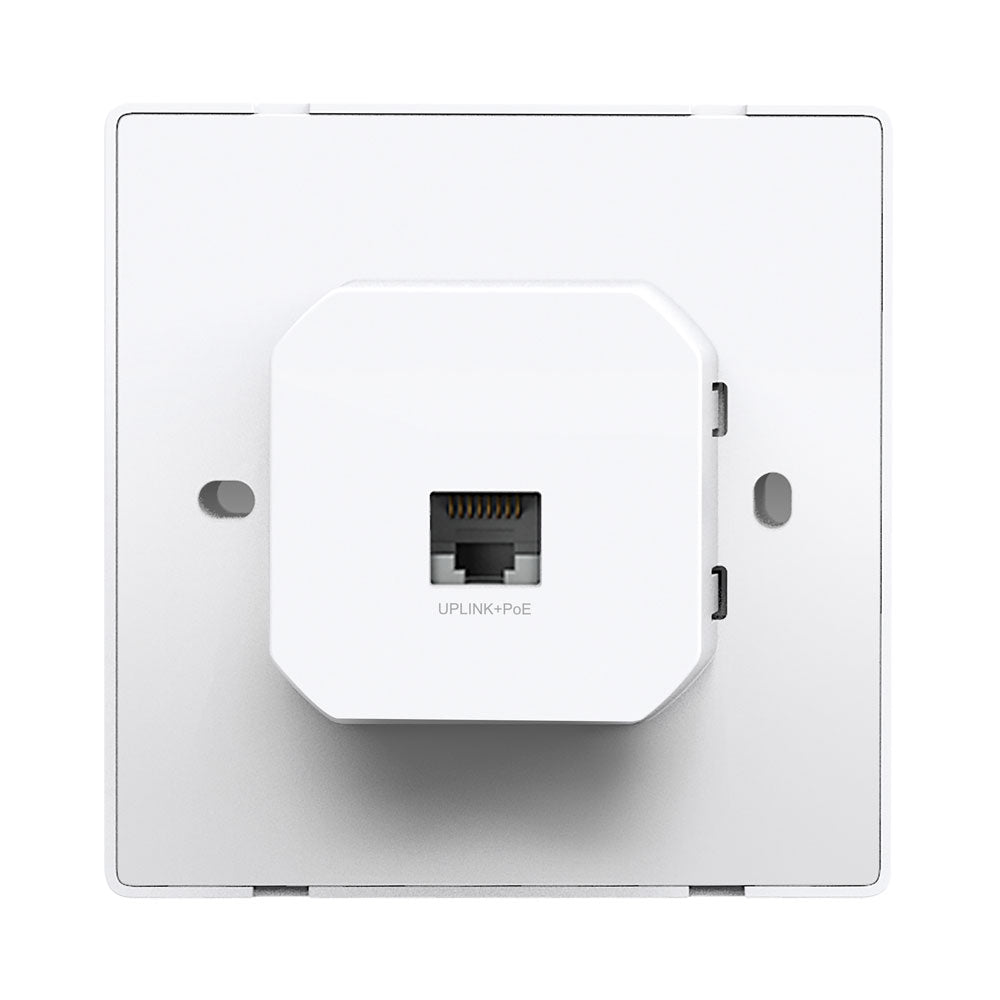

- Interface: 1× Gigabit Uplink Port, 1× 10/100/1000Mbps Downlink Port

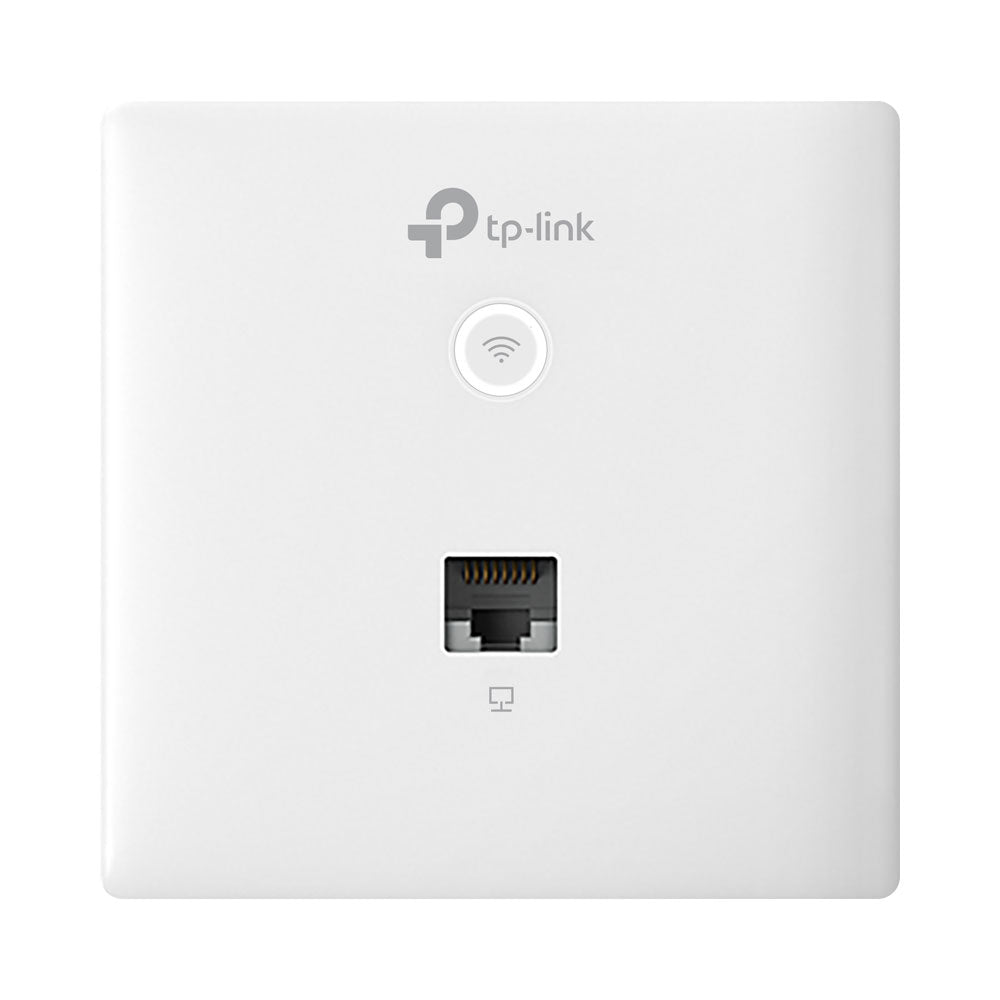

- Button: LED/Wi-Fi Button, Reset
- Power Supply: 802.3af/802.3at PoE
- Power Consumption: 7W
- Dimensions: 86.8 × 86.8 × 30.2mm
- Antennas: 2× Dual-Band Internal Antennas
- 2.4GHz: 2× 4dBi
- 5.0GHz: 2× 3.6dBi
- Mounting: Wall-Plate Mounting
- Hardware Watchdog: Yes
Wireless Features
- Wireless Standards: IEEE 802.11a/b/g/n/ac
- Frequency: 2.4GHz and 5.0GHz
- Signal Rate:
- 5.0GHz: up to 867Mbps
- 2.4GHz: up to 300Mbps
- SSIDs: Up to 16× SSIDs (8× per Band)
- MU-MIMO: Yes
- Band Steering: Yes
- Beamforming: Yes
- QoS (WMM): Yes
- Load Balance: Yes
- Rate Limit: Yes
- Wireless Schedule and Reboot Schedule: Yes
- Wireless Statistics: Based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Local LAN Port-Based VLAN
- Rogue AP Detection
- 802.1X Support
- Encryption: 64/128/152-bit WEP, WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK
Transmission Power
- CE:
- ≤20dBm (2.4GHz, EIRP)
- ≤23dBm (5.0GHz, EIRP)
Management
- Omada Cloud Access: Yes
- Omada App: Yes
- Omada Cloud Controller: Yes
- Omada Controller Software: Yes
- Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
- Email Alerts: Yes
- LED On/Off Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-Site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes (via Omada Cloud-Based Controller)
