TP-Link EAP225-Outdoor AC1200 Dual-Band Wireless MU-MIMO Gigabit Outdoor Access Point
Business Wi-Fi. Built For The Outdoors.
The TP-Link EAP225-Outdoor delivers AC1200 dual-band performance with MU-MIMO technology for fast, stable connectivity across campuses, warehouses, gardens and public spaces. With its IP65 weatherproof enclosure, high-power antennas and flexible 802.3af or Passive PoE deployment, it extends reliable coverage exactly where your network needs to go. Fully integrated with Omada SDN for centralised cloud management, seamless roaming and scalable control - ideal for professional outdoor wireless networks.
Features
- Weatherproof Outdoor Design - Durable enclosure built for reliable outdoor Wi-Fi deployment
- AC1200 Dual-Band Performance - Up to 1200Mbps with 2×2 MIMO technology for stable high-speed connectivity
- Extended Long-Range Coverage - High transmission power and high-gain antennas maximise outdoor signal reach
- Centralised Omada Management - Free Omada Controller Software supports large-scale multi-AP administration
- Built-In Captive Portal - Provides simple and secure guest authentication
- Facebook Wi-Fi and SMS Login - Enhances customer engagement and business marketing opportunities
- Flexible PoE Deployment - Supports 802.3af and Passive PoE with included adapter and easy mounting design
Specifications
Hardware Features
Interface

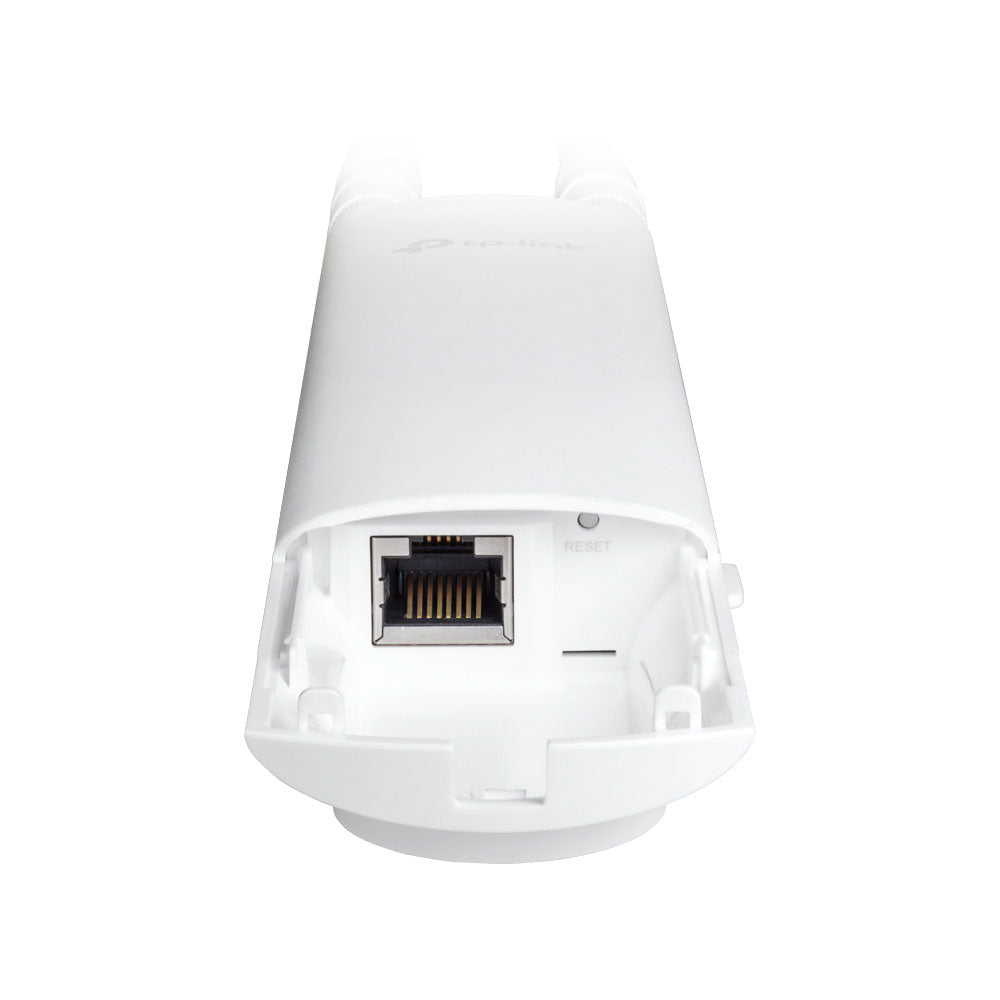

- 1× Gigabit Ethernet (RJ45) Port (Supports 802.3af PoE and Passive PoE)
Button
Power Supply
- 802.3af/at PoE
- 24V Passive PoE (+4,5pins; -7,8pins)
- PoE Adapter Included
Power Consumption
Dimensions (W × D × H)
Antenna
- 2.4GHz: 2× 3dBi
- 5.0GHz: 2× 4dBi
Weatherproof Enclosure
Mounting

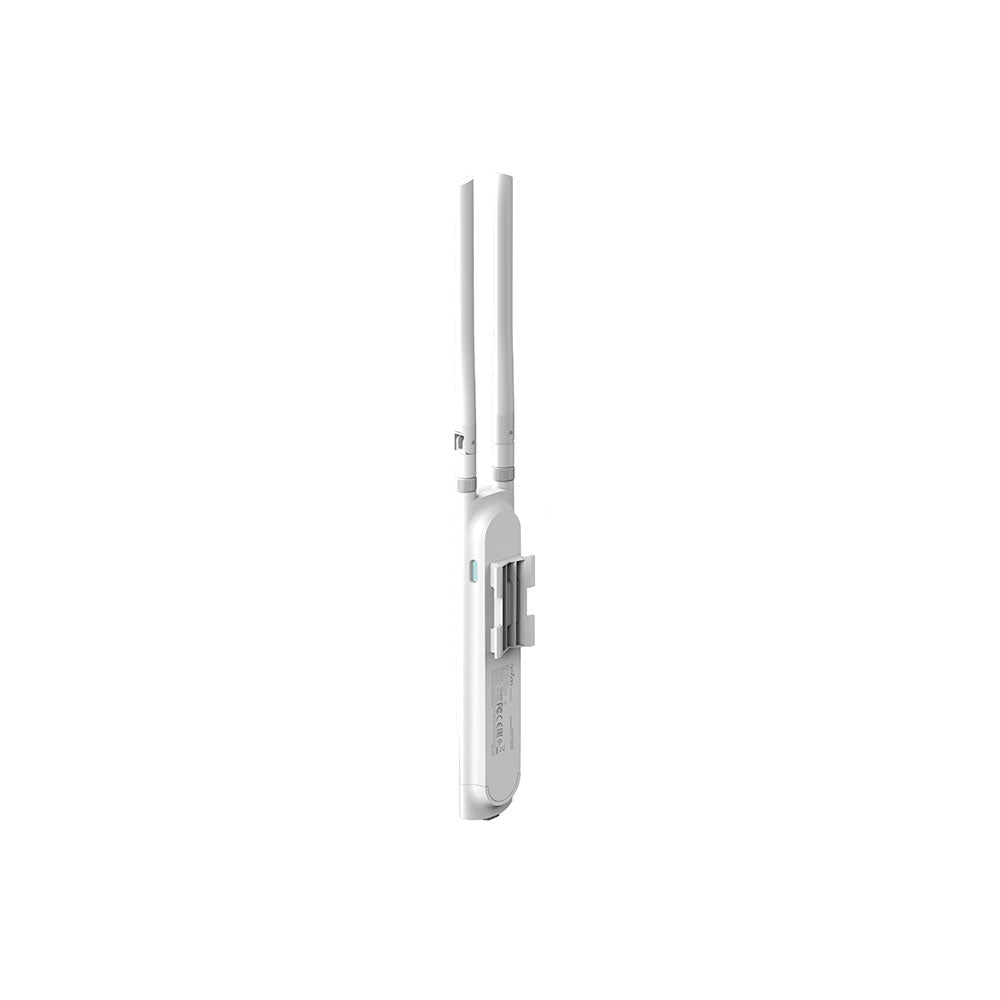

- Pole / Wall Mounting Kits Included
Hardware Watch Dog
Wireless Features
Wireless Standards
Frequency
Signal Rate
- 5.0GHz: up to 867Mbps
- 2.4GHz: up to 300Mbps
Wireless Functions
- Multiple SSIDs (up to 16× SSIDs, 8× per Band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control
- QoS (WMM)
- MU-MIMO
- Airtime Fairness
- Beamforming
- Band Steering
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics (SSID/AP/Client Based)
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
Transmission Power
Ce
- <20dBm (2.4GHz, EIRP)
- <25dBm (5.0GHz, EIRP)
Fcc
- <23dBm (2.4GHz)
- <22dBm (5.0GHz)
Management
- Omada App
- Omada Cloud Controller
- Omada Controller Software
- Cloud Access
- Email Alerts
- Management MAC Access Control
- System Logging (Local/Remote Syslog)
- SSH
- Web-Based Management
- L3 Management
- Multi-Site Management
- Management VLAN
Certification
