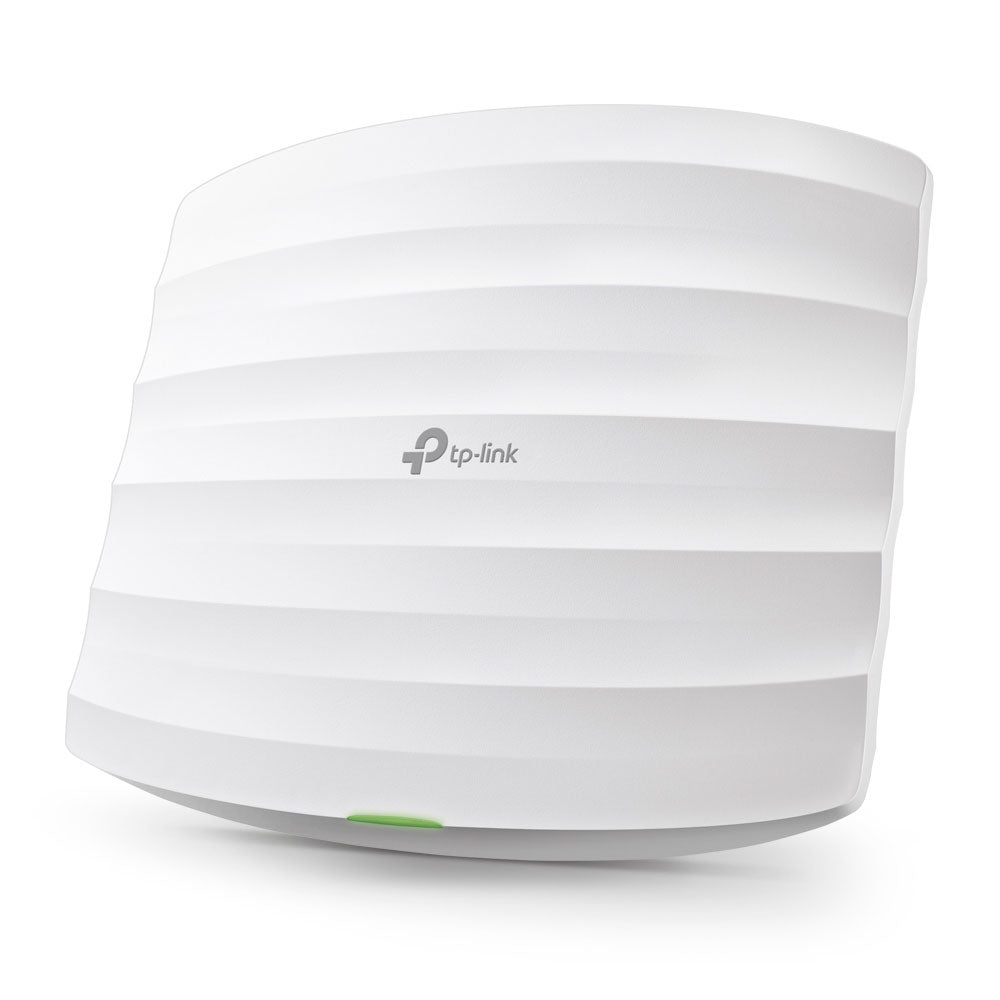

TP-Link EAP225 AC1350 Dual Band Wireless MU-MIMO Gigabit Ceiling Mount Access Point
Enterprise Wi-Fi. Seamless Control.
The TP-Link EAP225 delivers AC1350 dual-band performance with MU-MIMO technology for fast, stable connectivity in high-density business environments. With Gigabit speeds and advanced wireless optimisation, it ensures smooth streaming, VoIP and reliable multi-device performance. Fully integrated with Omada SDN, it enables centralised cloud management, seamless roaming and scalable deployment - ideal for offices, schools and hospitality networks.
Features
- AC1350 Dual-Band Wi-Fi - 450Mbps on 2.4GHz plus 867Mbps on 5.0GHz delivering combined speeds up to 1317Mbps
- Seamless Roaming - Maintains uninterrupted video streaming and voice calls while users move between access points
- Free Cloud Centralised Management - Control easily via Omada Cloud and the Omada App
- Flexible PoE Deployment - Supports 802.3af and Passive PoE for effortless and adaptable installation
- Secure Guest Network - Multiple authentication options including SMS, Facebook Wi-Fi and Voucher with robust wireless protection
- Smart Band Steering - Automatically shifts dual-band devices to the wider 5.0GHz band for faster performance
- MU-MIMO Technology - Simultaneously communicates with multiple devices to increase efficiency
- Beamforming Optimisation - Focuses signal strength toward connected devices for stable coverage
- Scheduled Operation - Configure automatic reboot and Wi-Fi on/off scheduling for improved network control
Specifications
Hardware Features
Interface

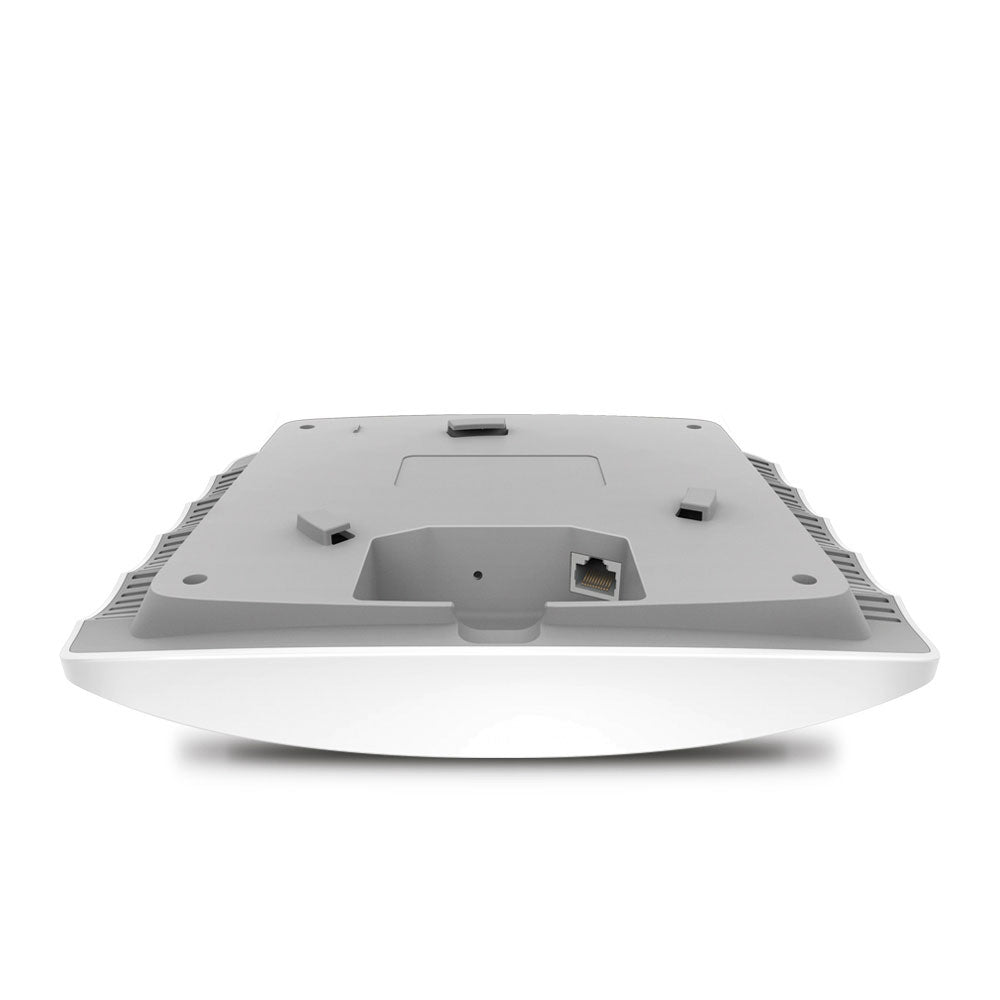

- 1× Gigabit Ethernet (RJ45) Port (Supports IEEE 802.3af PoE and Passive PoE)
Physical Security Lock
Button
Power Supply
- 802.3af/at PoE
- 24V Passive PoE (+4,5pins; -7,8pins)
- PoE Adapter Included
Power Consumption
Dimensions (W × D × H)
Antenna
- 3× Internal Omni Antennas
- 2.4GHz: 4dBi
- 5.0GHz: 5dBi
Mounting
- Ceiling / Wall Mounting Kits Included
Wireless Features
Wireless Standards
Frequency
Signal Rate
- 5.0GHz: up to 867Mbps
- 2.4GHz: up to 450Mbps
Wireless Functions
- Multiple SSIDs (up to 16× SSIDs, 8× per Band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control
- QoS (WMM)
- Seamless Roaming
- Band Steering
- Load Balance
- MU-MIMO
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics (SSID/AP/Client Based)
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
Transmission Power
Ce
- ≤20dBm (2.4GHz, EIRP)
- ≤23dBm (5.0GHz, EIRP)
Fcc
- ≤24dBm (2.4GHz)
- ≤22dBm (5.0GHz)
Management
- Omada Cloud Access
- Omada App
- Omada Cloud Controller
- Omada Controller Software
- Email Alerts
- LED On/Off Control
- Management MAC Access Control
- SNMP v1/v2c
- System Logging (Local/Remote Syslog)
- SSH
- Web-Based Management (HTTP/HTTPS)
- L3 Management
- Multi-Site Management
- Management VLAN
Certification
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
- Linux
