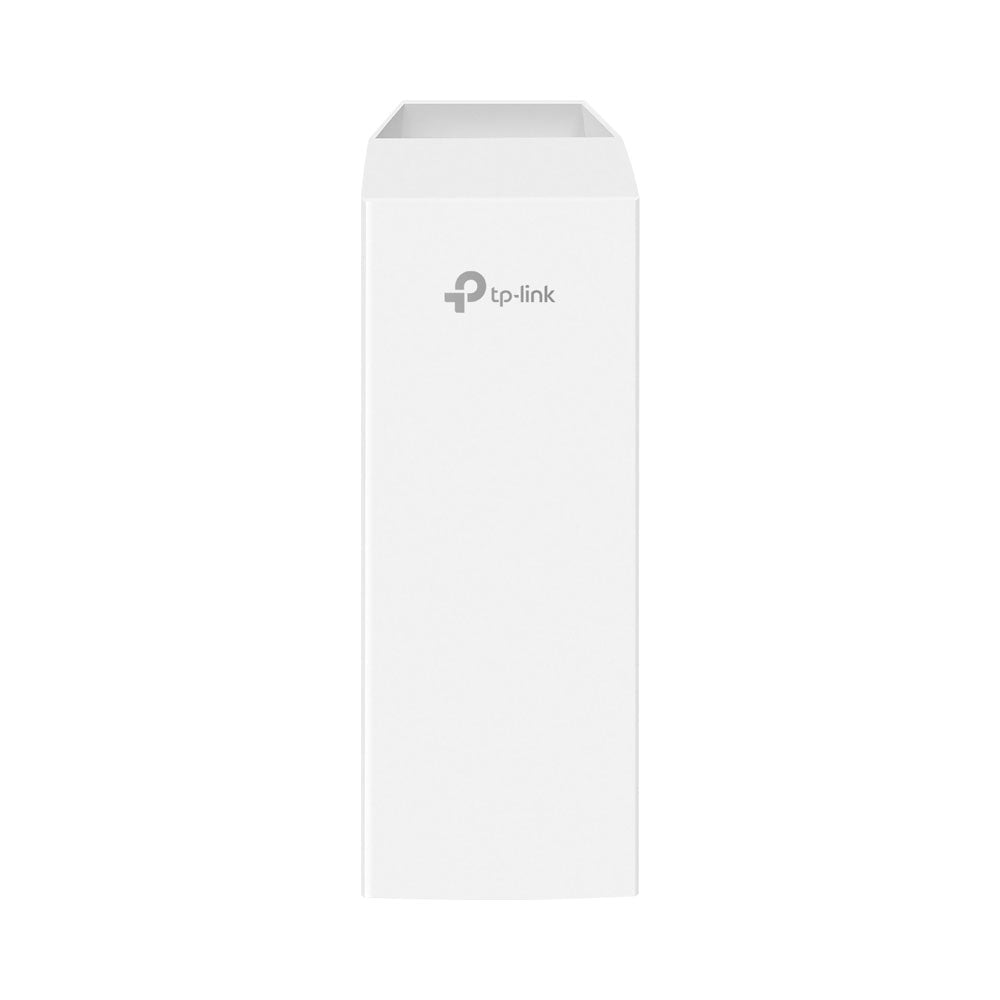

TP-LINK WIRELESS BRIDGE 5GHZ INDOOR/OUTDOOR

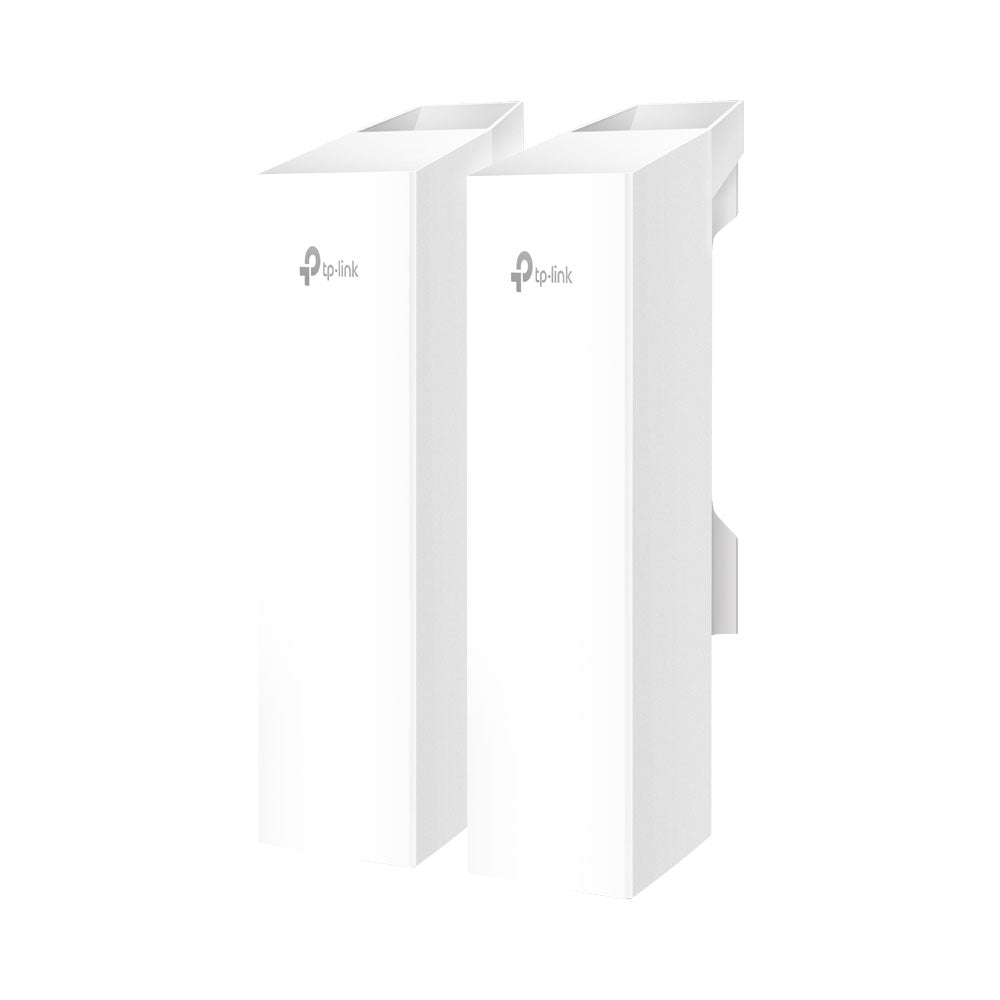

TP-Link Omada EAP215-bridge KIT 5.0GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge

Long-Range Speed. Reliable Outdoor Links.

The TP-Link Omada EAP215-Bridge KIT delivers 867Mbps 5.0GHz 802.11ac performance with stable long-distance transmission up to 5km. Designed for indoor and outdoor deployment, it provides secure, high-speed point-to-point connectivity for CCTV backhaul, remote buildings and site extensions. With IP65 weatherproof protection, 6kV lightning resistance and Omada SDN support, it?s a robust, centrally managed solution for professional wireless bridging.

Features

• 867Mbps 802.11ac Performance - Delivers up to 867Mbps on the 5.0GHz band for high-speed wireless bridging
• Extended 5km Long-Range Transmission - Engineered for reliable long-distance outdoor connectivity
• Auto-Pairing With Agile LEDs - Simplifies deployment with quick pairing and visual alignment indicators
• 3× Gigabit Ethernet Ports - Connect multiple high-speed IP cameras or network devices
• Omada SDN Supported - Enables remote and centralised cloud-based management
• IP65 Weatherproof With 6kV Lightning Protection - Built for stable all-weather outdoor operation

Specifications

Hardware Features

Interface

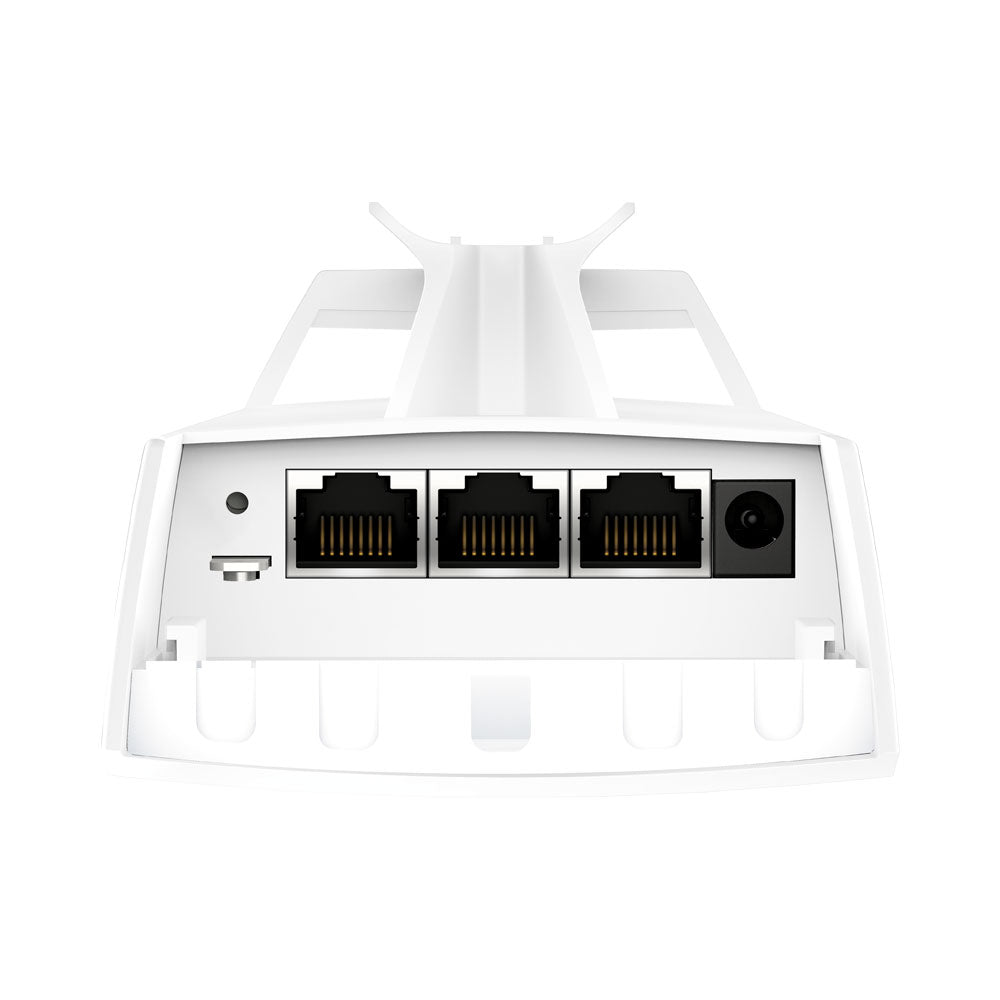

• 3× Gigabit Ethernet Ports

Button

• Reset

Power Supply

• 12V DC
• 24V Passive PoE (Adapter Included)

Power Consumption

• 11.5W

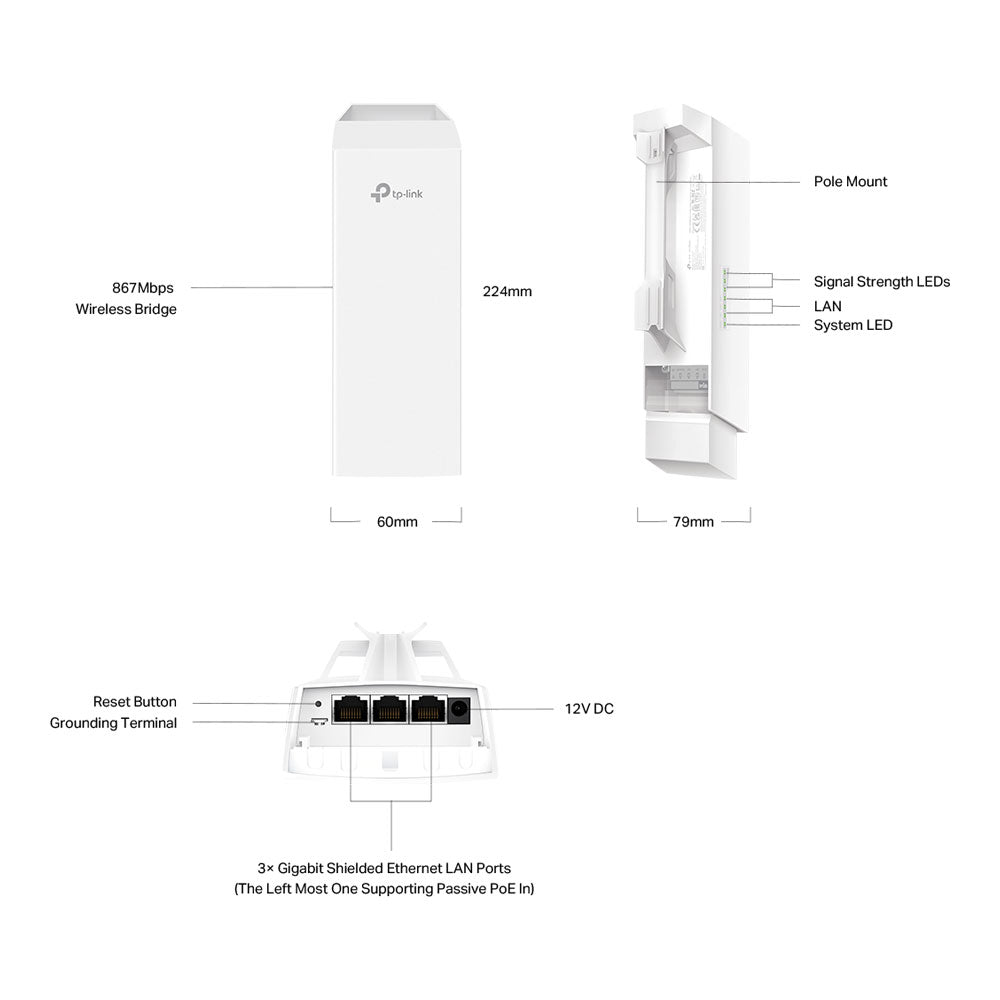

Dimensions (W × D × H)

• 79 × 60 × 224mm

Antenna

• Internal 2× Dual-Polarised Directional MIMO Antennas
• 5.0GHz: 11dBi
• Beamwidth: 35° Horizontal, 35° Vertical

Weatherproof Enclosure

• IP65

Mounting

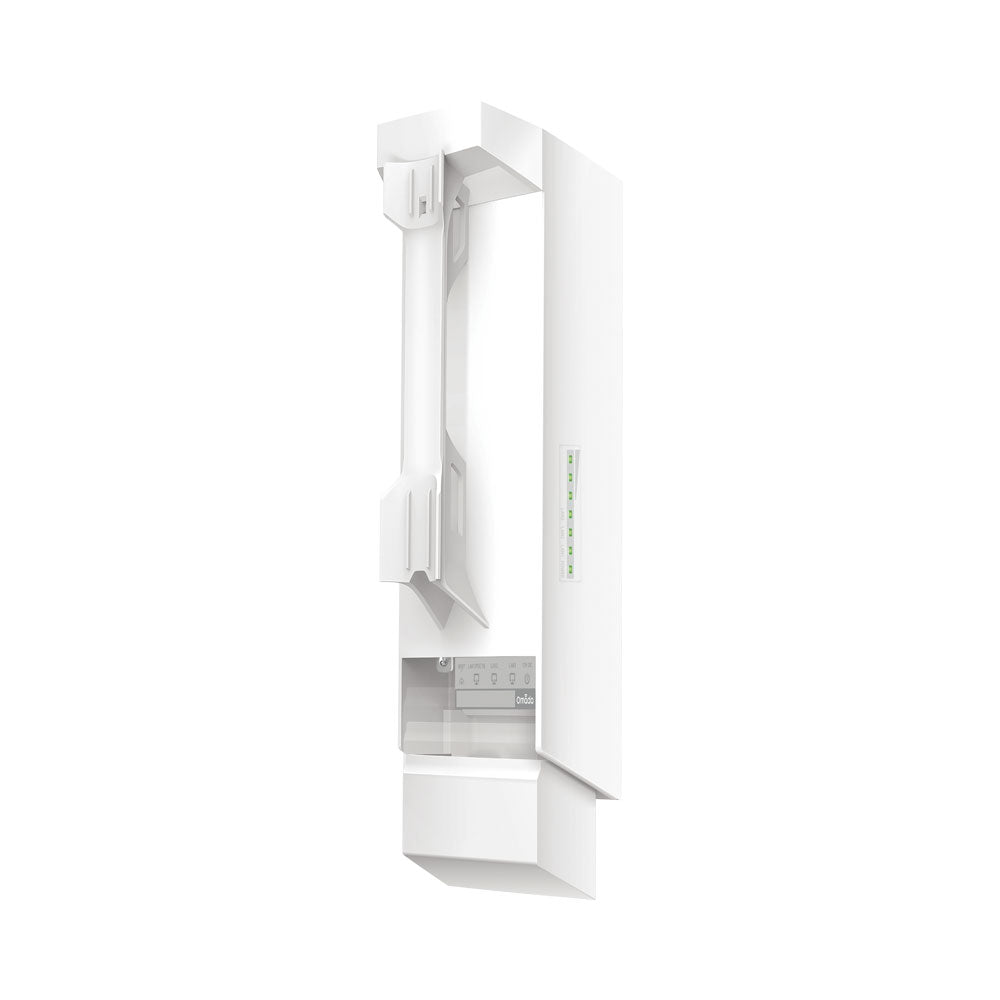

• Pole Mounting (Accessories Included)

Wireless Features

Coverage

• up to 5000m

Wireless Standards

• IEEE 802.11a/b/g/n/ac

Frequency

• 5.0GHz

Signal Rate

• Up to 867Mbps

Wireless Functions

• Mesh
• 5G 2×2 MU-MIMO (DL)
• Load Balance
• Beamforming
• Seamless Roaming (802.11r)
• Airtime Fairness
• Multiple SSIDs: 8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP / Dynamic IP

Wireless Security

• VLAN Support
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• Maximum MAC Filters: 4,000
• WPA-Personal / Enterprise
• WPA2-Personal / Enterprise

Transmission Power

Ce

• <23dBm (5.0GHz Band 1/2, EIRP)
• <30dBm (5.0GHz Band 3, EIRP)

Fcc

• <22dBm (5.0GHz Band 1/4)

Management

• Omada App
• Restore and Backup
• Firmware Update via Web
• NTP

Centralised Management

• Omada Hardware Controller (OC300, OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access

• Yes (Requires OC300, OC200, Omada Software Controller or Omada Cloud-Based Controller)
• LED On/Off Control
• Management MAC Access Control
• SNMP v1/v2c/v3
• SSH
• Web-Based Management

Certification

• CE
• FCC
• RoHS

Environment

• Operating Temperature: -40~70°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing
