TP-LINK 5GHZ INDOOR/OUTDOOR ACCESS POINT

TP-Link Omada EAP211-Bridge KIT 5.0GHz 867Mbps Wireless Bridge Indoor/Outdoor Access Point

Discreet Design. Dedicated Room Wi-Fi.

The TP-Link EAP115-Wall delivers stable 300Mbps 2.4GHz Wi-Fi in a compact wall-plate form factor, ideal for hotels, offices and residential deployments. Designed to fit standard EU wall-boxes, it provides seamless in-room coverage without visible clutter. With 802.3af PoE support, centralised management and enterprise-grade security, it?s a smart solution for scalable, room-by-room wireless networking.

Features

• 867Mbps 802.11ac Performance - Delivers up to 867Mbps on 5.0GHz for high-speed wireless backhaul and connectivity
• Long-Range Wireless Transmission - Ideal for outdoor links up to 1km
• Auto-Pairing With Agile LEDs - Enables fast deployment and clear signal alignment

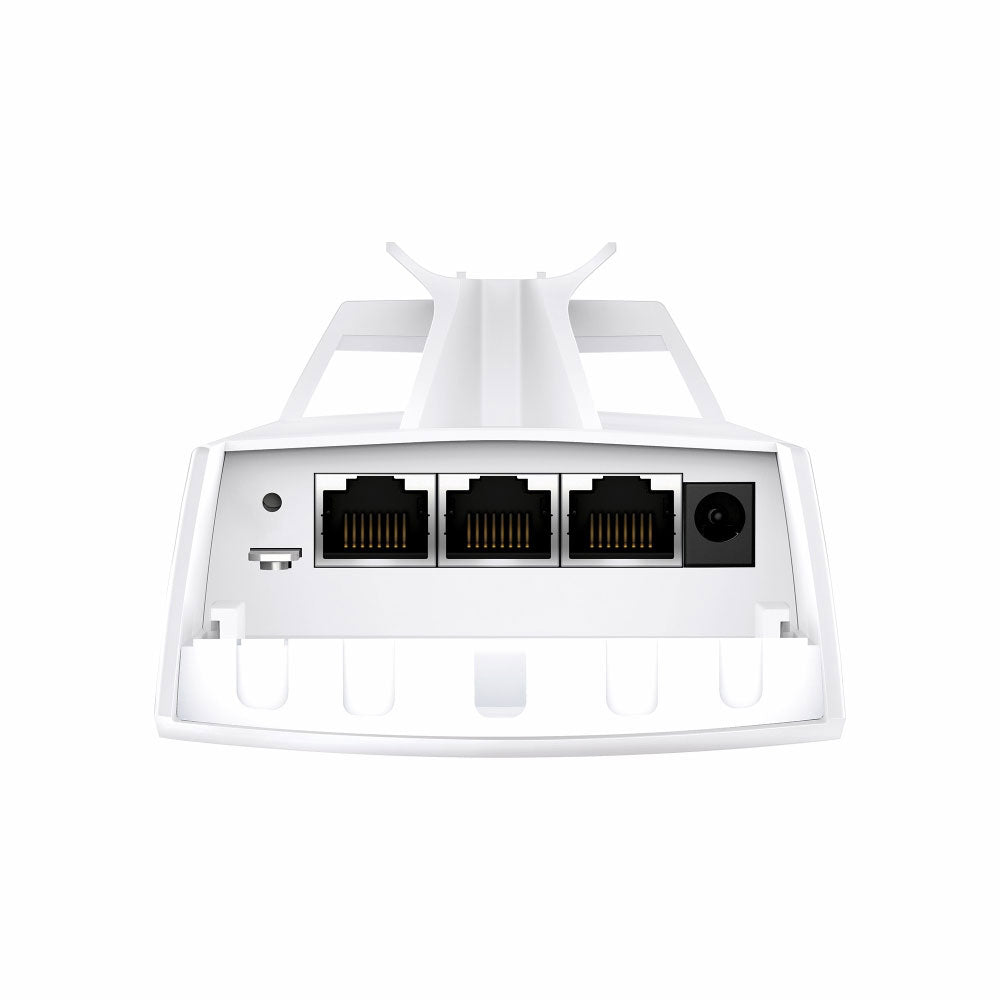

• 3× Gigabit Ethernet Ports - Supports multiple high-speed IP camera connections
• Omada SDN Supported - Enables remote and centralised cloud management
• IP65 Weatherproof With 6kV Lightning Protection - Built for reliable all-weather outdoor operation

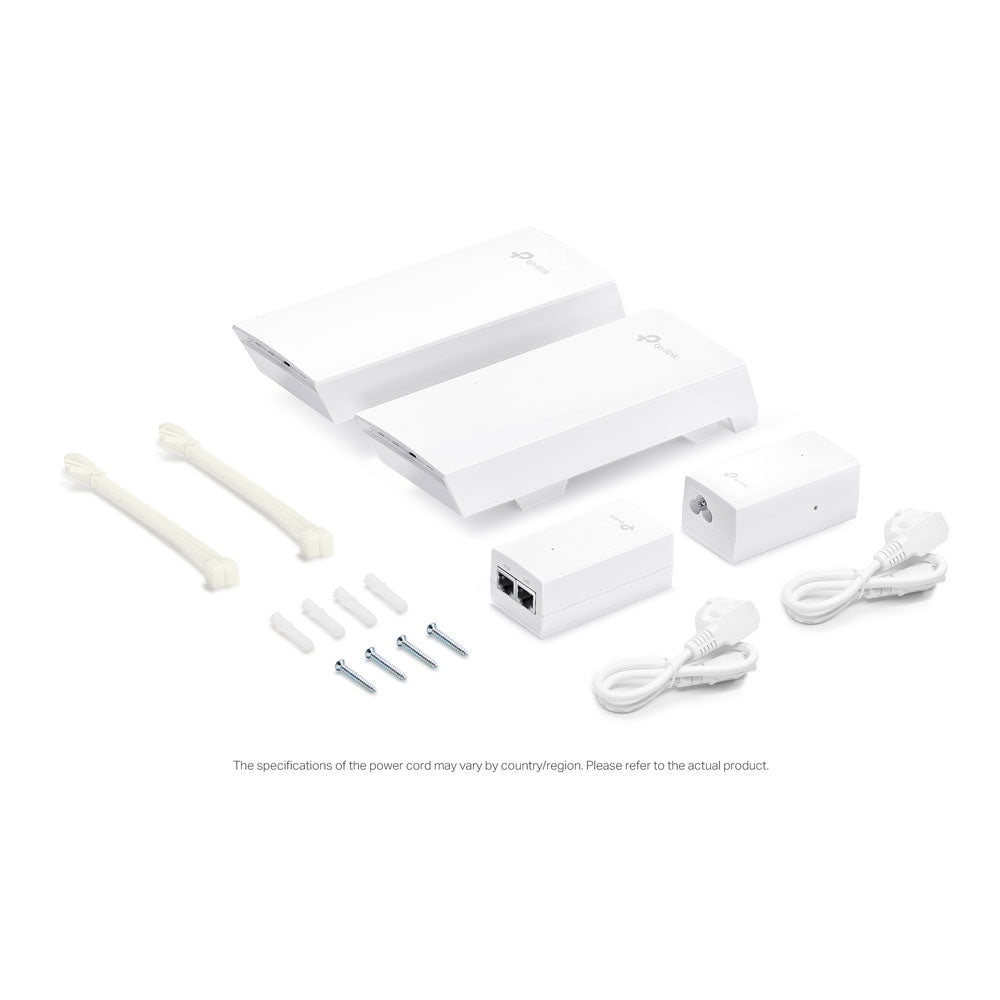

• Passive PoE Included - Flexible deployment with simplified power and data installation

Specifications

Hardware Features

Interface

• 3× Gigabit Ethernet Ports

Button

• Reset

Power Supply

• 12V DC
• 24V Passive PoE (Adapter Included)

Power Consumption

• 11.5W

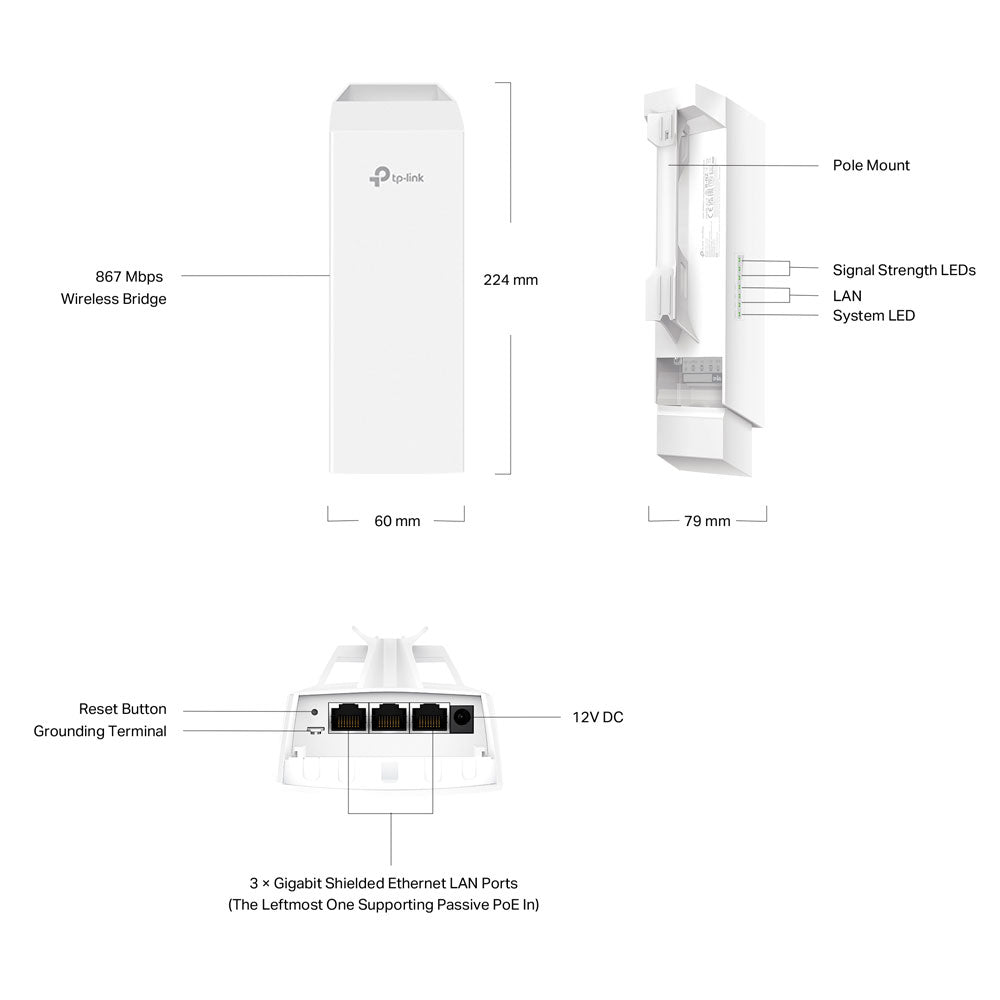

Dimensions (W × D × H)

• 79 × 60 × 224mm

Antenna

• Internal 2× Dual-Polarised Directional MIMO Antennas
• 5.0GHz: 7dBi
• Beamwidth: 70° Horizontal, 70° Vertical

Weatherproof Enclosure

• IP65

Mounting

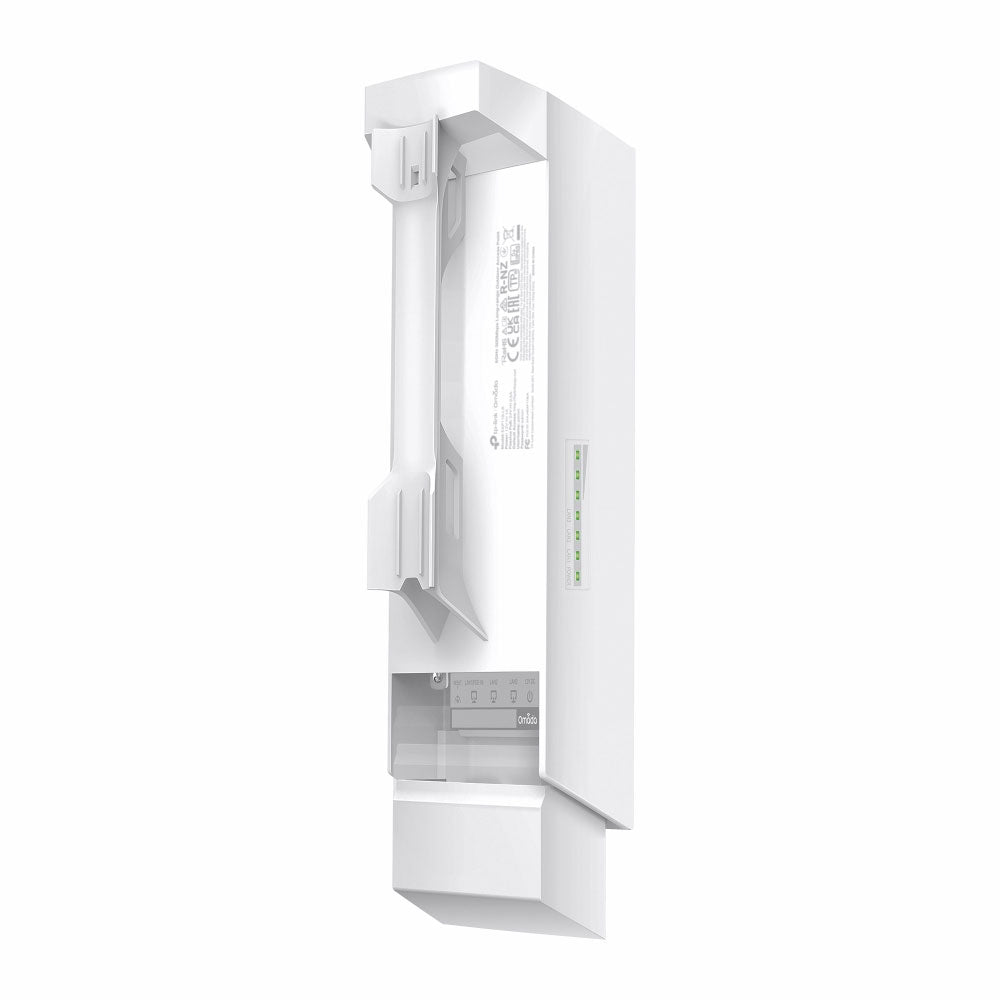

• Pole Mounting (Accessories Included)

Wireless Features

Coverage

• Up to 1000m

Wireless Standards

• IEEE 802.11a/b/g/n/ac

Frequency

• 5.0GHz

Signal Rate

• up to 867Mbps

Wireless Functions

• Mesh
• 5G 2×2 MU-MIMO (DL)
• Load Balance
• Seamless Roaming (802.11r)
• Beamforming
• Airtime Fairness
• Up to 8 SSIDs
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP / Dynamic IP

Wireless Security

• VLAN Support
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• Maximum MAC Filter Entries: 4,000
• WPA-Personal / Enterprise
• WPA2-Personal / Enterprise

Transmission Power

Ce

• <23dBm (5.0GHz Band 1/2, EIRP)
• <30dBm (5.0GHz Band 3, EIRP)

Fcc

• <22dBm (5.0GHz Band 1/4)

Management

• Omada App
• Restore and Backup
• Firmware Update via Web
• NTP

Centralised Management

• Omada Hardware Controller (OC300, OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access

• Yes (Requires OC300, OC200, Omada Software Controller or Cloud-Based Controller)
• LED On/Off Control
• Management MAC Access Control
• SNMP v1/v2c/v3
• SSH
• Web-Based Management

Certification

• CE
• FCC
• RoHS

Environment

• Operating Temperature: -40~70°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing
