TP-LINK 300MBPS 2.4G WIRELESS N FE WALL PLATE AP

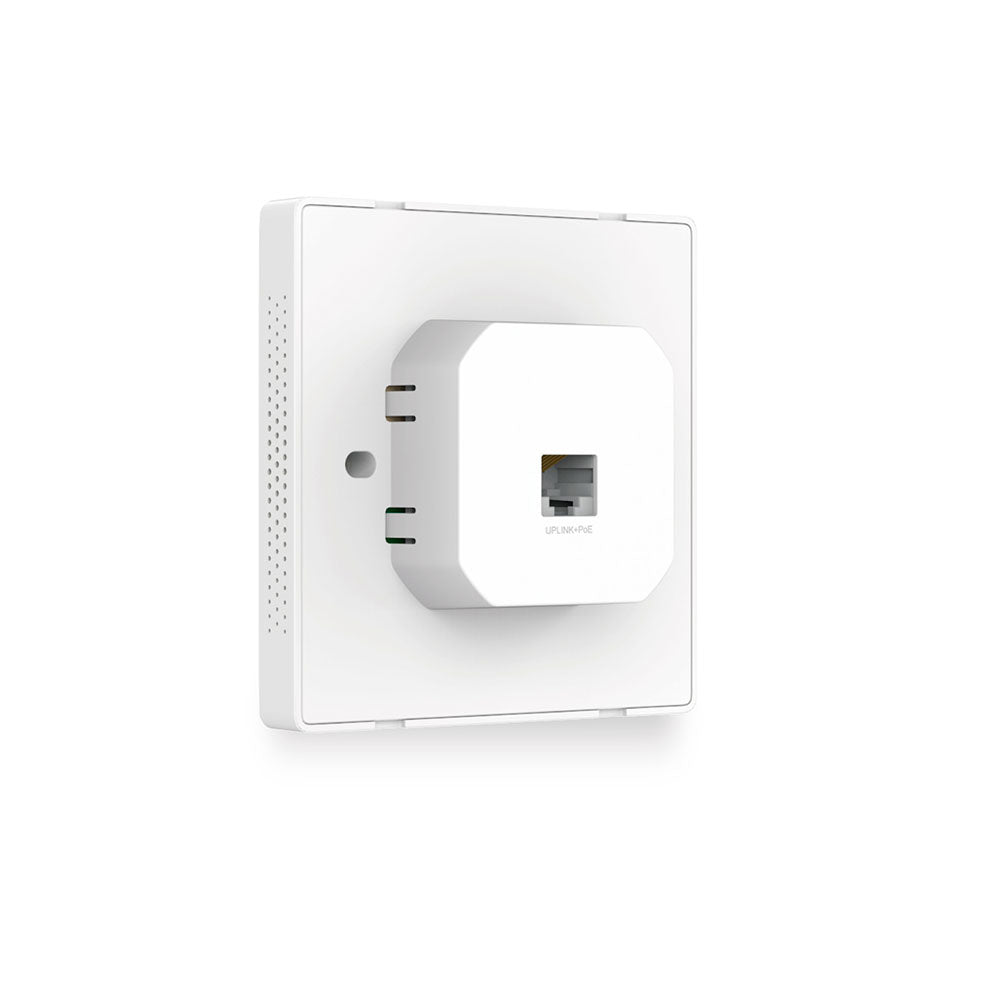

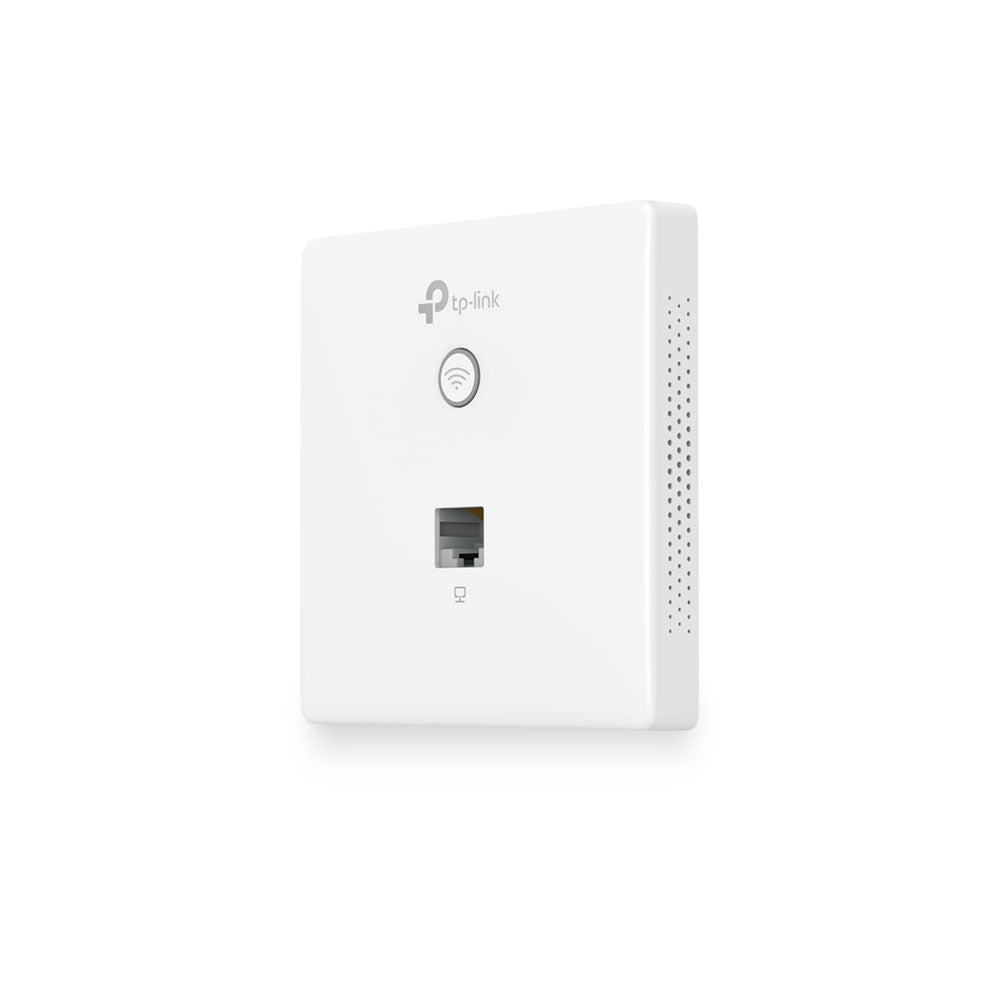

TP-Link EAP115-WALL 2.4GHz 300Mbps Wireless N Wall-Plate Access Point

Discreet Design. Dedicated Room Wi-Fi.

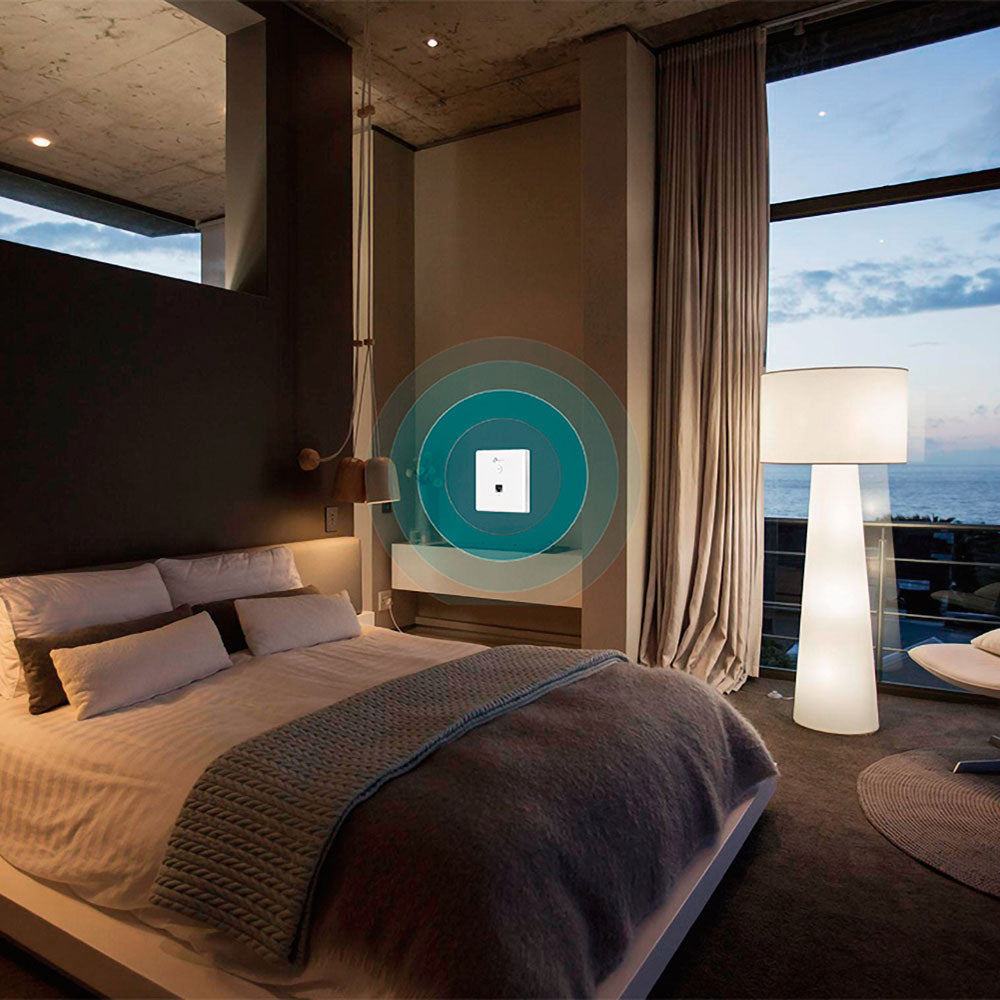

The TP-Link EAP115-Wall delivers stable 300Mbps 2.4GHz Wi-Fi in a compact wall-plate form factor, ideal for hotels, offices and residential deployments. Designed to fit standard EU wall-boxes, it provides seamless in-room coverage without visible clutter. With 802.3af PoE support, centralised management and enterprise-grade security, it?s a smart solution for scalable, room-by-room wireless networking.

Features

• Easy EU Wall-Box Installation - Fits into any standard EU-type data wall-box for seamless deployment
• Compact Low-Profile Design - Blends discreetly into any interior environment
• Centralised Management Software - Free Auranet Controller Software supports large-scale EAP management
• 802.3af PoE Support - Simplifies installation with convenient and cost-effective power delivery
• Enterprise-Grade Wi-Fi Security - Reduces network threats with advanced protection features
• Built-In Captive Portal - Provides secure and convenient guest authentication

Specifications

Hardware Features

• Interface: 2× 10/100Mbps Ethernet (RJ45) Ports

Button

• LED/Wi-Fi Button
• Reset

Power Supply

• PoE (IEEE 802.3af)

Power Consumption

• 2.8W

Dimensions (W × D × H)

• 86.8 × 86.8 × 30.2mm

Antenna

• Internal 2× 1.8dBi Omni

Mounting

• Wall Plate Mounting

Watch Dog

• System Watch Dog
• Hardware Watch Dog

Wireless Features

Wireless Standards

• IEEE 802.11n/g/b

Frequency

• 2.4GHz

Signal Rate

• 802.11n: up to 300Mbps (Dynamic)
• 802.11g: up to 54Mbps (Dynamic)
• 802.11b: up to 11Mbps (Dynamic)

Transmit Power

• CE: ≤15dBm (2.4GHz)

Wireless Functions

• Multiple SSIDs (up to 8× SSIDs)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control
• QoS (WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics (SSID/AP/Client Based)

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP
• WPA/WPA2-Enterprise
• WPA-PSK/WPA2-PSK

Management

• Omada Cloud Access
• Omada App
• Omada Cloud Controller
• Omada Controller Software
• EAP Controller Software
• Email Alerts
• LED On/Off Control
• Management MAC Access Control
• SNMP v1/v2c
• System Logging (Local/Remote Syslog)
• Telnet
• SSH
• Web-Based Management (HTTP/HTTPS)
• L3 Management
• Multi-Site Management
• Management VLAN

Certification

• CE
• RoHS

System Requirements

• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
