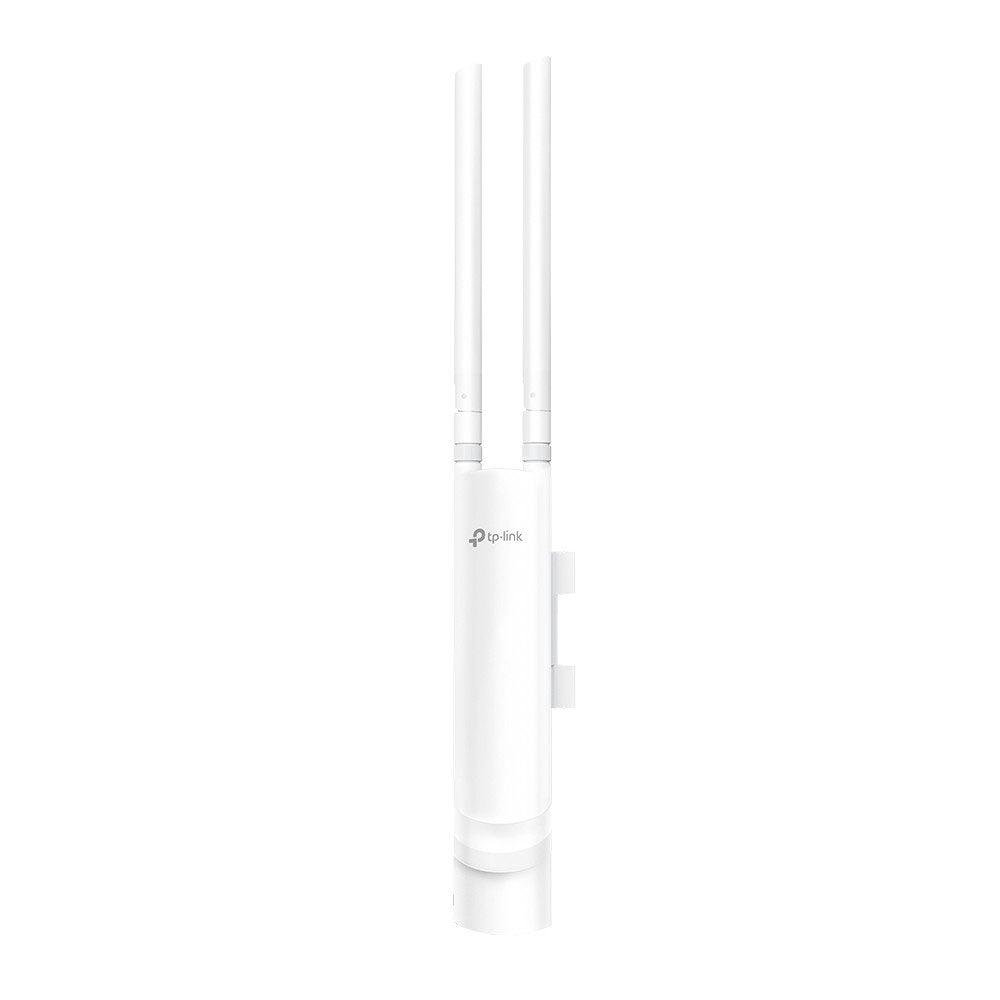

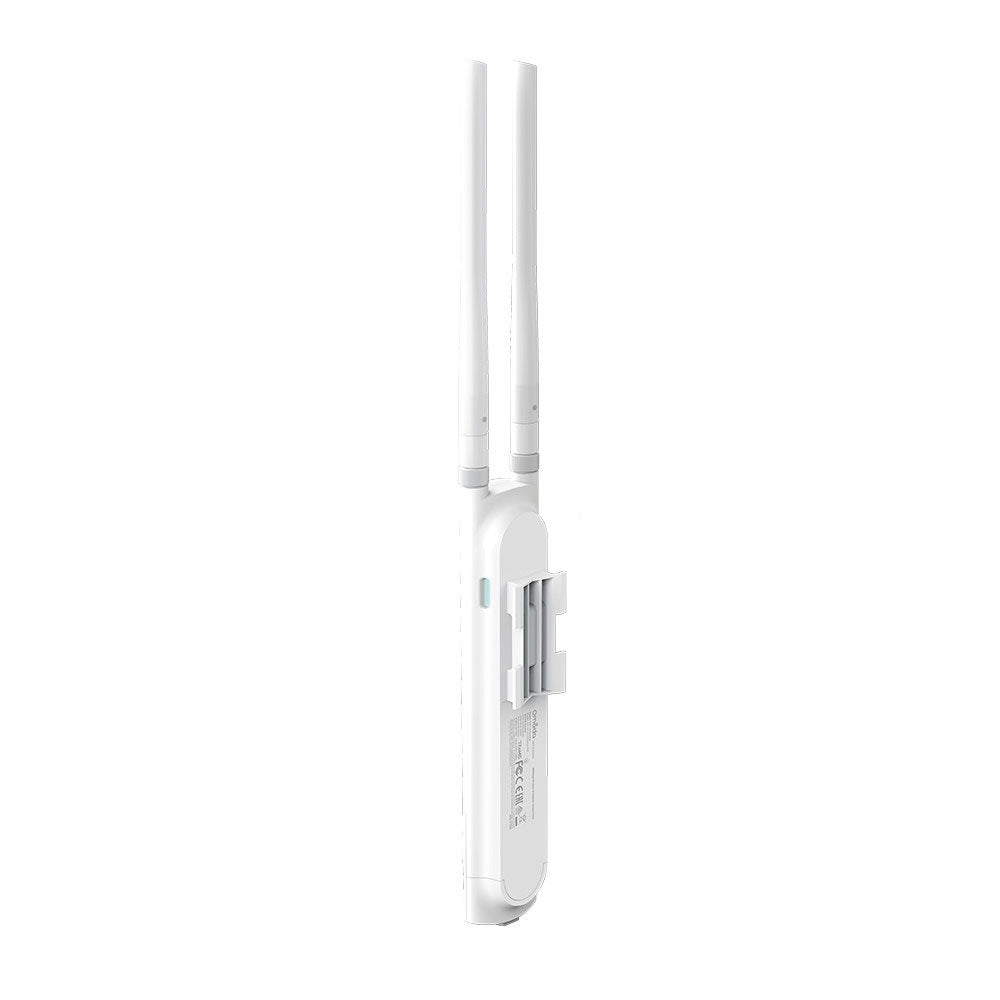

TP-Link EAP110-Outdoor 2.4GHz 300Mbps Wireless N Passive PoE Outdoor Access Point
Reliable Outdoor Coverage. Business-Grade Control.
The TP-Link EAP110-Outdoor delivers stable 300Mbps 2.4GHz Wi-Fi with high-power transmission and durable weatherproof protection. Designed for outdoor deployments, it extends reliable wireless coverage to gardens, campuses, warehouses and public spaces. With Passive PoE support and centralised Omada management, it?s a cost-effective solution for secure, scalable outdoor networking.
Features
- Built For Outdoor Wi-Fi - Designed for reliable performance in demanding outdoor environments
- 300Mbps 2×2 MIMO Performance - Delivers stable high-speed wireless connectivity
- High-Power Long-Range Coverage - High transmission power and high-gain antennas extend coverage distance
- Weatherproof Industrial Design - Durable enclosure engineered to withstand harsh weather conditions
- Flexible Passive PoE Deployment - Simplifies installation with power and data over a single cable and easy mounting options
- Cloud-Based Omada Management - Free centralised management via cloud platform and Omada App for streamlined control
- Advanced Guest Network And Security - Multiple authentication options including SMS, Facebook and Voucher with robust wireless protection
- Management VLAN Support - Enables enhanced network segmentation and administration
Specifications
Hardware Features

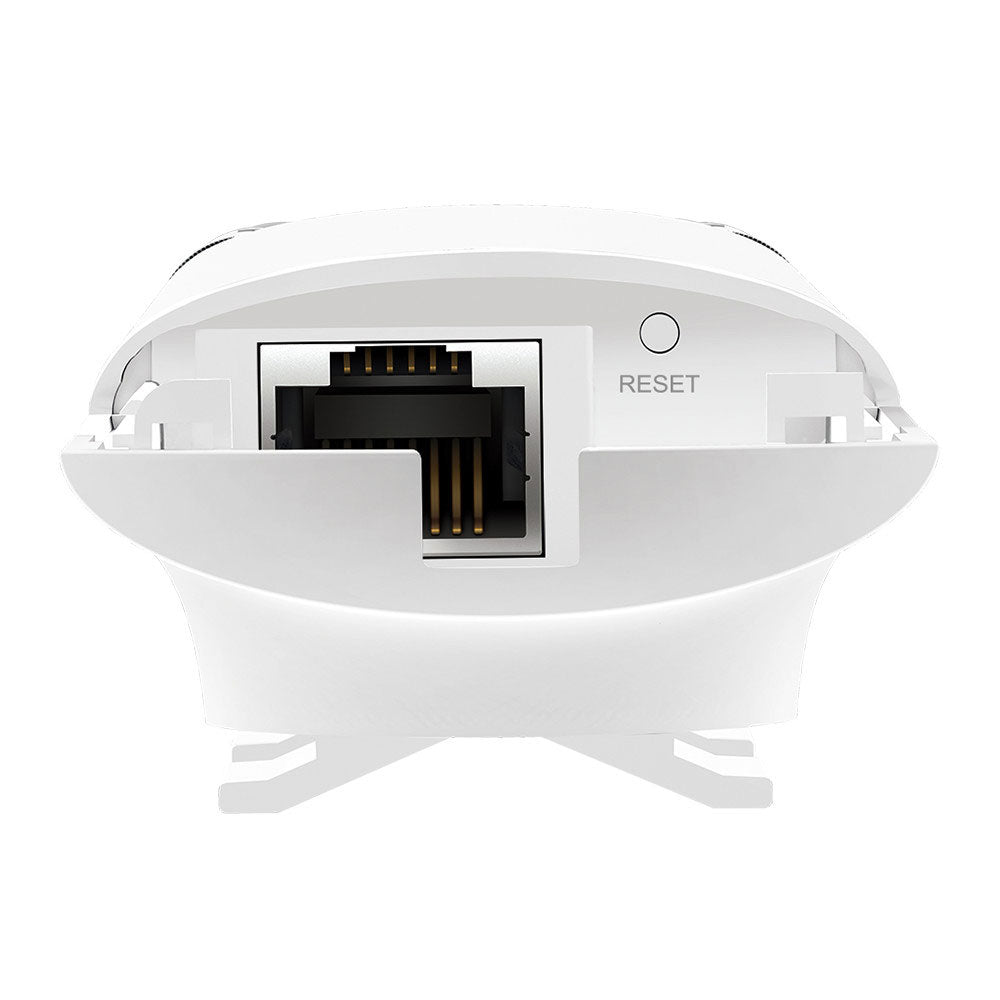

- Interface: 1× Fast Ethernet (RJ45) Port (Supports Passive PoE)
- Button: Reset
Power Supply
- 24V Passive PoE (+4,5pins; -7,8pins)
- PoE Adapter Included
Power Consumption
Dimensions (W × D × H)
Antenna
- 2× 3dBi External Omni Waterproof Antennas
Weatherproof Enclosure
Mounting
- Pole and Wall Mounting Kits Included
Wireless Features
Wireless Standards
Frequency
Signal Rate
- 802.11n: up to 300Mbps (Dynamic)
- 802.11g: up to 54Mbps (Dynamic)
- 802.11b: up to 11Mbps (Dynamic)
Transmit Power
- CE: ≤20dBm (EIRP)
- FCC: ≤22dBm
Wireless Functions
- Multiple SSIDs (up to 8× SSIDs)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control
- QoS (WMM)
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics (SSID/AP/Client Based)
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP
- WPA/WPA2-Enterprise
- WPA-PSK/WPA2-PSK
Management
- Omada Cloud Access
- Omada App
- Omada Cloud Controller
- Omada Controller Software
- Auranet Controller Software
- Email Alerts
- LED On/Off Control
- Management MAC Access Control
- SNMP
- System Logging (Local/Remote Syslog)
- Telnet
- SSH
- Web-Based Management (HTTP/HTTPS)
- L3 Management
- Multi-Site Management
- Management VLAN
Certification
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
