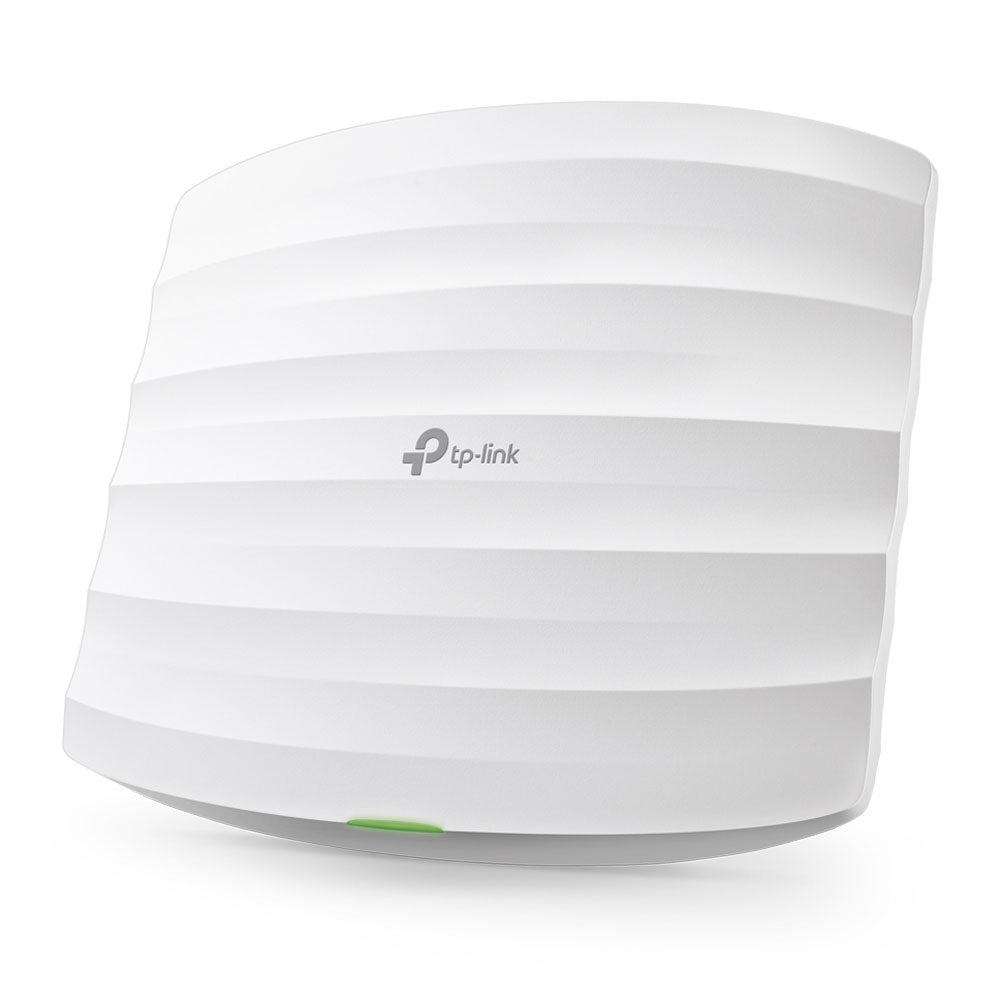

TP-Link EAP110 2.4GHz 300Mbps Wireless N Passive PoE Ceiling Access Point
This access point provides free cloud-based centralized management through the Omada app, offering effortless setup and convenient remote control. It supports passive PoE for flexible installation of up to 100 meters and features a ceiling-mount design with a durable chassis for easy wall or ceiling deployment. A secure guest network with multiple authentication methods-such as SMS, Facebook Wi-Fi, or voucher access-ensures safe connectivity for all users. With multi-SSID functionality, you can create separate wireless networks for different user groups, while enterprise-grade Wi-Fi security helps reduce potential network threats. Additionally, management VLAN support enhances network organization and administrative control.
Features
- Free cloud centralised management and Omada app for ultra convenience and easy management
- Supports passive PoE for convenient installation up to 100meters

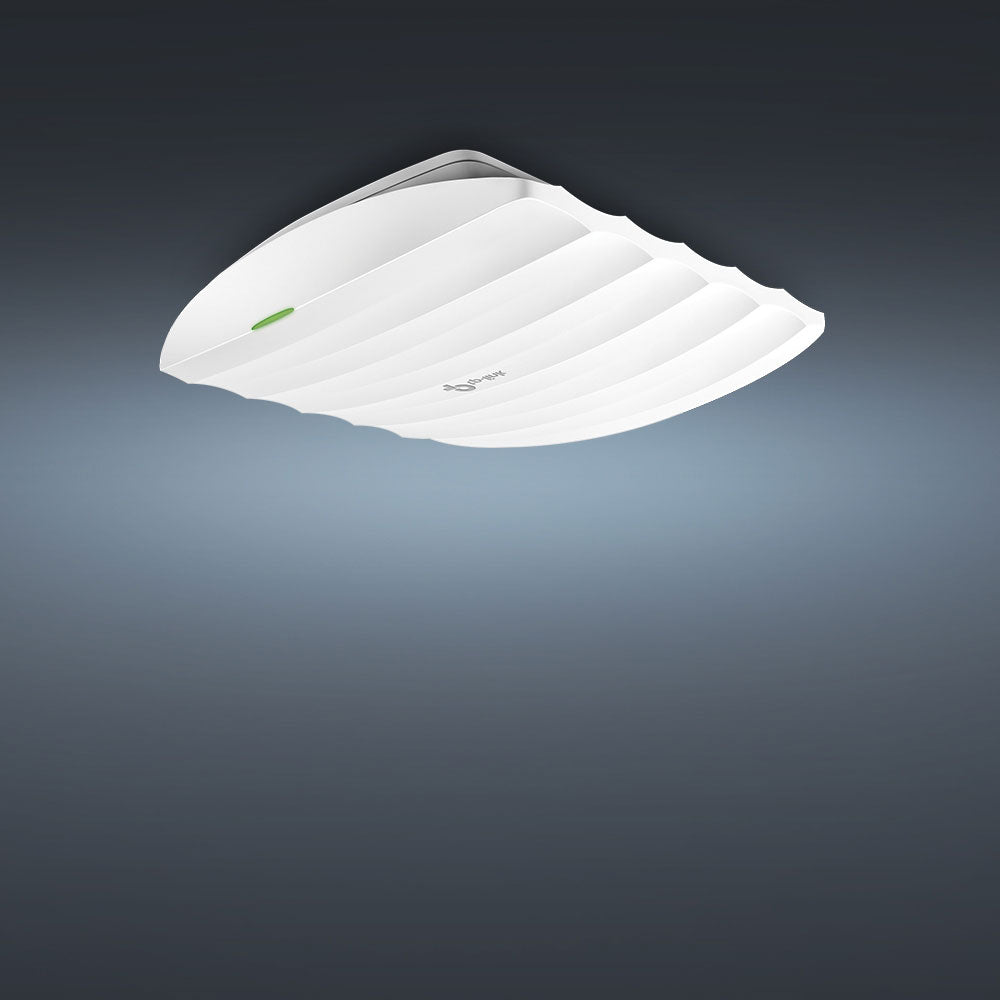

- Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Multi-SSID divides multiple wireless networks for different users
- Enterprise class Wi-Fi security help to decrease network security threats
- Supports management VLAN for an enhanced network management
Hardware Features

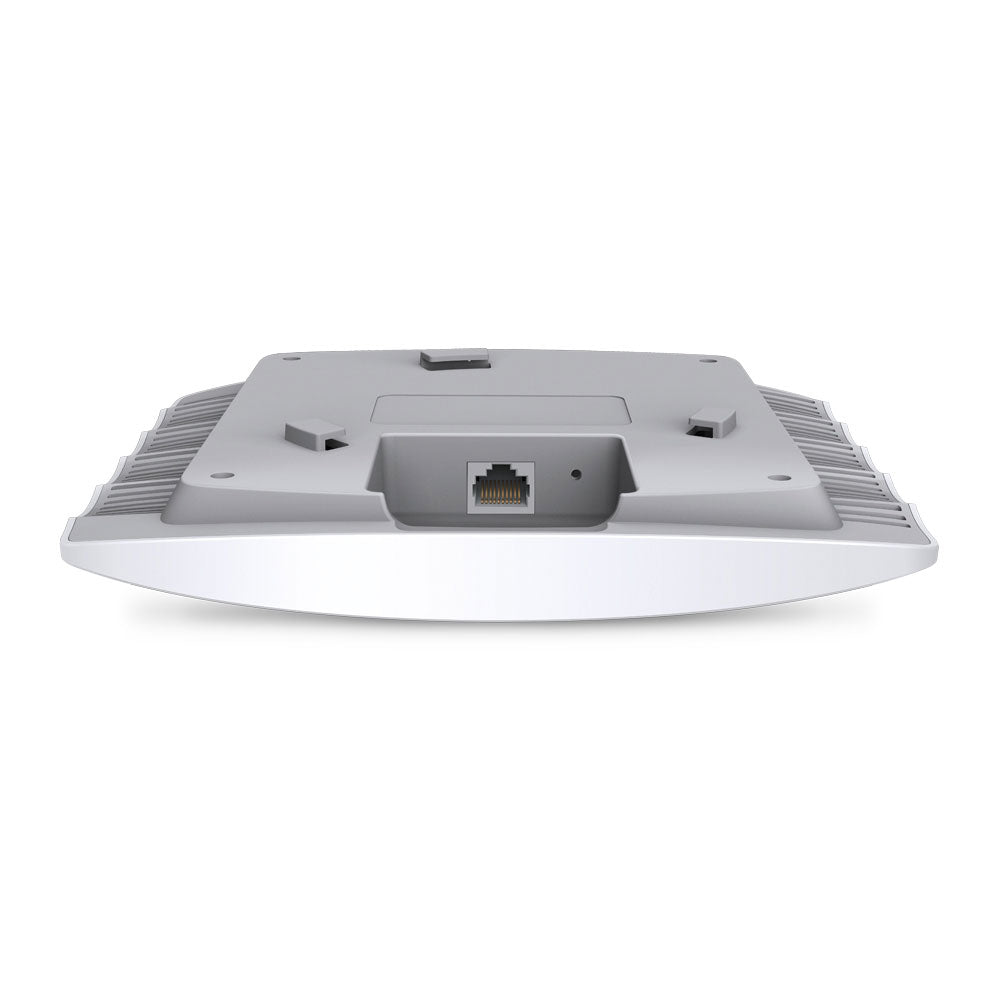

- InterfaceFast Ethernet (RJ-45) Port *1 (Support Passive PoE)
- Button: Reset
- Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
- Power Consumption: 2.8W
- Dimensions: 189.4×172.3×29.5mm
- Antenna Type: Internal 2* 4dBi Omni
- Mounting: Ceiling /Wall Mounting (Kits included)
Wireless Features
- Wireless StandardsL: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.4-2.4835GHz
- Signal Rate: 11n: Up to 300Mbps(dynamic), 11g: Up to 54Mbps(dynamic), 11b: Up to 11Mbps(dynamic)
- Reception Sensitivity: 300M: -71dBm@10% PER, 150M: -75dBm@10% PER, 54M: -78dBm@10% PER, 11M: -93dBm@8% PER, 6M: -92dBm@10% PER, 1M: -96dBm@8% PER
- Wireless Functions: Multiple SSIDs (Up to 8 SSIDs), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
- Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
- Transmission Power: CE: ≤19dBm(EIRP), FCC: ≤21dBm
Management
- Omada Cloud Access: Yes
- Omada App: Yes
- Omada Cloud Controller: Yes
- Omada Controller Software: Yes
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1,v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- Telnet: Yes
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- Management VLAN: Yes
Others
- Certification: CE, FCC, RoHS
- System Requirements: Microsoft Windows 10/8/7/Vista/XP
