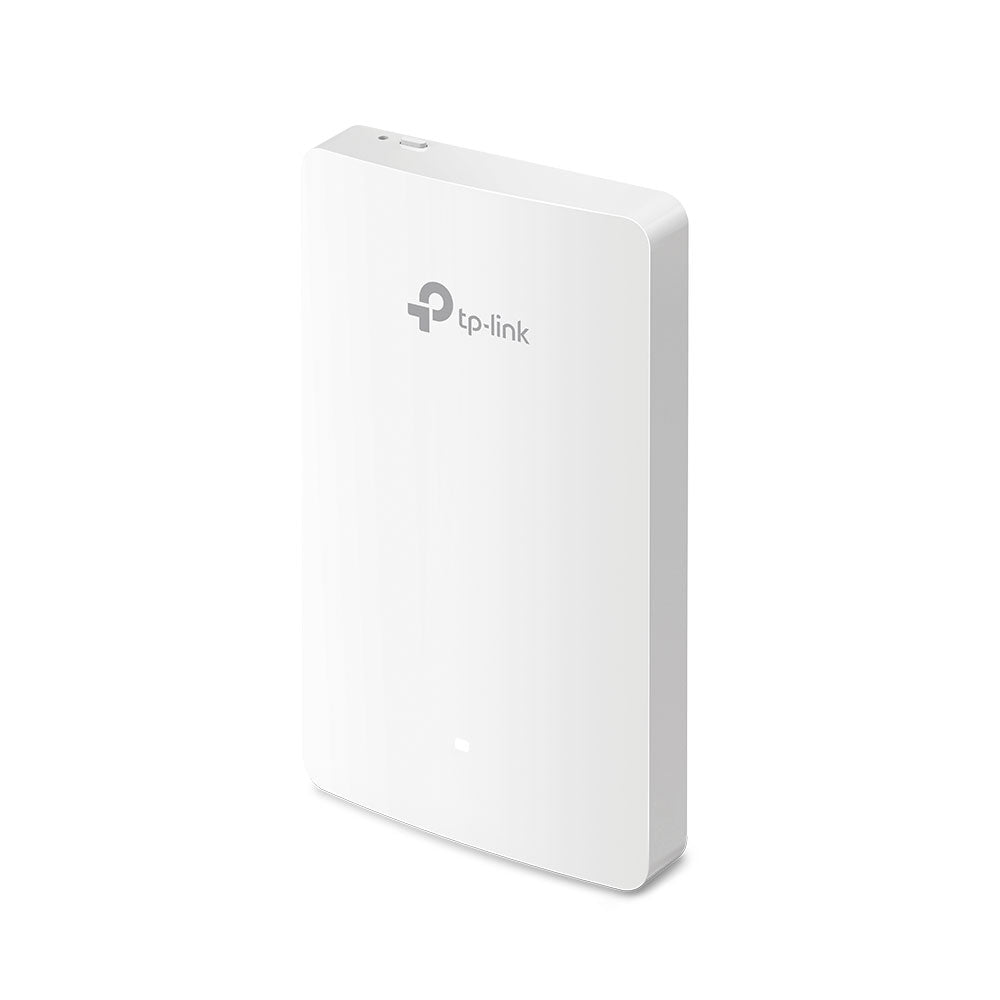

TP-Link Omada EAP235-Wall AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Ultra-Slim. High-Performance. Built For In-Room Networking.
The TP-Link EAP235-Wall delivers AC1200 dual-band Wi-Fi with 2?2 MU-MIMO in a sleek 15mm wall-plate design that blends seamlessly into hotels, offices and student residences. Equipped with 4? Gigabit Ethernet ports including PoE pass-through, it powers both wireless and wired devices from a single installation point. Integrated with Omada SDN for centralised cloud management, seamless roaming and enterprise-grade security, it?s a professional solution for scalable, in-room connectivity.
Features

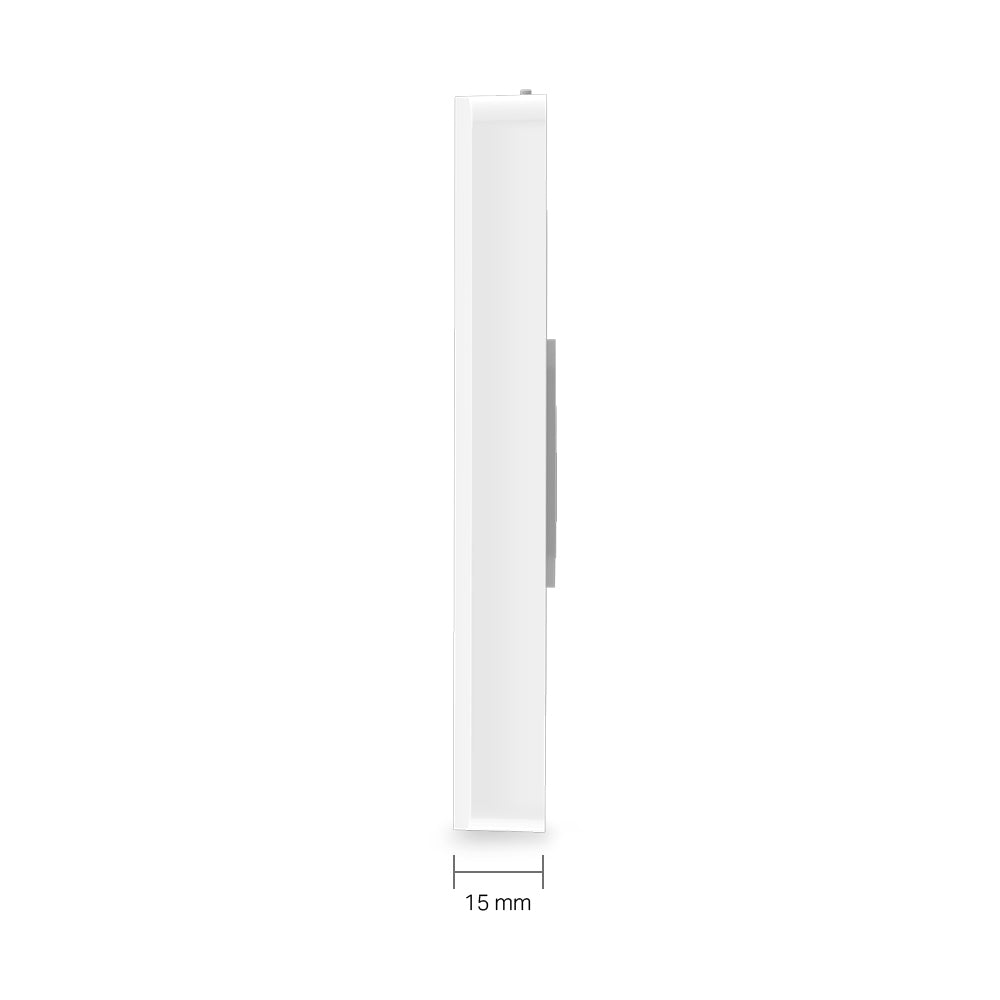

- Elegant Ultra-Slim Design - 15mm Low-profile construction blends seamlessly into hotels, hospitals, offices and dormitories
- Easy Installation with PoE Support - Mounts into standard EU or US wall junction boxes with PoE for flexible deployment

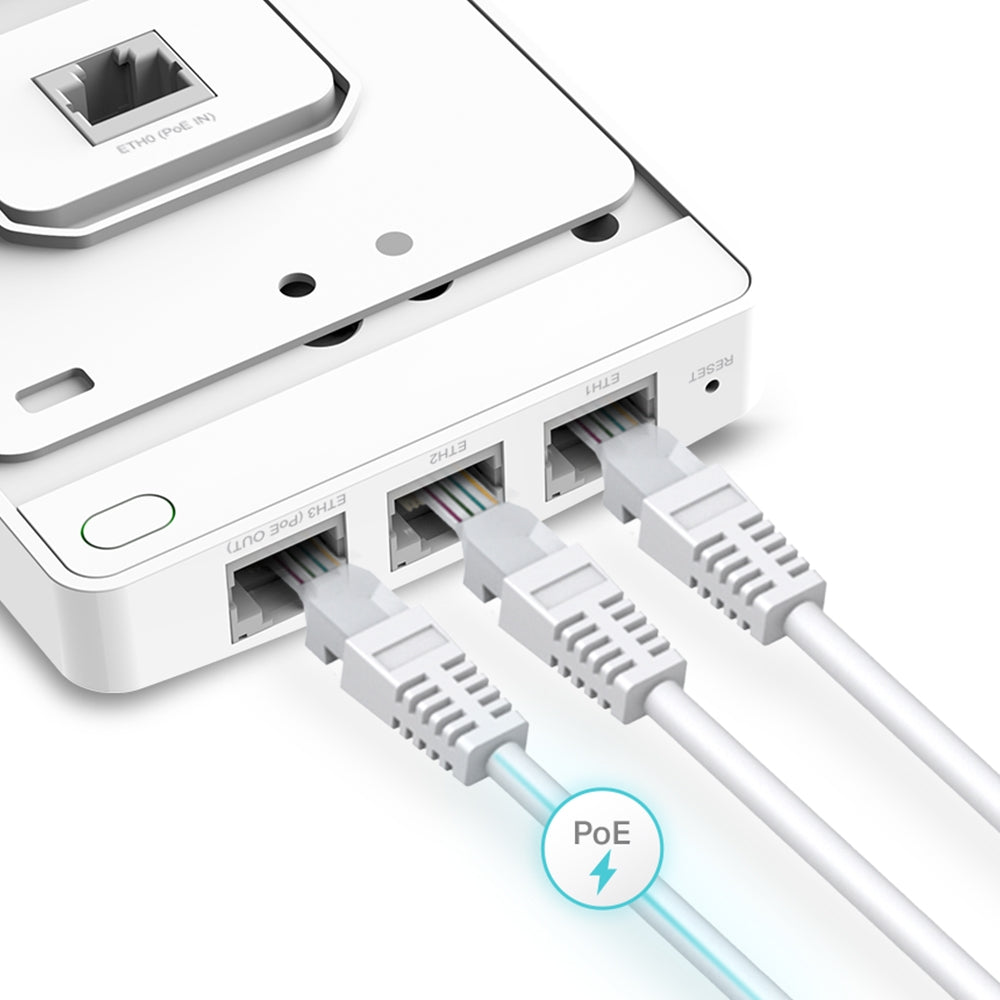

- 4× Gigabit Ethernet Ports - 1× Uplink plus 3× Downlink ports, with PoE pass-through on one downlink port to power wired devices
- AC1200 Dual-Band Wi-Fi - 802.11ac Wave 2 with 2×2 MU-MIMO delivers speeds up to 1,200Mbps for high-density environments
- Omada SDN Integration - Cloud management and Omada App support for centralised control and easy monitoring
- Enterprise-Grade Security - Advanced wireless protection to reduce network security threats
- Secure Guest Network - Supports Facebook Wi-Fi/SMS authentication and multiple secure access options
Specifications
Hardware Features
- Interface: 1× Gigabit Uplink Port, 3× 10/100/1000Mbps Downlink Ports (1× PoE Out, up to 13W with 802.3at Input)
- Physical Security Lock: Yes
- Button: Reset
- Power Supply: 802.3af/802.3at PoE
- Power Consumption: 9.8W (24.4W with PoE Out)
- Dimensions: 143 × 86 × 20mm
- Antennas: 2× Dual-Band Internal Antennas
- 2.4GHz: 2× 4dBi
- 5.0GHz: 2× 4dBi
- Mounting: Wall-Plate Mounting
Wireless Features
- Wireless Standards: IEEE 802.11a/b/g/n/ac
- Frequency: 2.4GHz and 5.0GHz
- Signal Rate:
- 5.0GHz: up to 867Mbps
- 2.4GHz: up to 300Mbps
- SSIDs: up to 16× SSIDs (8× per Band)
- MU-MIMO: Yes
- Band Steering: Yes
- Beamforming: Yes
- QoS (WMM): Yes
- Load Balance: Yes
- Rate Limit: Yes
- Reboot Schedule and Wireless Schedule: Yes
- Wireless Statistics: Based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Local LAN Port-Based VLAN
- Rogue AP Detection
- 802.1X Support
- Encryption: 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power
- CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP)
- FCC: ≤21dBm (2.4GHz), ≤21dBm (5.0GHz)
Management
- Omada Cloud Access: Yes
- Omada App: Yes
- Omada Cloud Controller: Yes
- Omada Controller Software: Yes
- Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
- Email Alerts: Yes
- LED On/Off Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-Site Management: Yes
- Management VLAN: Yes
Certification
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Storage Humidity: 5~90% RH (Non-Condensing)
