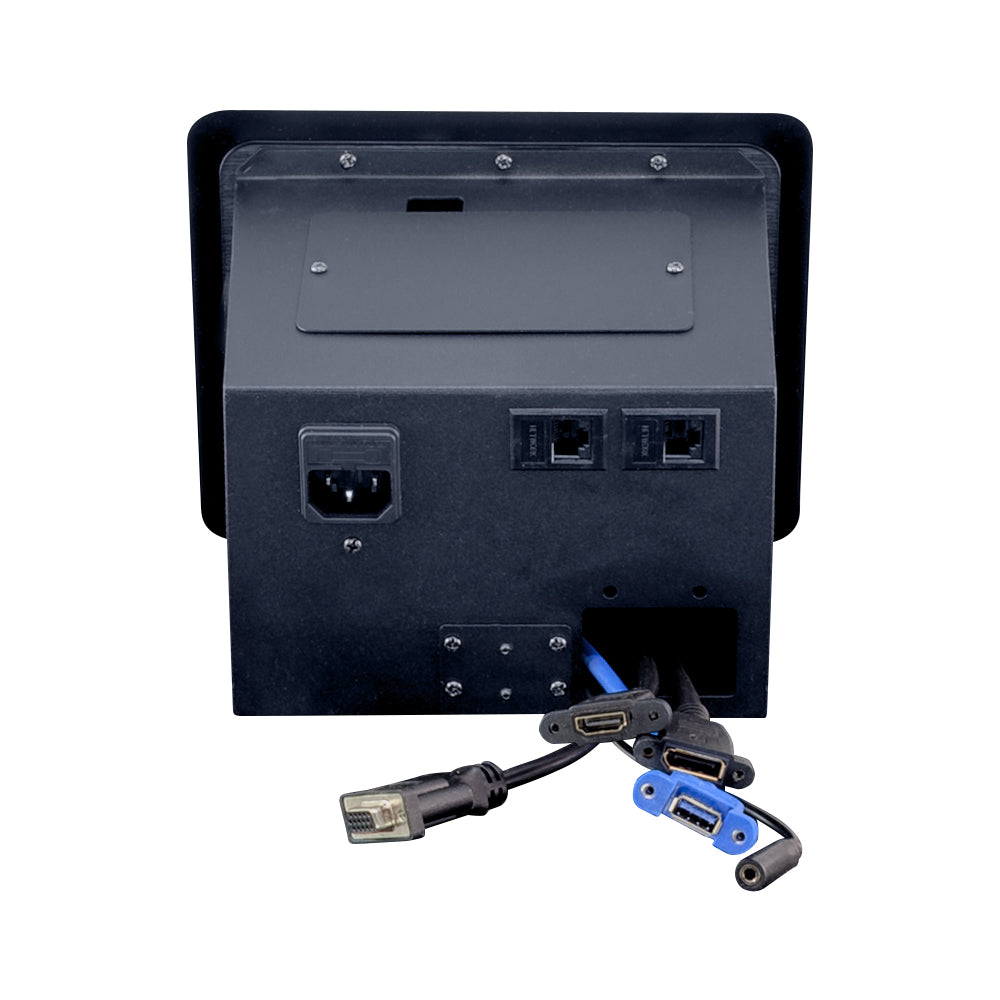

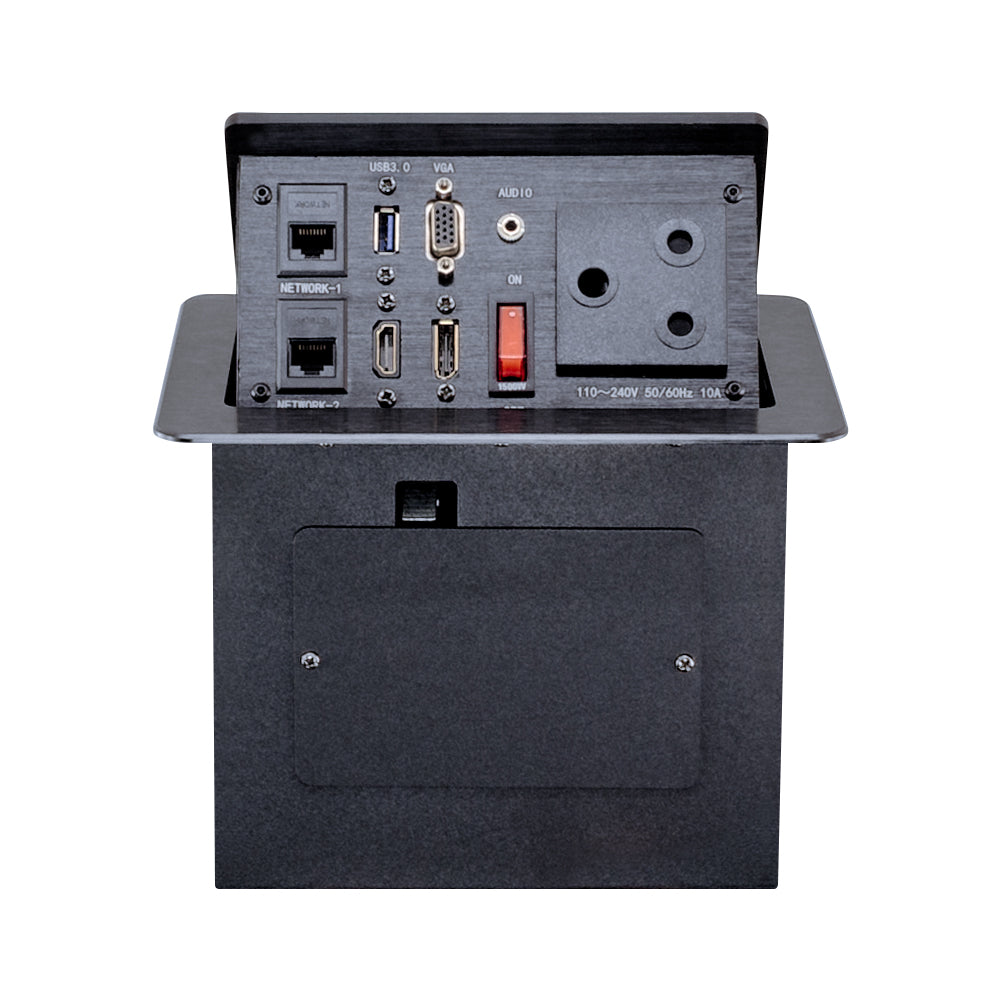

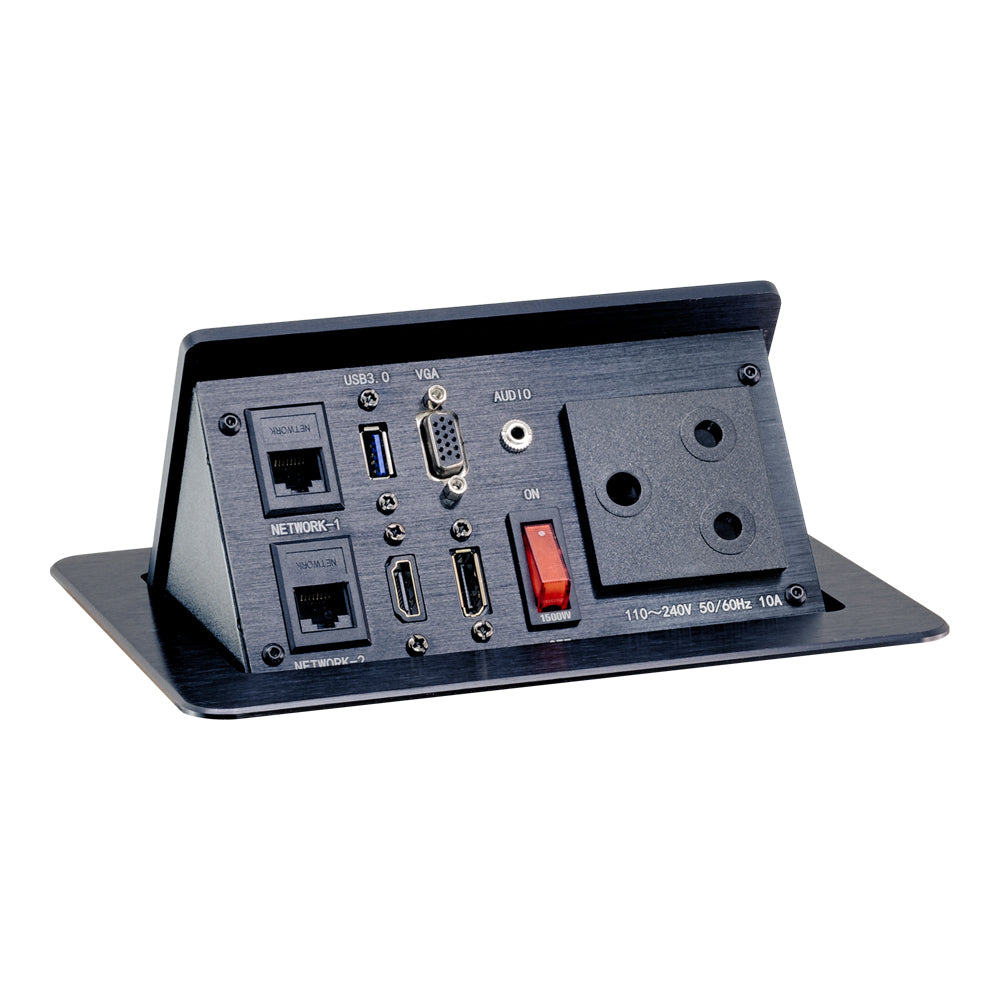

LinkQnet DMS-786 Pop-Up Recessed Desktop Connectivity Box with Power, HDMI, DisplayPort and VGA
Bring Essential Power and Connectivity Directly to the Desktop.
The LinkQnet DMS-786 is a recessed pop-up desktop connectivity box designed for boardrooms, conference tables, training rooms and professional workstations. When closed, the unit sits neatly within the desktop for a clean, uncluttered appearance, with the connectivity panel lifting into position when required. It combines a 3-pin South African power socket with HDMI, DisplayPort, VGA, 3.5mm audio, USB Type-A and dual RJ45 network connections in one convenient access point. The integrated power switch provides local control, while the black brushed finish complements modern office and meeting-room furniture. With its broad mix of legacy and current AV connections, the DMS-786 provides a practical central connection point for laptops, displays, projectors and network equipment.
Features
- Pop-Up Desktop Design - Connectivity remains recessed below the work surface when not in use and lifts into position for convenient access
- Integrated Power and AV Connectivity - Combines power, video, audio, USB and network connections in a single desktop unit
- 3-Pin South African Power Socket - Provides convenient mains power directly at the desk or meeting table
- HDMI Connectivity - Supports connection of compatible laptops, displays and presentation equipment
- DisplayPort Connectivity - Adds a modern digital display interface for compatible computers and monitors
- VGA Connectivity - Supports legacy analogue display equipment commonly found in boardrooms and classrooms
- 3.5mm Audio Connection - Provides a dedicated analogue audio interface for compatible equipment
- USB Type-A Port - Convenient desktop connection for compatible USB peripherals and devices
- Dual RJ45 Network Ports - Provides two wired network connection points for organised desktop installations
- Integrated Power Switch - Allows convenient control of the built-in mains power socket
- Recessed Installation - Keeps cables and connection points organised within desks, boardroom tables and workstations
- Brushed Black Finish - Provides a clean professional appearance suited to modern office furniture
Specifications
- Power Socket: 1× 3-Pin South African Socket
- Power Rating: 110~240V AC, 50/60Hz, 10A
- Maximum Marked Power: 1500W
- Network Ports: 2× RJ45
- HDMI Port: 1× HDMI
- DisplayPort: 1× DisplayPort
- VGA Port: 1× VGA
- Audio Port: 1× 3.5mm Audio
- USB Port: 1× USB3.0 Type-A
- Power Control: Integrated On/Off Switch
- Installation Type: Recessed Desktop Mount
- Opening Mechanism: Pop-Up Connectivity Panel
- Finish: Brushed Black

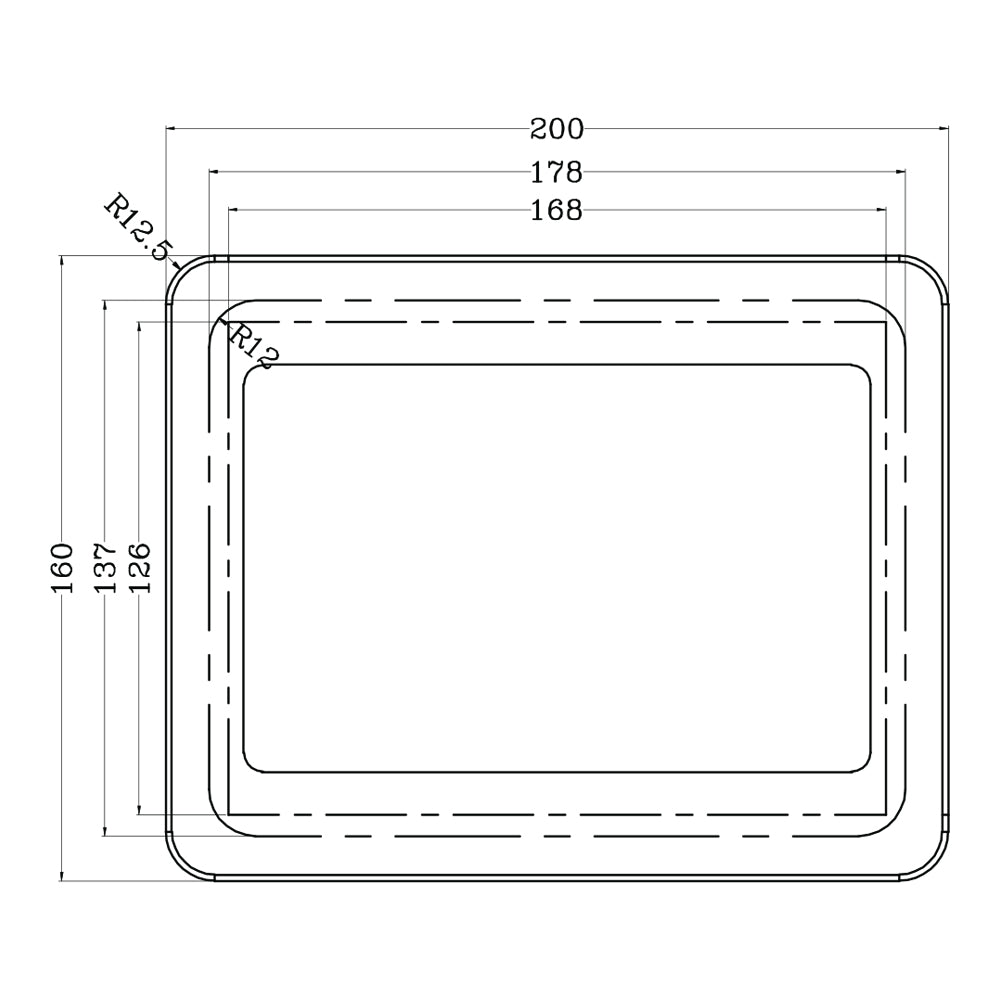

- Overall Top Plate Dimensions: 200 × 160mm

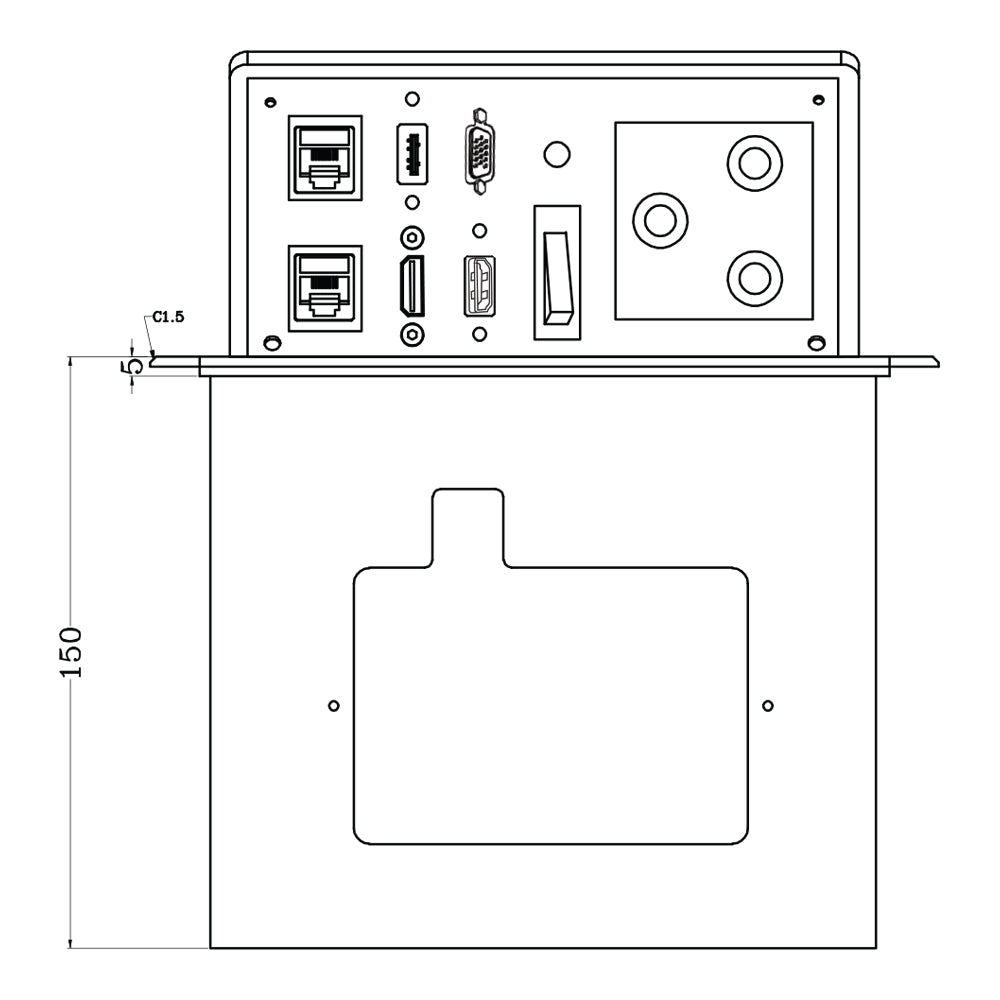

- Recessed Depth: 150mm
