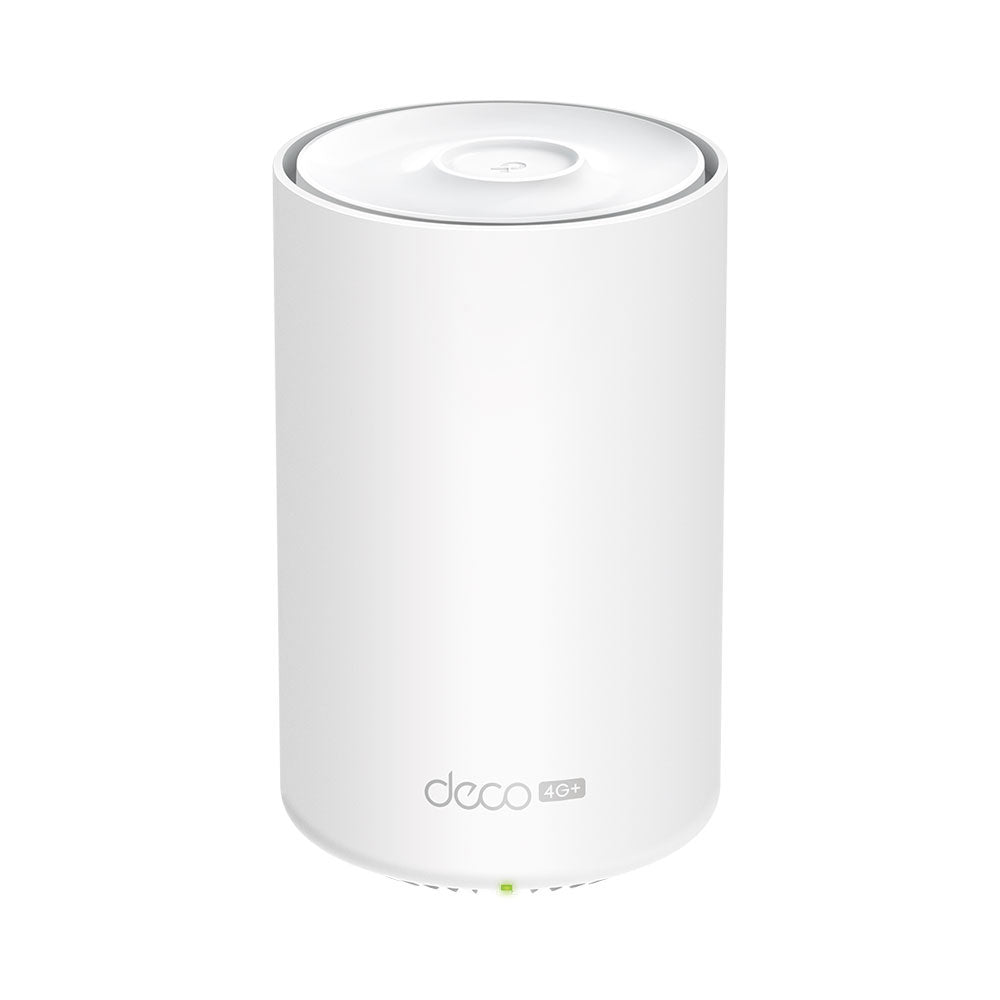

TP-Link Deco X10-4G 4G+ AX1500 Whole-Home Mesh Wi-Fi 6 Gateway
The DecoX10-4G is a dual?band Wi-Fi?6 (802.11ax) mesh router/gateway with a built?in 4G+ LTE modem (Cat?6) and support for mesh networking with other Deco units. According to its specs, it allows you to insert a SIM card and use 4G/3G mobile data as the internet source - useful for locations without fixed broadband, as a backup/failover, or in rural/temporary setups.
Features
- Internet Everywhere with 4G+ Speed - Provides Wi-Fi 6 Mesh coverage through 4G+ CAT6 access
- AX1500 Dual Band Wi-Fi - 1201Mbps (5.0GHz) and 300Mbps (2.4GHz) dual band Wi-Fi with Wi-Fi 6 technology
- Seamless Roaming - Walk through your home and stay connected with the fastest possible speeds
- Ultra-Low Latency - Greater reduction in latency enables more responsive gaming and video chatting
- Gigabit Wired Speeds - 3× Gigabit ports provide sufficient connectivity
- Parental Controls - Limit online time and block inappropriate websites according to unique profiles you create for each family member
Specifications
Wireless
- Standards: Wi-Fi 6
- IEEE 802.11ax/ac/n/a 5.0GHz
- IEEE 802.11n/b/g 2.4GHz
- Wi-Fi Speeds: AX1500
- 5.0GHz: 1201Mbps (802.11ax)
- 2.4GHz: 300Mbps (802.11n)
- Wi-Fi Range: TP-Link Mesh Technology
- 2 LTE antennas, 2 Wi-Fi antennas (Internal)
- Wi-Fi Capacity: Dual Band
- 2×2 MU-MIMO
- OFDMA
- 4× Streams
- Working Modes: 3G/4G, Router, Access Point
Security
- Network Security: SPI Firewall
- Access Control
- Guest Network: 1× 5.0GHz Guest Network
- 1× 2.4GHz Guest Network
- Wi-Fi Encryption: WPA-Personal
- WPA2-Personal
- WPA3-Personal
Hardware

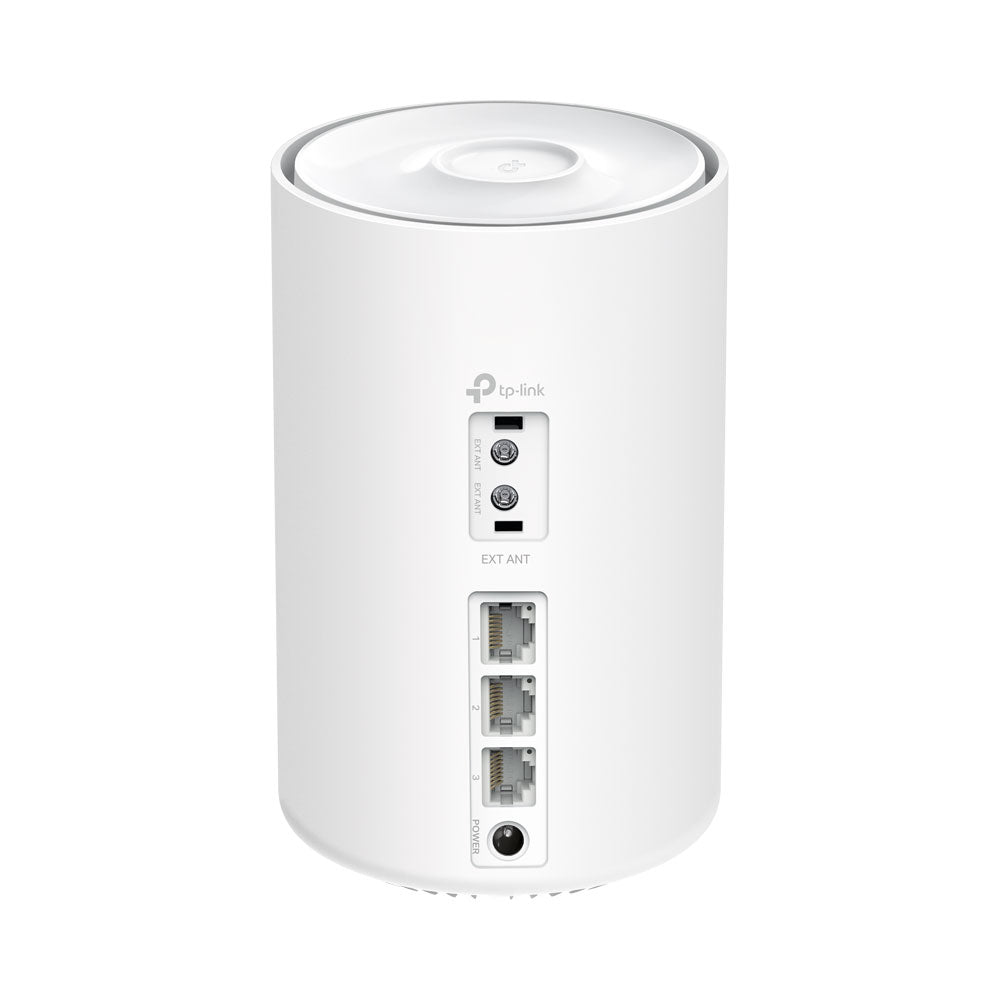

- Ethernet Ports: 3× Gigabit Ports
- Supports WAN/LAN auto-sensing
- Buttons: RESET Button

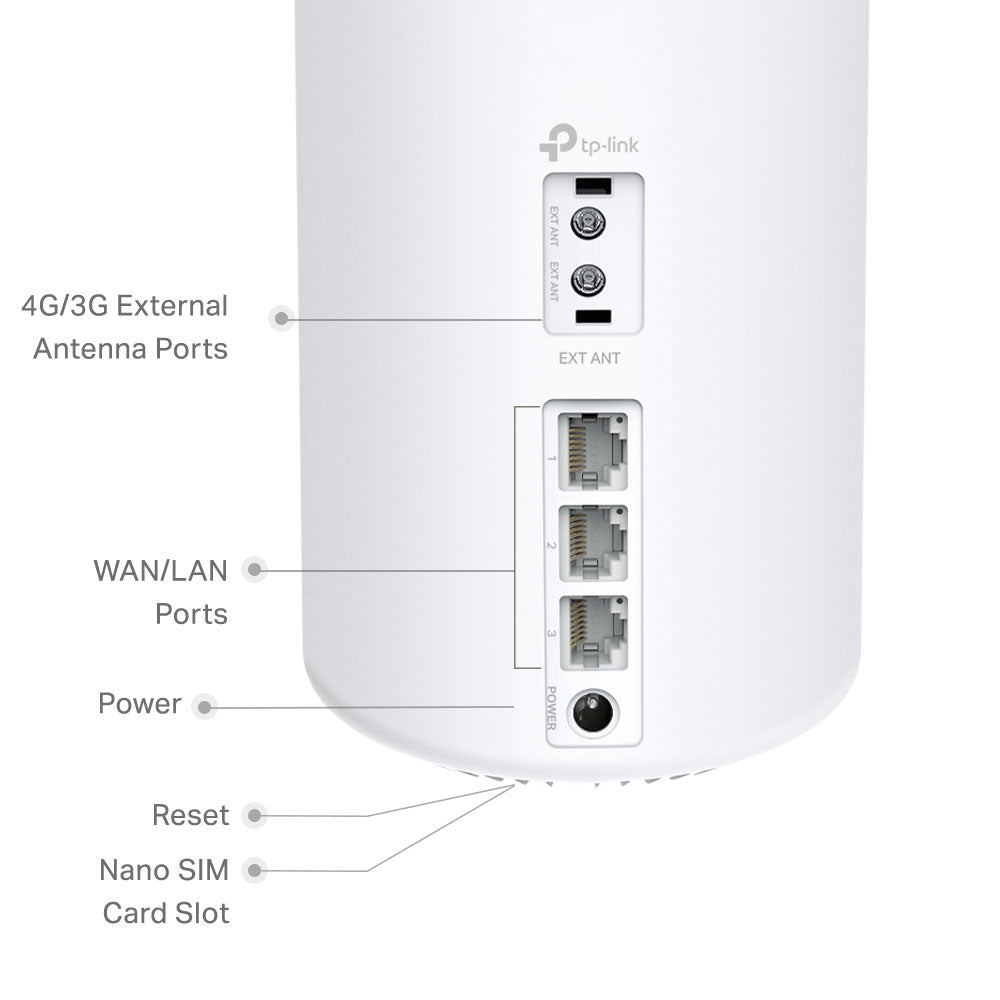

- Ports and Connections: 2× 3G/4G external SMB antenna interface (also provide 2x SMB to SMA-F Adapters)
- SIM Card Format: Nano-SIM
- Compatibility
- 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz)
- TDD-LTE: B38/B40/B41 (2600/2300/2500MHz)
- 3G: DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900MHz)
Software
- Protocols: IPv4
- IPv6
- Parental Controls: Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Report
- WAN Types: Dynamic IP
- Static IP
- PPPoE
- L2TP
- PPTP
- Quality of Service: QoS by Device
- Cloud Service: OTA Firmware Upgrade
- TP-Link ID
- DDNS
- NAT Forwarding: Port Forwarding
- UPnP
- IPTVIGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
- DHCP: Address Reservation
- DHCP Client List
- Server
- DDNS: TP-Link
- Management: Deco App
Test Data
- Wi-Fi Transmission PowerCE:
- ≤20 dBm (2.4GHz)
- ≤23 dBm (5.0GHz)
Physical
- Dimensions (W × D × H) 105 × 105 × 167mm
Others
- Certification: CE, RoHS
- Environment: Operating Temperature: 0°C~40°C
- Storage Temperature: -40°C~60°C
- Operating Humidity: 10%~90% RH
- Storage Humidity: 5%~90% RH
