TP-Link Pharos CPE605 5.0GHz 150Mbps 23dBi Outdoor CPE
Long-Range Outdoor Connectivity with Precision Performance
The TP-Link Pharos CPE605 is a high-performance 5.0GHz outdoor CPE designed for long-distance point-to-point and point-to-multipoint wireless transmission. Equipped with a powerful 23dBi high-gain directional antenna, it delivers stable, focused connectivity over extended distances with wireless speeds of up to 150Mbps. Built for demanding outdoor environments, the IP65 weatherproof enclosure ensures reliable operation in harsh conditions, while advanced Pharos MAXtream TDMA technology reduces interference and improves throughput. With flexible PoE deployment and centralised Pharos Control management, the CPE605 is an ideal solution for WISP deployments, CCTV backhaul, farms, warehouses and remote network extensions.
Features
- 150Mbps Wireless Speed - Reliable 5.0GHz performance for long-distance outdoor links
- 23dBi High-Gain Directional Antenna - Excellent beam directivity with improved latency and noise cancellation
- Long-Range Connectivity - Ideal for point-to-point and point-to-multipoint deployments
- Pharos MAXtream TDMA - Enhances throughput and reduces interference in high-density environments
- Passive PoE Deployment - Includes adapter supporting up to 60m installation distance for flexible deployment
- Durable Outdoor Design - IP65 enclosure with 15kV ESD and 6kV lightning protection for all-weather reliability

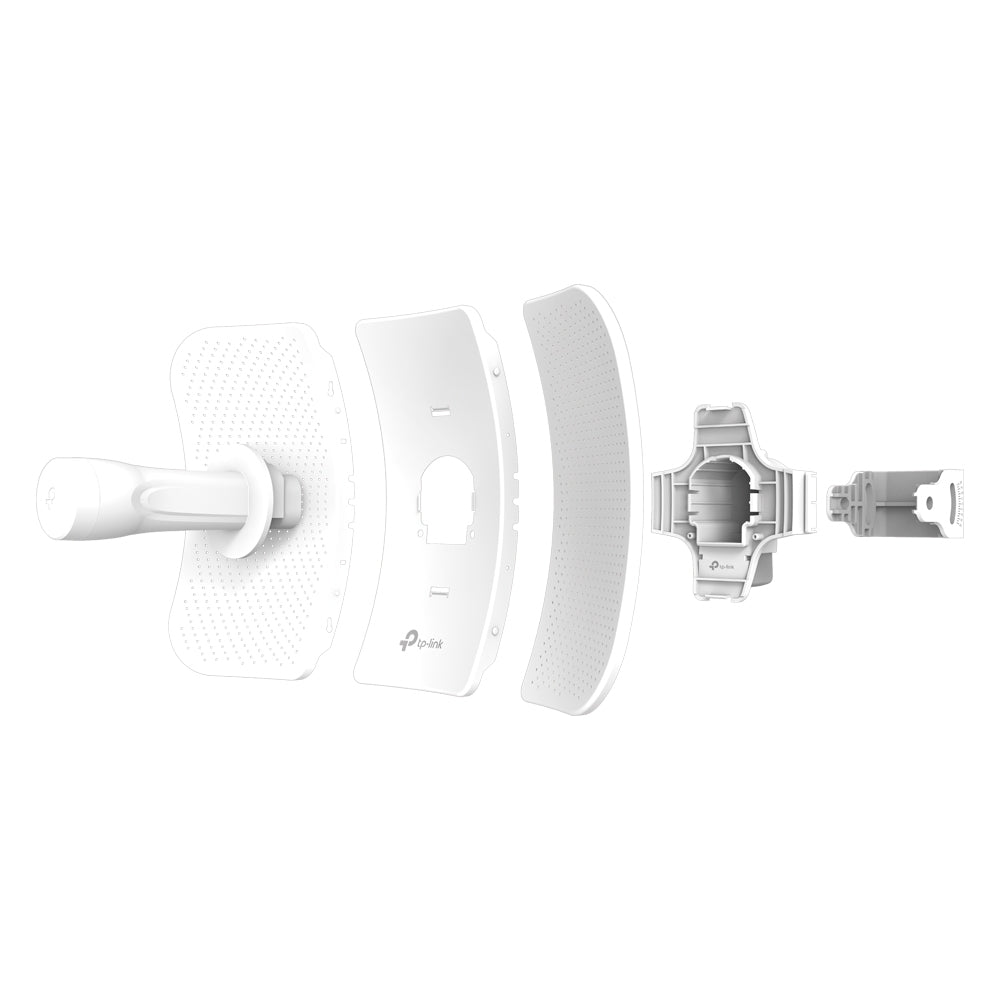

- Quick Assembly Design - Snap-lock components ensure fast installation and structural stability in strong winds
Specifications
- Wireless Standards: IEEE 802.11a/n
- Frequency: 5.15GHz~5.85GHz
- Signal Rate: up to 150Mbps (Dynamic)
- Transmission Power: Up to 23dBm (Adjustable)
- Antenna: 23dBi High-Gain Directional Antenna
- Beamwidth: 7° (Azimuth) / 10° (Elevation)
- Interface: 1× 10/100Mbps Shielded Ethernet Port (LAN/PoE)
- Button: Reset
- PoE: 24V Passive PoE (Adapter Included)
- Power Supply: Passive PoE (4,5+ Pins; 7,8– Pins), 16~27VDC
- Max. Power Consumption: 4.8W
- Protection: 15kV ESD Protection, 6kV Lightning Protection
- Enclosure: Outdoor PC Stabilised Plastic
- Weatherproof Rating: IP65
- Wireless Features: Pharos MAXtream TDMA, Beamforming, Long-Range PtP/PtMP, Auto Channel Selection, DFS, Adjustable Channel Width (5/10/20/40MHz)
- Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK, 64/128/152-bit WEP, MAC Filtering
- Network Features: VLAN Tagging, Bandwidth Control, Static Routing, IP & MAC Binding
- Management: Pharos Control, Web UI (HTTP/HTTPS), SNMP v2c, SSH, Remote Management
- Tools: Speed Test, Ping, Traceroute, Spectrum Analyser, Antenna Alignment
- Dimensions (W × D × H): 350 × 255 × 207mm
- Operating Temperature: -40~70°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH, Non-Condensing
- Storage Humidity: 5~95% RH, Non-Condensing
