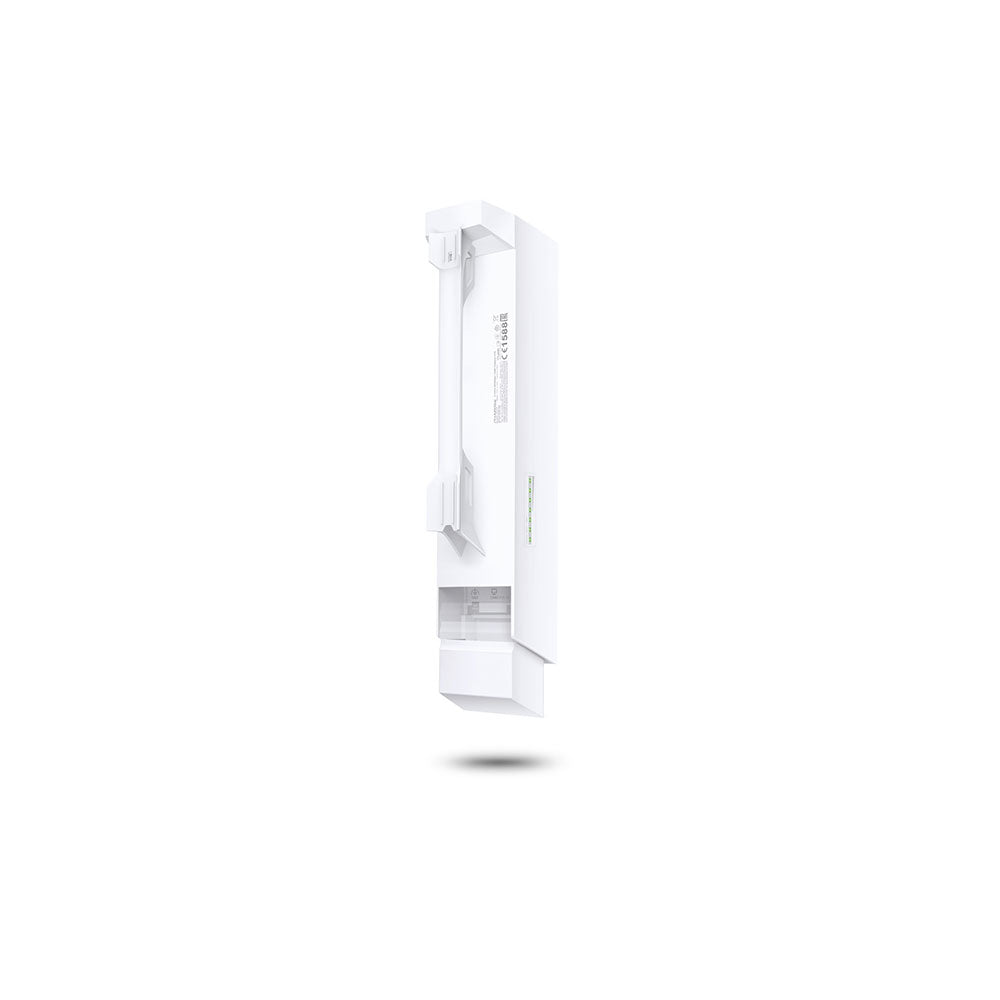

TP-Link CPE220 2.4GHz 300Mbps 12dBi 2ﾗ2 Outdoor CPE
ULong-Range Wireless. Rock-Solid Performance.
The TP-Link CPE220 delivers stable 2.4GHz connectivity up to 13km+ with its integrated 12dBi directional MIMO antenna and MAXtream TDMA technology - perfect for PTMP and WISP deployments. Rugged, weatherproof and PoE-powered for flexible outdoor installation, it痴 built to perform where it matters most.
Features
- Integrated 12dBi 2×2 Dual-Polarised Directional MIMO Antenna - High-gain antenna design for focused, stable long-range connectivity
- Adjustable Transmission Power 0~30dBm / 1000mW - Flexible output control to optimise signal strength for different deployment scenarios
- Long-Range Wireless Transmission up uo 13km+ - System-level optimisation ensures reliable performance over extended distances
- Pharos MAXtream TDMA Technology - Improves throughput, capacity and latency, ideal for high-performance PTMP applications
- Centralised Management via Pharos Control - Streamlined configuration, monitoring and maintenance from a single platform
- Multiple Operation Modes - Supports AP, Client, AP Router and AP Client Router (WISP) for versatile network deployment
- Passive PoE Support up uo 60m - Simplified Power over Ethernet installation with remote reset capability
Specifications
Hardware Features
- Processor: Qualcomm Atheros 560MHz CPU (MIPS 74Kc)
- Memory: 64MB DDR2 RAM, 8MB Flash
- Interface:
- 1× 10/100Mbps Shielded Ethernet Port (LAN 0, Passive PoE In)
- 1× 10/100Mbps Shielded Ethernet Port (LAN 1, Passive PoE Passthrough)
- 1× Grounding Terminal
- 1× Reset Button
- Power Supply: Passive PoE via LAN 0 (4,5+ Pins; 7,8- Pins), 16~27VDC
- Max. Power Consumption: 10.8W
- Antenna: Built-In 12dBi 2×2 Dual-Polarised Directional Antenna
- Beam Width: 60° (H-Plane) / 30° (E-Plane)
- Protection: 15kV ESD Protection, 6kV Lightning Protection
- Enclosure: Outdoor ASA Stabilised Plastic, IPX5 Weatherproof
- Dimensions: 276 × 79 × 60mm
Wireless Features
- Wireless Standards: IEEE 802.11b/g/n (Pharos MAXtream Disabled)
- Proprietary Protocol: TDMA Mode (Pharos MAXtream Enabled)
- Frequency: 2.4~2.483GHz
- Wireless Speeds:
- up to 300Mbps (40MHz)
- up to 144.4Mbps (20MHz)
- up to 72.2Mbps (10MHz)
- up to 36.1Mbps (5MHz)
- Transmission Power: up to 30dBm / 1000mW (Adjustable by 1dBm)
Software Features
- Pharos MAXtream TDMA Technology
- Selectable Channel Width: 5 / 10 / 20 / 40MHz
- Automatic Channel Selection
- Transmission Power Control
- WDS Enable/Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP
- Multi-SSID with VLAN Tagging (AP Mode Only)
- Wireless MAC Address Filtering
- Distance/ACK Timeout Setting
Management
- Centralised Management via Pharos Control
- HTTP/HTTPS Web-Based Management
- SNMP v1/v2c
- SSH Server
- Dynamic DNS
- Ping Watchdog
- System Logs
Poe Adapter Features
- Remote Reset Button
- 24V Passive PoE Adapter Included
- PoE Deployment: up to 60m
- Input: 100~240VAC, 50/60Hz
- Output: 24VDC, 1A Max.
- Efficiency: >80%
Environment
- Operating Temperature: -30~70°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% Non-Condensing
- Storage Humidity: 5~95% Non-Condensing
