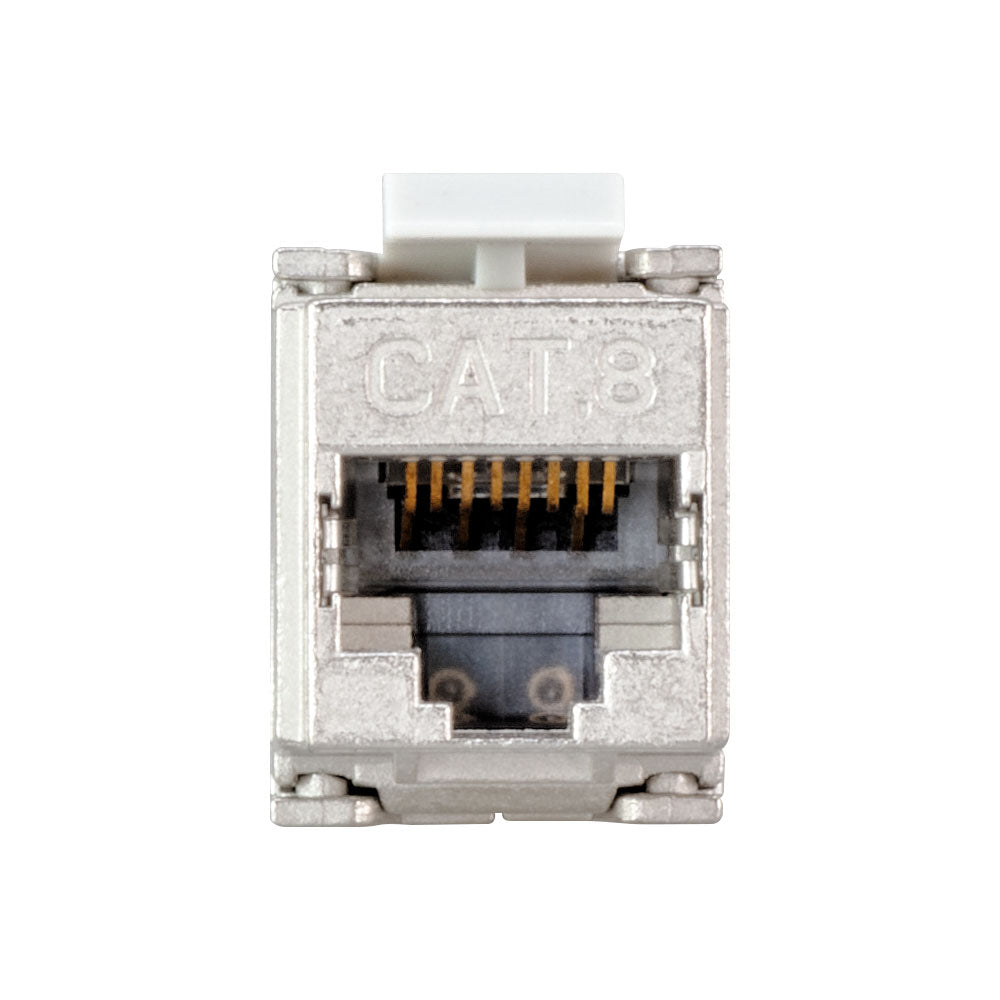

LinkQnet CAT8 Shielded Field Connector

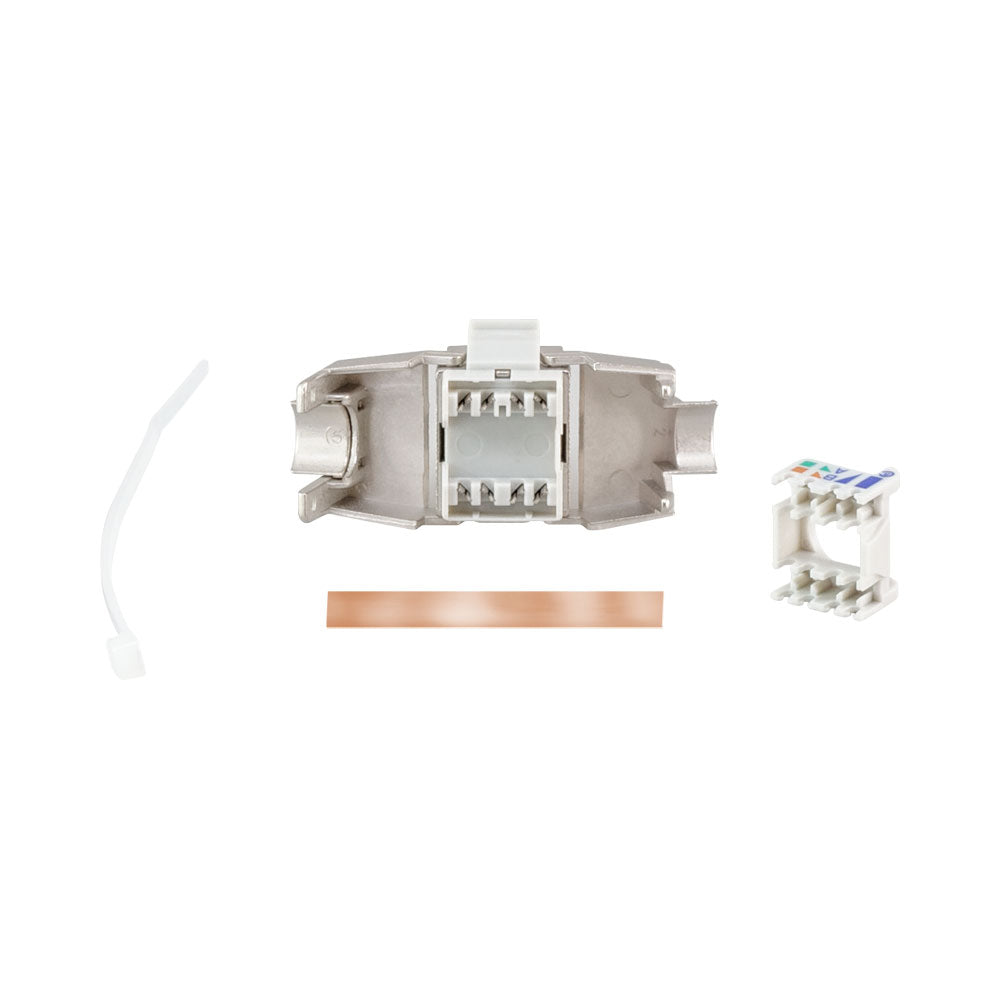

The CAT8 Shielded Field Keystone adopts a tool-free design, which meets or exceeds the current CAT8 transmission standards, supporting 40G Ethernet (40GBASE-T) application systems and meets the performance requirements of CAT8 2000MHz and 30 meters channels and connection.
Features
- Unique PCB Circuit Board Design Reduces EMI/RFI Interference, Low Attenuation Loss and High Return Loss
- Overall Zinc-Alloy Shielding Design Meets Industry Standards
- Meets the Requirements of Both T568A and T568B
- Contact: Phosphor Bronze with 50μ Gold Plate
Specifications
- Contact Resistance (Max.): 20mΩ
- Insulation Resistance (Min.): 500MΩ
- Return Loss (dB): 7.4dB
