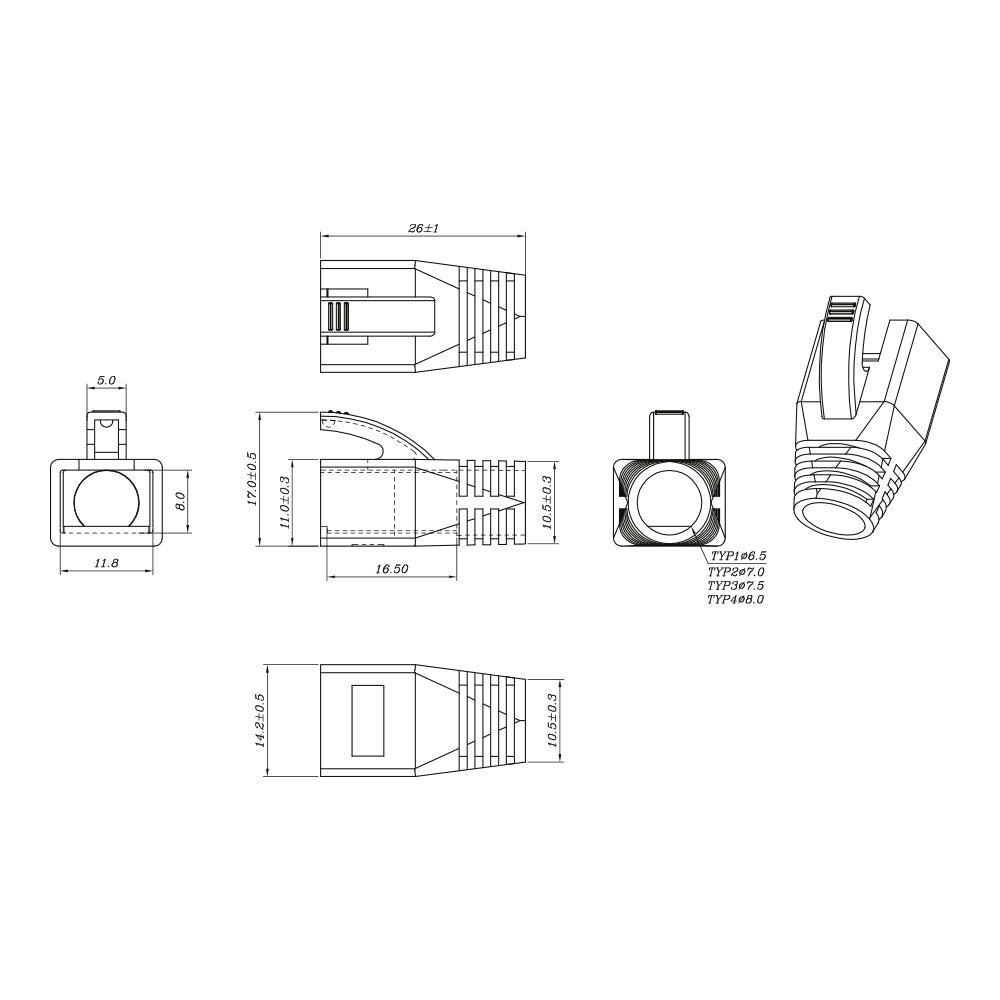

LinkQnet CAT6A STP Easy Pass Plug and Transparent Strain-Relief Boot

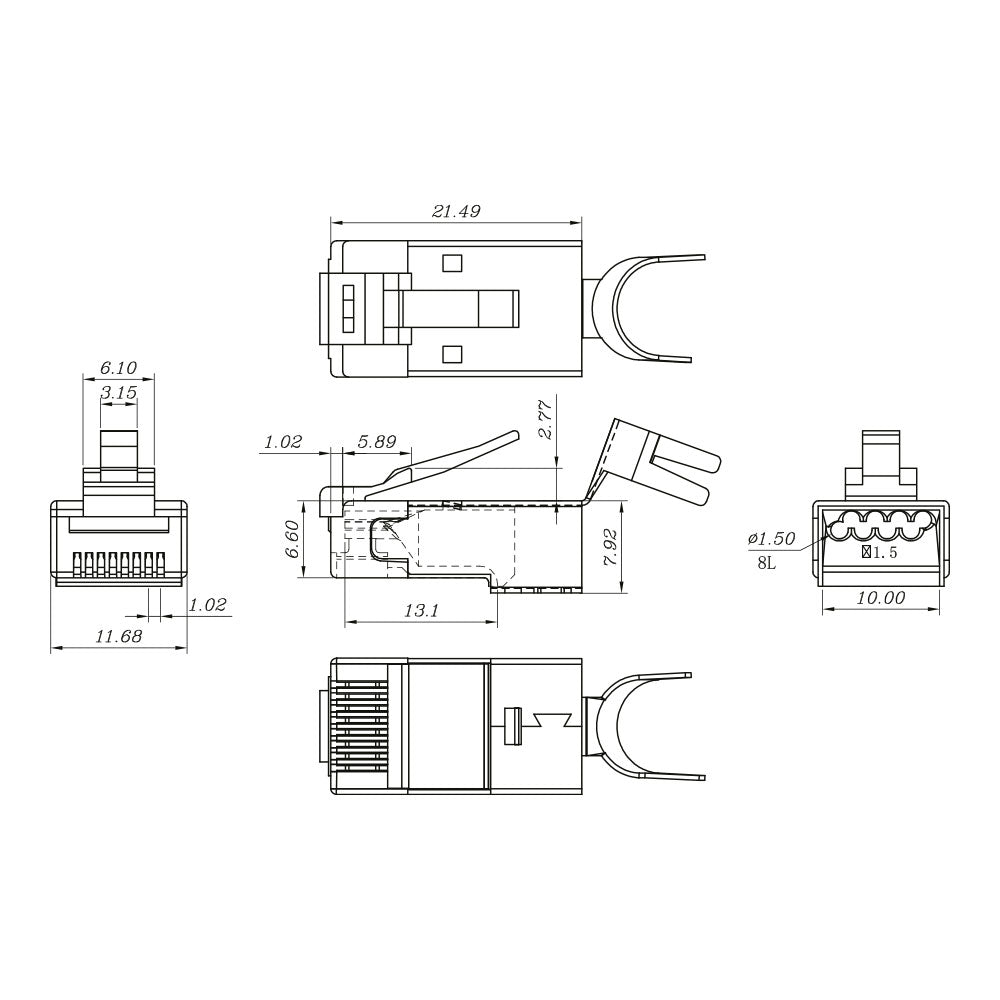

This modular plug is well-designed to be terminated with a wide range of CAT6A stranded and solid cables. The 1.5mm pass-through plug is compatible with 1.35mm to 1.45mm stranded and solid cable ODs.
POWER OVER ETHERNET (PoE) FEATURES
- Maximum Power from PSE: 90W
- Maximum Power at PD: 71.3W
- Number of Energized Pair: 4×
- IEEE 802.3bt: Type-4 Class-8
- IEC: 60512-99-002:2022
Specifications
- Contact Pins (Conductors) Material: Copper-Alloy
- Shielded: Copper-Alloy
- Gold Plating Thickness: 50u"
- Housing Material: Polycarbonate
- Housing: UL 94-V2
- Mating Cycles: 1,200 Min.
- Height of 8P8C Contact Pins: 6.02mm ±0.13mm
- Storage Temperature: -40°C~70°C
- Operating Temperature: <35°C
- Relative Humidity: <70% RH
- UL Applications: 250V AC Max. @2A
- Dielectric Withstanding Voltage: 1000V AC in 60s
- Insulation Resistance: 500MΩ
- Contact Resistance: 20mΩ Max.

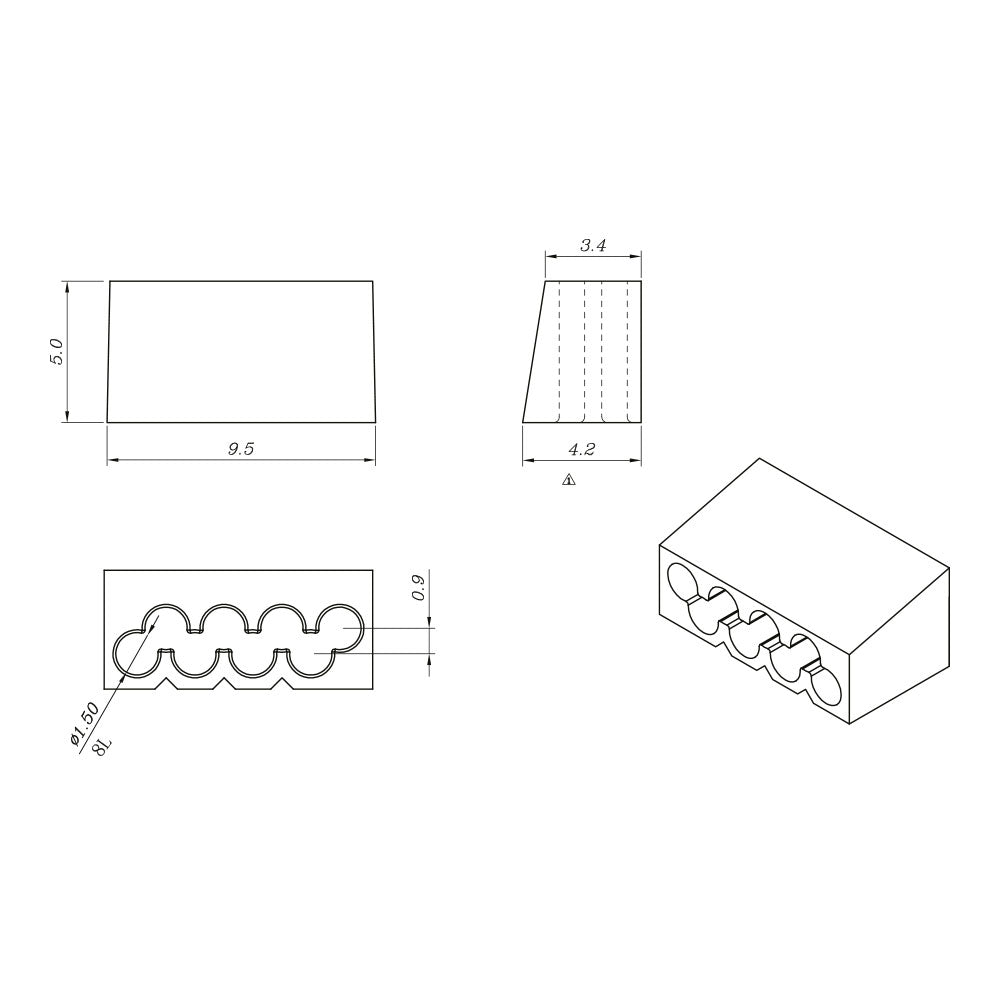

- Two-Level Hole with Insert: 4+4
Compliant With International Standards
- IEC 60512-99-002
- IEEE 802.3bt Type-4 Class-8
- ANSI/TIA-568.2-D
- ISO/IEC 11801
- IEC 60603-7-51
- EN 50173-1
- EN 50173-2
- IEC 61935-2
- ANSI/TIA-1096-A (Formerly FCC Part 68.5 Subpart F)
