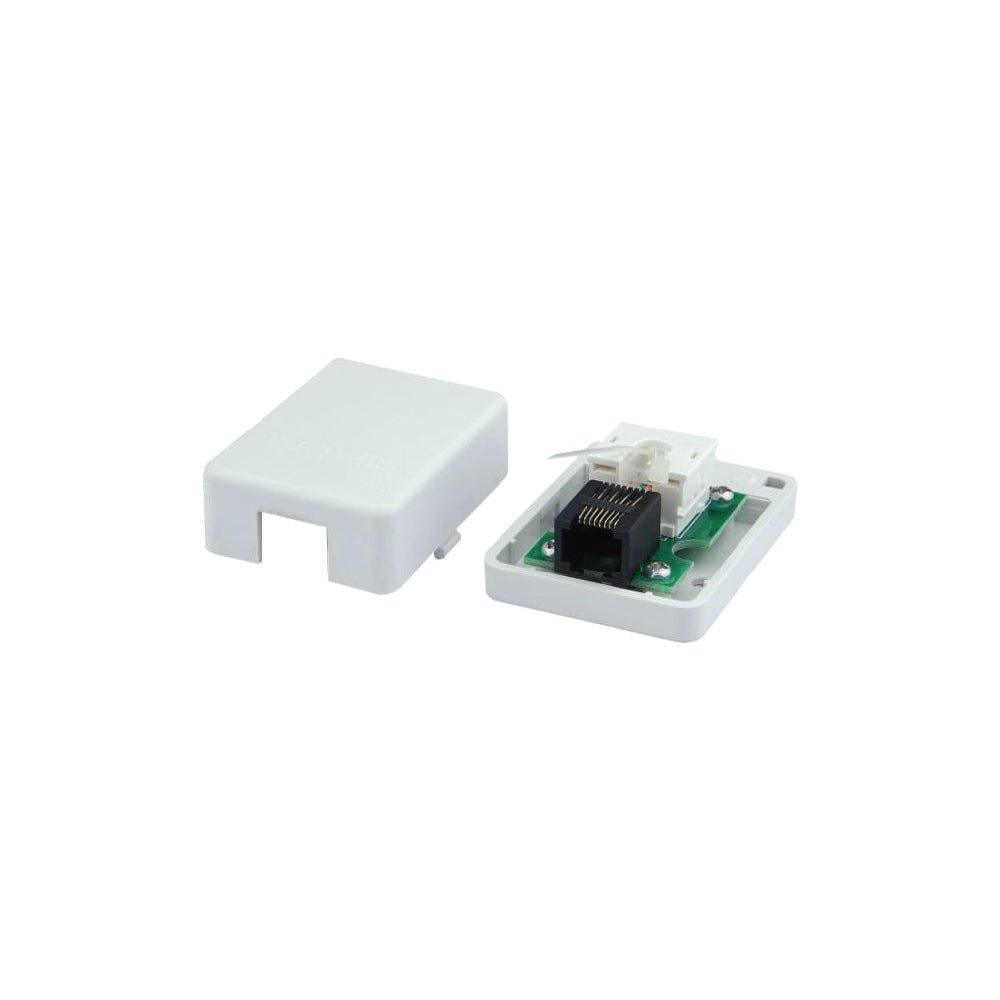

LinkQnet RJ45 CAT5e Wall Box
Keep your network installs clean and reliable with the LinkQnet RJ45 CAT5e Wall Box. Designed for quick surface mounting, it delivers dependable CAT5e performance in a compact, professional-looking housing - perfect for homes, offices and retail environments. A simple, neat solution for terminating Ethernet connections exactly where you need them.
Features
- CAT5e Performance - Supports Fast Ethernet with bandwidth up to 250MHz
- Single-Port RJ45 Outlet - Ideal for clean, fixed network termination points
- T568A / T568B Compatible - Clearly labelled for easy and correct wiring
- Durable Housing - High-temperature thermoplastic construction for long-term reliability
- Broad Cable Support - Accepts 23~26 AWG network cables
- Low Signal Loss - Designed for low attenuation and high return loss
- Compact Surface-Mount Design - Neat, space-saving installation on walls or skirting
- Professional Finish - Clean white housing suited to office and home environments
Specifications
- Contact Resistance (Max.): 20mΩ
- Insulation Resistance (Min.): 500MΩ
- Return Loss (dB) 5.3dB

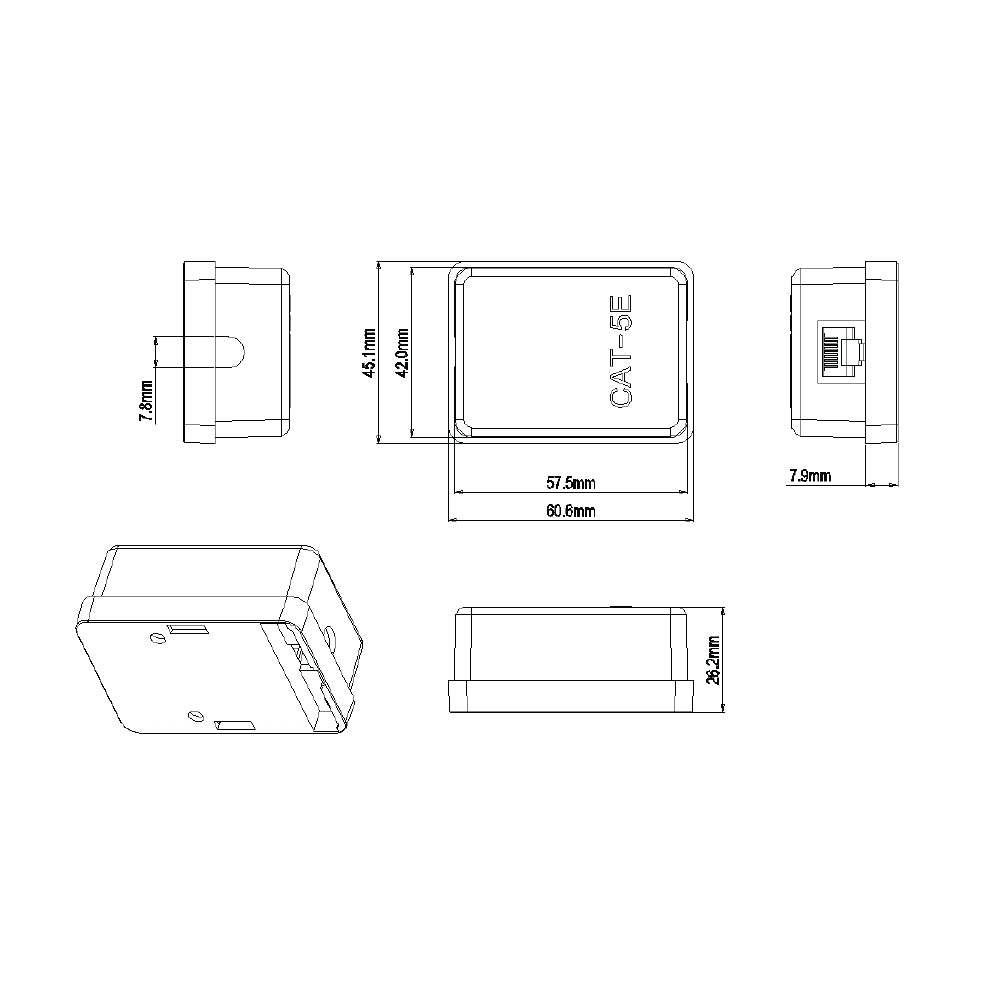

- Dimensions (W × H × D): 60.6 × 45.1 × 26.2mm
