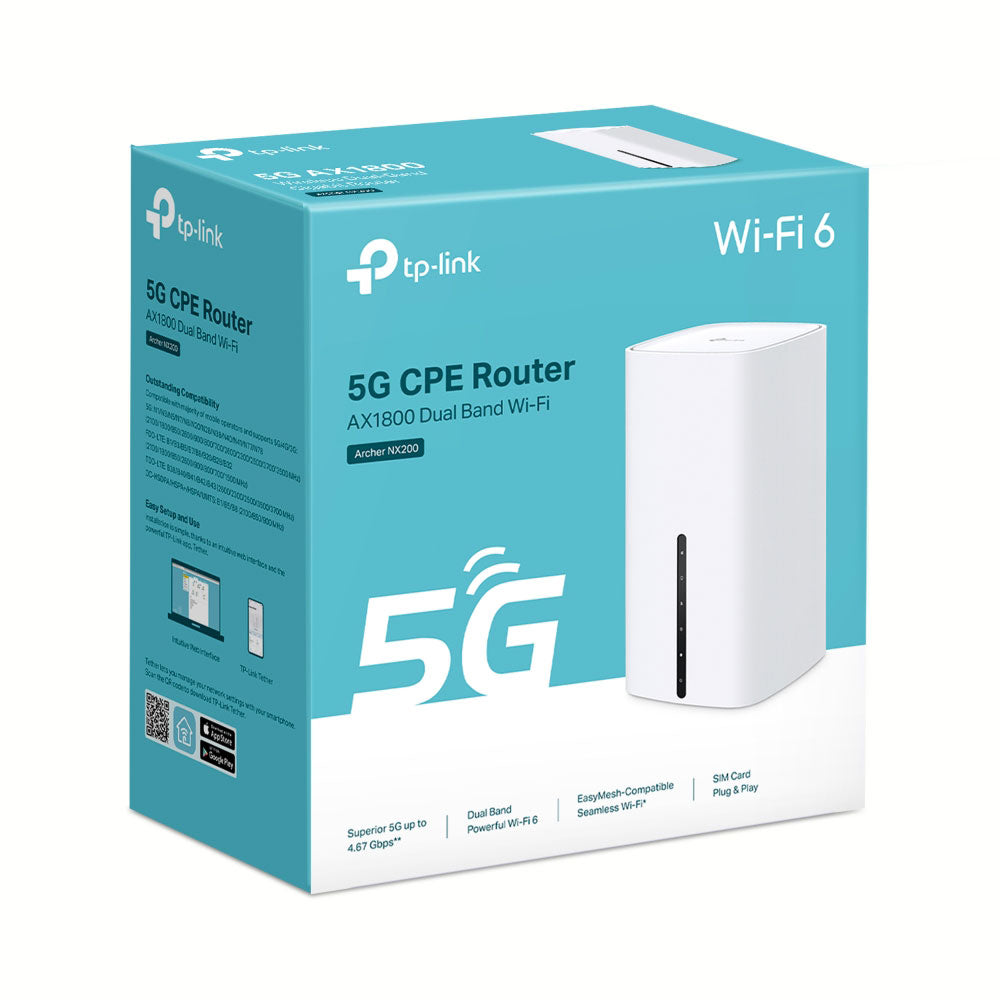

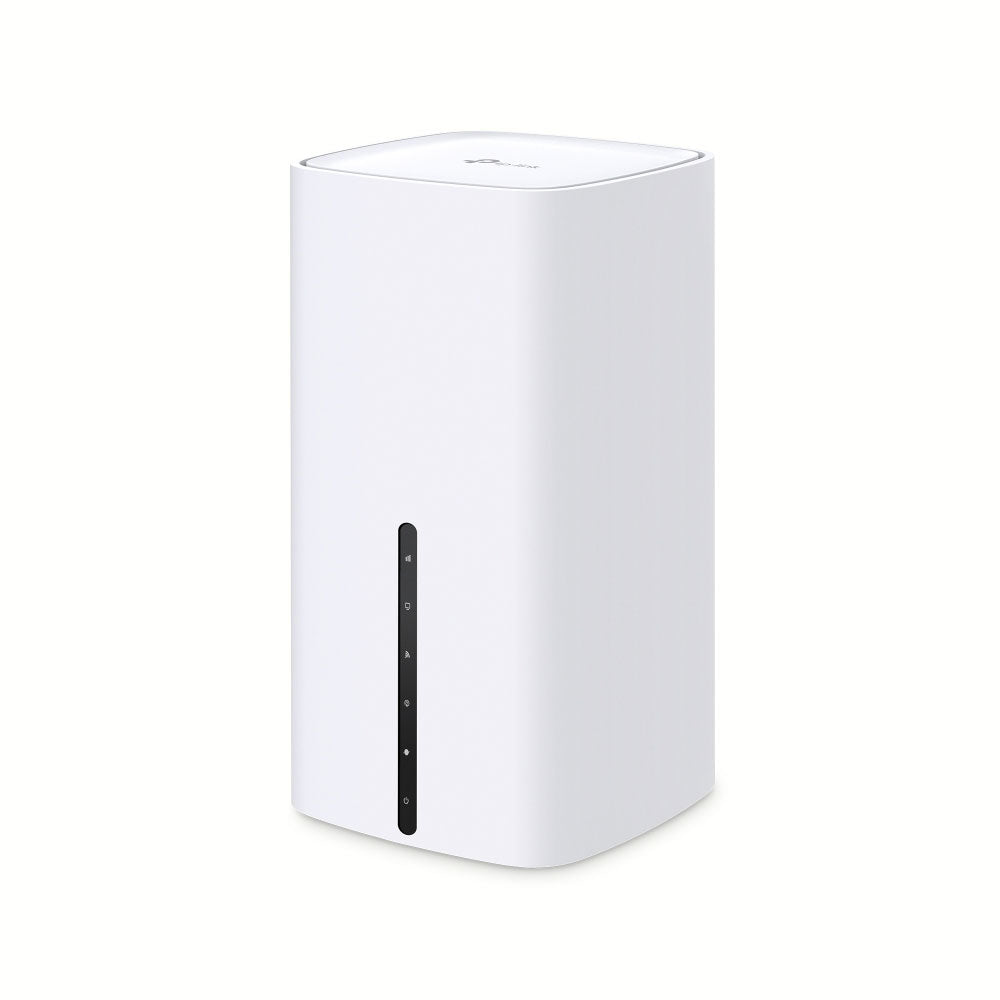

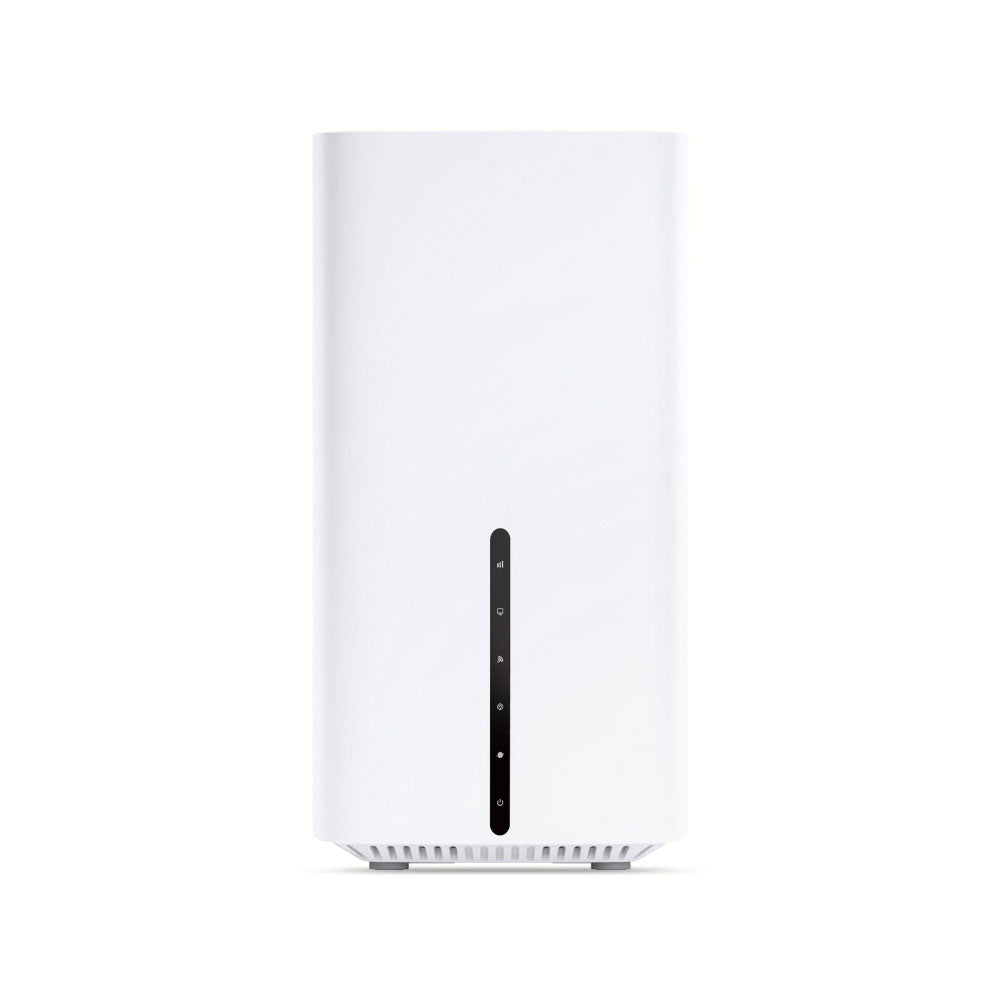

TP-Link Archer NX200 5G AX1800 Wireless Dual-Band Gigabit Router
Enjoy 5G Speed Sharing Everywhere
The Archer NX200 delivers next-generation 5G speeds with AX1800 dual-band Wi-Fi for smooth streaming, low-latency gaming and reliable multi-device connectivity. With Gigabit ports, plug-and-play Nano SIM setup and flexible router modes, it?s the perfect high-speed solution for modern homes, remote offices and fibre backup connectivity.
Features
- Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads and smooth video chats and conferences
- AX1800 Dual-Band Wi-Fi 6 Speed - 1,201Mbps (5.0GHz) and 574Mbps (2.4GHz)
- Plug and Play - Enjoy 5G network right after inserting a SIM card
- EasyMesh Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage
- Gigabit WAN/LAN Port - The Gigabit WAN/LAN port enables the NX200 to work as a traditional wireless router which is compatible with cable, fibre and DSL modems
Specifications
5G Connectivity
- 5G NR Support: Sub-6GHz Bands Including N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
- 4G LTE Support: FDD-LTE B1/B3/B5/B7/B8/B20/B28/B32 and TDD-LTE B38/B40/B41/B42/B43
- 3G Support: DC-HSPA+/HSPA+/UMTS B1/B5/B8
- Nano SIM Slot: Built-In 5G/4G Modem
- WAN Failover: Automatic Switch to Ethernet WAN if Mobile Connection Drops
Wireless Performance
- AX1800 Dual-Band Wi-Fi 6: 574Mbps on 2.4GHz and 1,201Mbps on 5.0GHz
- Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
- Transmission Power: <20dBm (2.4GHz), <23dBm (5.15–5.35GHz), <30dBm (5.47–5.71GHz)
- Wireless Security: WEP WPA/WPA2 WPA-PSK/WPA2-PSK
Hardware

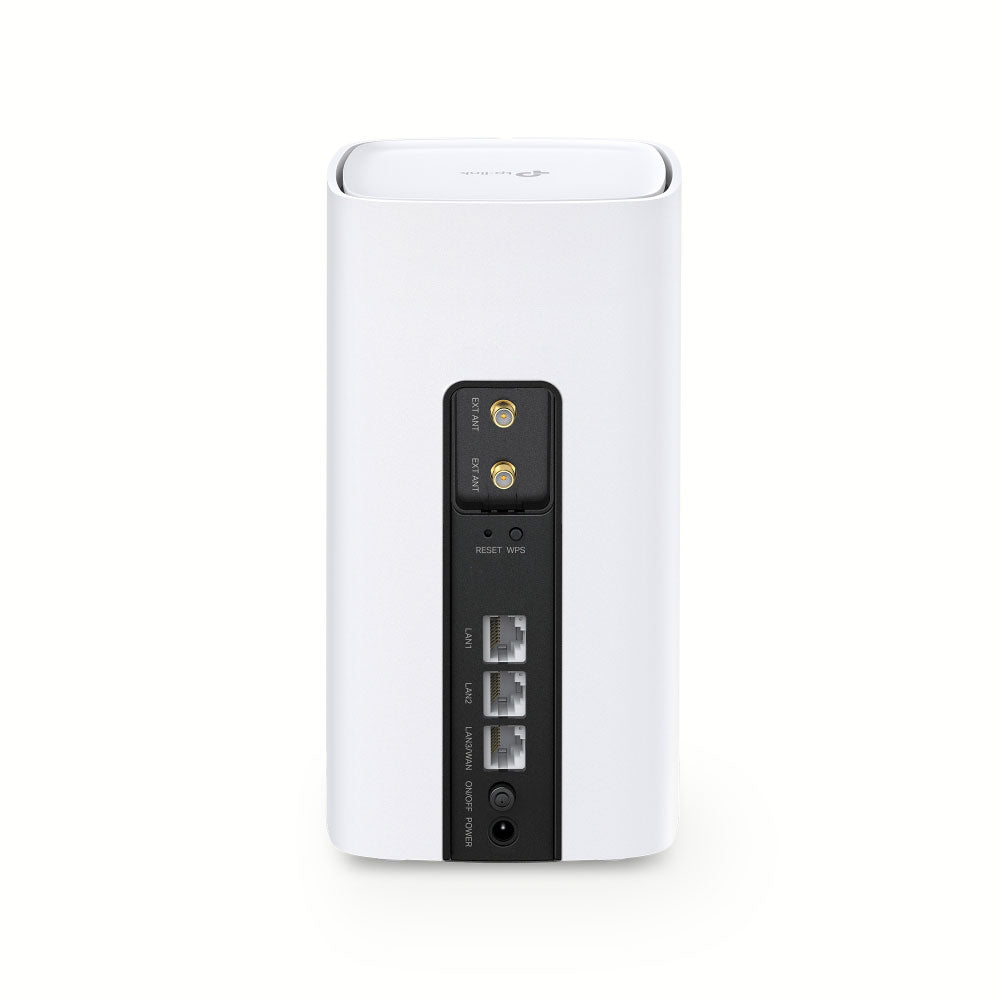

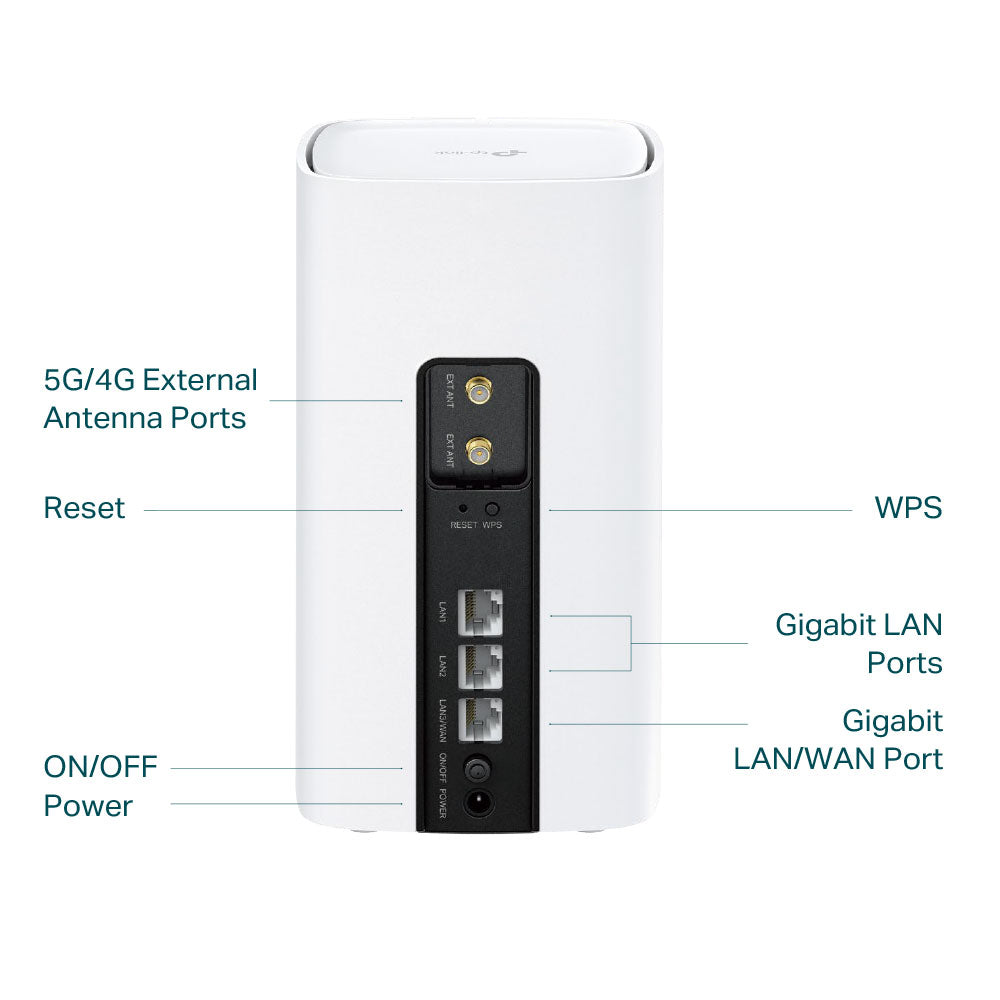

- Ports: 1× 10/100/1000Mbps LAN/WAN and 2× 10/100/1000Mbps LAN
- Antennas: 8× 5G/LTE Internal Antennas and 2× Wi-Fi Internal Antennas
- Buttons: WPS Reset Power On/Off Wi-Fi On/Off
- Power Supply: 12V 2A
- Dimensions: 99 × 99 × 190mm
Network And Software Features
- Operating Modes: 5G Router and Wireless Router
- QoS: Traffic Prioritisation by Device or Application
- VPN Support: PPTP VPN, IPsec VPN and OpenVPN
- Firewall Security: SPI Firewall, IPv4/IPv6 Firewall, IP/MAC Binding, Access Control
- Guest Network: Separate 2.4GHz and 5.0GHz Guest Access
- Dynamic DNS: TP-Link, DynDNS, NO-IP
- Port Forwarding: ALG Virtual Server, Port Triggering, UPnP, DMZ
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Protocol Support: IPv4 and IPv6
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10%~90% Non-Condensing
- Storage Humidity: 5%~90% Non-Condensing
