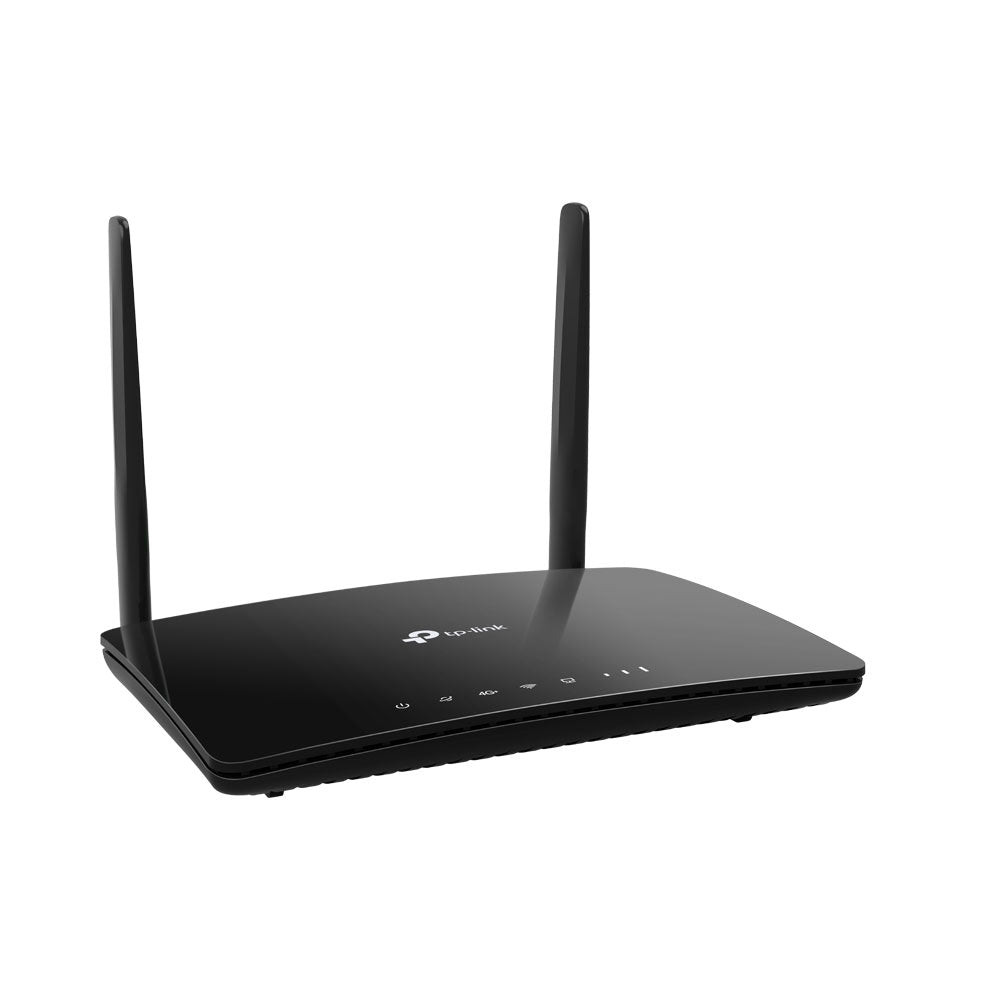

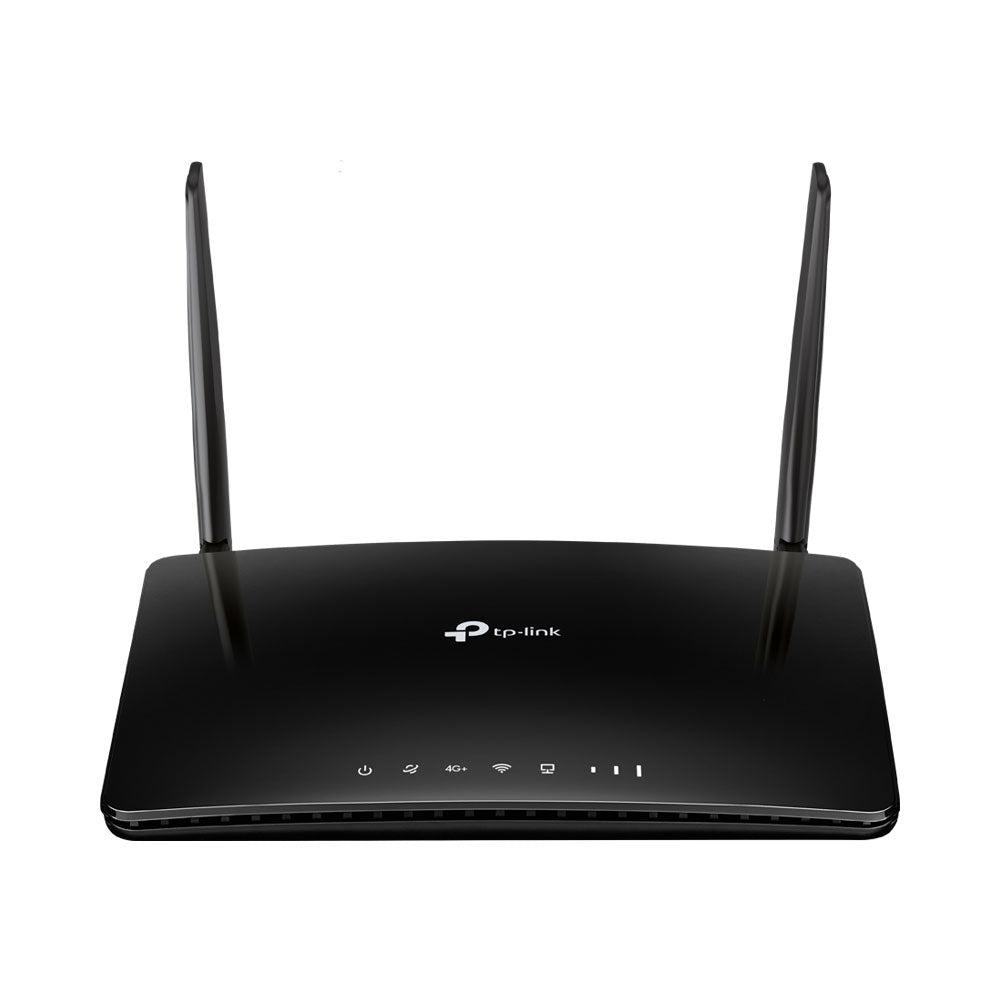

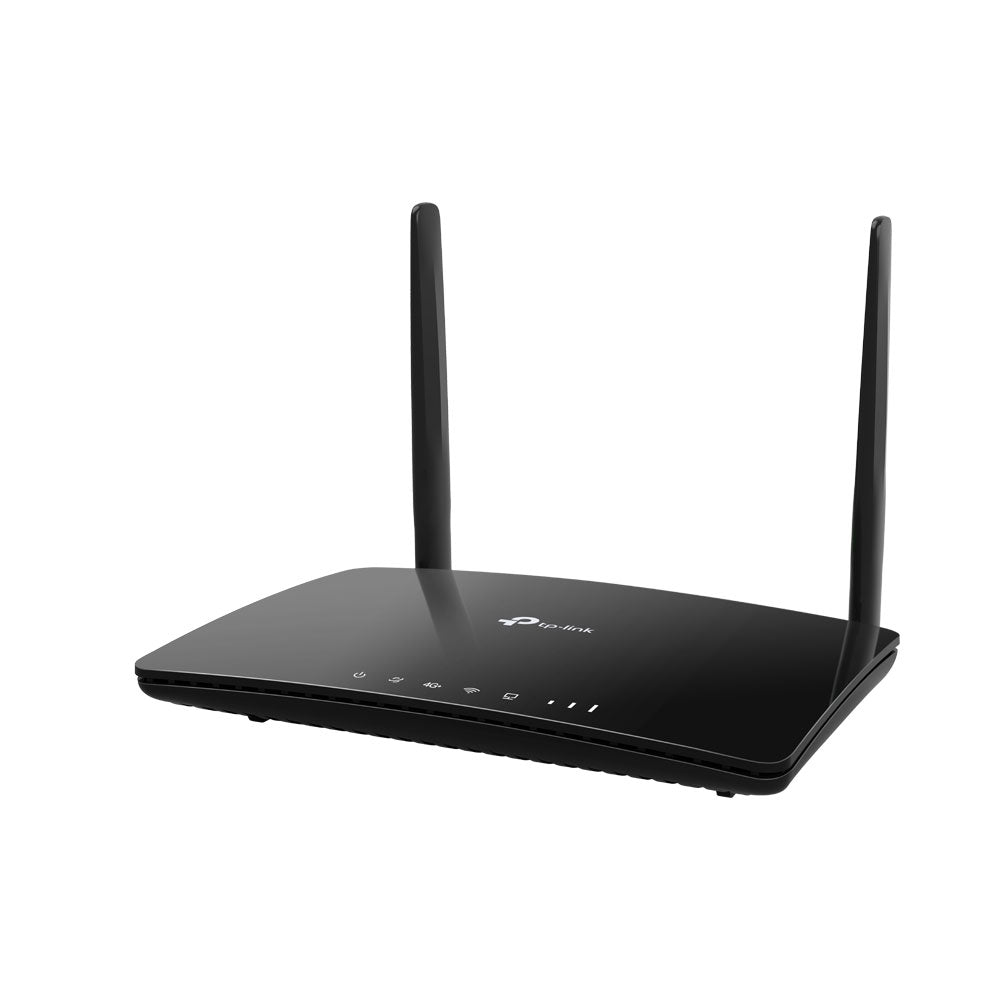

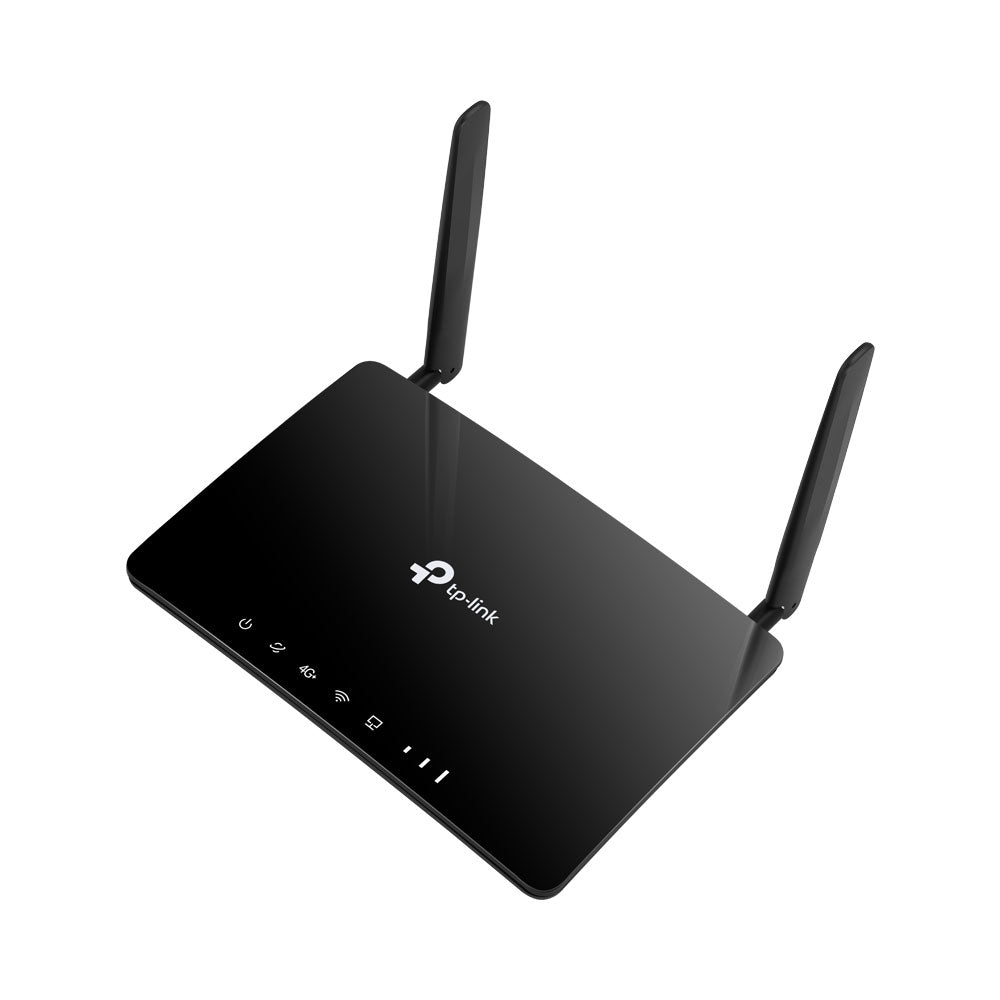

TP-Link Archer MR500 4G+ CAT6 AC1200 Wireless Dual-Band Gigabit Router
Fast 4G+ connectivity with full gigabit performance.
The Archer MR500 combines CAT6 LTE speeds with AC1200 dual-band Wi-Fi, delivering smooth streaming, gaming and work-from-home reliability. With Gigabit ports, carrier aggregation support and simple plug-and-play Nano SIM setup, it?s the perfect high-speed solution for homes, small offices and backup internet connections.
Features
- Advanced 4G+ Router - Supports 4G+ Cat6 to boost data speeds of up to 300Mbps
- Plug a SIM Card In and Play - No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- MU-MIMO Supported - Simultaneous data streams increase WiFi throughput and network efficiency
- Supports TP-Link OneMesh - Co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
- Better Signal for Connections Everywhere - Enjoy stable and efficient connections to every device thanks to the two external detachable LTE antennas
- Full Gigabit Ports - Provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs
- Wi-Fi Router Mode - Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
- Easy Setup and Management - All via the Tether App
Specifications
4G+ Lte Connectivity
- 4G+ Cat6 LTE: Supports Carrier Aggregation for Faster Speeds
- Nano SIM Slot: Built-In 4G LTE Modem
- LTE Bands: FDD-LTE B1/B3/B5/B7/B8/B20/B28 and TDD-LTE B38/B40/B41
- 3G Support: DC-HSPA+/HSPA/UMTS Compatible
- WAN Failover: Automatic Switch to Ethernet WAN if LTE Drops
Wireless Performance
- AC1200 Dual-Band Wi-Fi: 300Mbps on 2.4GHz and 867Mbps on 5.0GHz
- Wireless Standards: IEEE 802.11a/b/g/n/ac
- Transmission Power: <20dBm (2.4GHz) and <23dBm (5.0GHz)
- Wireless Security: WEP, WPA/WPA2/WPA3 Personal and Enterprise
Hardware

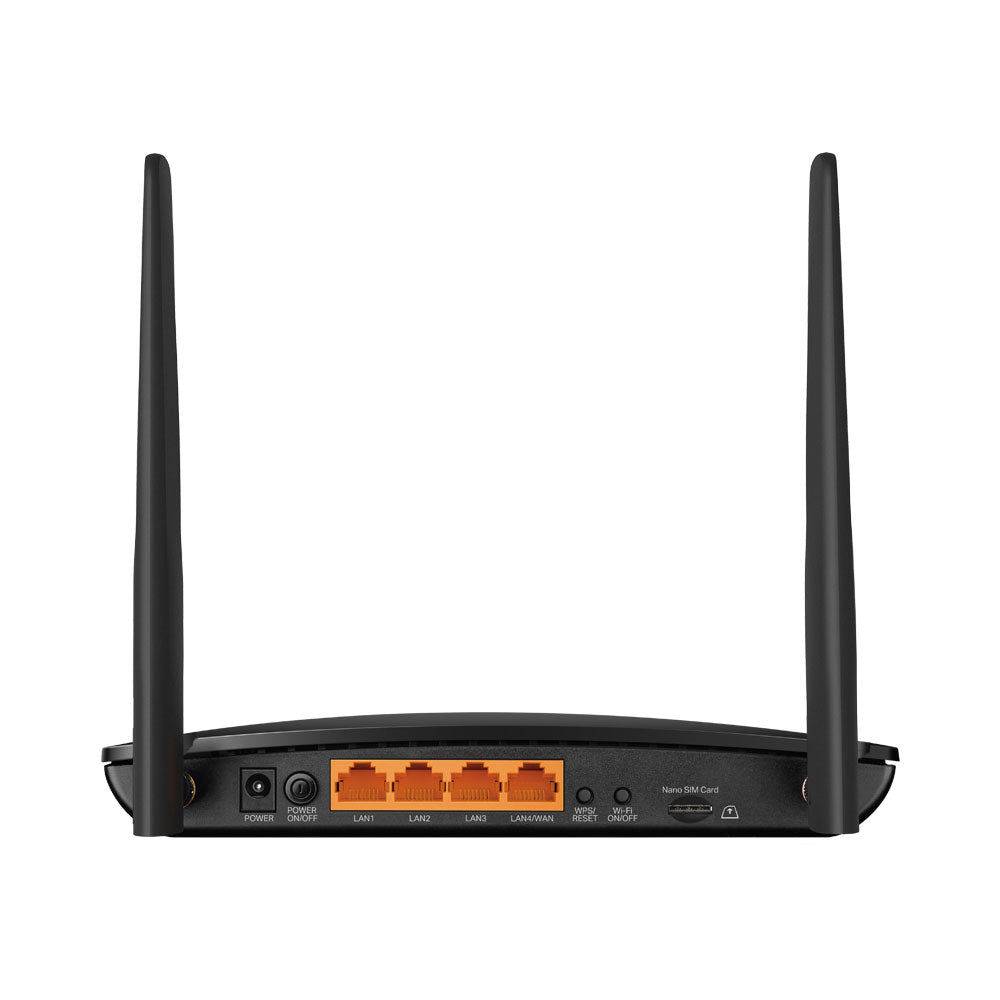

- Ports: 3× 10/100/1000Mbps LAN and 1× 10/100/1000Mbps LAN/WAN
- Antennas: 2× Detachable External LTE Antennas
- Power Supply: 12V 1.5A
- Dimensions: 202 × 141 × 33.6mm
Network And Software Features
- Operating Modes: 4G Router and Wireless Router
- QoS: Traffic Prioritisation by Device
- VPN Server: PPTP VPN and OpenVPN
- Firewall Security: SPI Firewall, IPv4/IPv6 Firewall, IP/MAC Binding, Access Control
- Guest Network: Separate 2.4GHz and 5.0GHz Guest Access
- Dynamic DNS: TP-Link, DynDNS, NO-IP
- Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Protocol Support: IPv4 and IPv6
