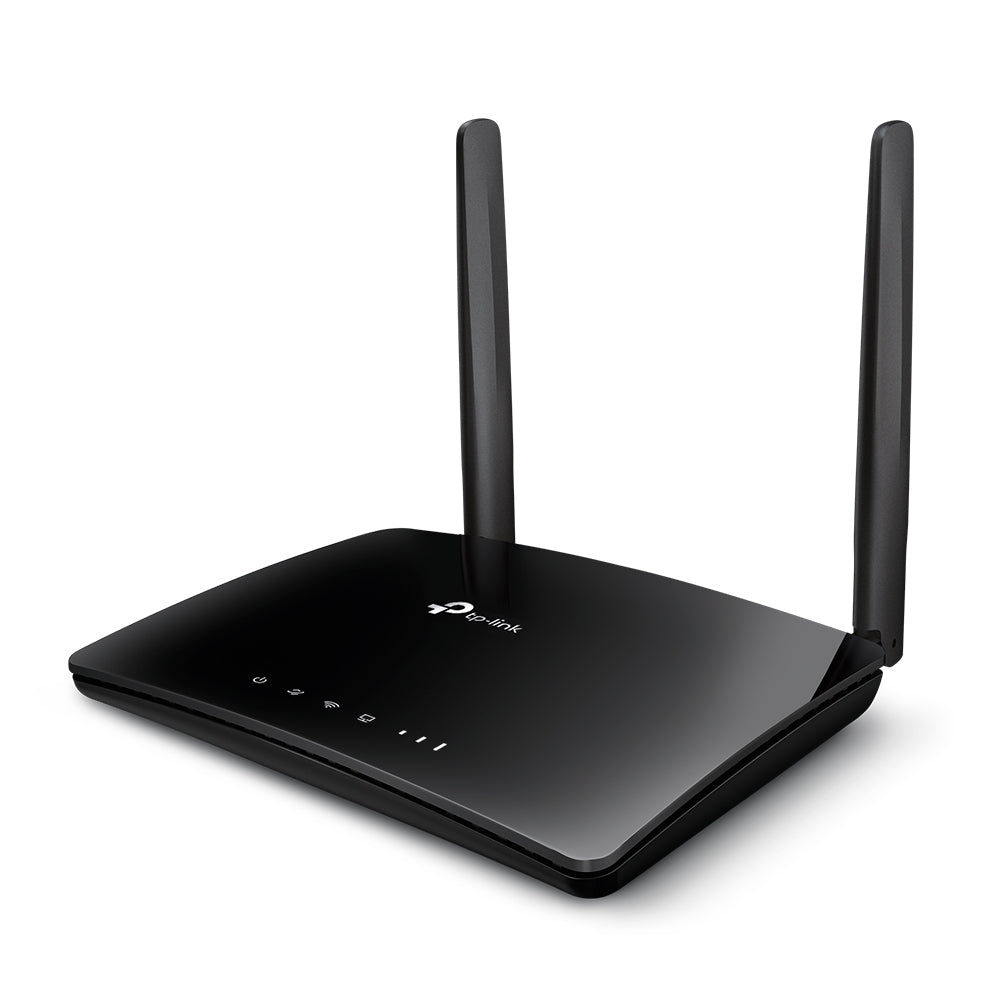

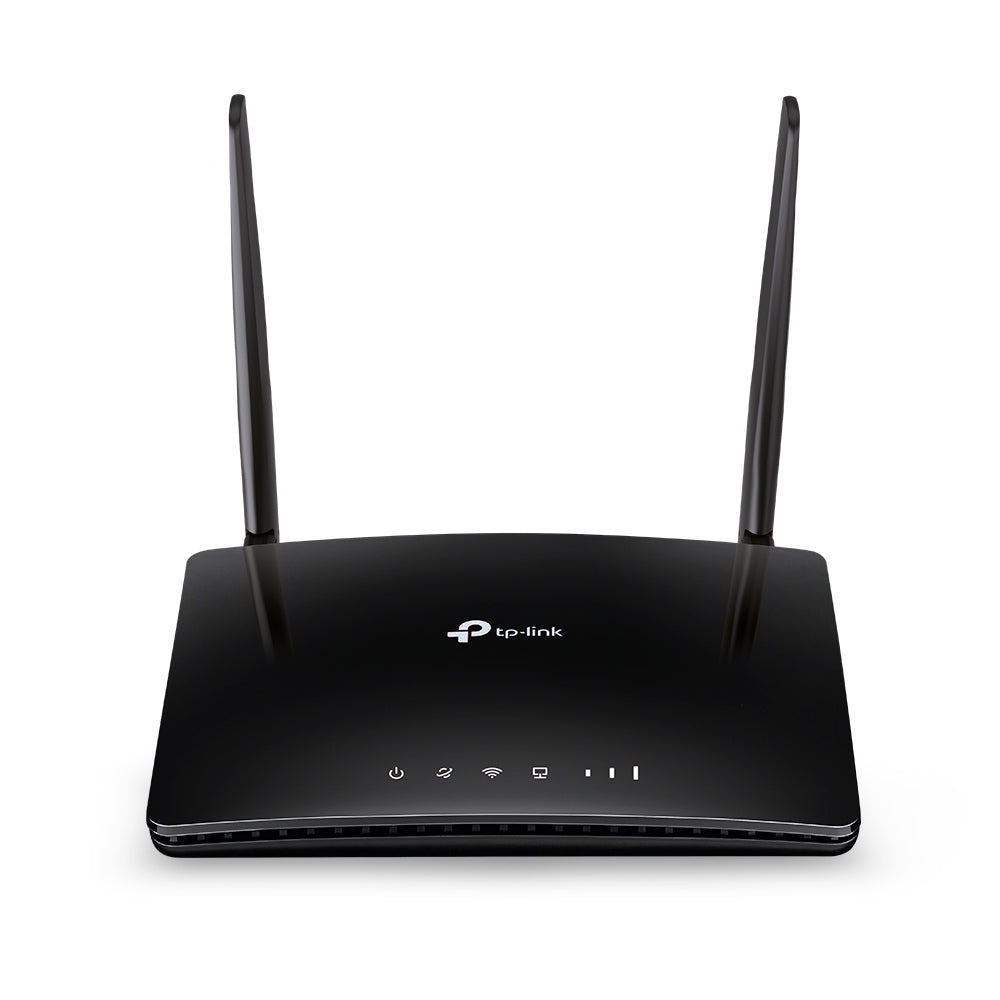

TP-Link Archer MR202 AC750 Wireless Dual Band 4G LTE Router
Take full advantage of your cutting-edge 4G LTE network with the Archer MR202, which allows you to share network with multiple devices so you can enjoy uninterrupted HD movies, rapid file downloads that won't freeze up. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.
Features
- Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
- Powerful, integrated antennas provide stable wireless connections and better coverage

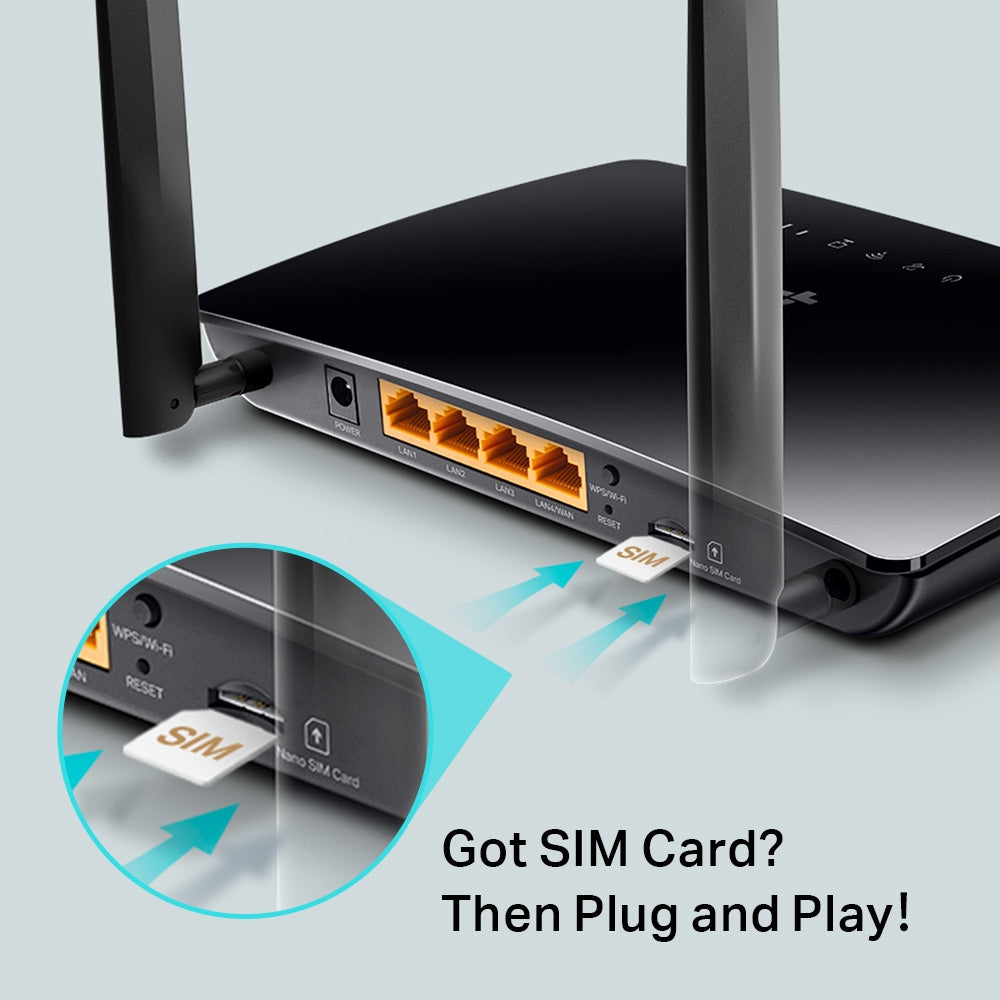

- Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
- Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band
- Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
Specifications
Hardware Features

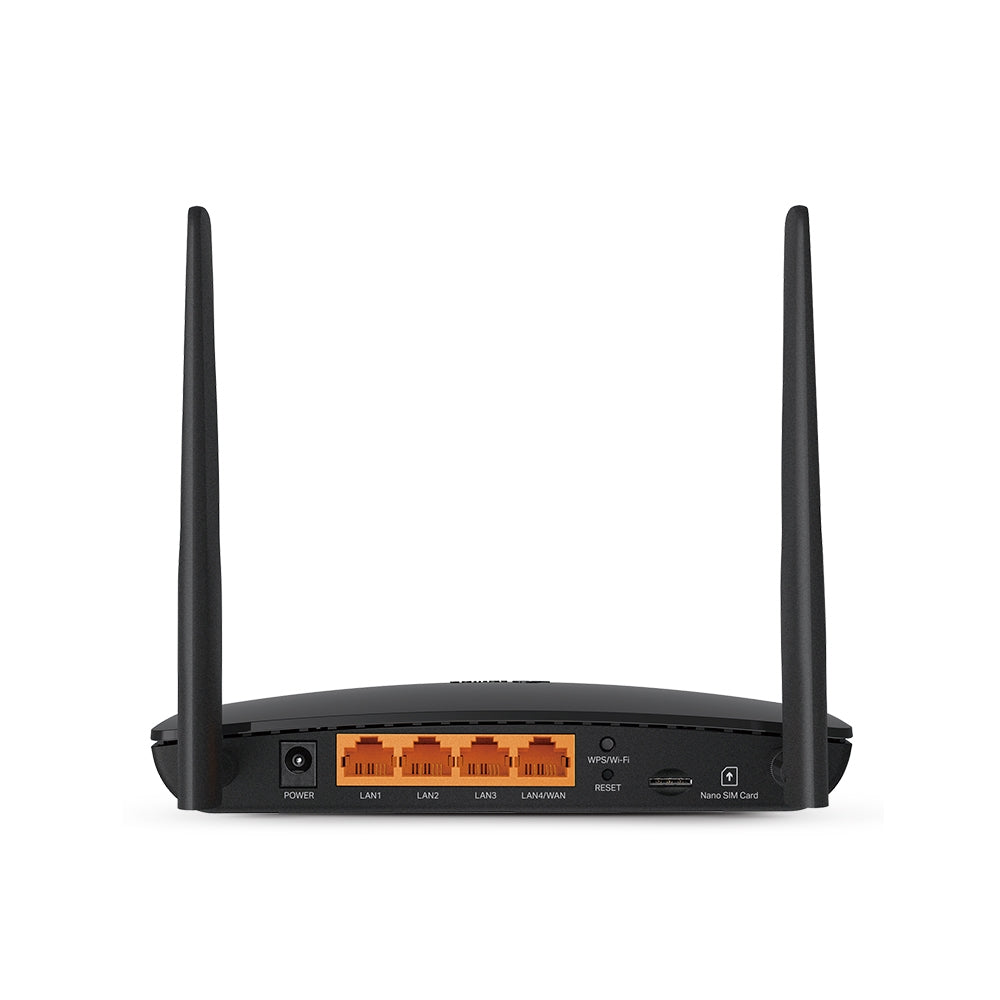

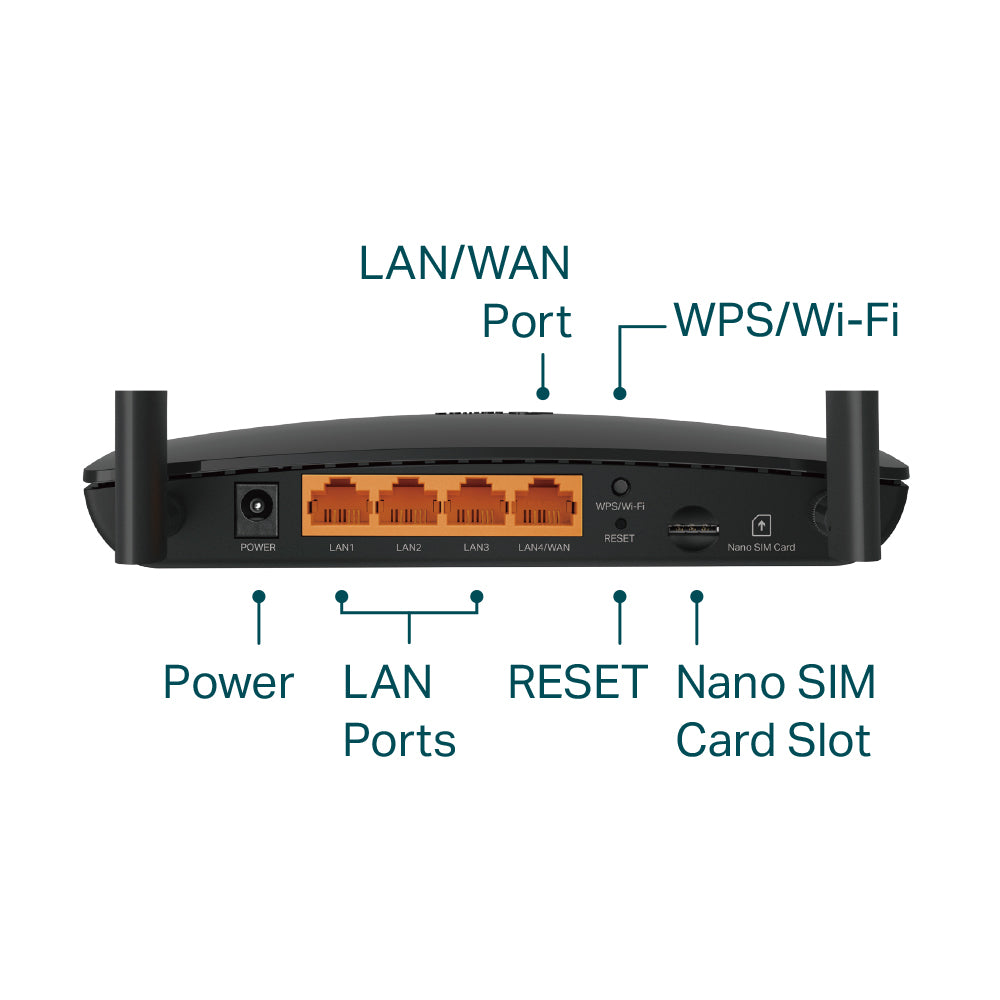

- Interface: 3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Nano SIM Card Slot, 2× External SMA-F Antenna Interface
- Button: WPS/Wi-Fi Button, Reset Button
- External Power Supply: 12V/1A
- Dimensions ( W x D x H ): 174 × 124.5 × 33.5mm
- Antenna: 2 Detachable External 4G LTE Antennas
Wireless Features
- Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
- Frequency: 2.4GHz and 5GHz
- Signal Rate: 300Mbps at 2.4GHz, 433Mbps at 5GHz
- Reception Sensitivity: 5 GHz:
- 11a 54M: -78 dBm
- 11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm
- 11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm
- 11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm
- 2.4 GHz:
- 11g 54M: -74 dBm
- 11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm
- 11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm
- Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless, Statistics
- WAN Failover: Yes
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
- Transmission Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
- Network Type
- 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
- TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
- 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
Software Features
- Quality of Service: Prioritises network traffic by device or application
- Operating Modes: 3G/4G Router, Wireless Router
- WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
- Management Features: Access Control, Local Management, Remote Management, reboot schedule
- DHCP: Server, DHCP Client List, Address Reservation
- Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, NO-IP, TP-Link DDNS
- Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
- Protocols: Supports IPv4 and IPv6
- Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1
- VPN Server: PPTP VPN, OpenVPN
Others
- Certification: CE, RoHS
- Environment: Operating Temperature: 0°C~40°C
- Storage Temperature: -40°C~60°C
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
