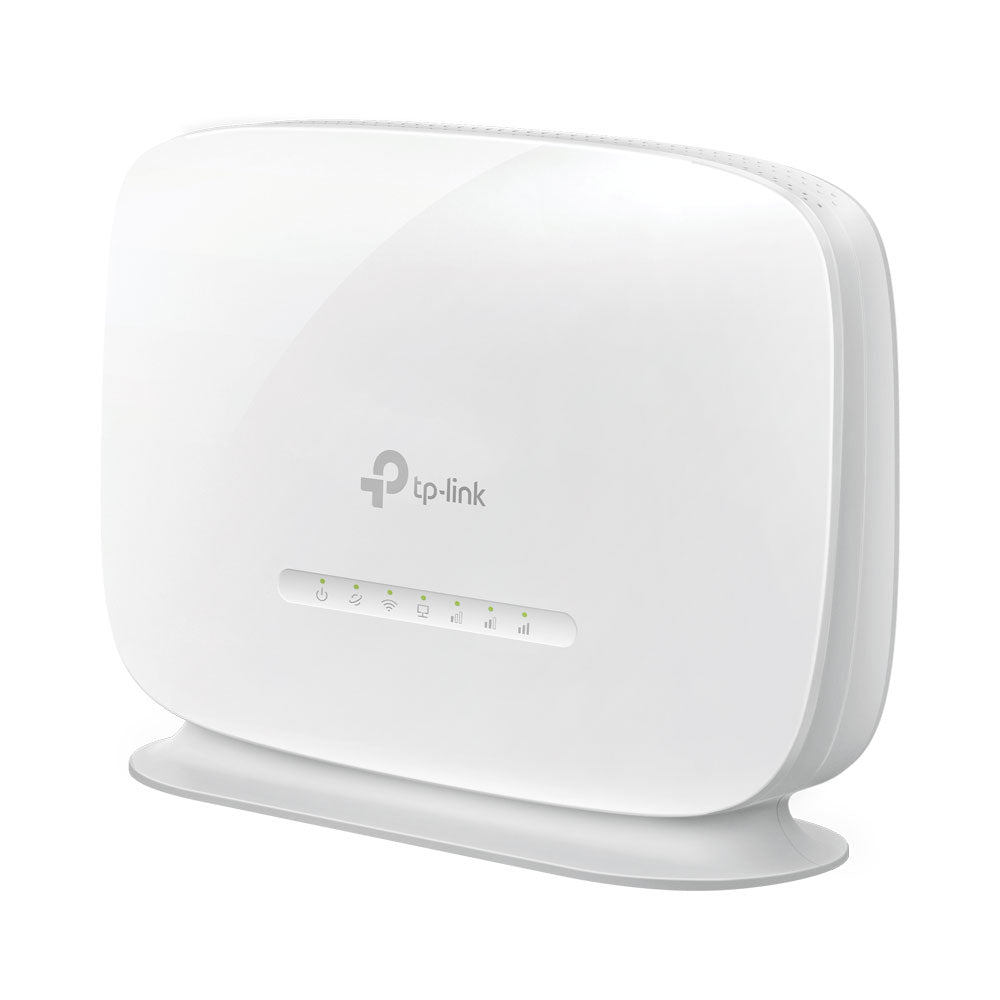

TP-Link TL-MR105 300Mbps Wireless N 4G LTE Router
The TP?Link TL?MR105 is a 300 Mbps Wireless N 4G LTE router. It is designed to provide internet connectivity via a SIM card (LTE), making it useful in places without fixed-line broadband or as a backup (failover) connection.
You essentially plug in a nano?SIM, power on the device, and it can share the cellular data over Wi-Fi or via Ethernet ports.
Features
- Cutting-Edge 4G Network - Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150Mbps

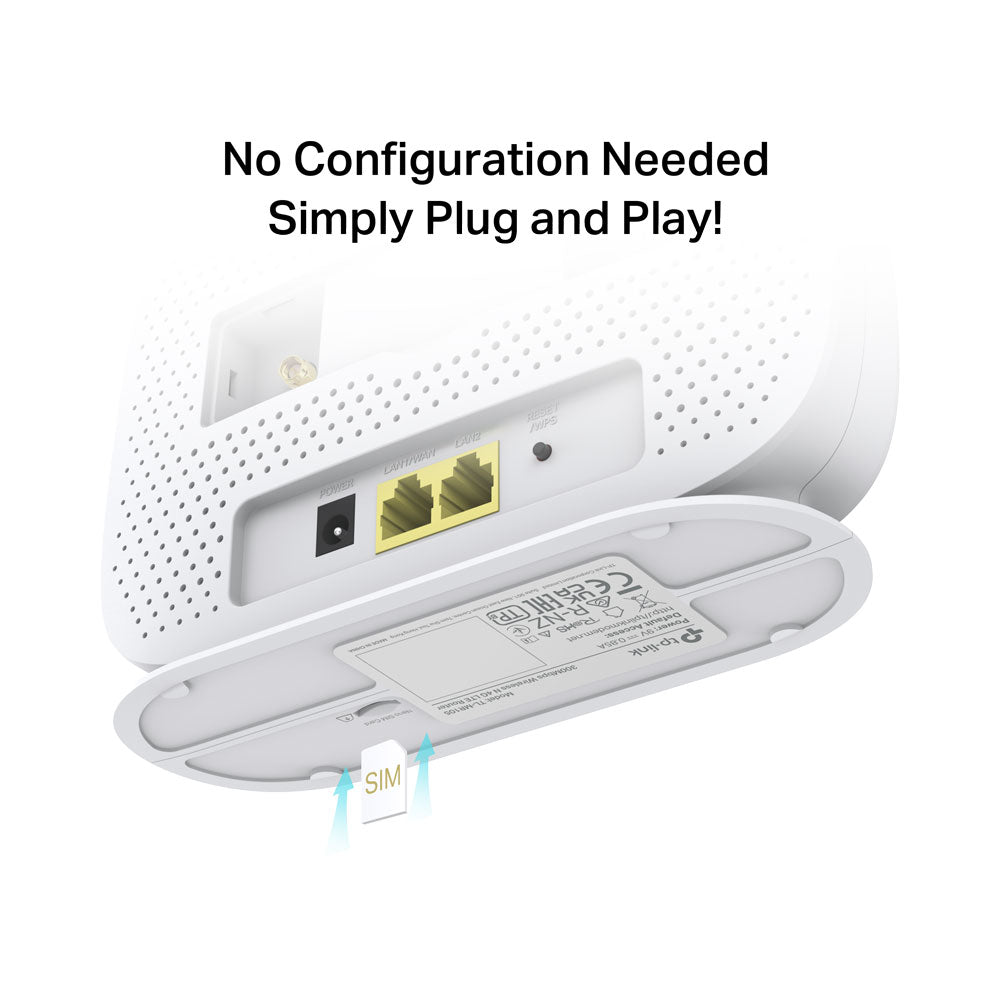

- Plug in a SIM Card and Play - No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Wi-Fi Router Mode - Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
Specifications
Hardware Features

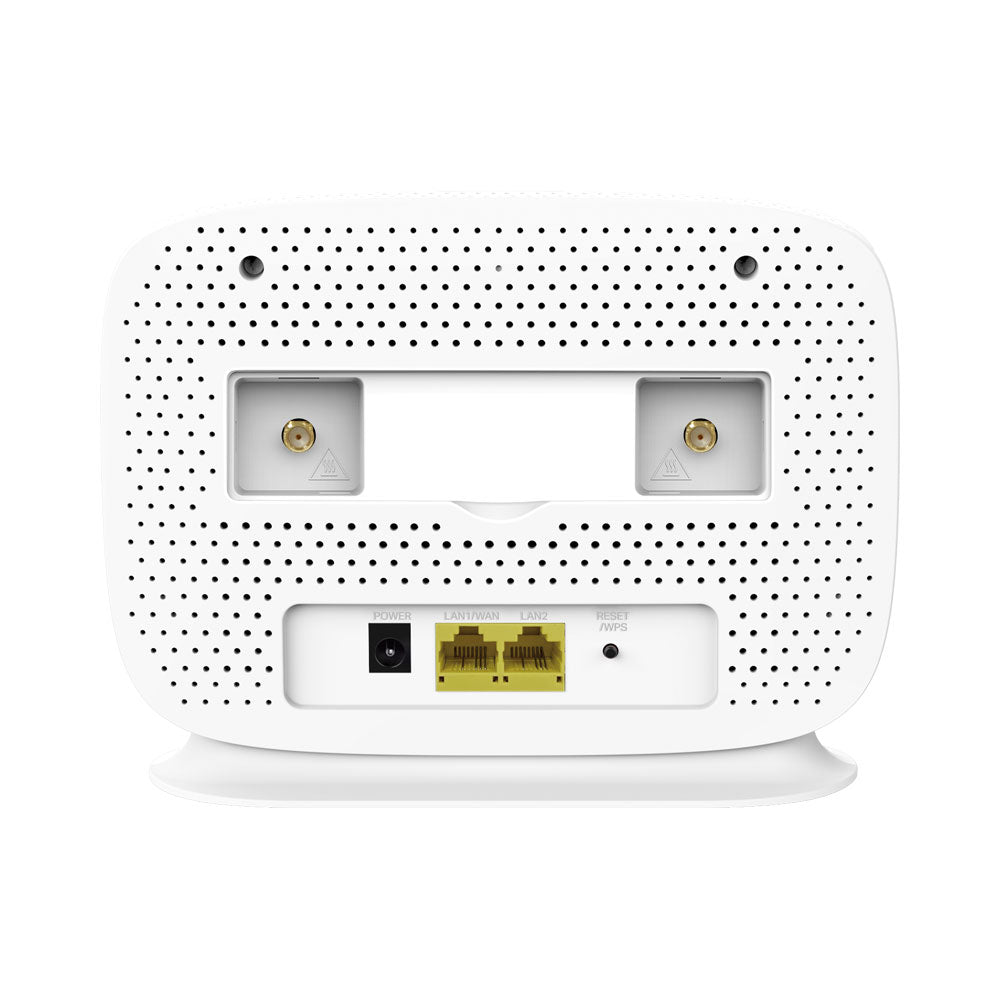

- Interface: 1× 10/100Mbps LAN Port
- 1× 10/100Mbps LAN/WAN Port
- 1× Nano SIM Card Slot
- Button: Reset/WPS Button
- External Power Supply (EU): 9V 0.85A
- Dimensions (W × D × H): 174× 130× 60mm
- Antenna: 2× Internal 4G/3G Antennas
- 2× Internal Wi-Fi Antennas
- 2× External 4G/3G Antenna Ports
Wireless Features
- Wireless Standards: IEEE 802.11b/g/n
- Frequency: 2.4GHz
- Signal Rate: 300Mbps
- Reception Sensitivity: 11g 54M: -74dBm
- 11n HT20: -73dBm
- 11n HT40: -70dBm
- Transmit Power: < 20 dBm (2.4GHz)
- Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
- WAN Failover: Yes
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryptions
- Network Type: 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750MHz)
- TDD-LTE: B38/B40/B41 (2600/2300/2500MHz)
- 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900MHz)
Software Features
- Security: IPv4 SPI Firewall, IP and MAC Address Binding
- Operating Modes: 3G/4G Router, Wireless Router
- WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
- Management: Local Management, Remote Management
- DHCP: Server, DHCP Client List, Address Reservation
- Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: TP-Link, DynDns, NO-IP
- Protocol: sIPv4, IPv6
- Guest Network: 2.4GHz Guest Network
- Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
Others
- Certification: CE, RoHS
- Environment: Operating Temperature: 0°C~40°C
- Operating Humidity: 10%~90% Non-Condensing
- Storage Humidity: 5%~90% Non-Condensing
