Description

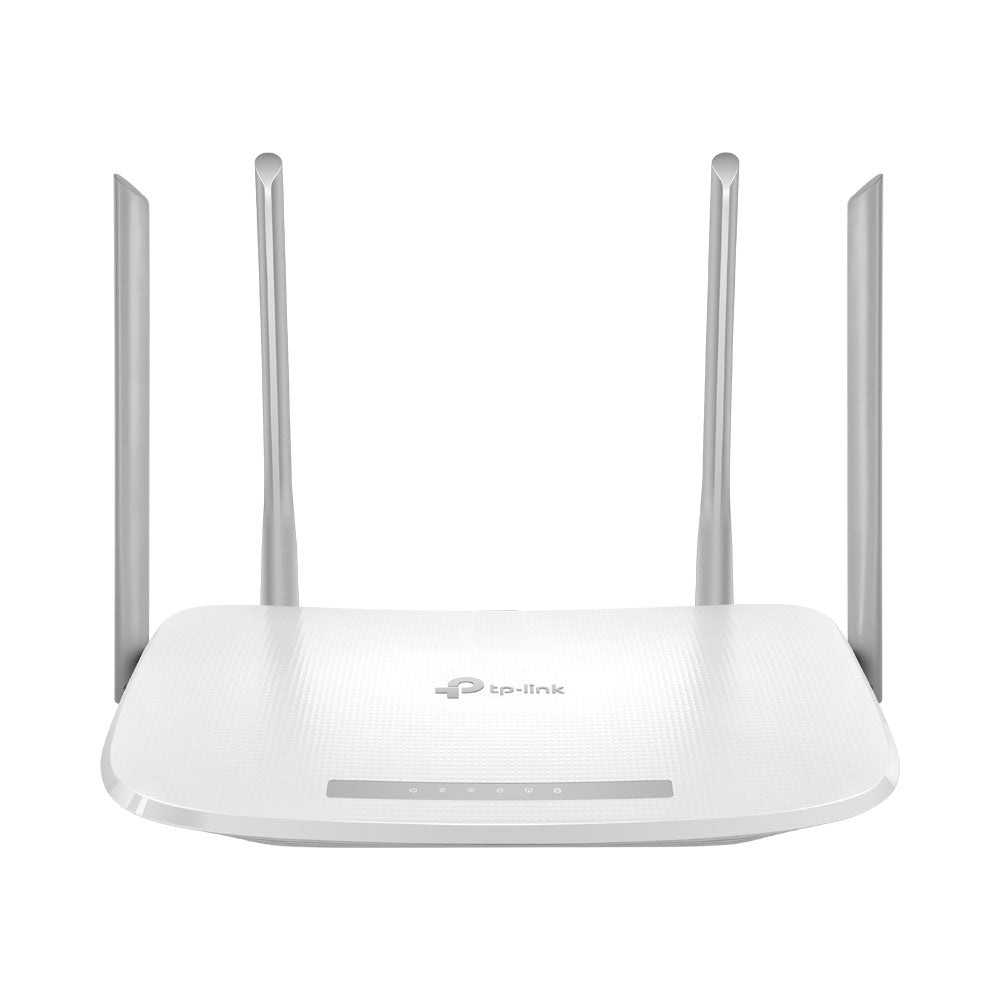

TP-Link Aginet EC220-G5 AC1200 Wireless Dual-Band Gigabit ISP Router
The TP-Link EC220-G5 is an AC1200 dual-band Wi-Fi router designed for reliable home and small office networking. With dual-band wireless performance, broad coverage, and stable connectivity, it provides smooth streaming, browsing, and online gaming for multiple connected devices.
Features
- Ideal and Preconfigured for ISPs
- AC1200 Dual-Band MU-MIMO Wi-Fi - Delivers total Wi-Fi speeds up to 1200Mbps on the 2.4GHz and 5.0GHz bands
- Full Gigabit Ports - Enjoy fast, reliable wired connections for gaming and streaming at the best quality
- Extensive Coverage - Beamforming and four antennas combine to deliver focused reception to devices far away
- EasyMesh Compatible - Provides whole home Wi-Fi coverage with standard mesh technology
- Enhanced Protection - Protect your network with firewalls, parental controls and the latest WPA3 encryption
- Easy Setup - Setup your router in minutes with the intuitive web interface or Aginet app
- Remote Management - Aginet ACS, TR-069, TR-181, TR-111 and TR-143 are supportedPECIFICATIONS
Hardware Features
External Power Supply12V/1.0A

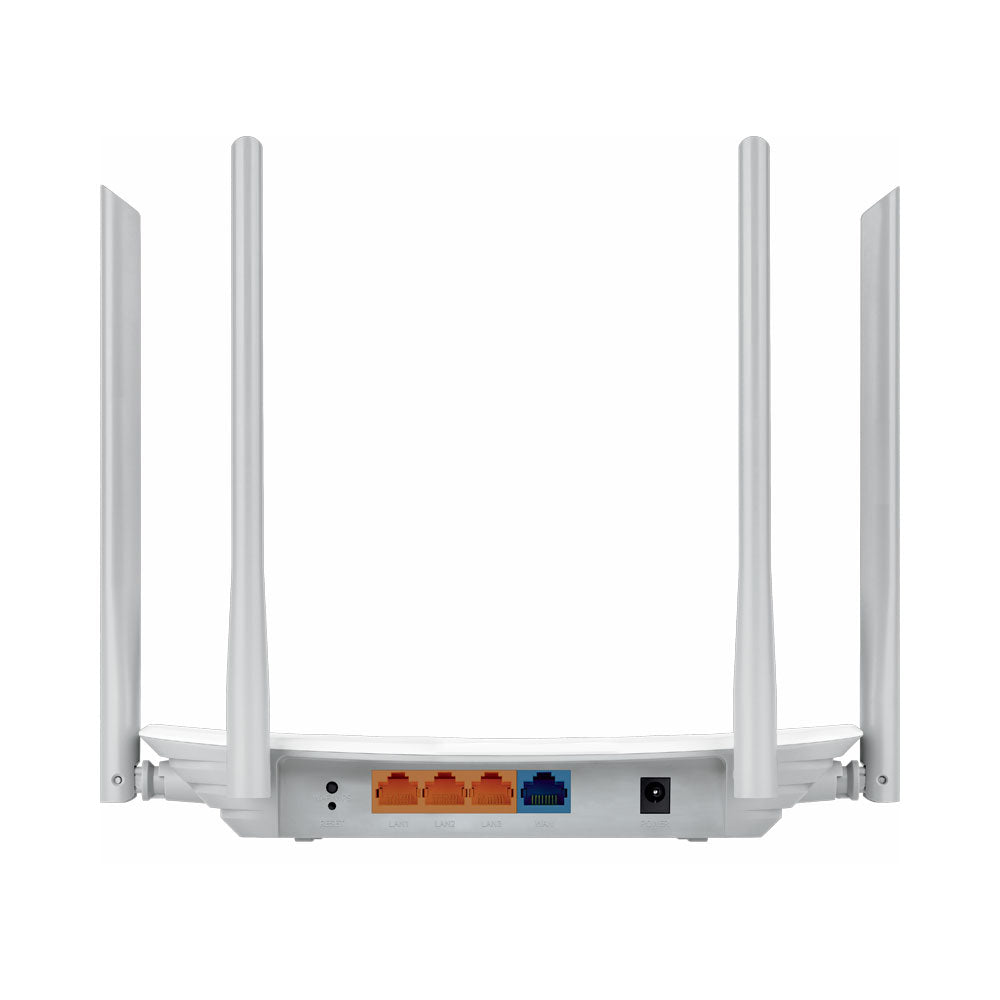

Interface1× 10/100/1000Mbps WAN Port
3× 10/100/1000Mbps LAN Ports
Antenna4× External Antennas
Dimensions ( W × D × H )230.0 × 144.0 × 37.0mm
Wireless Features
Frequency2.4GHz and 5.0GHz
Signal Rate2.4GHz: 300Mbps
5.0GHz: 867Mbps
Transmit PowerCE: <20 dBm(2.4GHz), <23 dBm (5.0GHz)
Wireless FunctionsEnable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Schedule, Wireless Statistics, Access Point mode
Wireless SecurityWPA/WPA2/WPA3 encryptions
Wireless StandardsIEEE 802.11ac/n/a 5.0GHz, IEEE 802.11b/g/n 2.4GHz, IEEE 802.11 k/v
Mesh TechnologyEasyMesh compatible and supports 802.11 k/v
Software Features
WAN TypeDynamic IP, Static IP, PPPoE, PPTP, L2TP
DHCPServer, Client, DHCP Client List, Address Reservation
Port ForwardingVritual Server, Port Triggering, DMZ, UPnP
Quality of ServiceWMM, Bandwidth Control
VPN Pass-ThroughPPTP, L2TP, IPSec
Access ControlParental Controls, Local Management Control, Host List, White List, Black List
Firewall SecurityDoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding
ManagementLocal management: WebGUI, Aginet app
Remote management: TR-069, TR-181, TR-111, TR-143, Aginet ACS
ProtocolsSupports IPv4 and IPv6
Others
Package ContentsAC1200 Wireless Dual Band Gigabit Router EC220-G5
Power Supply Unit
RJ45 Ethernet Cable
Quick Installation Guide
EnvironmentOperating Temperature: 0°C–40°C
Storage Temperature: -40°C–60°C
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
CertificationsCE, RoHS
RequirementsMicrosoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other Java-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
