TP-Link AC1200 Wireless Dual Band Router (Archer C50)
Supports 802.11ac standard - the next generation of Wi-Fi. Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1.2Gbps of total available bandwidth. 4 external antennas provide stable wireless connections and optimal coverage. Easy network management at your fingertips with TP-Link Tether
Features
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1.2Gbps of total available bandwidth
- 4 external antennas provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
Wireless
StandardsWi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
Wi-Fi SpeedsAC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
Wi-Fi Range3 Bedroom Houses

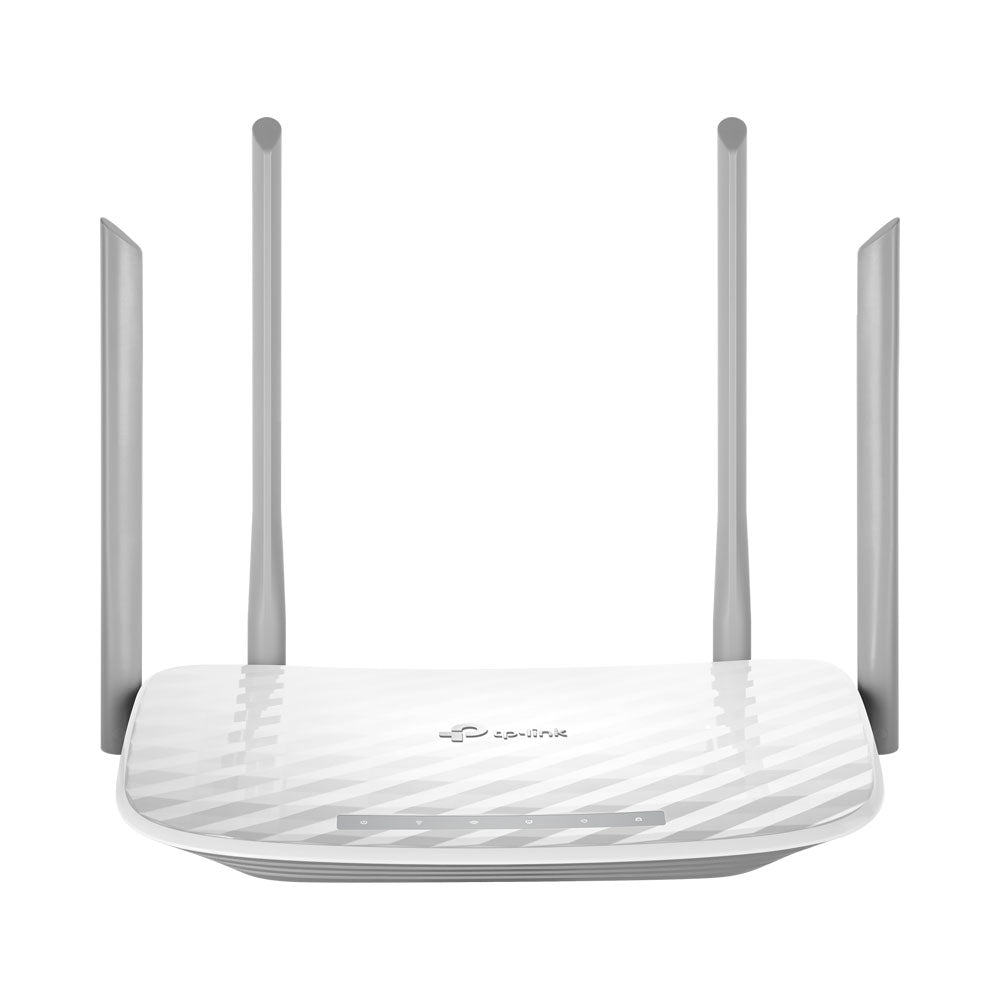

4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand Wi-Fi range
Wi-Fi CapacityMedium
Dual-Band
Allocate devices to different bands for optimal performance
2×2 Mu-Mimo
Simultaneously communicates with multiple MU-MIMO clients
Working ModesRouter Mode
Access Point Mode
Range Extender Mode
Hardware
ProcessorSingle-Core CPU

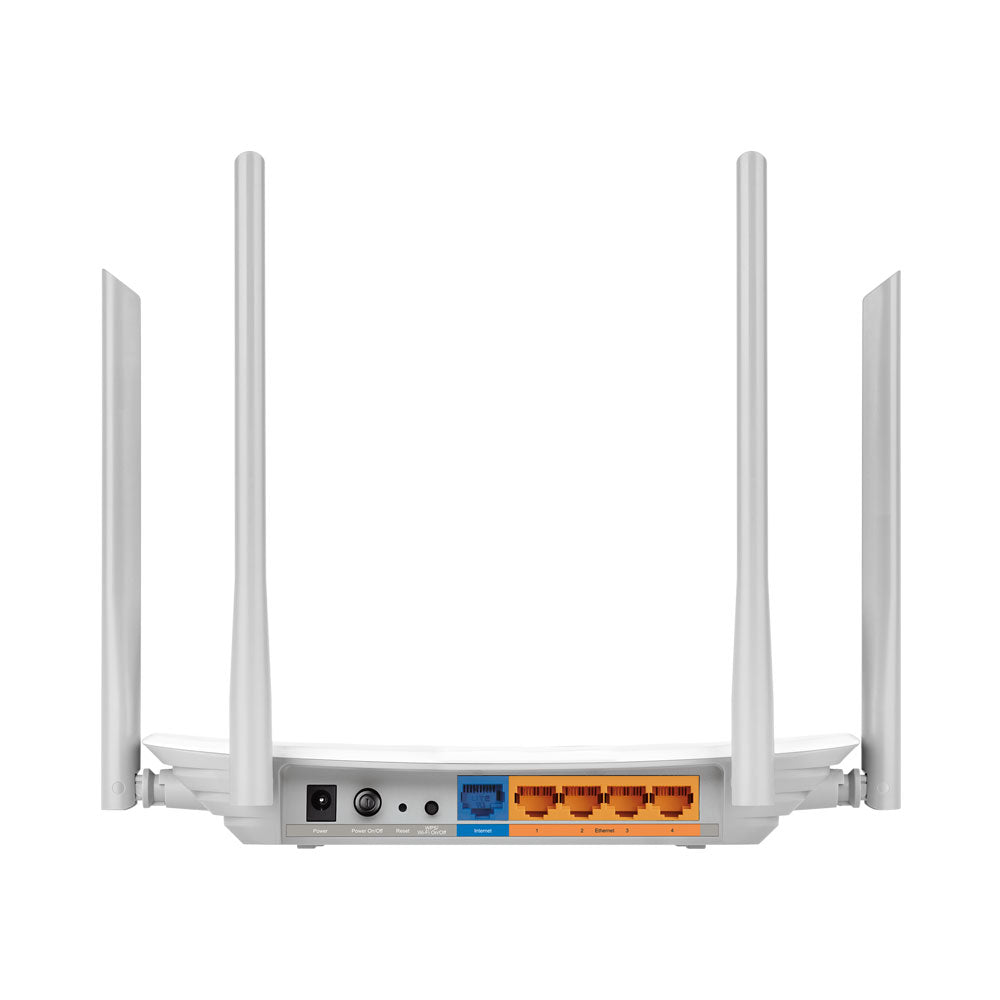

Ethernet Ports1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
ButtonsWPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power9 V ⎓ 0.85 A
Security
Wi-Fi EncryptionWPA
Wpa2
Wap3
WPA/WPA2-Enterprise (802.1x)
Network SecuritySPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Software
ProtocolsIPv4
IPv6
Parental ControlsURL Filtering
Time Controls
WAN TypesDynamic IP
Static IP
PPPoE
Pptp
L2Tp
Quality of ServiceQoS by Device
NAT ForwardingPort Forwarding
Port Triggering
Dmz
UPnP
IPTVIGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCPAddress Reservation
DHCP Client List
Server
Ddnsno-Ip
DynDNS
ManagementTether App
Webpage
Physical
Dimensions (W×D×H)9.1 × 5.7 × 1.5 in
(229.9 × 144.2 × 36.9 mm)
Package ContentsWi-Fi Router Archer C50
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Other
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
CertificationsFCC, CE, RoHS
EnvironmentOperating Temperature: 0°C~40°C (32℉ ~104℉)
Storage Temperature: -40°C~70°C (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Test Data
Wi-Fi Transmission PowerCE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
Fcc:
<30dBm(2.4GHz & 5GHz)
Wi-Fi Reception Sensitivity5GHz:
11a 54M: -73dBm
11ac VHT20 MCS8: -68dBm
11ac VHT40 MCS9: -64dBm
11ac VHT80 MCS9: -60dBm
2.4GHz:
11g 54M: -76dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
